BMW 120d: unsure where to start with maintenance?

We inspected this BMW 120d from the battery and underside to its brakes and tyres. The battery needed charging, and there were marks inside the undertray to investigate. Brake fluid, differential oil and transmission fluid were also serviced.

2013 BMW 120d F20

01 / NHC MOTORS

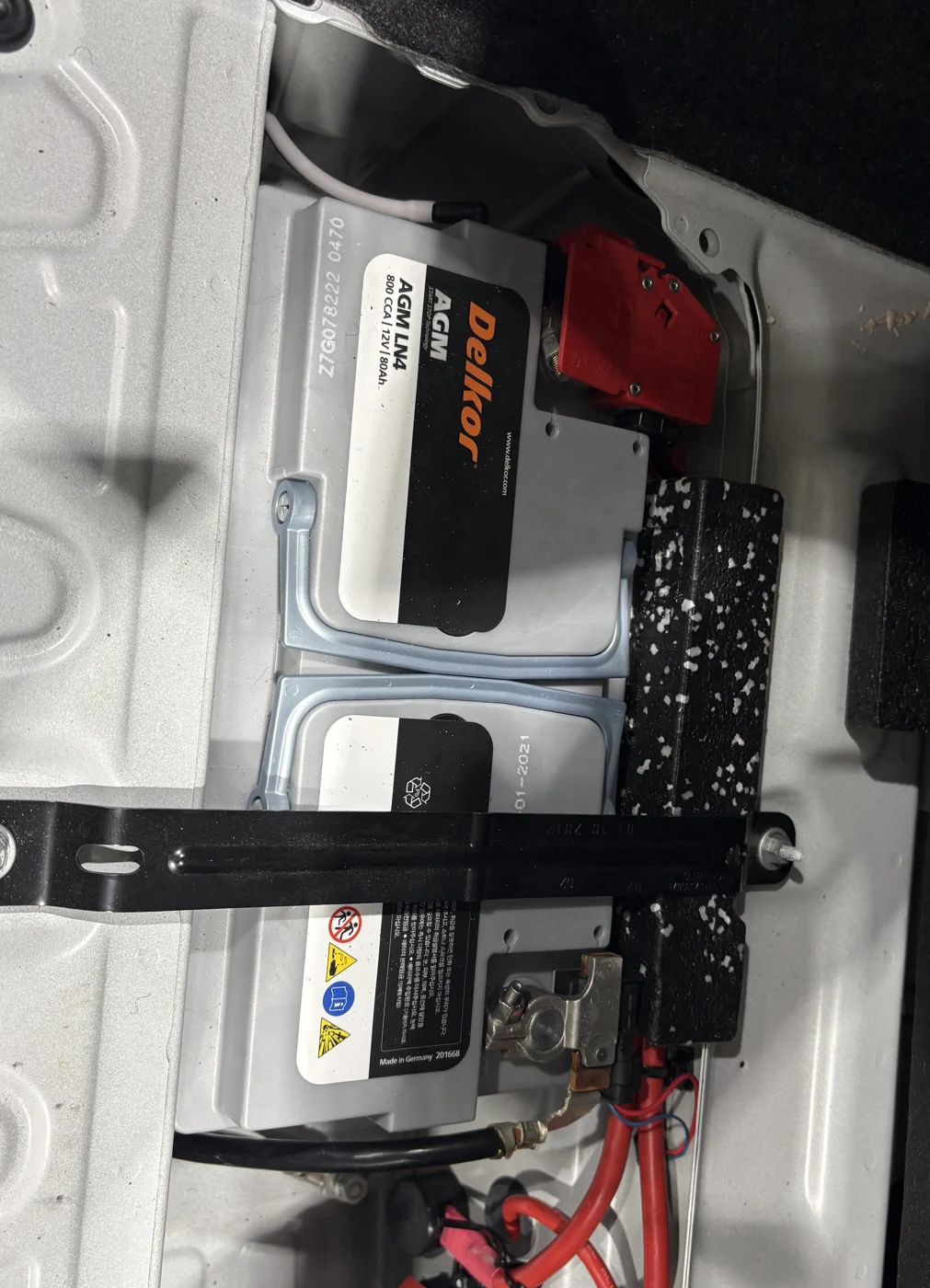

The battery result called for charging, not replacement

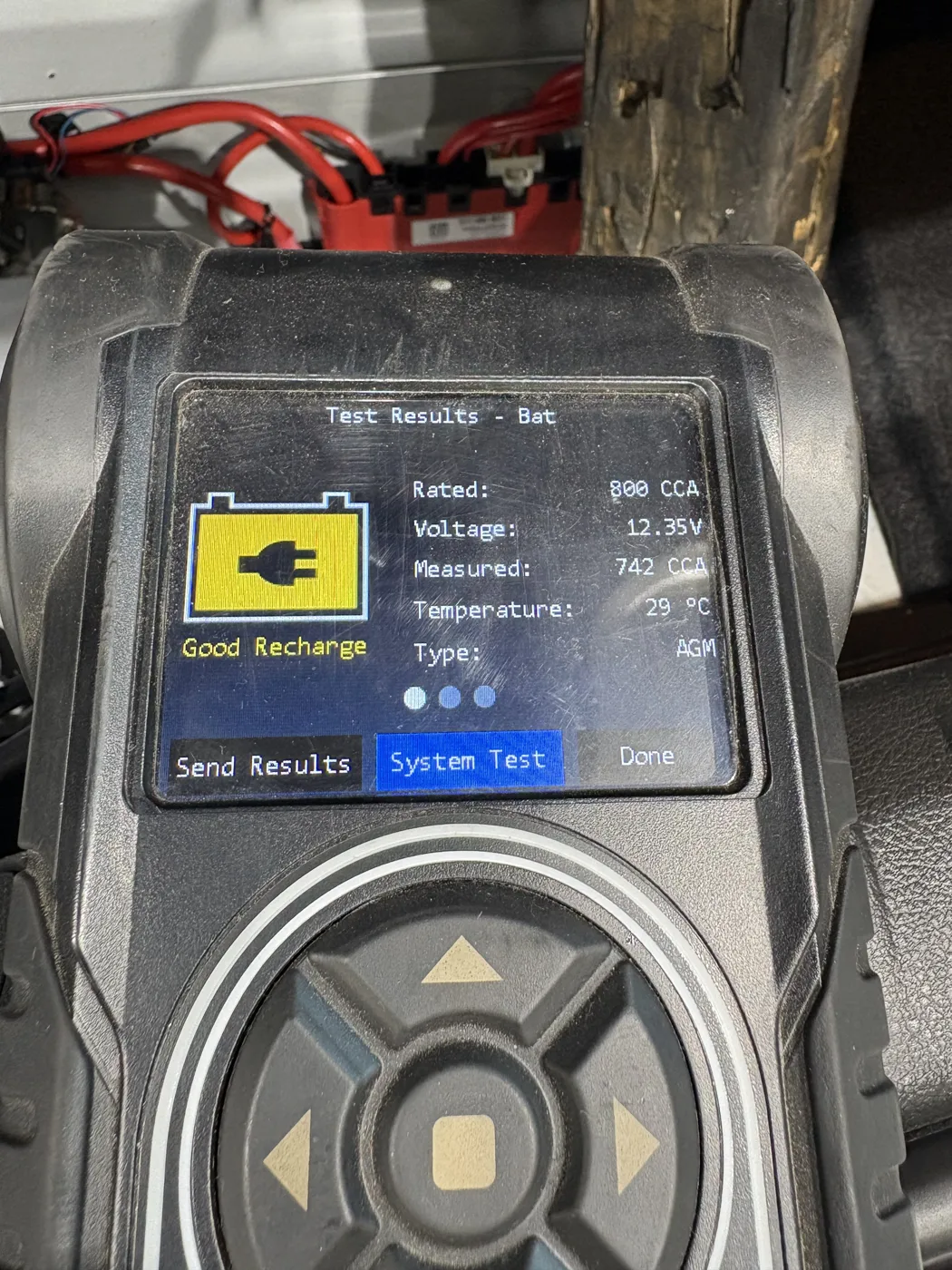

The Midtronics screen showed a rating of 800CCA, a measured 742CCA, 12.35V and 29°C. Its result was Good Recharge.

Good Recharge indicates a battery in good condition that needs charging. Rather than replacing it immediately, check its charge level and operating conditions and retest after charging when needed.

Check the charge level and retest this battery.

02 / NHC MOTORS

Some areas can only be seen with the undertray removed

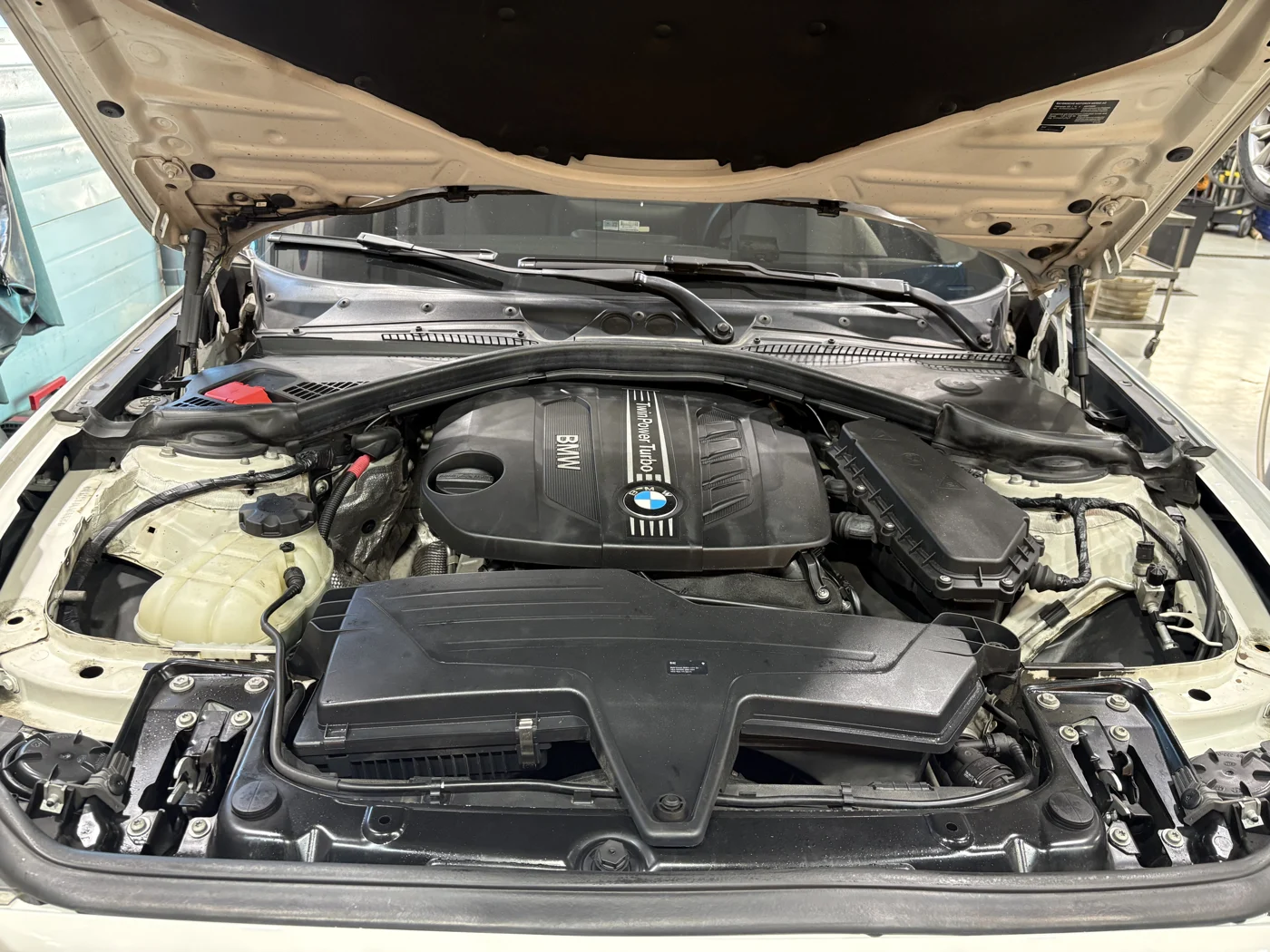

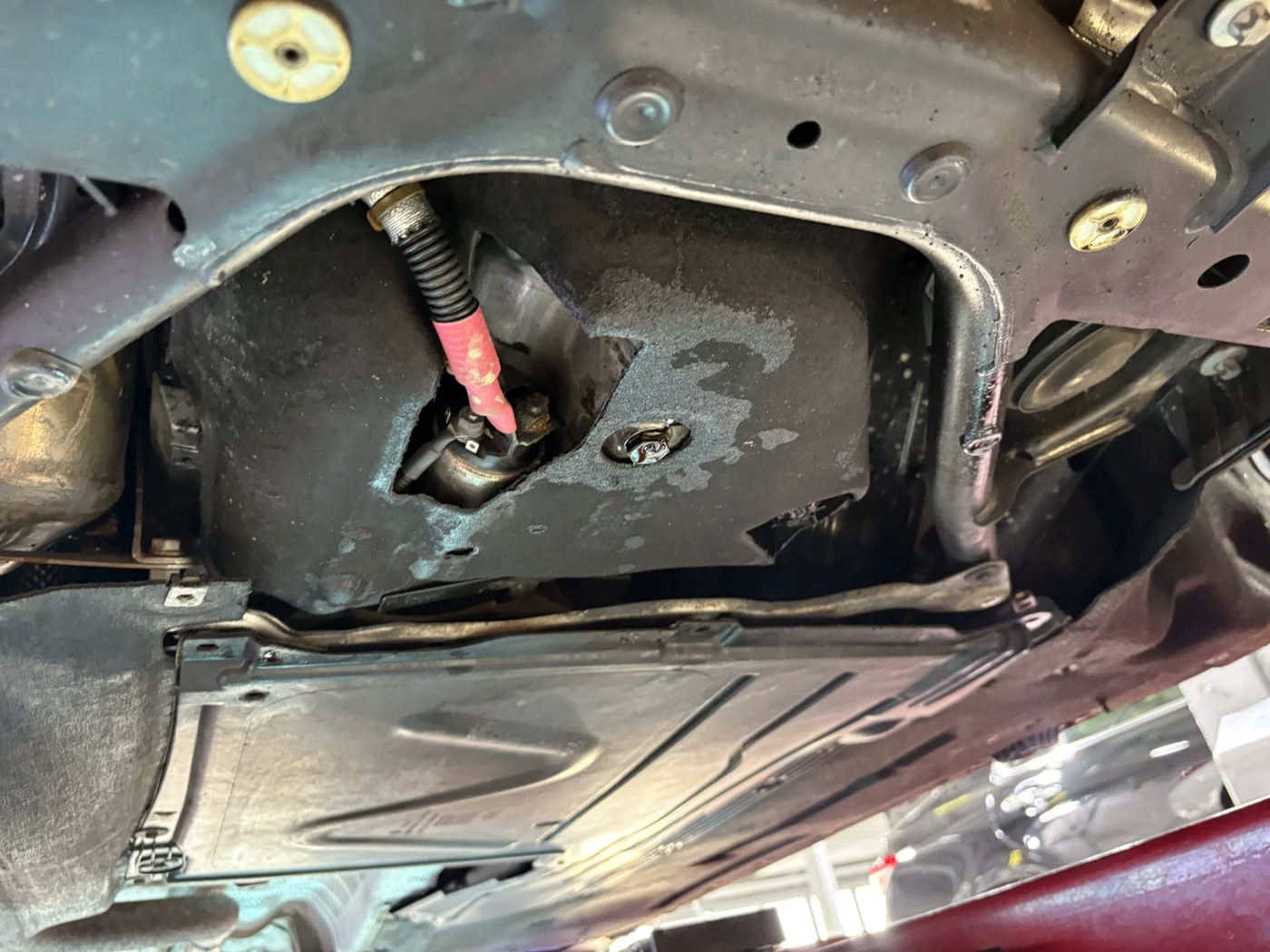

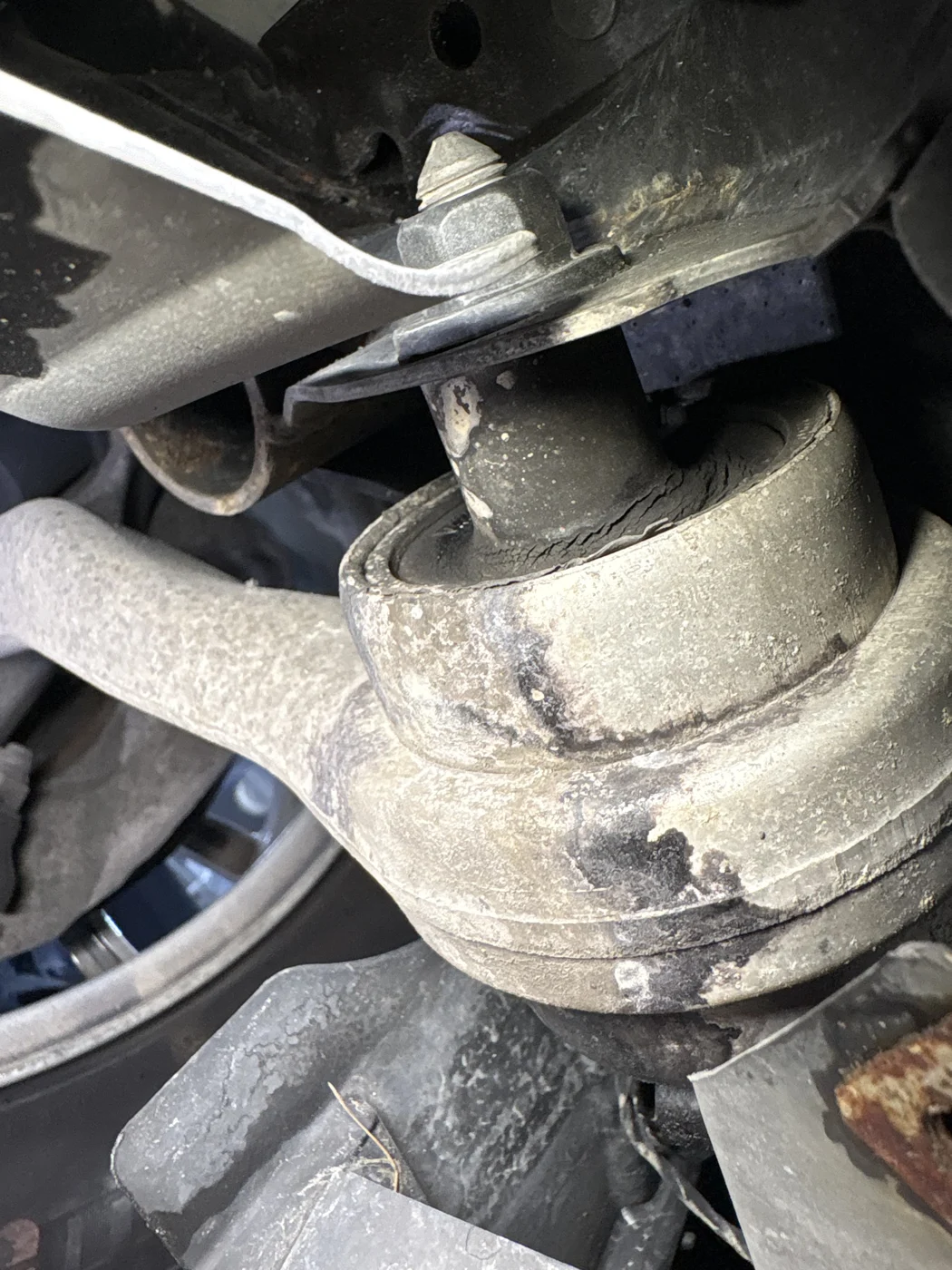

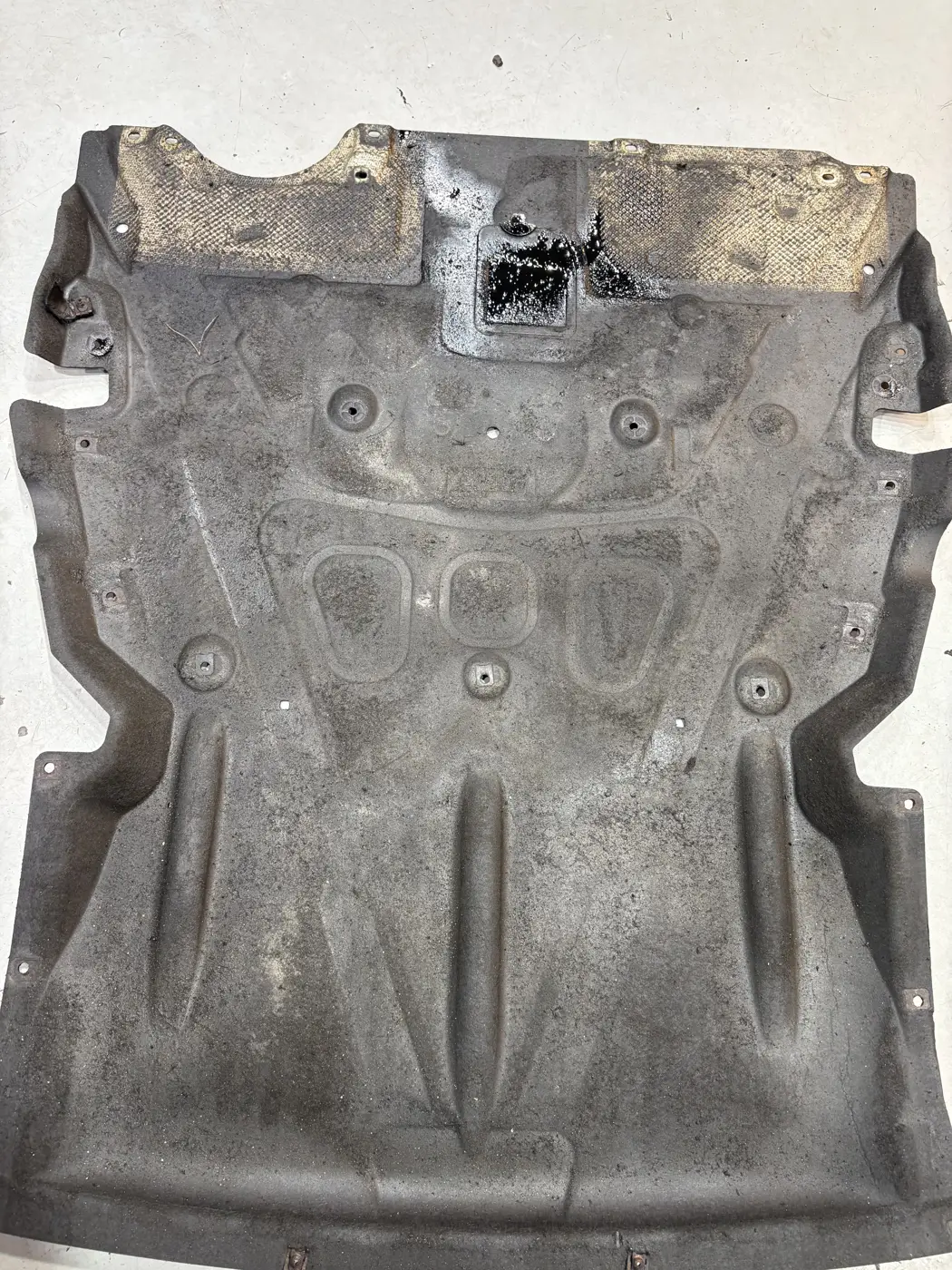

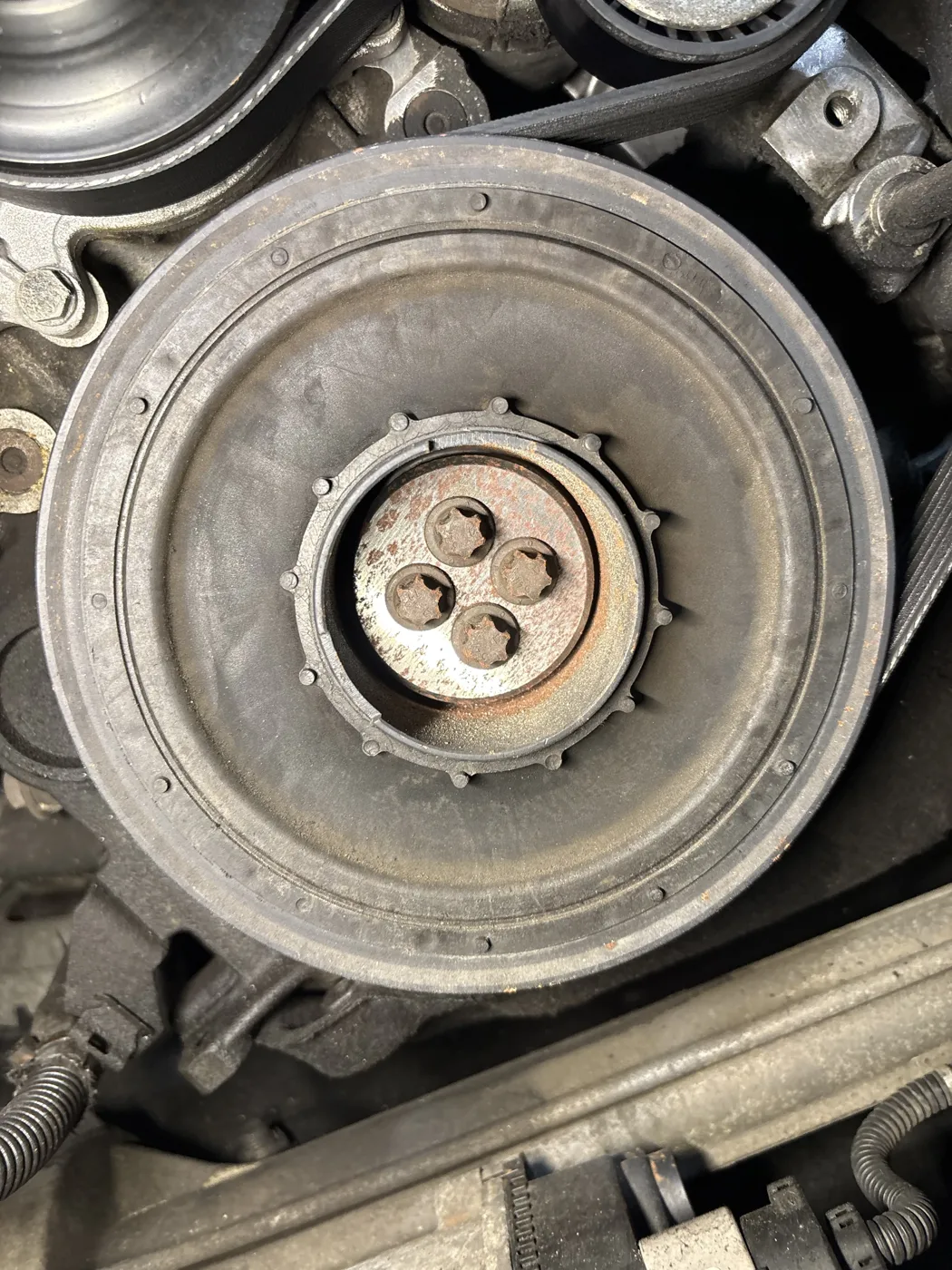

We inspected the upper engine, belt area and underside separately. The undertray was removed to check internal marks and connections.

A wet surface needs investigation to distinguish ongoing leakage from residue left by earlier work. The view outside the cover is not enough to select replacement parts.

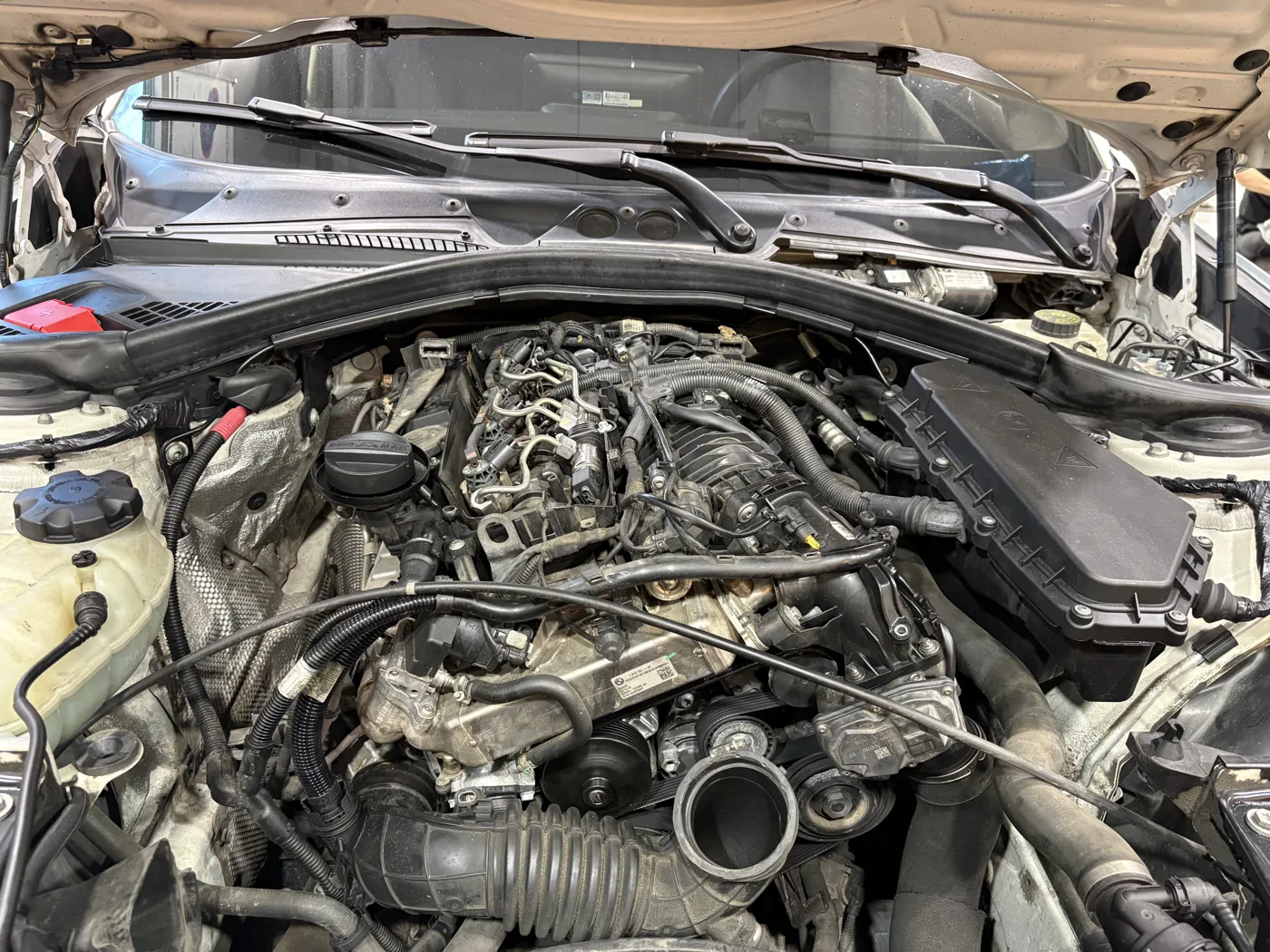

Inspecting with the upper engine area opened

03 / NHC MOTORS

Checking brakes and tyres directly

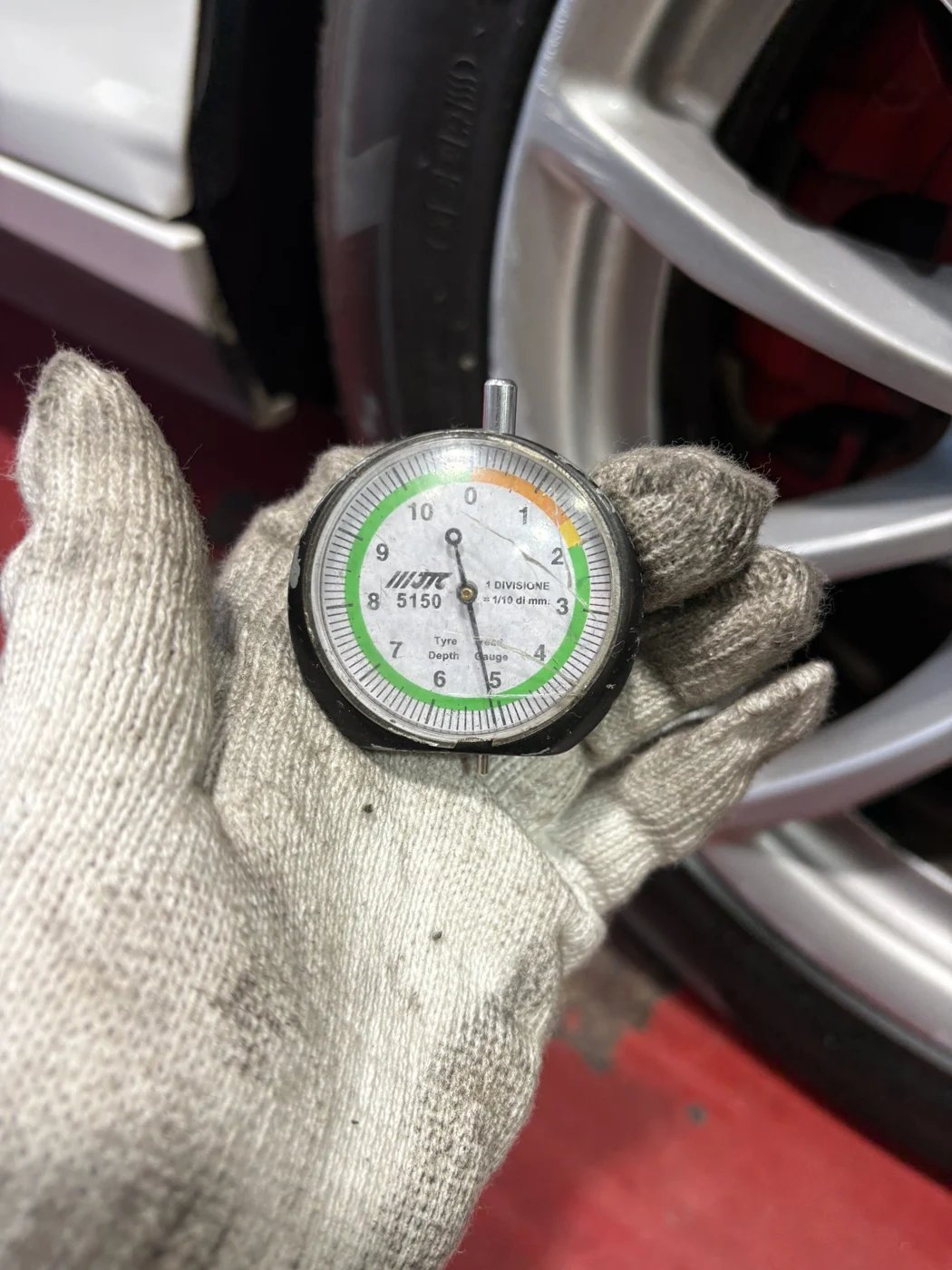

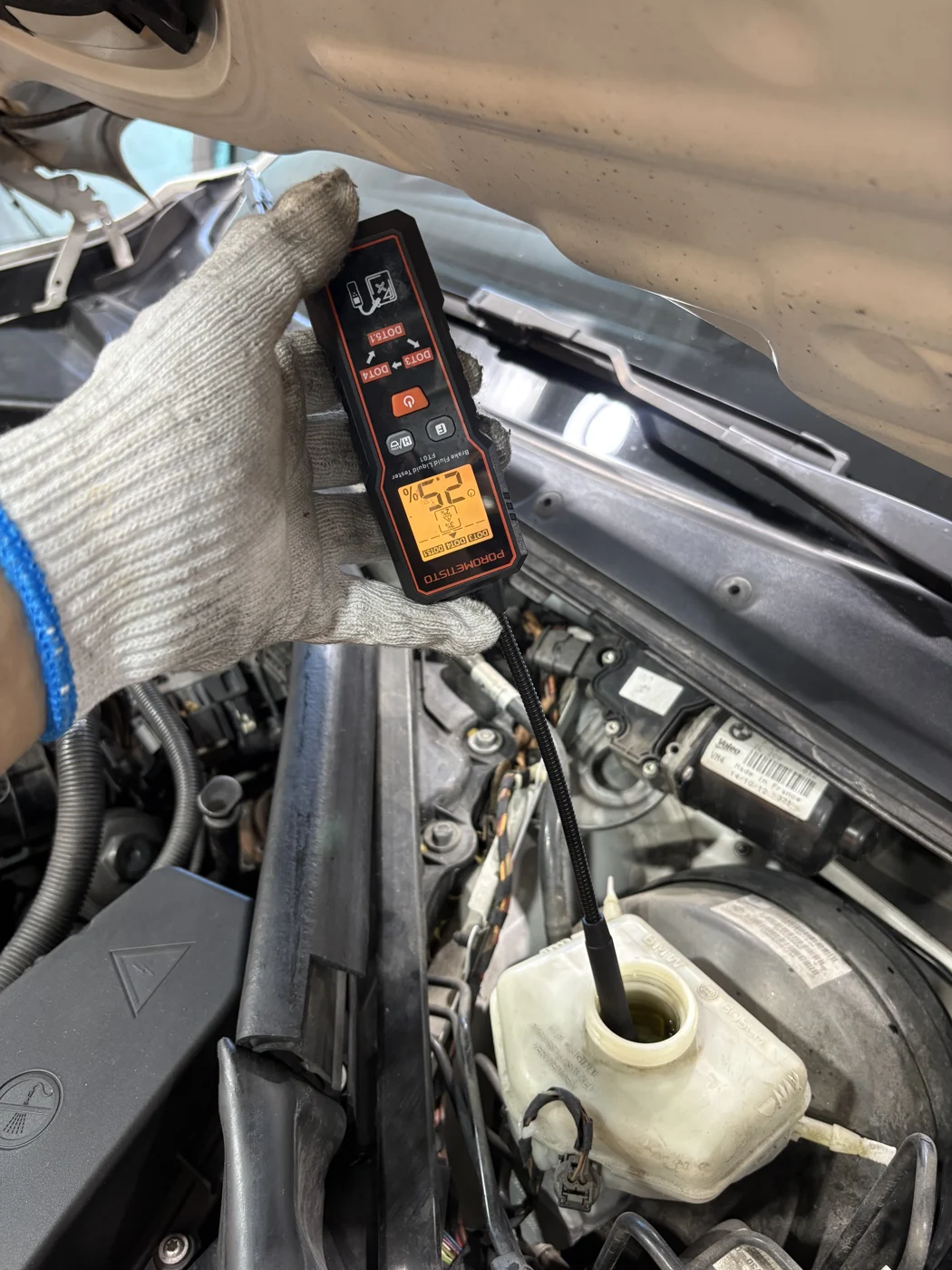

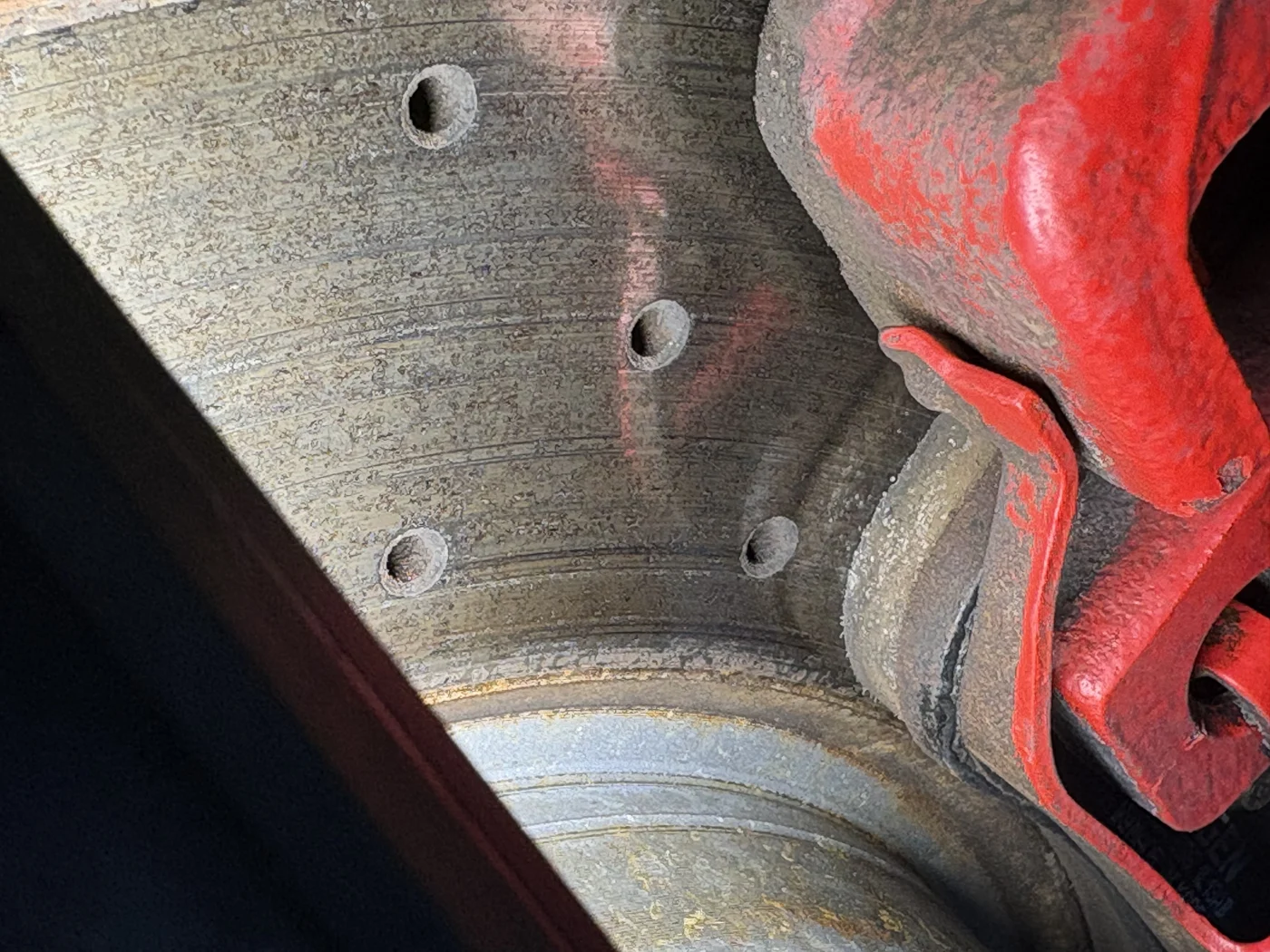

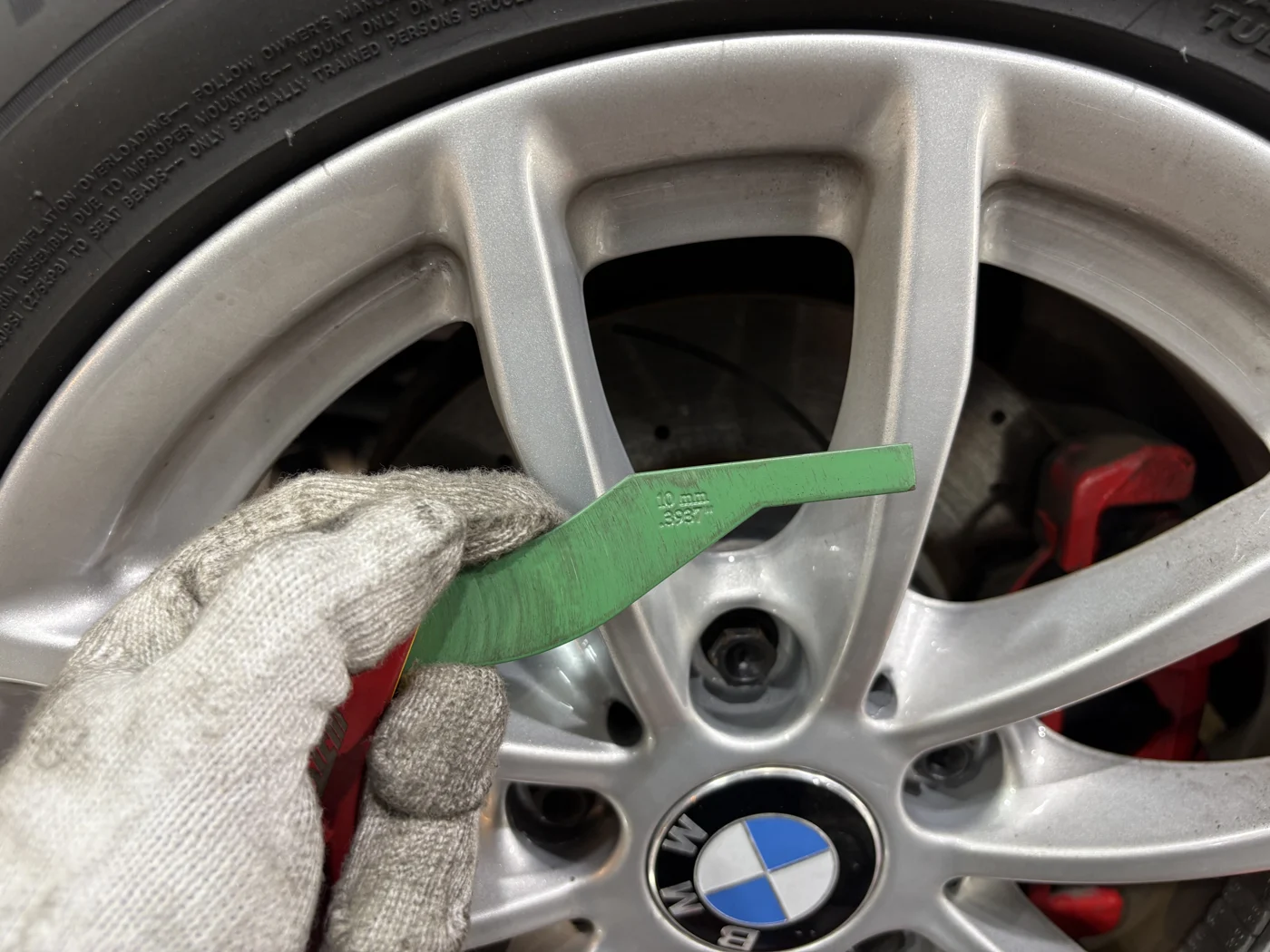

We checked disc surfaces and the pad area, measured tyre tread depth and pressures, and inspected brake-fluid condition separately.

Tread that looks sufficient does not mean that all four tyres are in similar condition. Individual tread-depth and pressure checks help identify maintenance needs.

04 / NHC MOTORS

Brake fluid, differential oil and transmission fluid replacement

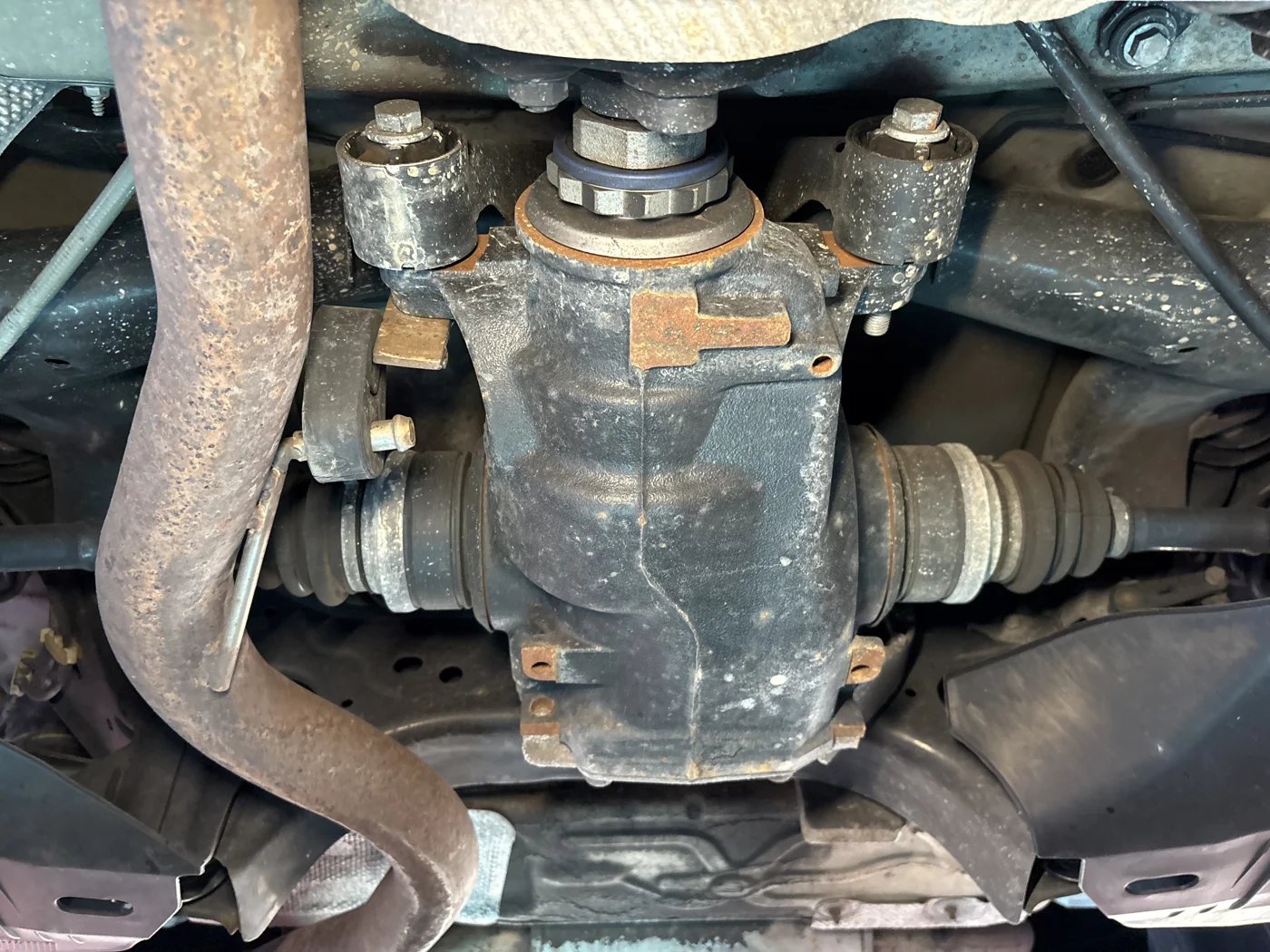

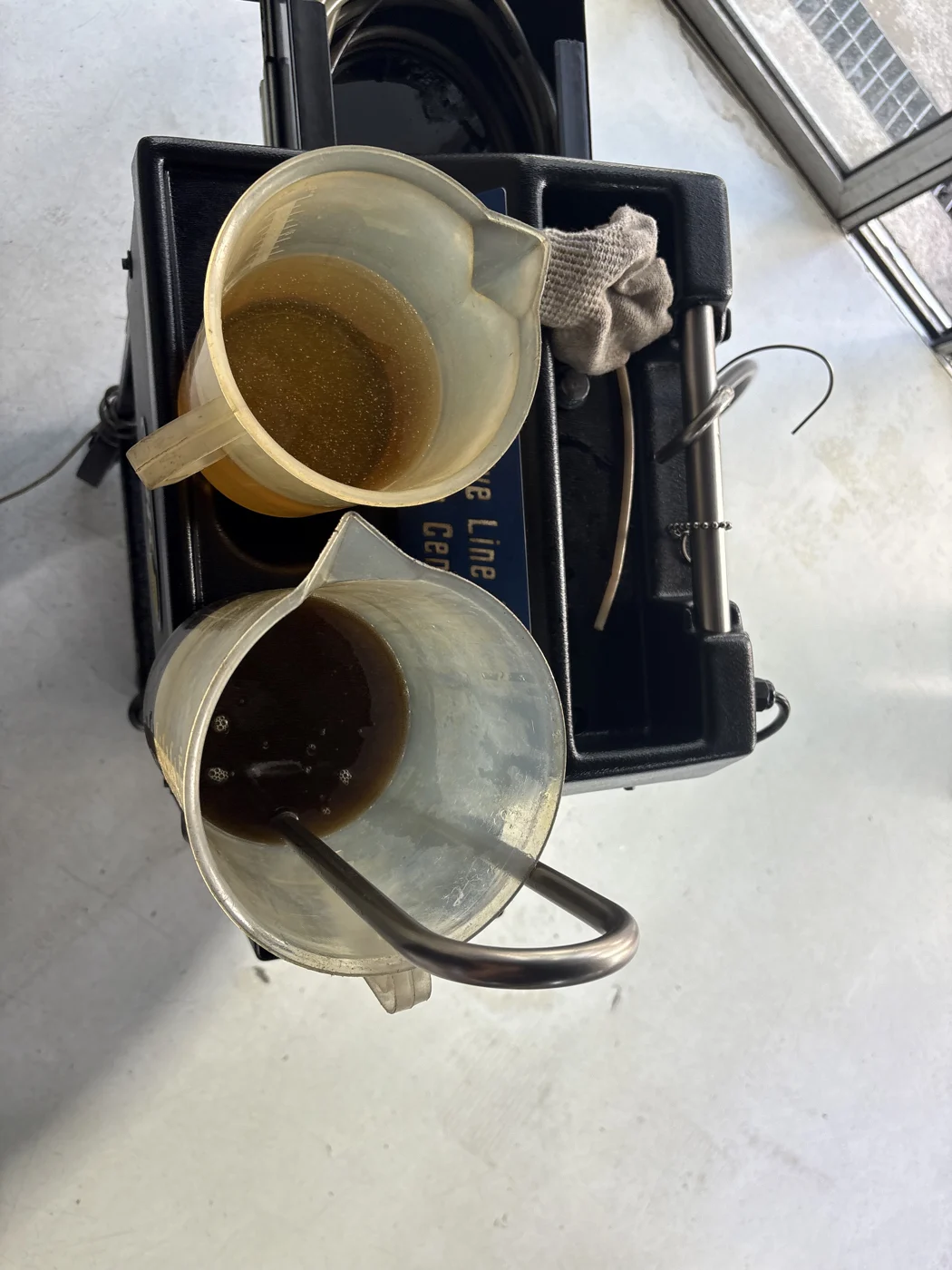

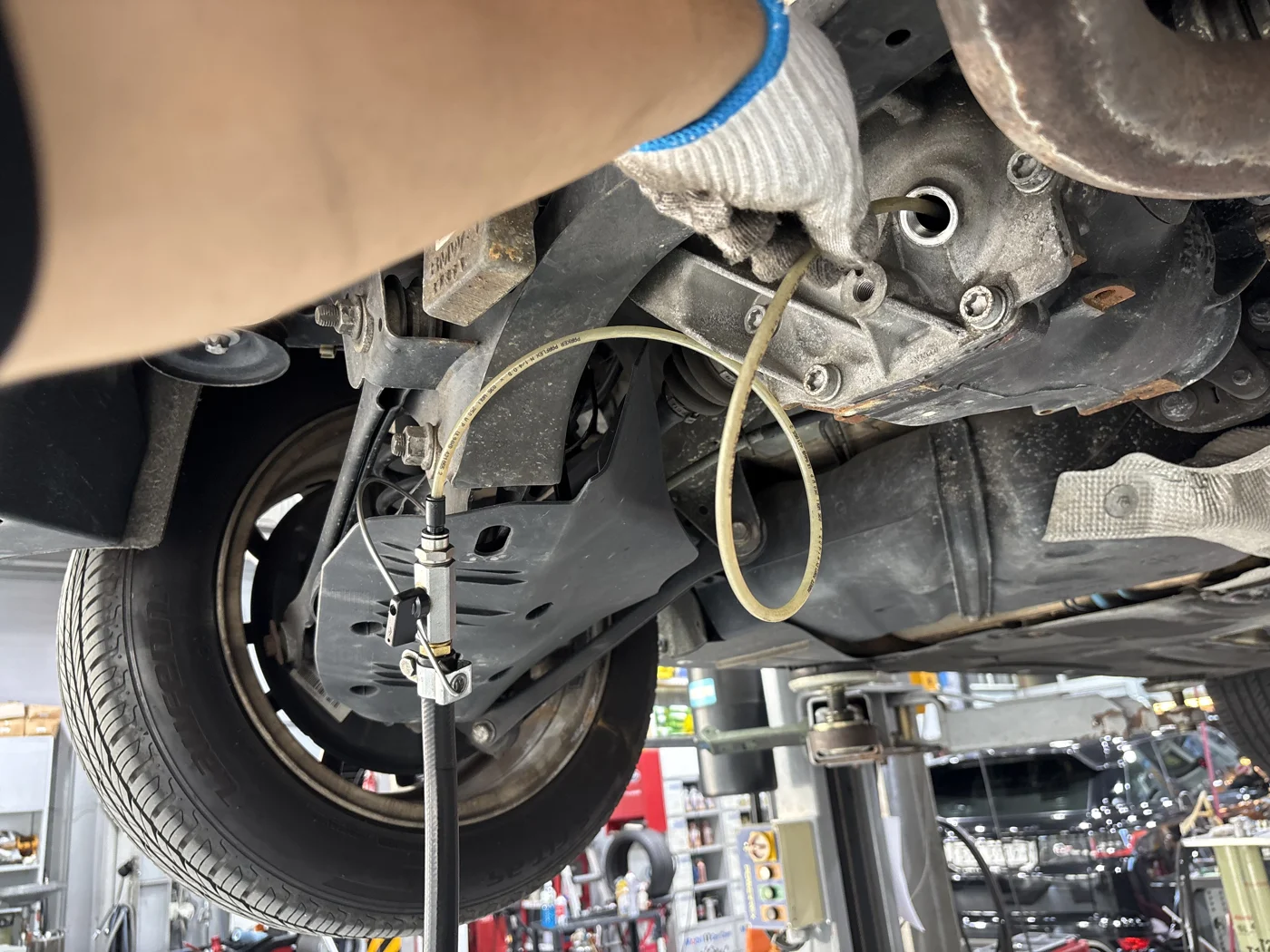

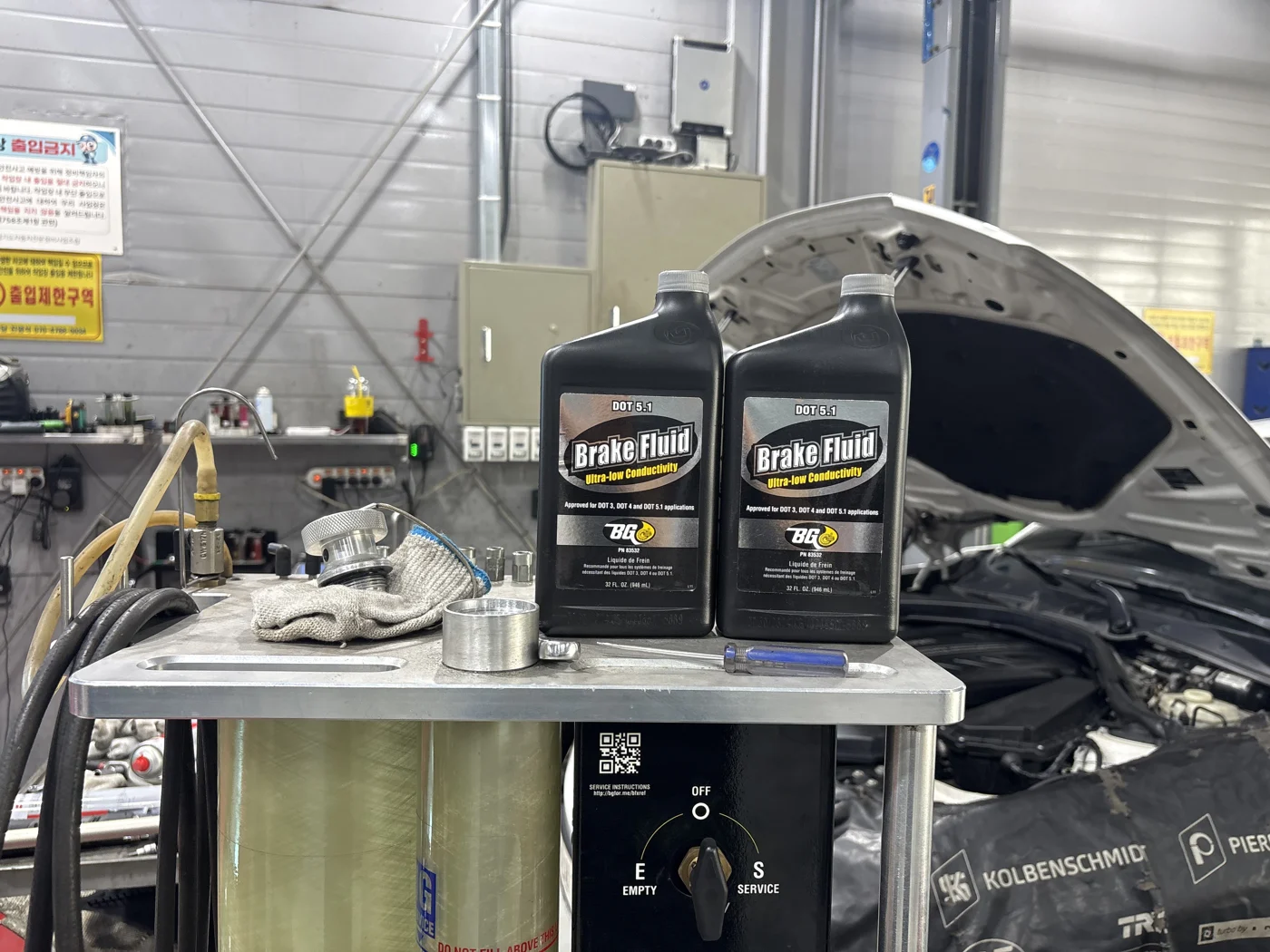

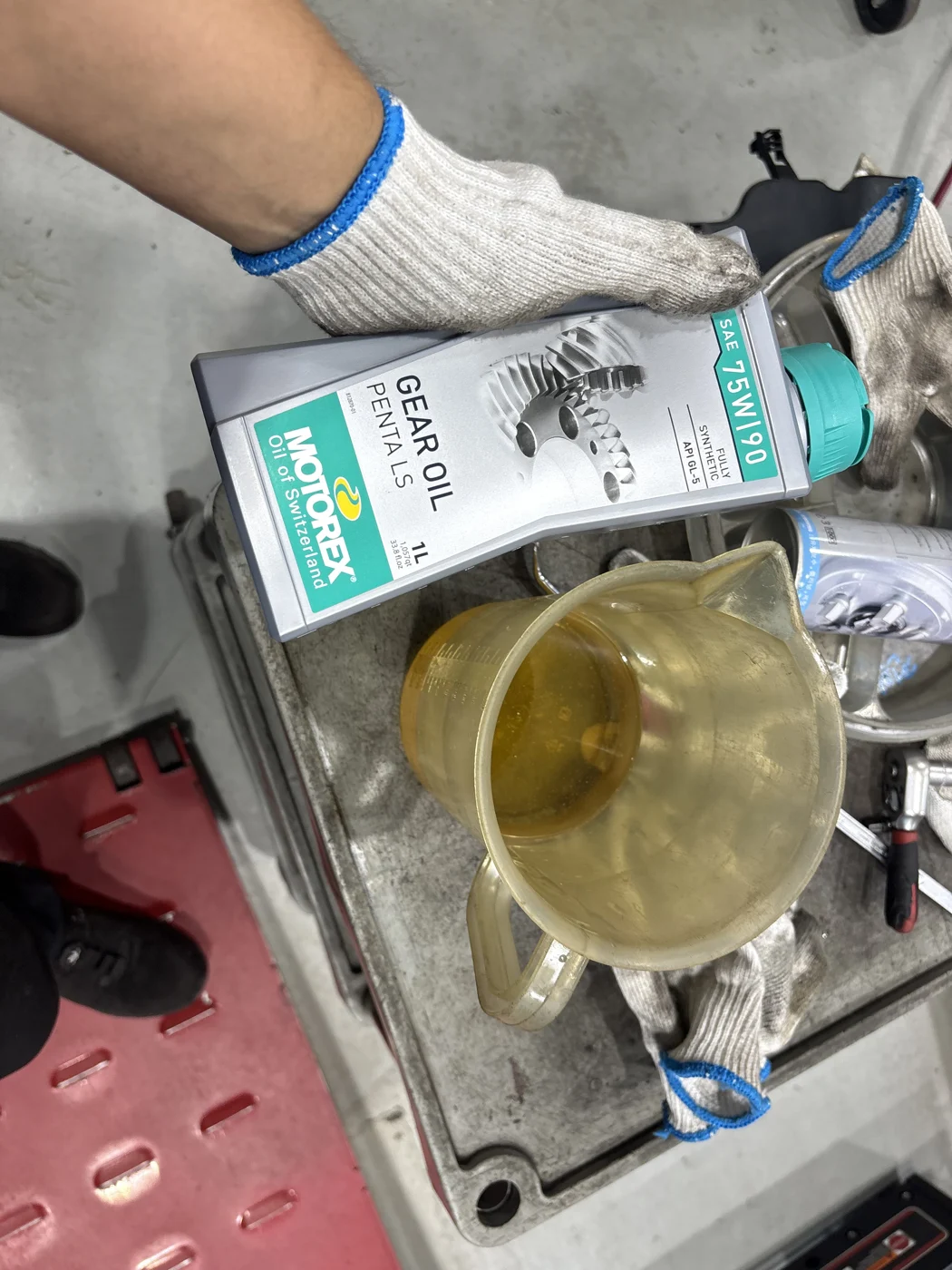

Brake fluid was serviced with exchange equipment connected to bleed lines at the wheels. Differential oil was also serviced while checking the drained fluid.

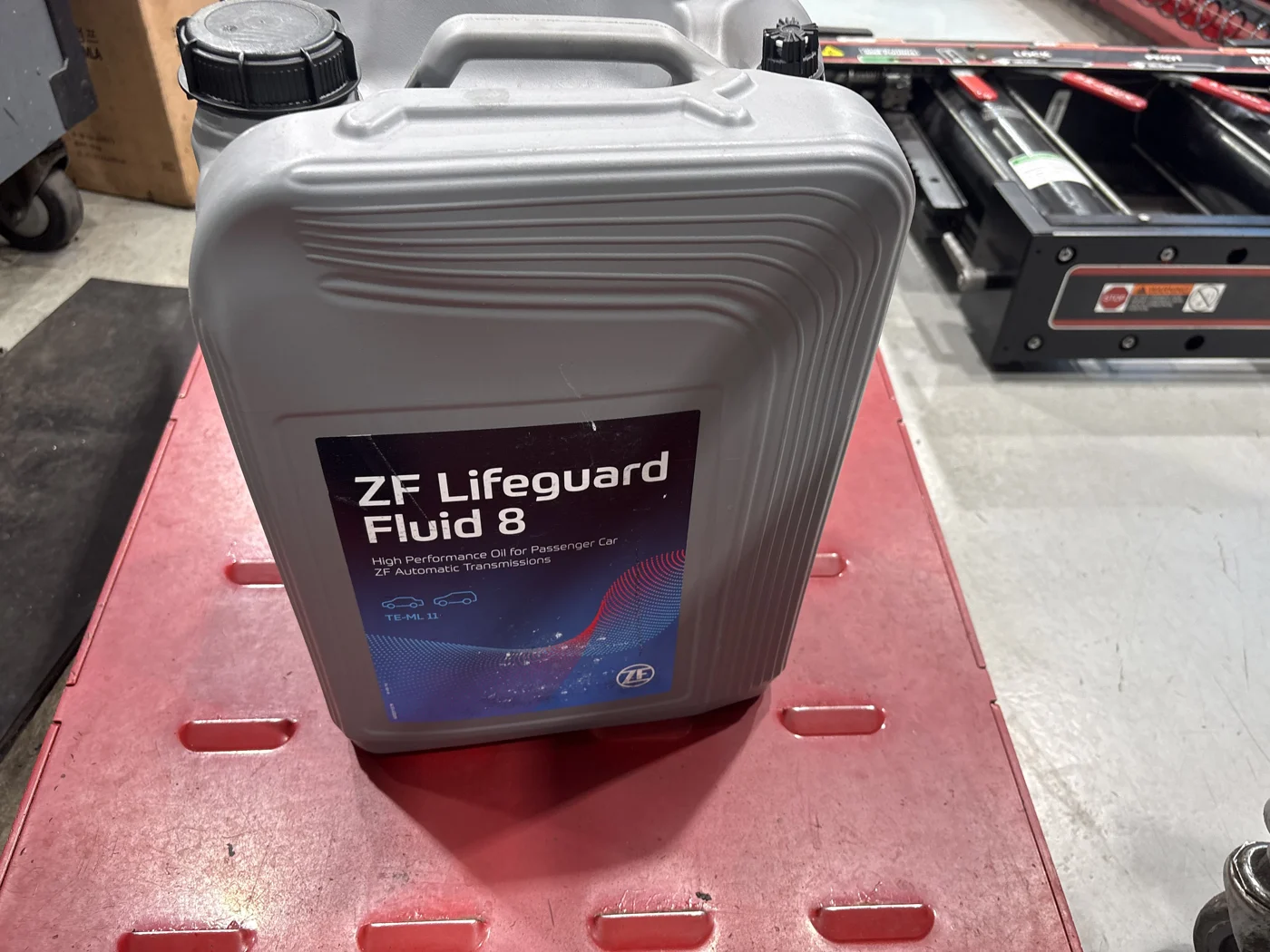

We used ZF LifeguardFluid 8 and fluid-exchange equipment for the transmission. The photographs show the change in oil colour through the observation windows as the exchange progressed.

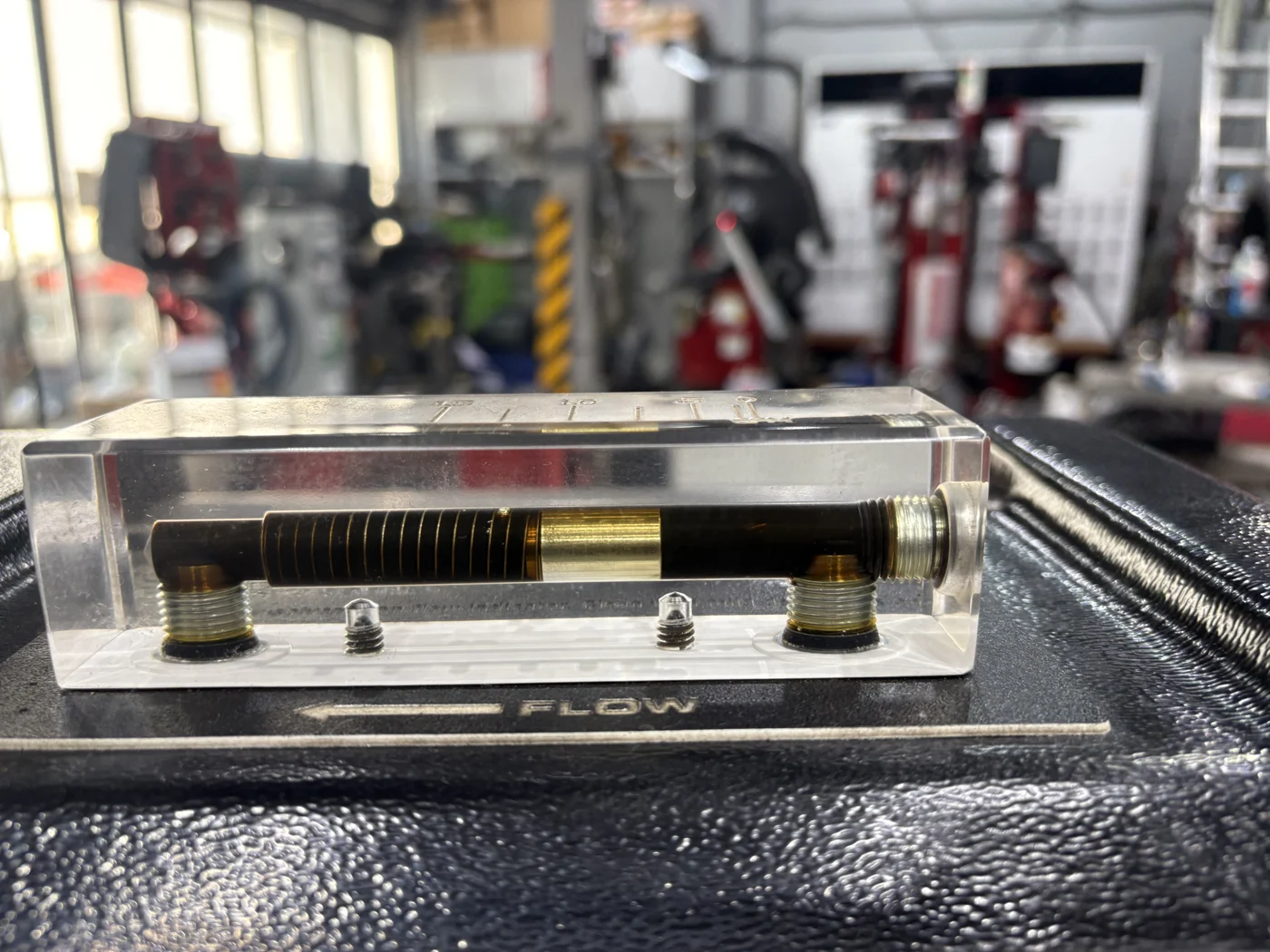

Exchange-equipment observation window during the work

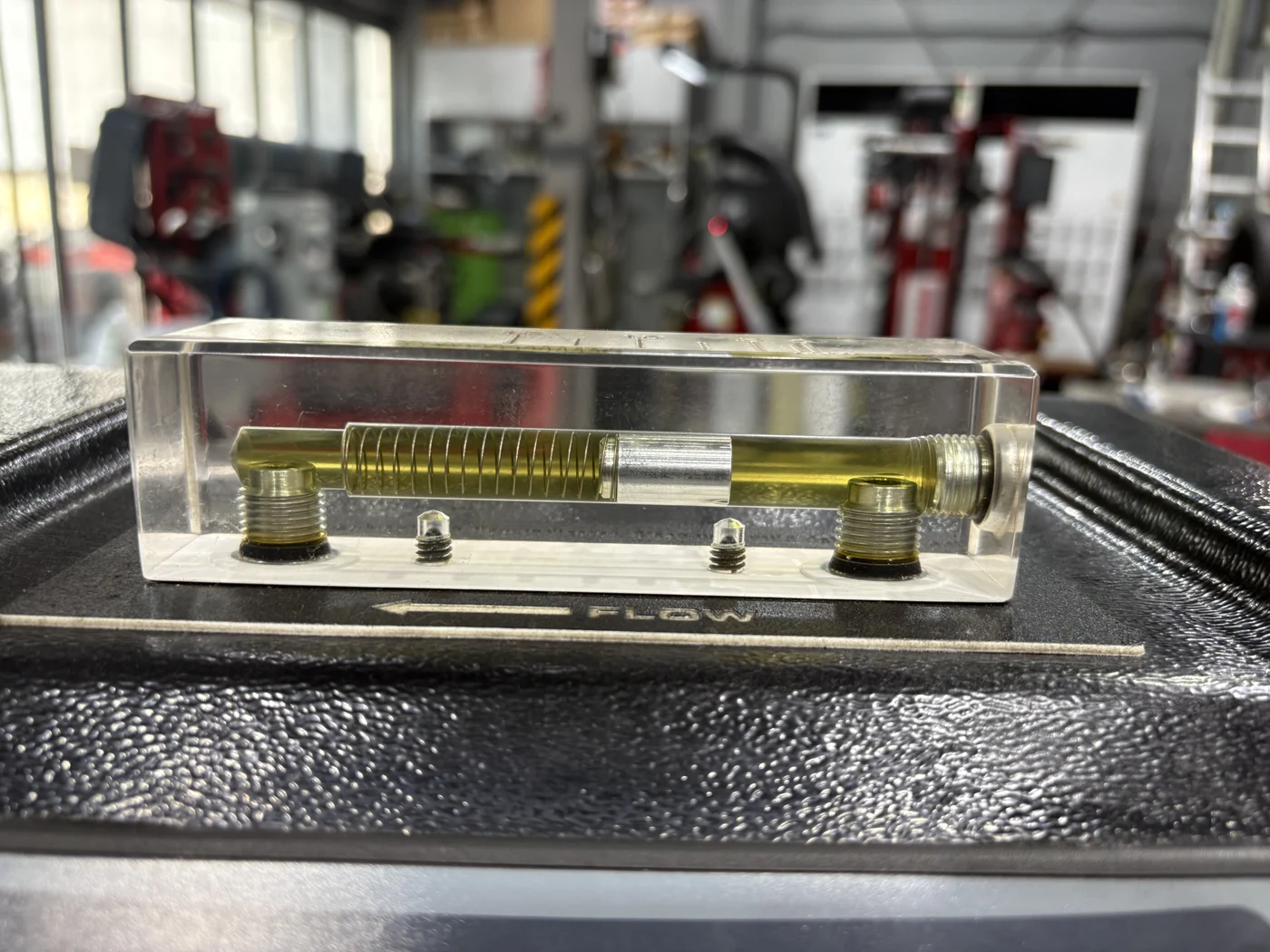

Observation window as the exchange progressed

05 / NHC MOTORS

Please bring your previous service records

This inspection covered the battery, brakes, tyres, engine, underside and fluids. Recording inspection findings separately from completed work makes changes easier to compare at the next visit.

If you are establishing the car's maintenance history, please bring previous service invoices. They help distinguish completed work from what is still needed.

Questions before booking

Does Good Recharge mean I should replace the battery?

The tester reports battery condition together with a need to recharge. This differs from a replacement result. Charge level, starting behaviour and a retest after charging, when needed, should be considered together.

Does a total inspection mean replacing every part with a finding?

We explain the results and priorities first, separating items needing prompt action, monitoring or additional diagnosis.

Discuss a total inspection to plan your 120d maintenance

Tell us the year, mileage and service history. We will inspect its current condition and help plan further maintenance.

We explain the work and cost before proceeding with your agreement.
