Range Rover Vogue: at what height should alignment be set?

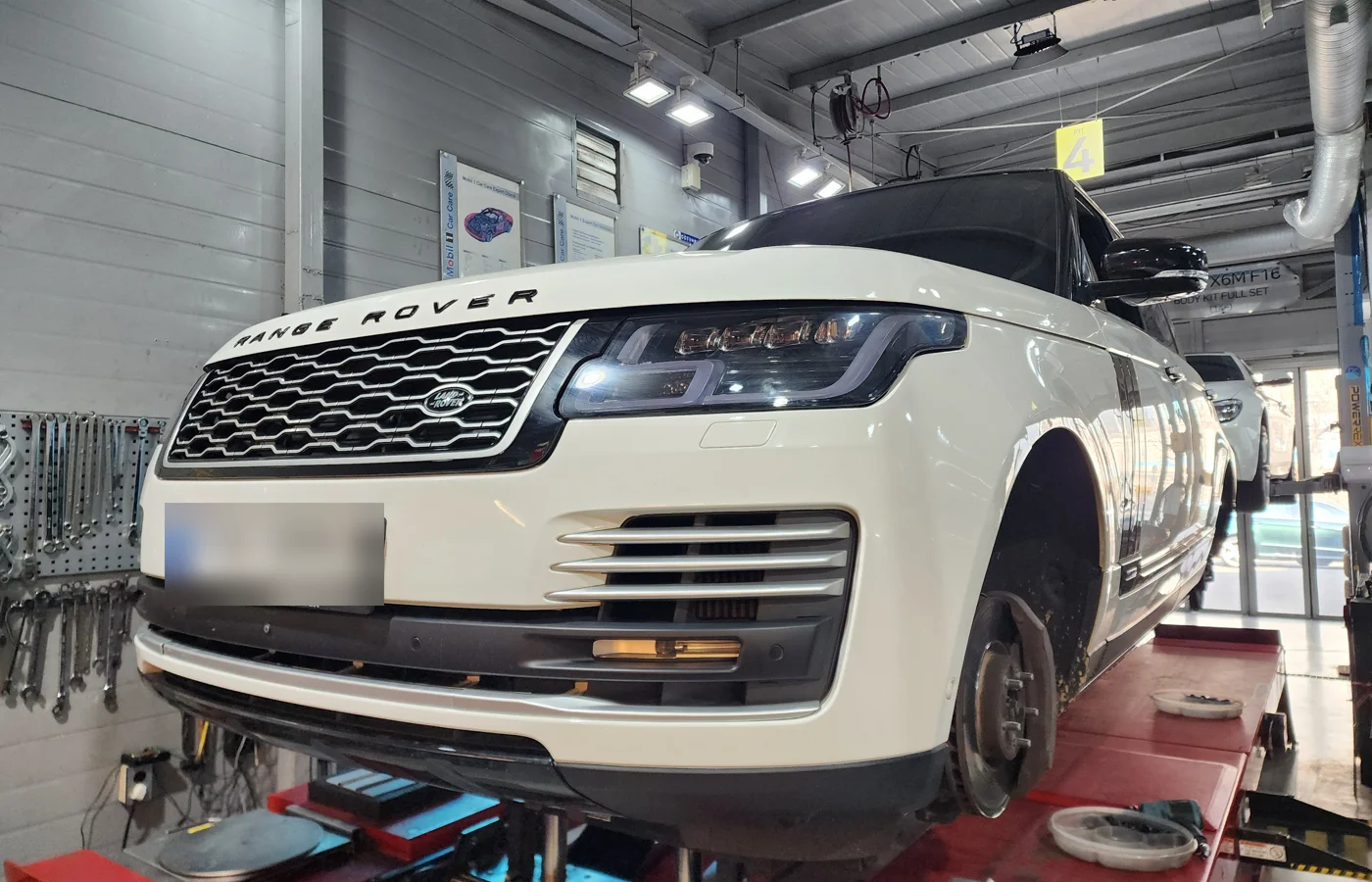

On a vehicle with adjustable air suspension, the height reference is part of the job. This Vogue received height calibration, suspension tightening and four-wheel alignment.

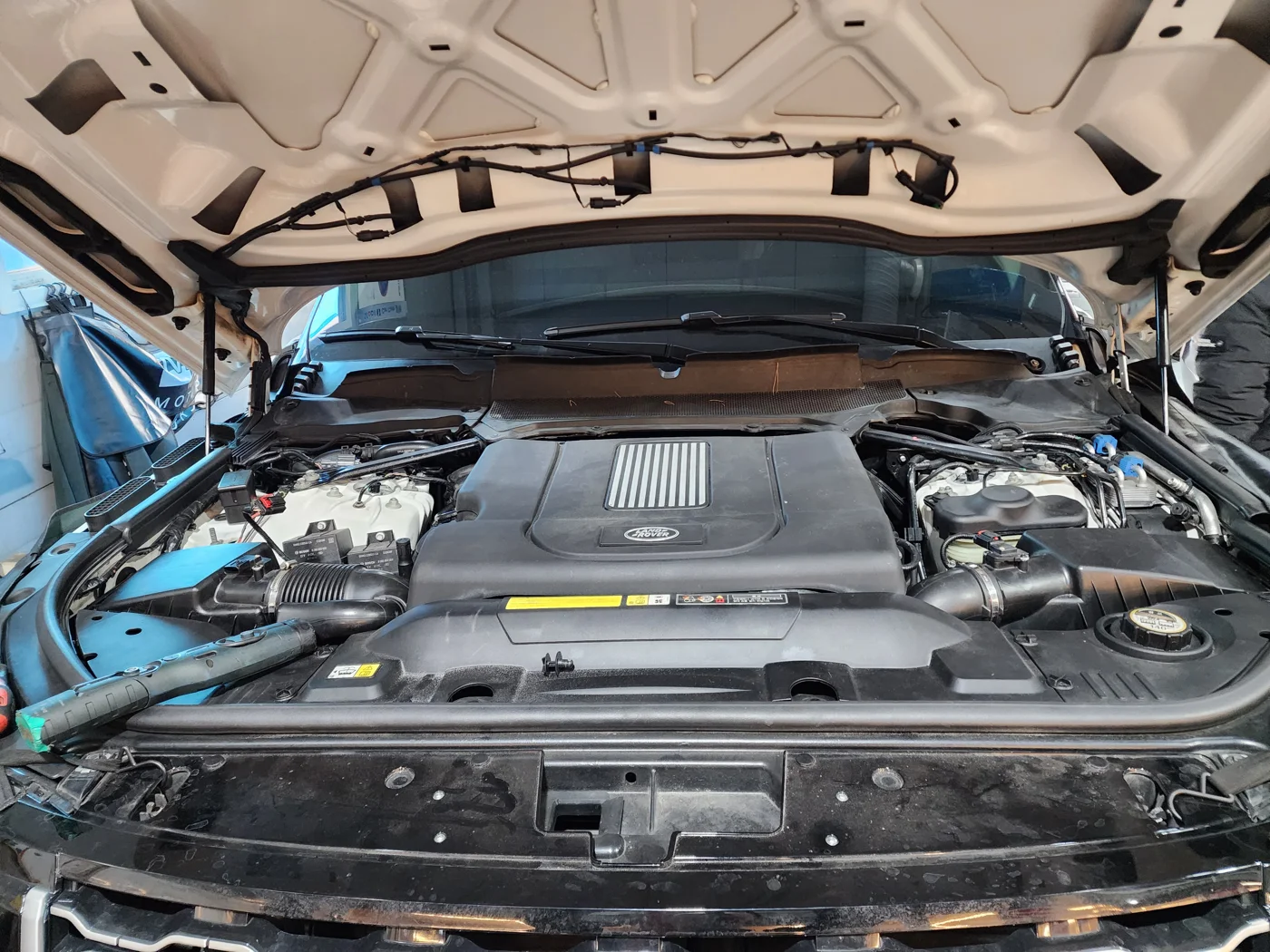

Vehicle: 2017 Range Rover Vogue 4.4d
Findings: excessive front toe-in and rear toe-out
Work: air-suspension height calibration, ride-height tightening and wheel alignment
Result: front toe 0.7 / 0.8 mm; rear toe 2.0 / 2.1 mm
01 / NHC MOTORS
Establish the suspension height reference
A Range Rover can raise and lower its body. Suspension geometry changes with that movement, so alignment needs the prescribed measurement condition.

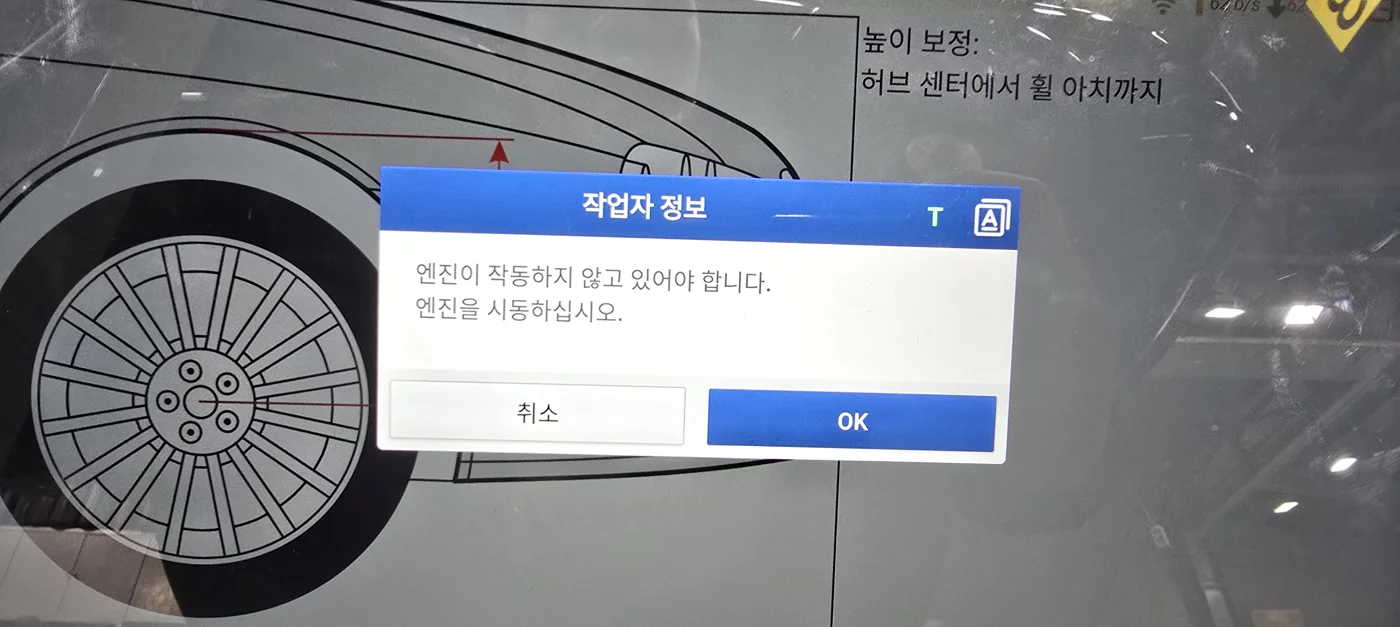

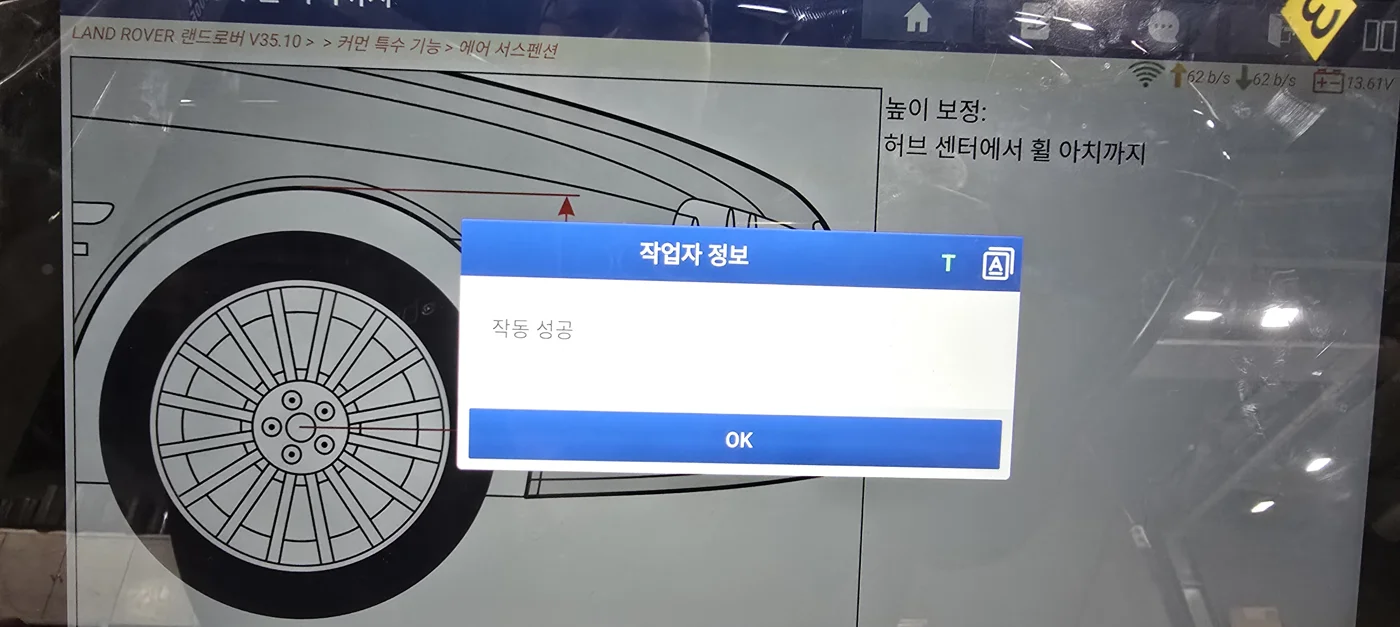

The diagnostic records show the height-calibration procedure and a successful operation message. We used the height checks alongside the suspension work, rather than treating alignment as an isolated adjustment.
02 / NHC MOTORS
Air springs do not remove the need to check bushes

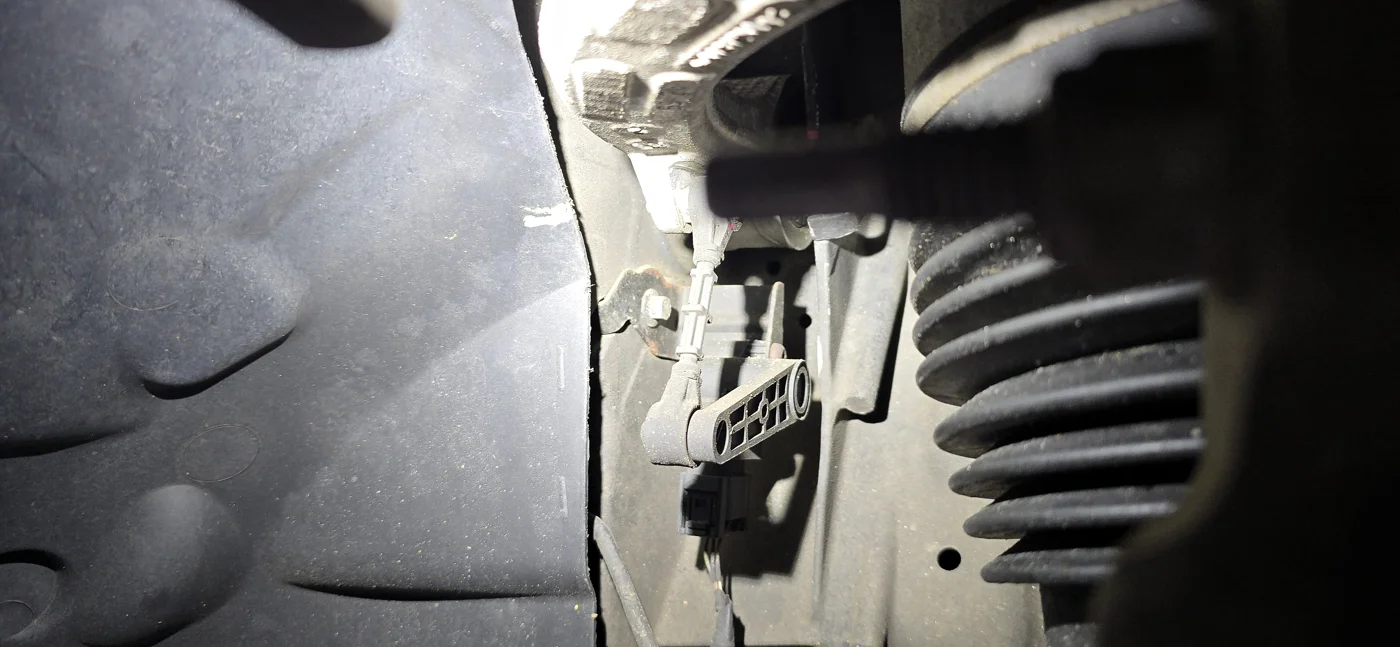

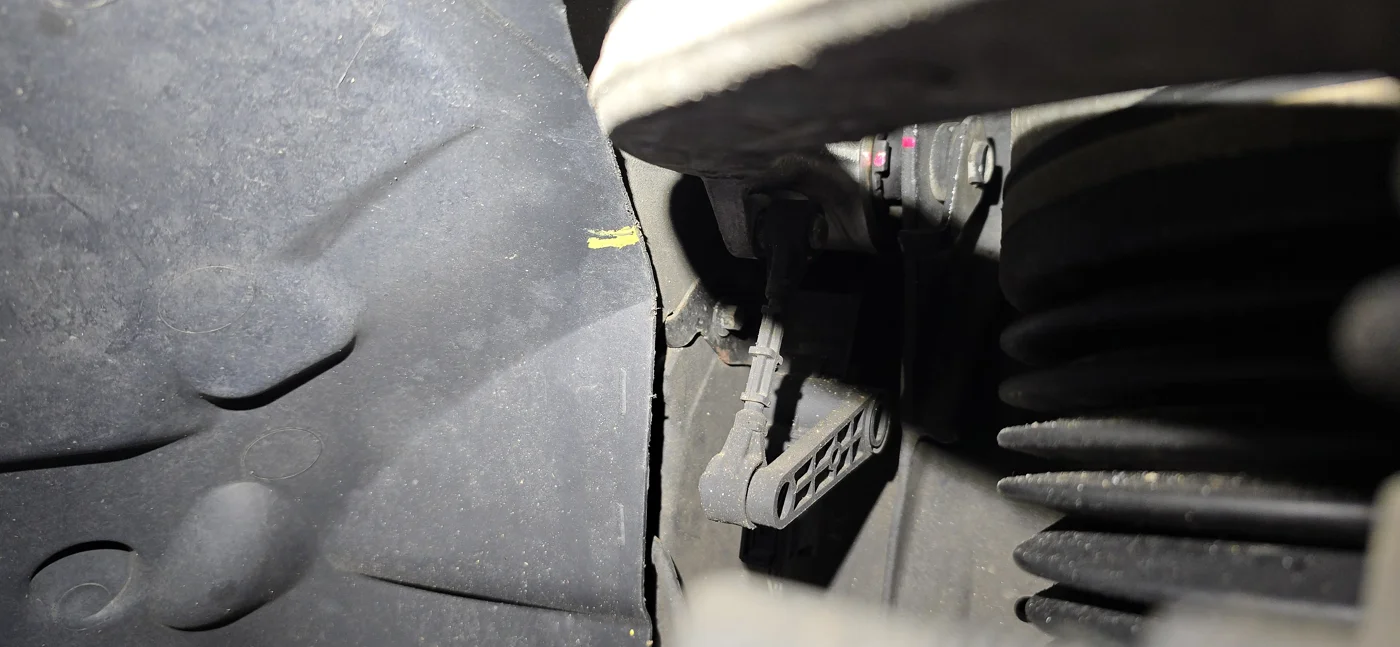

Air springs support the vehicle, while rubber-bushed suspension joints still need the appropriate tightening position. Clamping a bonded bush with the arm hanging can preload the rubber when the body returns to its normal height.
Ride-height tightening and electronic height calibration address different parts of that setup. Both were included before the alignment work was completed.
03 / NHC MOTORS
Front toe-in and rear toe-out were corrected

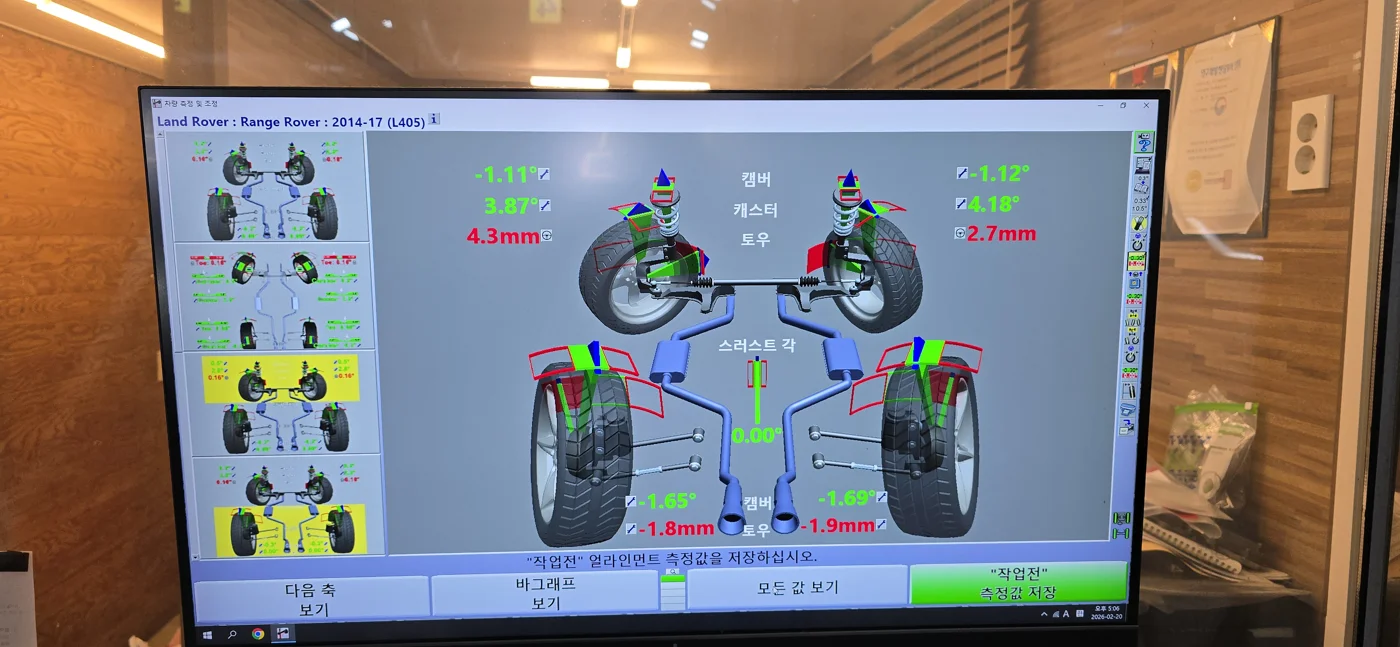

Before adjustment, front toe measured 4.3 / 2.7 mm. The rear wheels showed −1.8 / −1.9 mm. The front and rear axles therefore required different corrections.

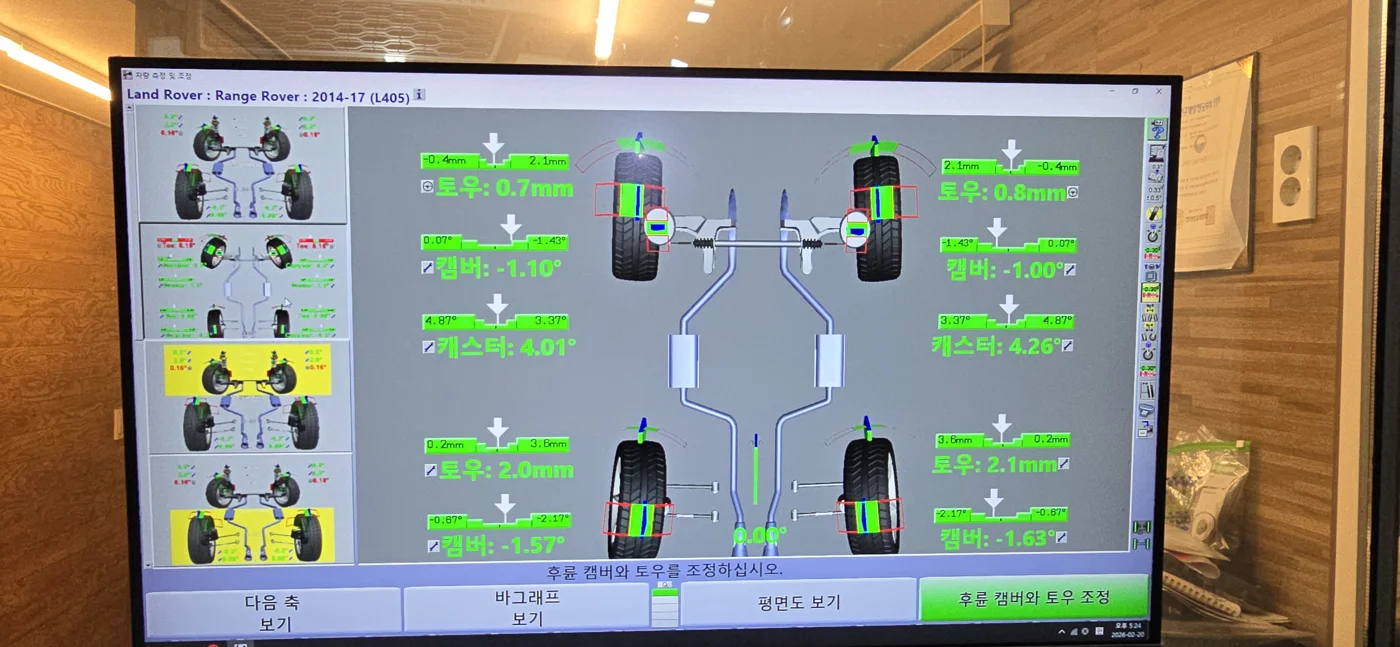

After adjustment, the readings were 0.7 / 0.8 mm at the front and 2.0 / 2.1 mm at the rear. The comparison below shows each wheel separately.
Before adjustment
Toe readings · mm
After adjustment
Toe readings · mm
Toe direction and differences are exaggerated at the same scale in both views. Green: within the displayed toe range; red: outside. Camber is shown separately in the table.
| Wheel | Toe before (mm) | After (mm) | Camber before (°) | After (°) |
|---|---|---|---|---|
| Front left | 4.3 | 0.7 | -1.11 | -1.10 |
| Front right | 2.7 | 0.8 | -1.12 | -1.00 |
| Rear left | -1.8 | 2.0 | -1.65 | -1.57 |
| Rear right | -1.9 | 2.1 | -1.69 | -1.63 |
Caster L/R: 3.87° / 4.18° → 4.01° / 4.26°. Thrust angle: 0.00° → 0.00°.
04 / NHC MOTORS
Check height, tightening and geometry together
On an air-suspended SUV, a useful service record needs to show the setup as well as the final alignment figures. Height calibration confirms the reference used by the suspension system; tightening and alignment address the mechanical setup.
This visit documents those operations. It does not include an air-strut replacement.
05 / NHC MOTORS
Bring the changes you have noticed
If the vehicle’s stance, steering-centre position or tyre wear has changed, mention any recent suspension work when booking. Previous measurement reports are also useful.
That history helps us decide whether to start with a height check, mechanical inspection or wheel alignment.
Work in progress
A short excerpt from the workshop recording.
Ride-height tightening explained
Related NHC video featuring an Audi S6. Korean audio.
Watch on YouTube →Questions before booking
Does height calibration replace ride-height tightening?
No. Calibration sets the air-suspension system’s height reference. Ride-height tightening concerns the working position of the relevant mechanical bushes.
Should alignment be checked after suspension work?
Work that changes suspension position or geometry can require an alignment check. The required setup depends on the vehicle and the work performed.
Check your Vogue’s ride height before alignment
If the vehicle leans or its ride height feels different, tell us about any recent suspension repairs. We will inspect ride height and suspension condition before deciding the appropriate ride-height tightening and alignment work.
We explain the scope and cost after inspecting the vehicle and proceed with your agreement.
