Korando C lower arms: replacement followed by wheel alignment
Does suspension work end with new lower arms? Components that locate the wheels also affect alignment. After replacing this Korando C's lower arms, front toe was adjusted from 1.5mm left and 3.4mm right to 0.0mm on both sides.
01 / NHC MOTORS
Lower-arm replacement

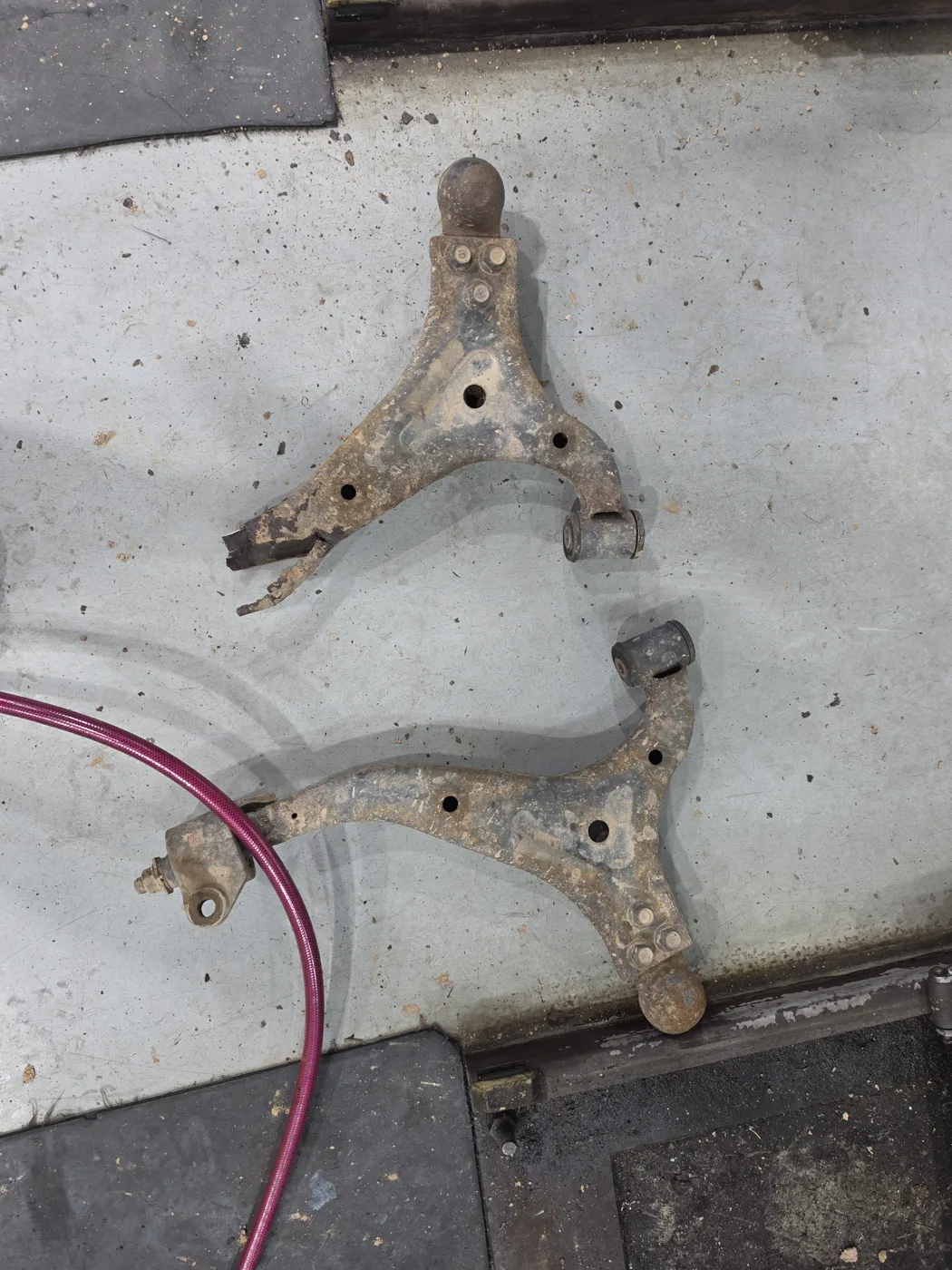

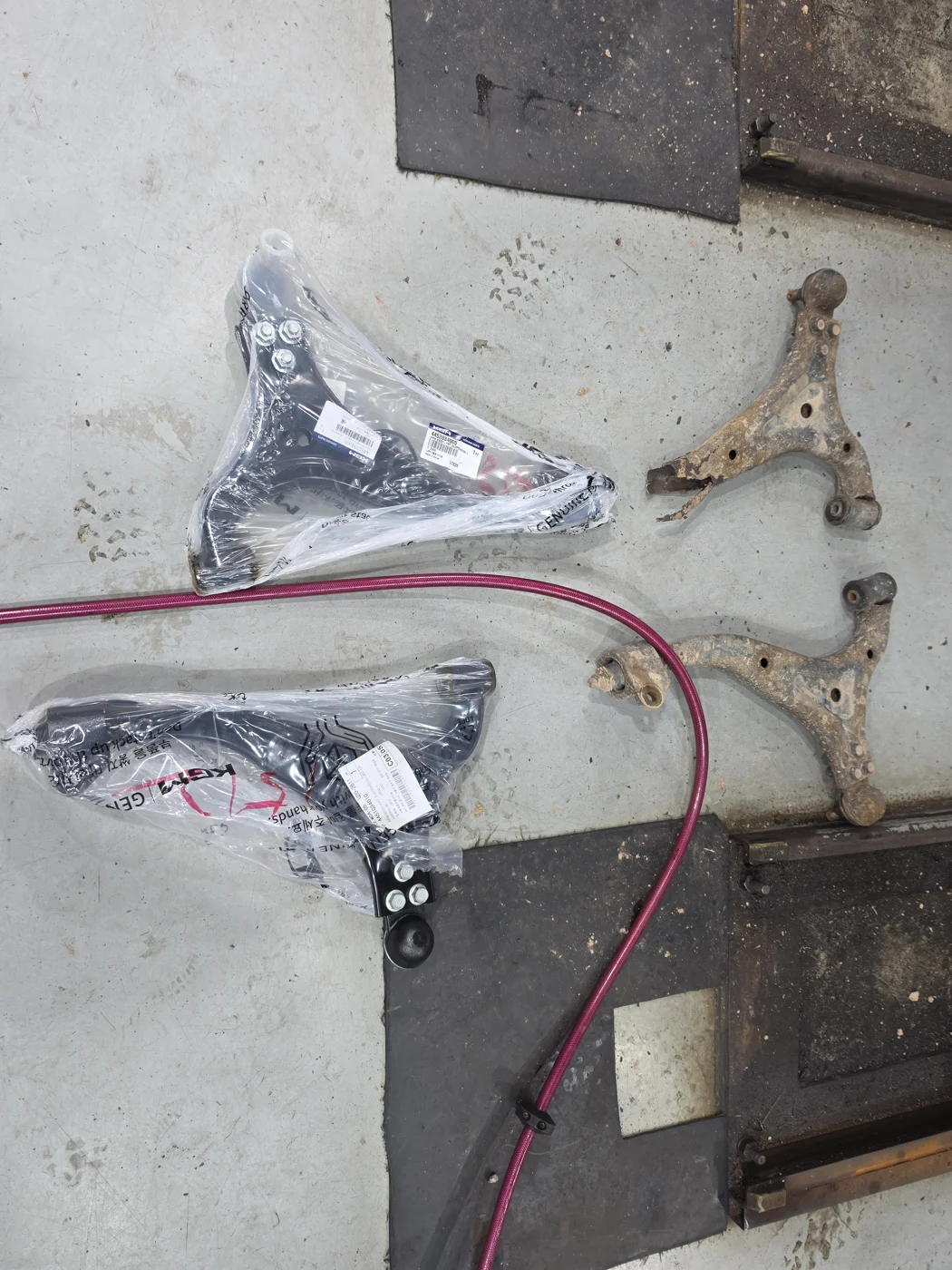

Lower arms connect the wheels to the body and help maintain their position and angle. We removed the old arms, compared them with the new parts and installed the replacements.

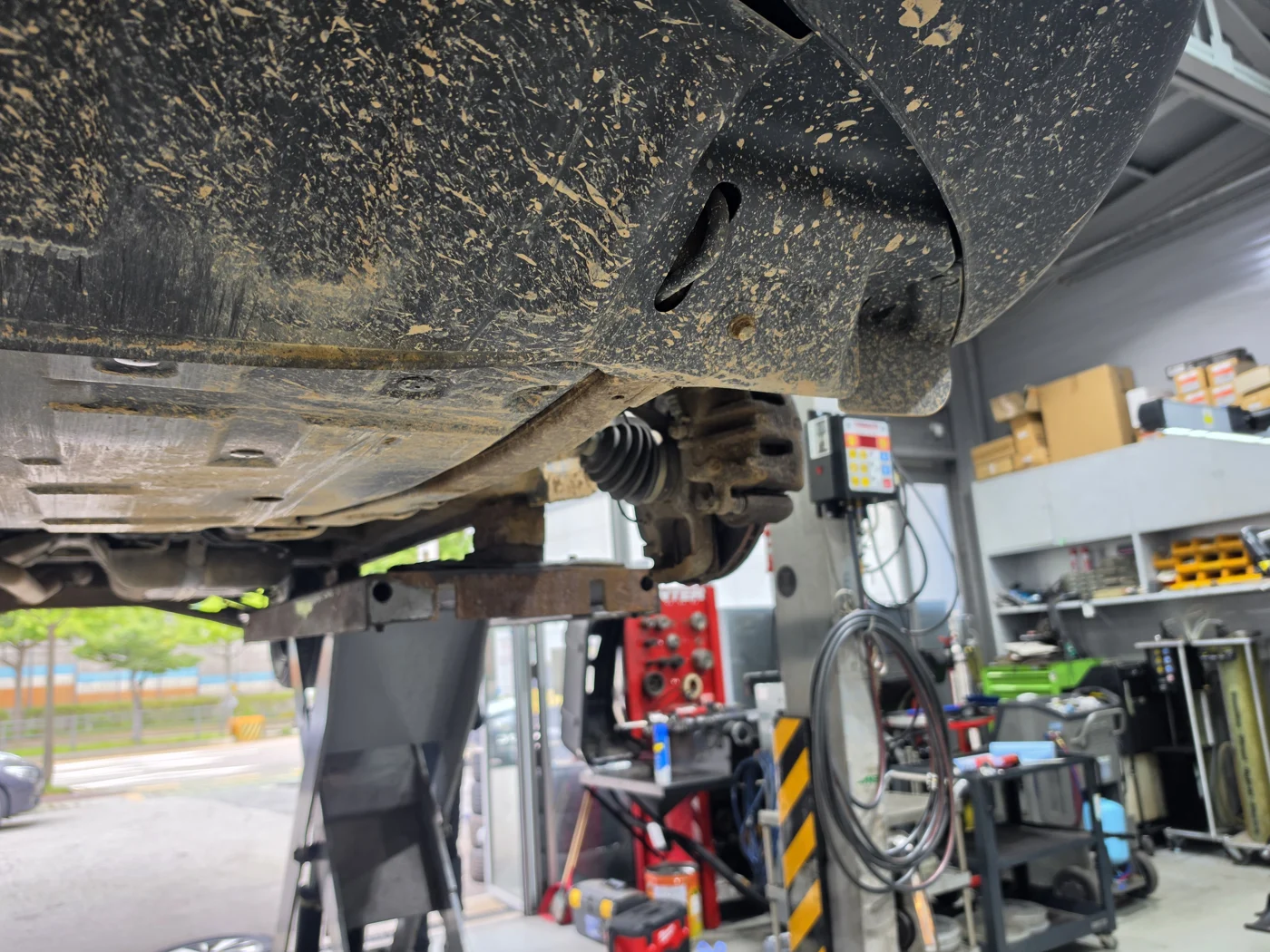

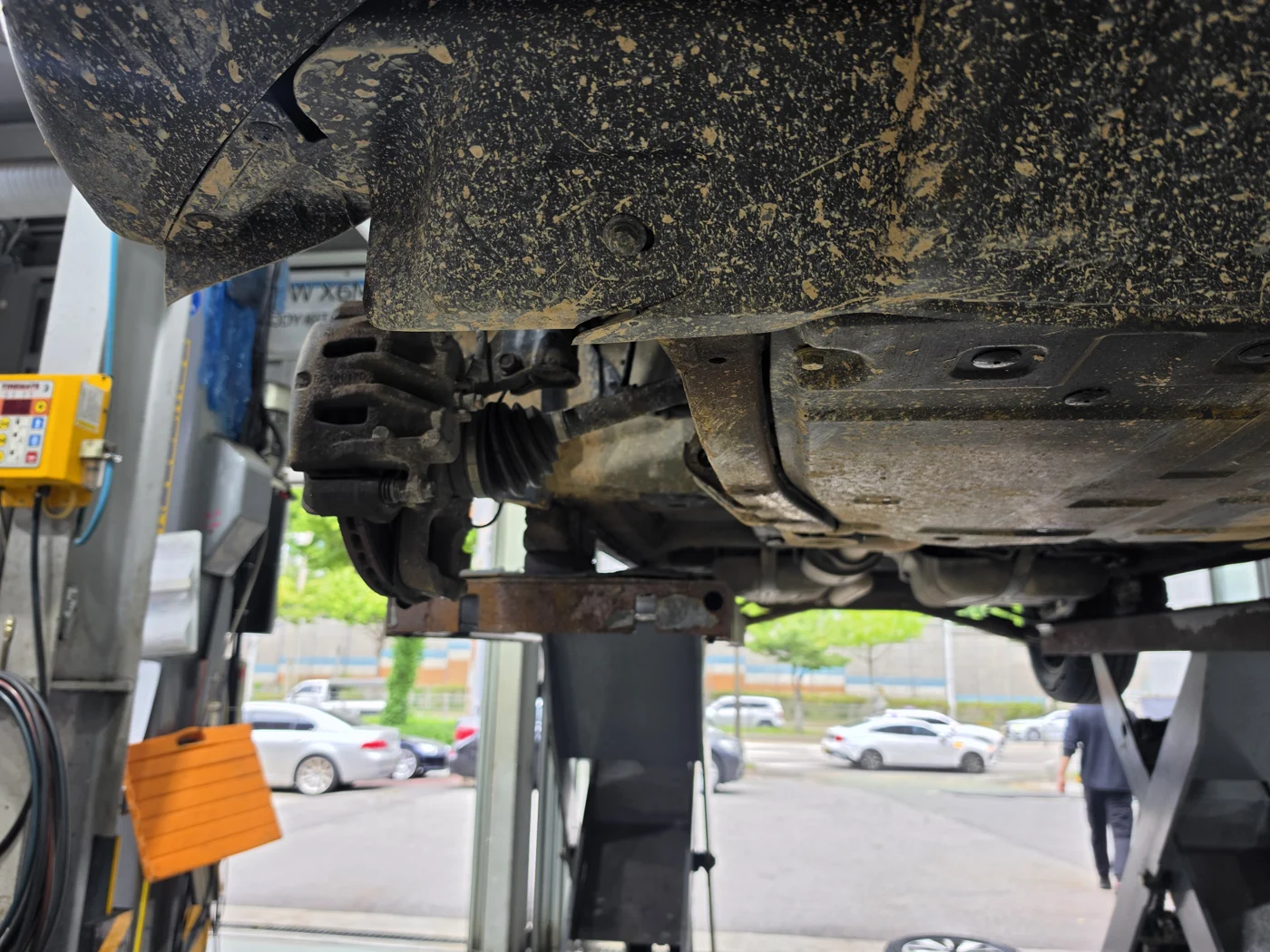

The suspension connections were separated to remove and replace the arms. As these parts affect wheel position, alignment was measured and adjusted as part of the work.
02 / NHC MOTORS
Adjusting front and rear toe and comparing the readings

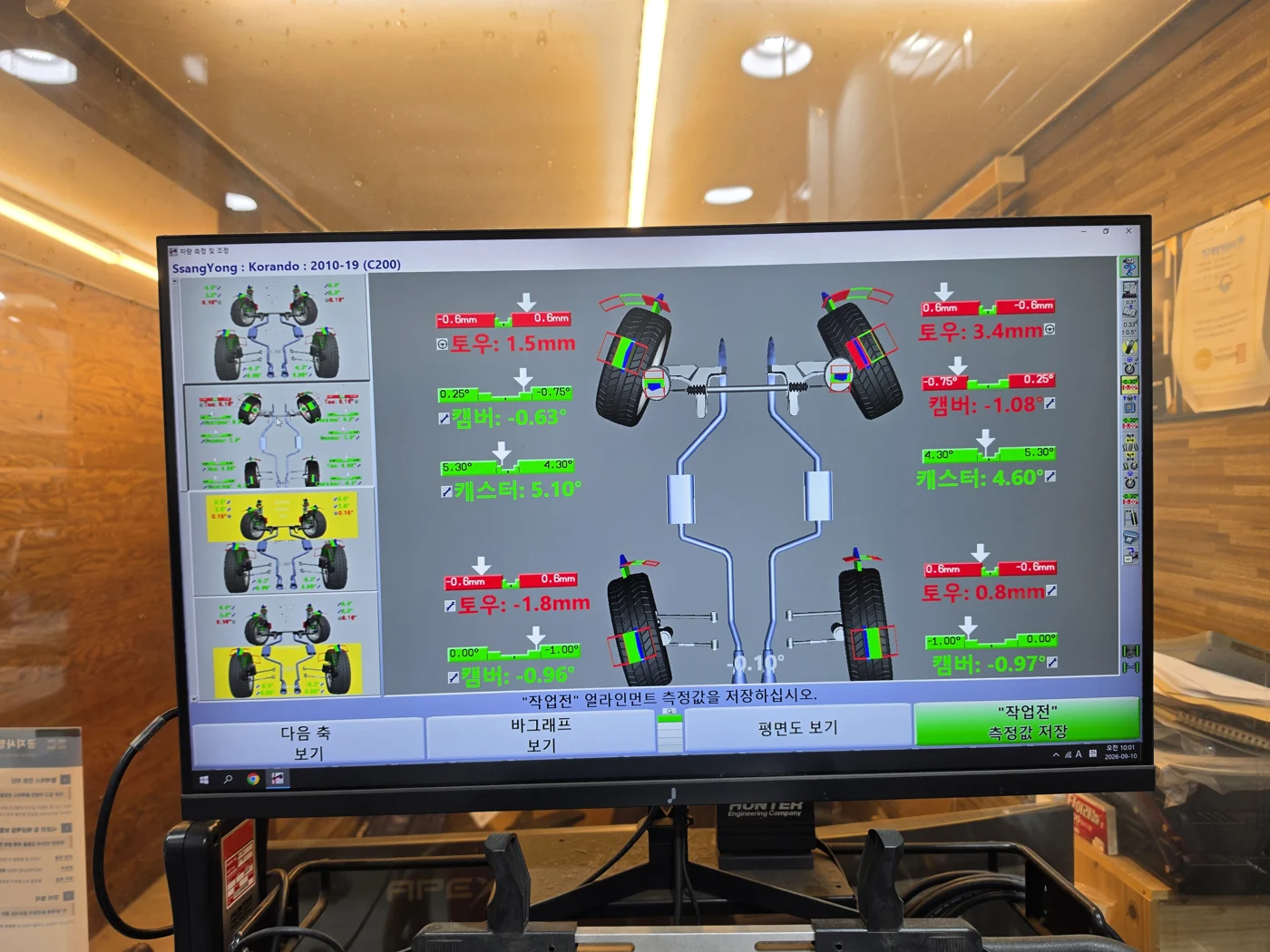

Before adjustment, rear toe also differed from side to side: −1.8mm on the left and 0.8mm on the right.

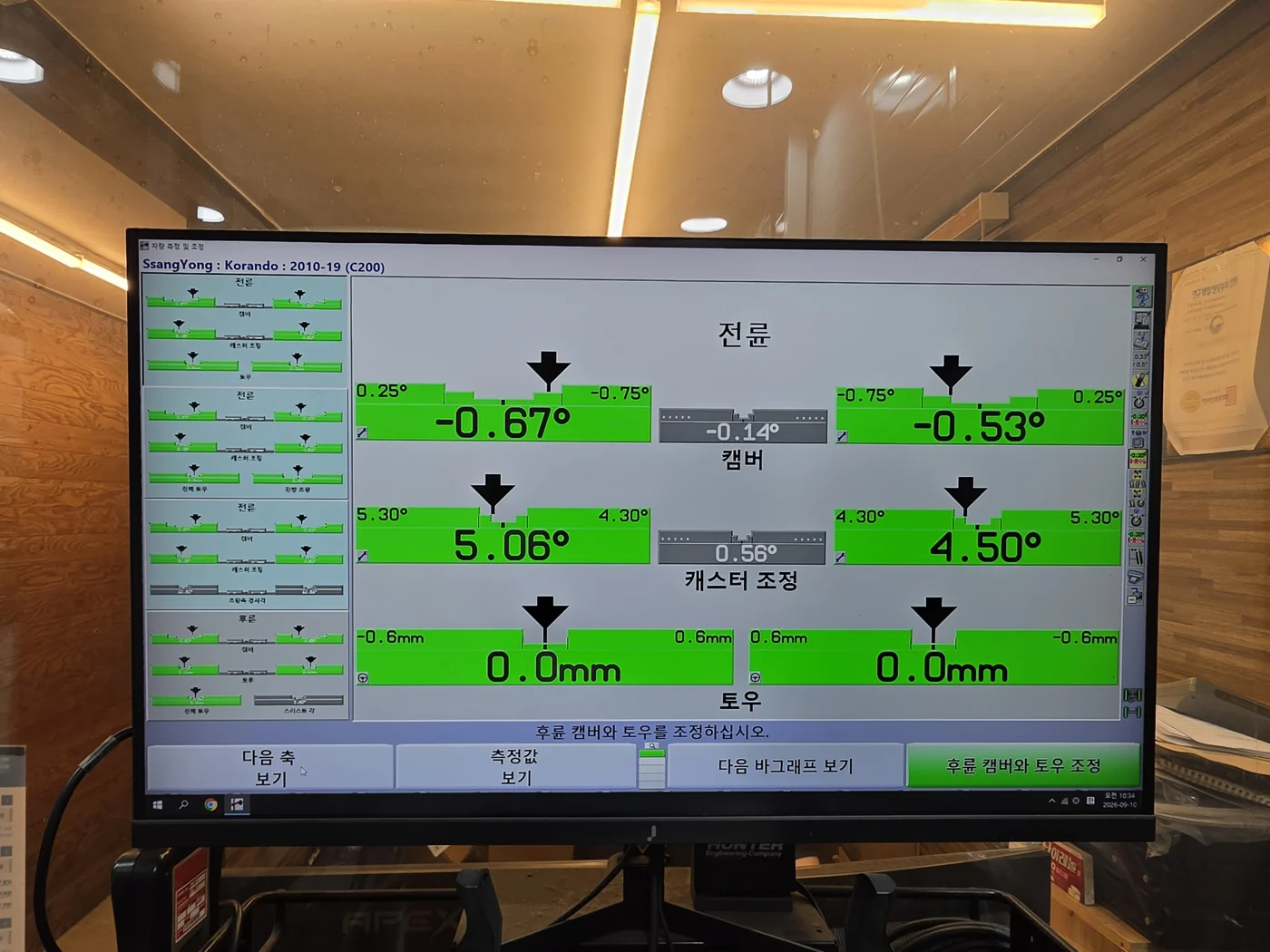

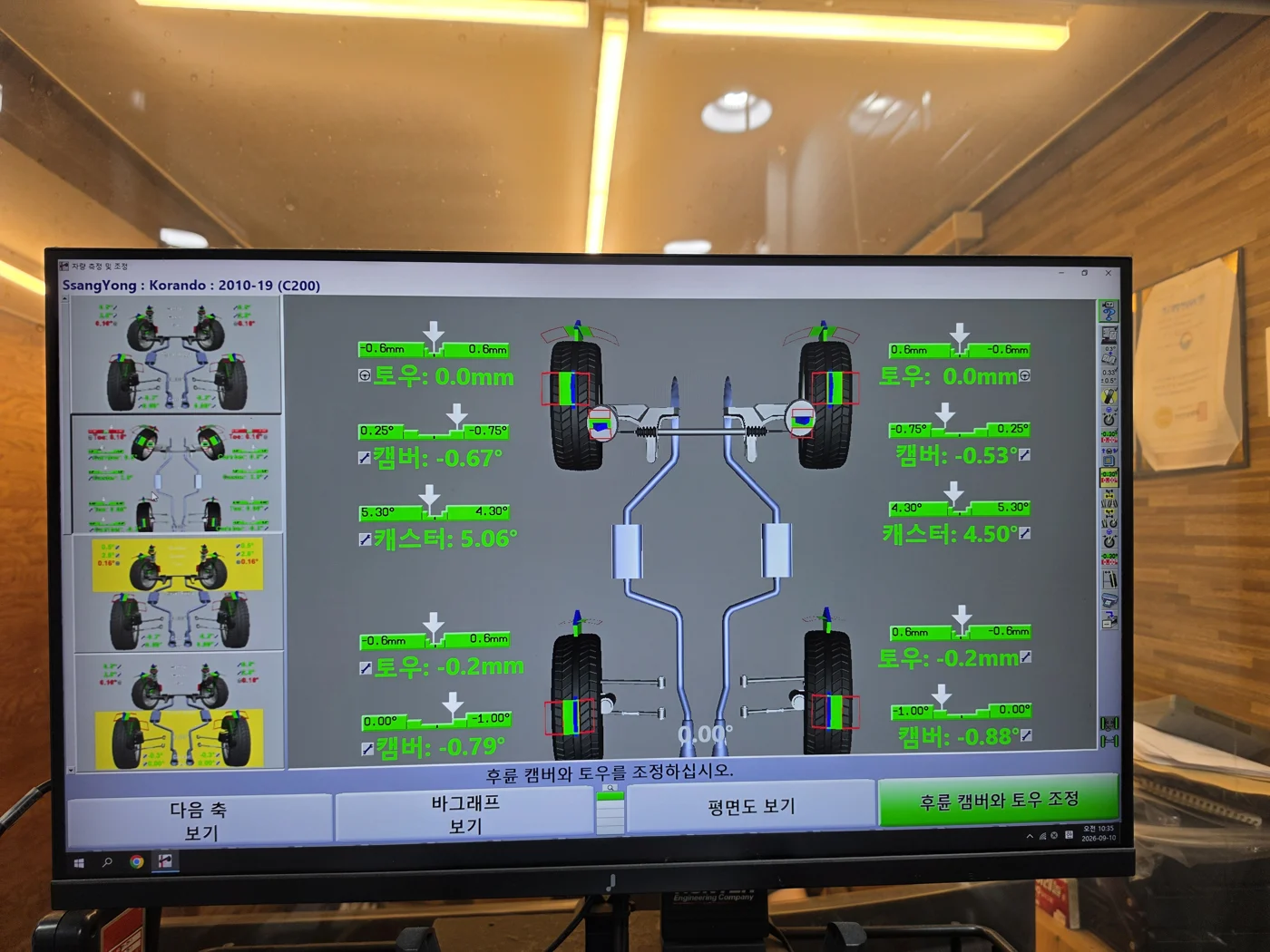

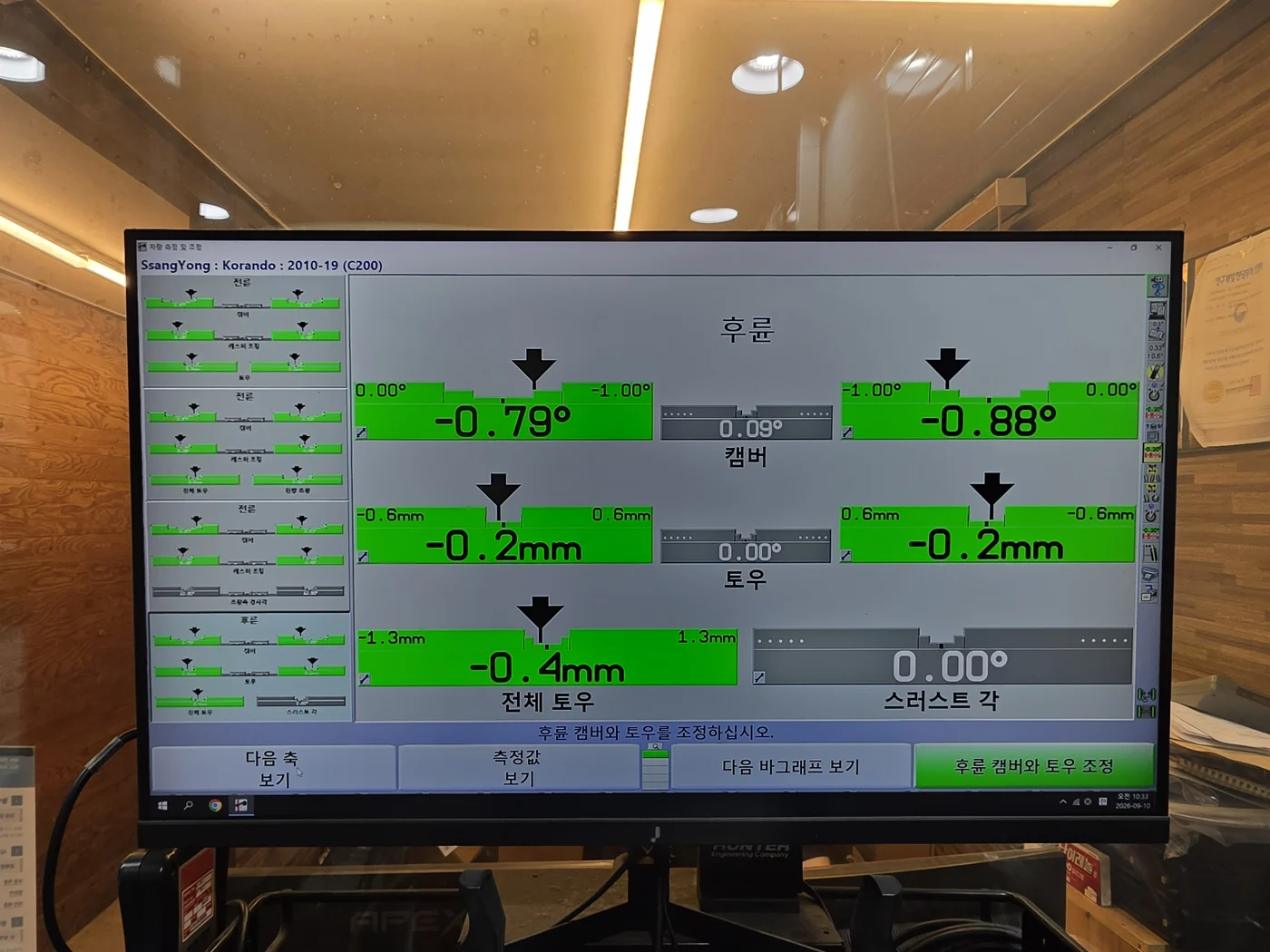

After adjustment, front toe was 0.0mm on each side and rear toe was −0.2mm on each side. The diagram and table below show toe direction and camber readings.
Before adjustment
Front left/right and rear left/right toe (mm)
After adjustment
Front left/right and rear left/right toe (mm)
Toe direction is exaggerated at the same scale for comparison; these are not actual wheel angles. Red and green indicate readings outside and inside the equipment's reference range.
| Position | Toe before → after (mm) | Camber before → after (°) |
|---|---|---|
| Front left | 1.5 → 0.0 | -0.63 → -0.67 |
| Front right | 3.4 → 0.0 | -1.08 → -0.53 |
| Rear left | -1.8 → -0.2 | -0.96 → -0.79 |
| Rear right | 0.8 → -0.2 | -0.97 → -0.88 |
Based on the complete before-and-after alignment screens after lower-arm replacement. The need to replace corroded tie-rod components was also explained separately.
03 / NHC MOTORS
Tie-rod corrosion discussed separately
One further item needs attention after the replacement.
During the work, severe tie-rod corrosion made part of the adjustment difficult. The technician explained the need for replacement.
Seized adjusters limit how precisely alignment can be set. When arranging suspension work, please tell us which parts have recently been replaced and about previous alignment work.
