Aston Martin DB11 V12The work this DB11
needed first
Transmission and differential oils were changed and the brake disc was refinished. An underbody oil trace did not call for immediate dismantling, so the area was cleaned for a follow-up inspection.
In this article
01 / THE CAR AND ITS UNDERBODY
Removing the undertray for a closer inspection

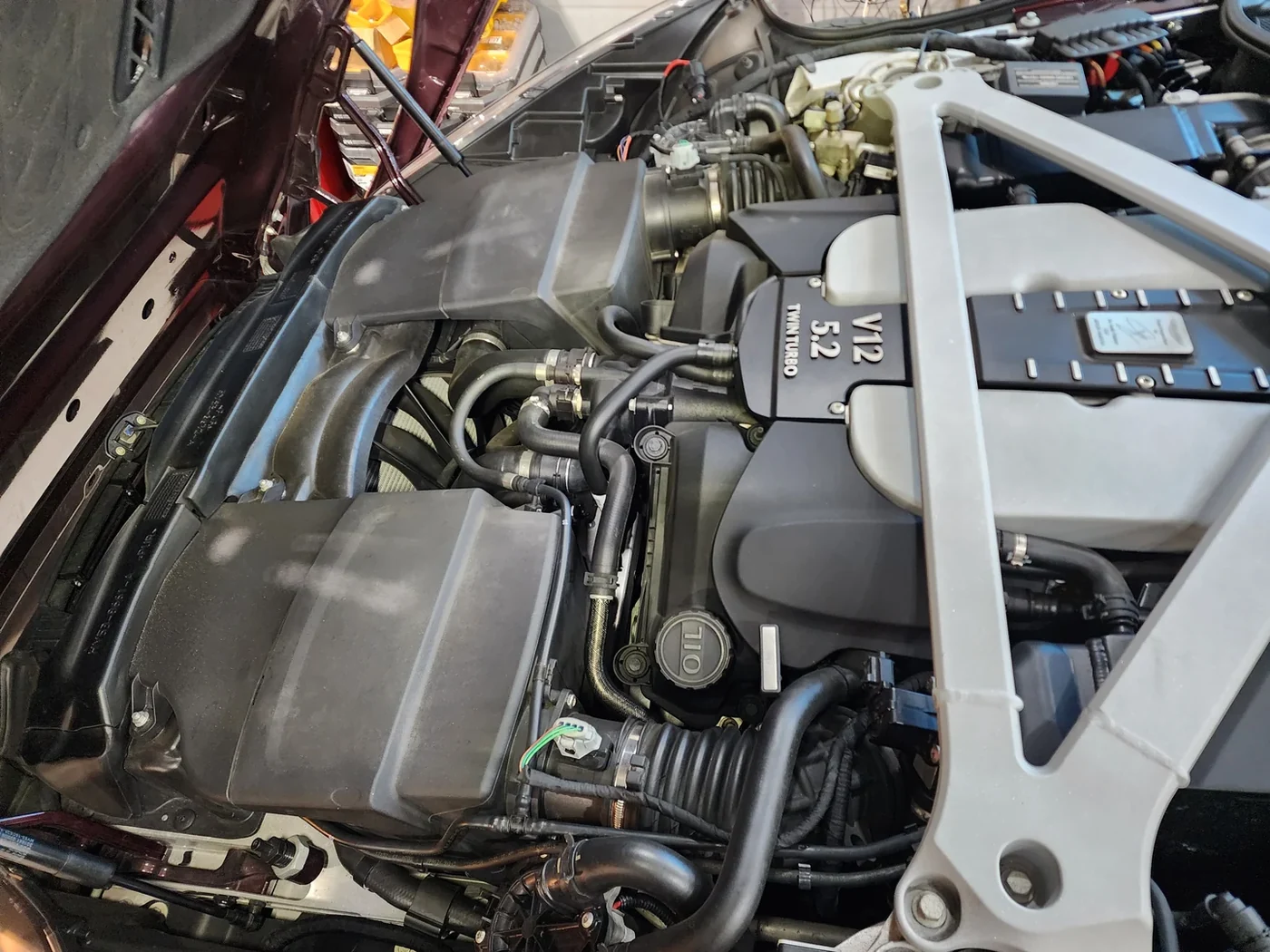

The DB11 is a grand tourer in Aston Martin’s long-running DB family, combining sports-car agility with comfort over longer journeys. This car has a 5.2-litre twin-turbo V12 and a ZF eight-speed automatic. Its engine is at the front, with the gearbox at the rear. Aston Martin’s DB11 introduction

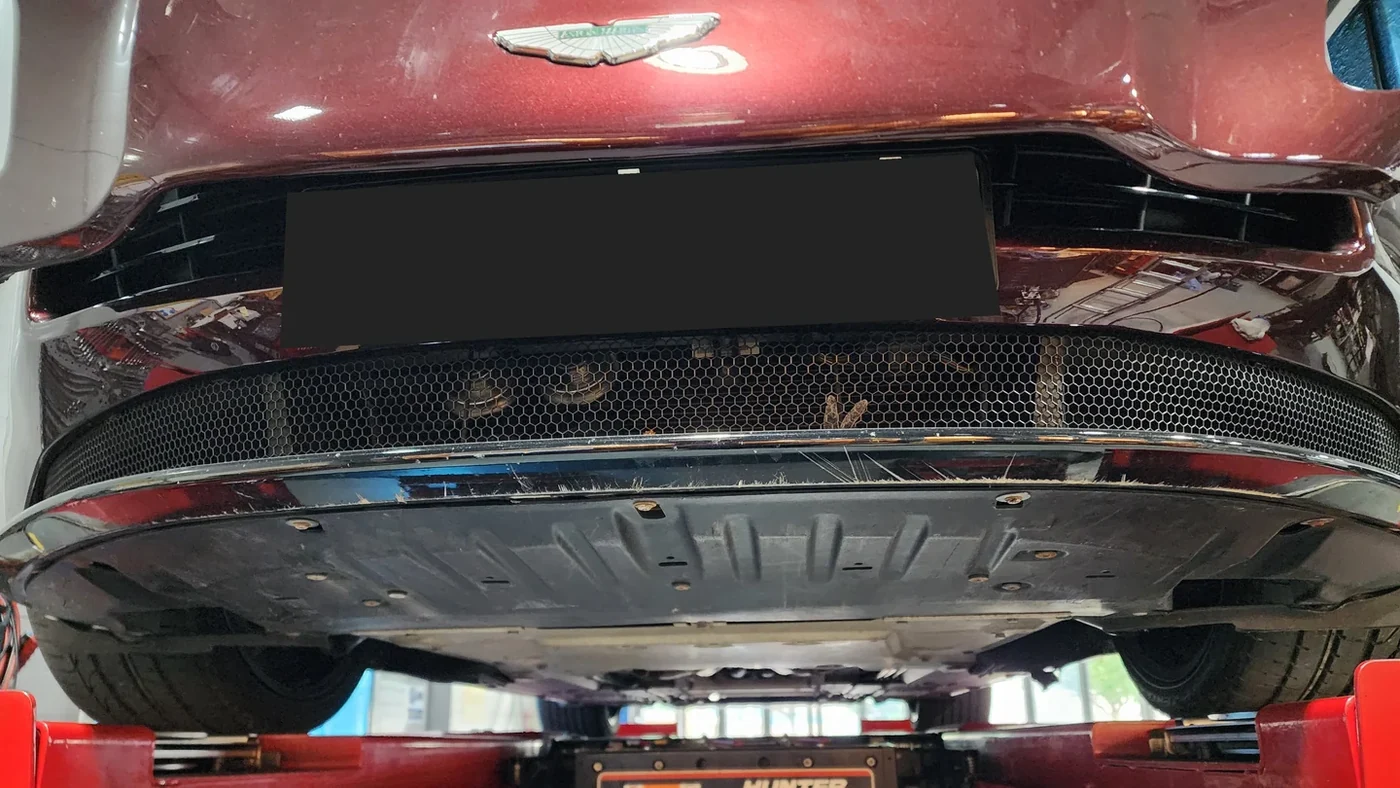

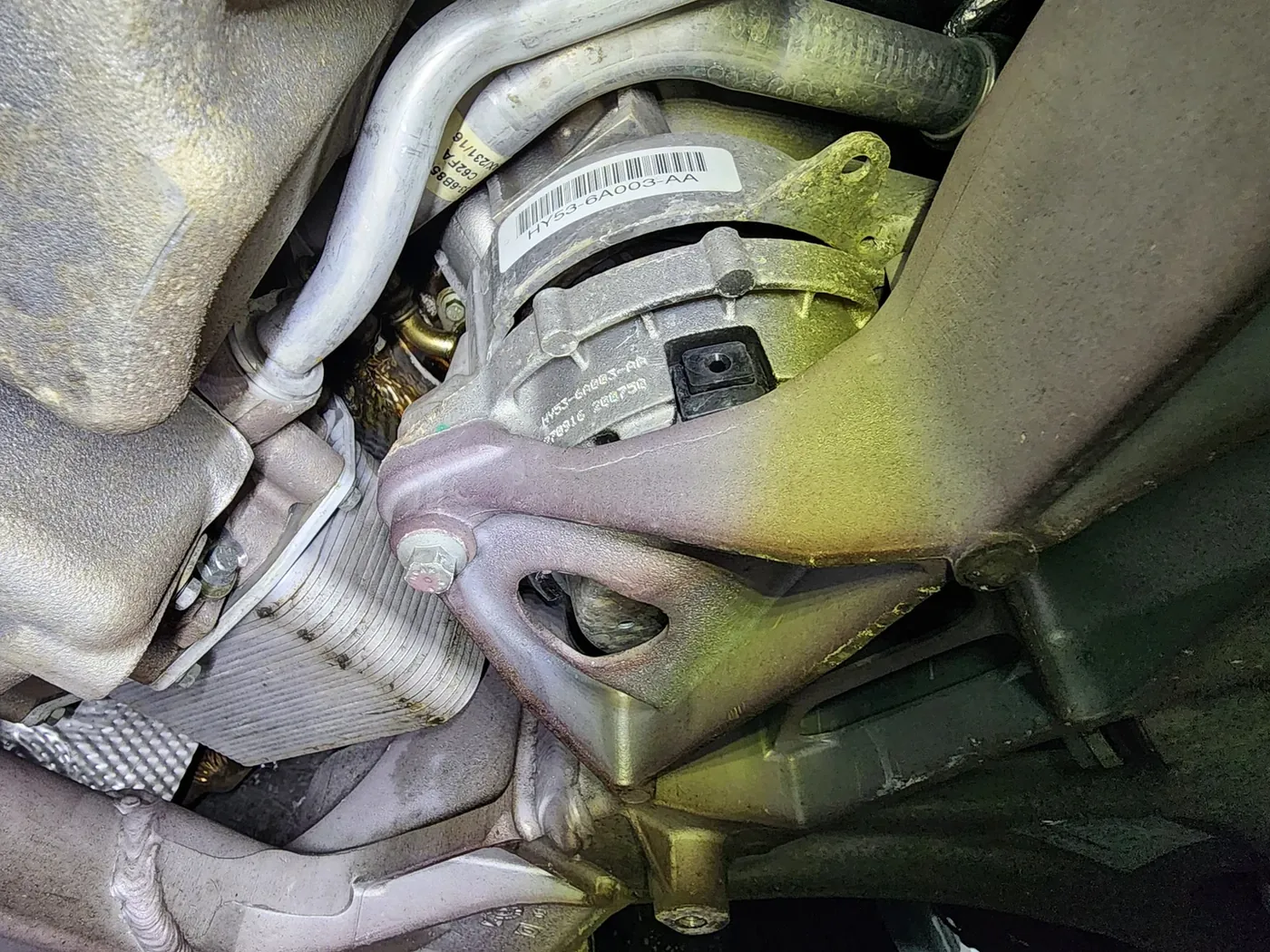

Inspecting the drivetrain from the V12 engine to the rear gearbox requires access underneath. We raised the car and removed the undertray to check the covered areas and look for oil leaks.
An underbody oil trace was found. At the time it did not call for immediate dismantling, so the area was cleaned for another inspection.
02 / TRANSMISSION AND DIFFERENTIAL OILS
Inspecting and replacing the oils

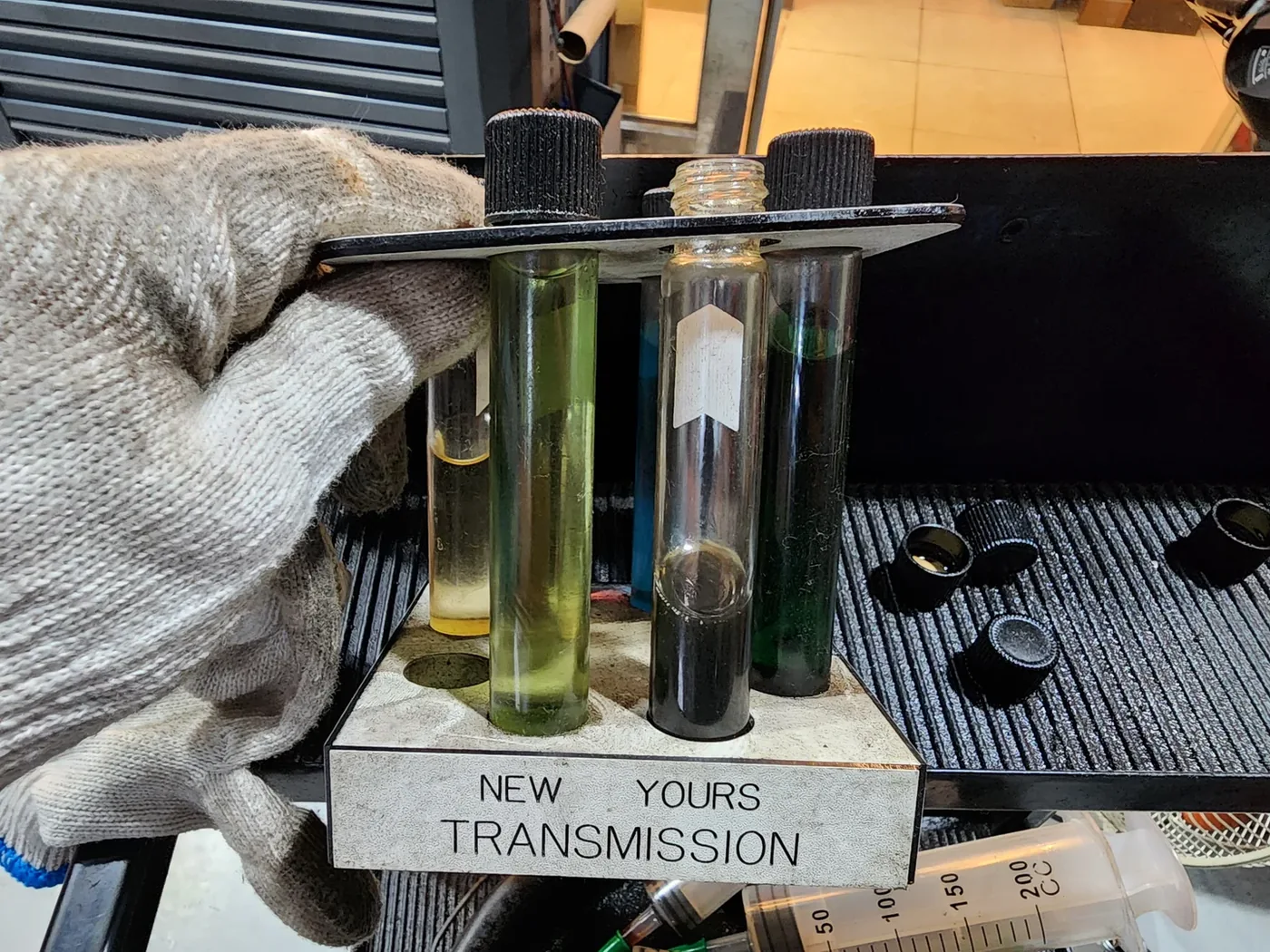

Samples drawn from the car were placed beside fresh reference fluids. The used transmission fluid was visibly different from the fresh sample. The differential oil was also judged to need replacement.

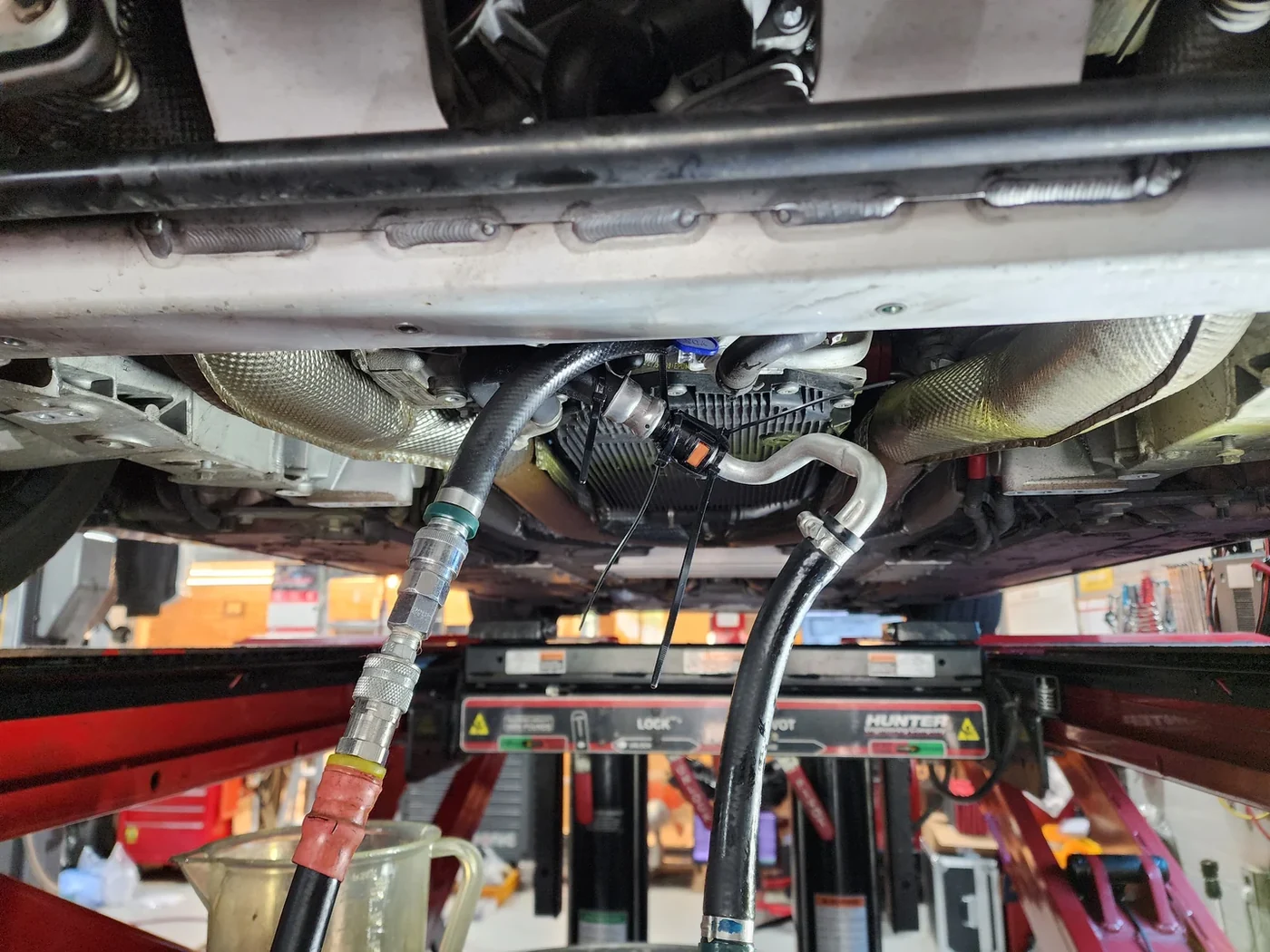

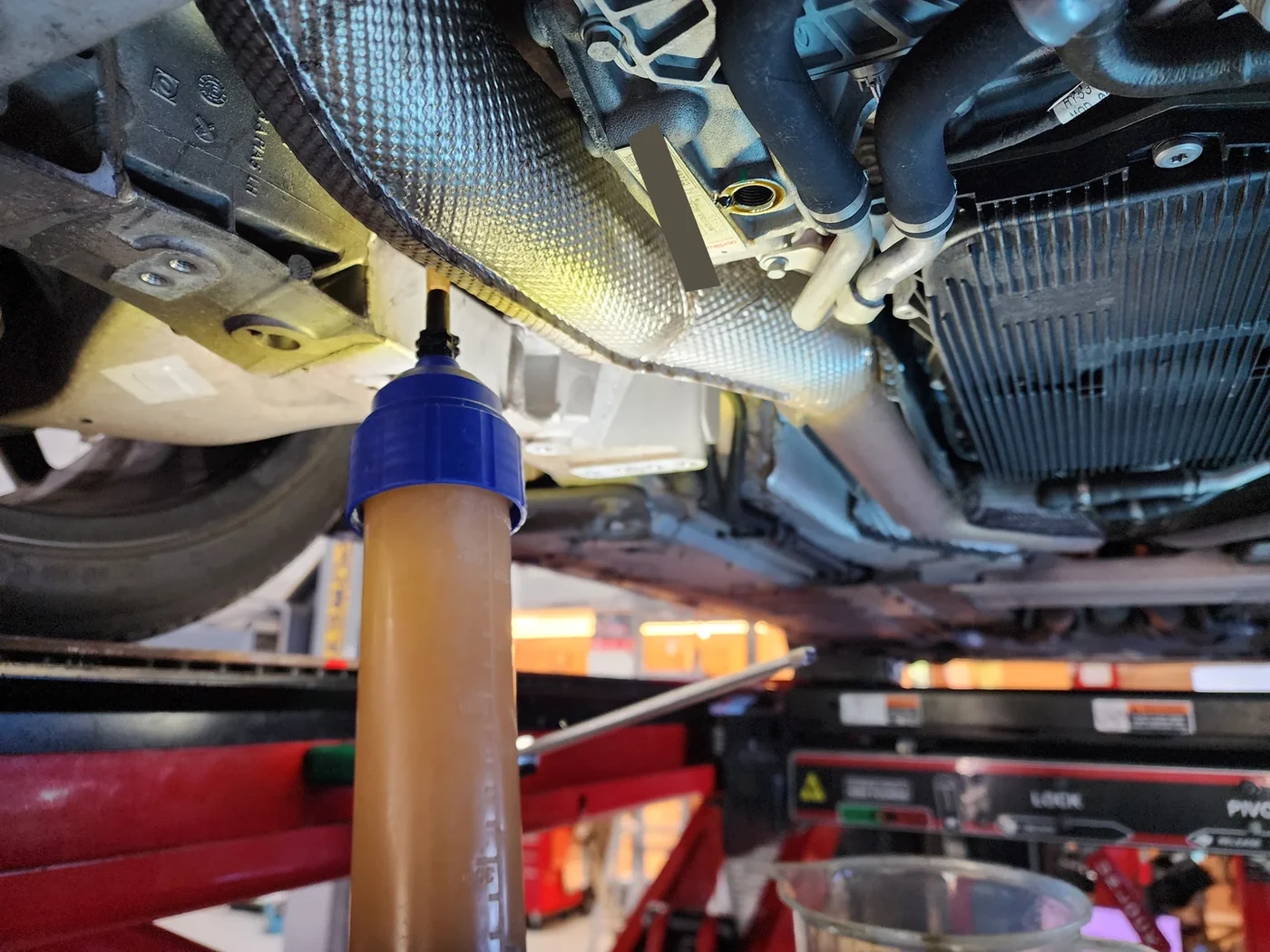

We changed the ZF eight-speed transmission fluid with hoses connected at the cooler line. We also replaced the differential oil using a syringe at the filler opening.
03 / COOLANT CONDITION

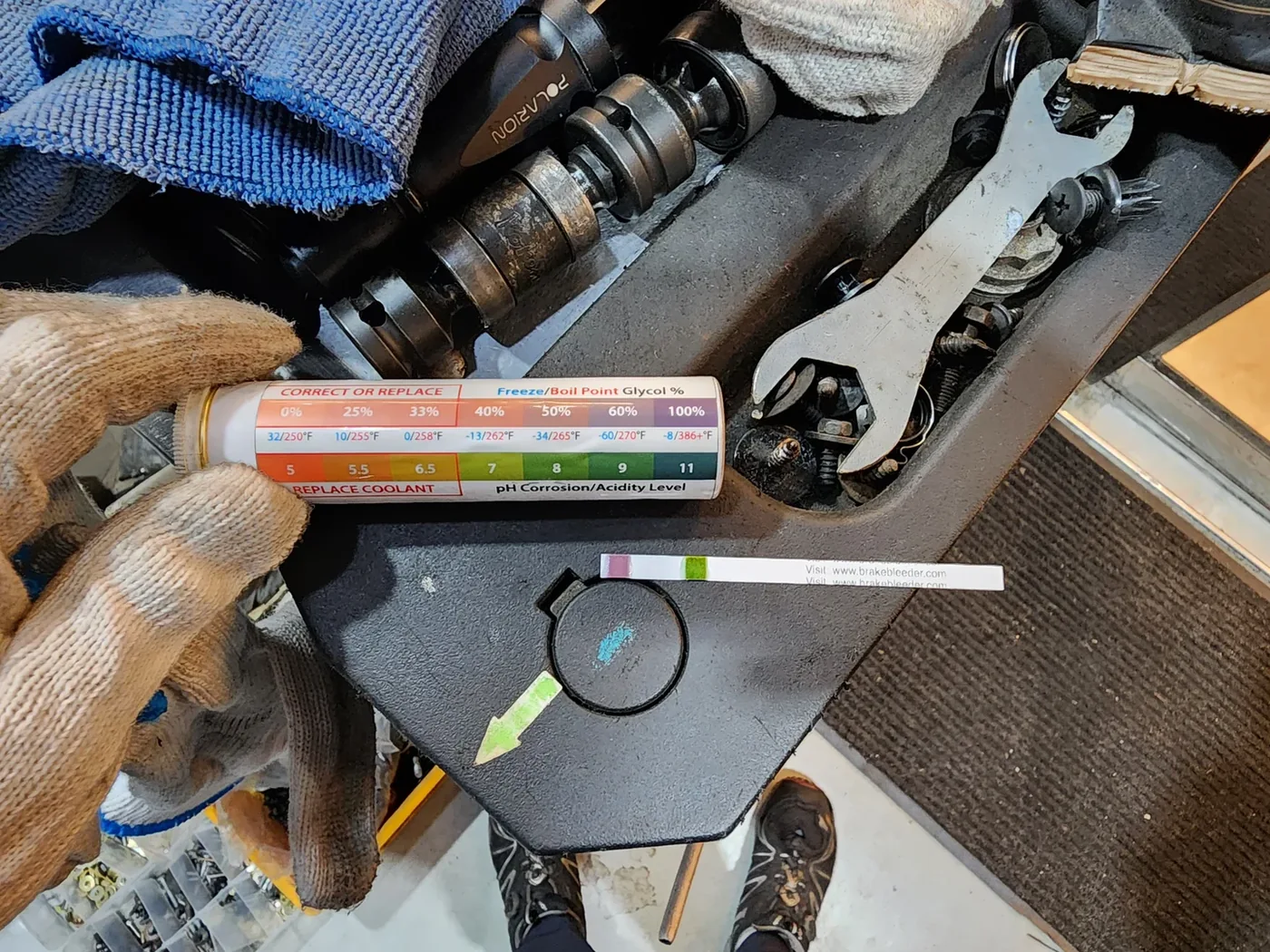

Checking the coolant with a test strip

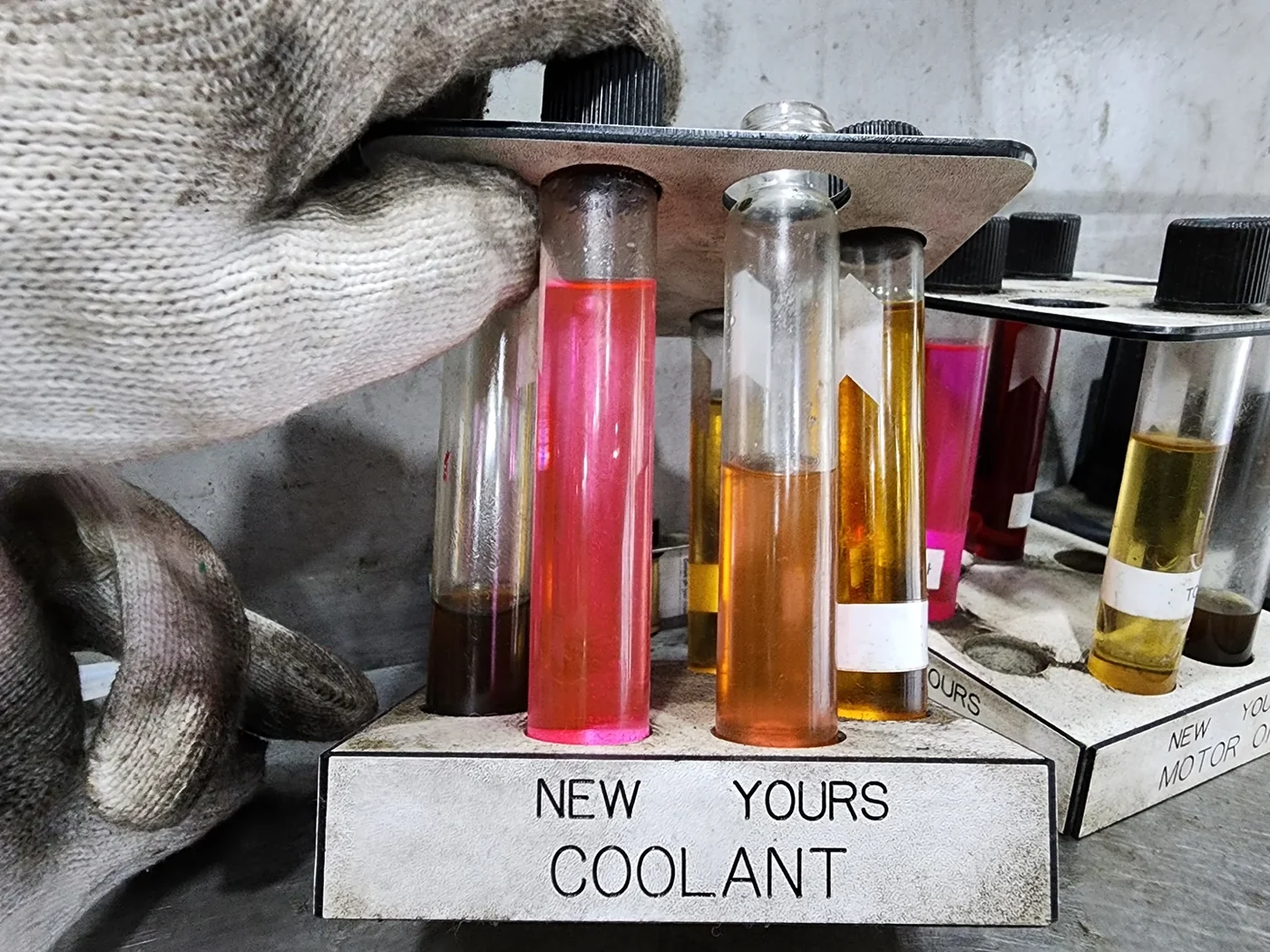

The coolant differed in colour from the reference sample. The test-strip result did not suggest a major coolant issue at the time.
04 / BRAKE DISC
The disc was measured, refinished and refitted

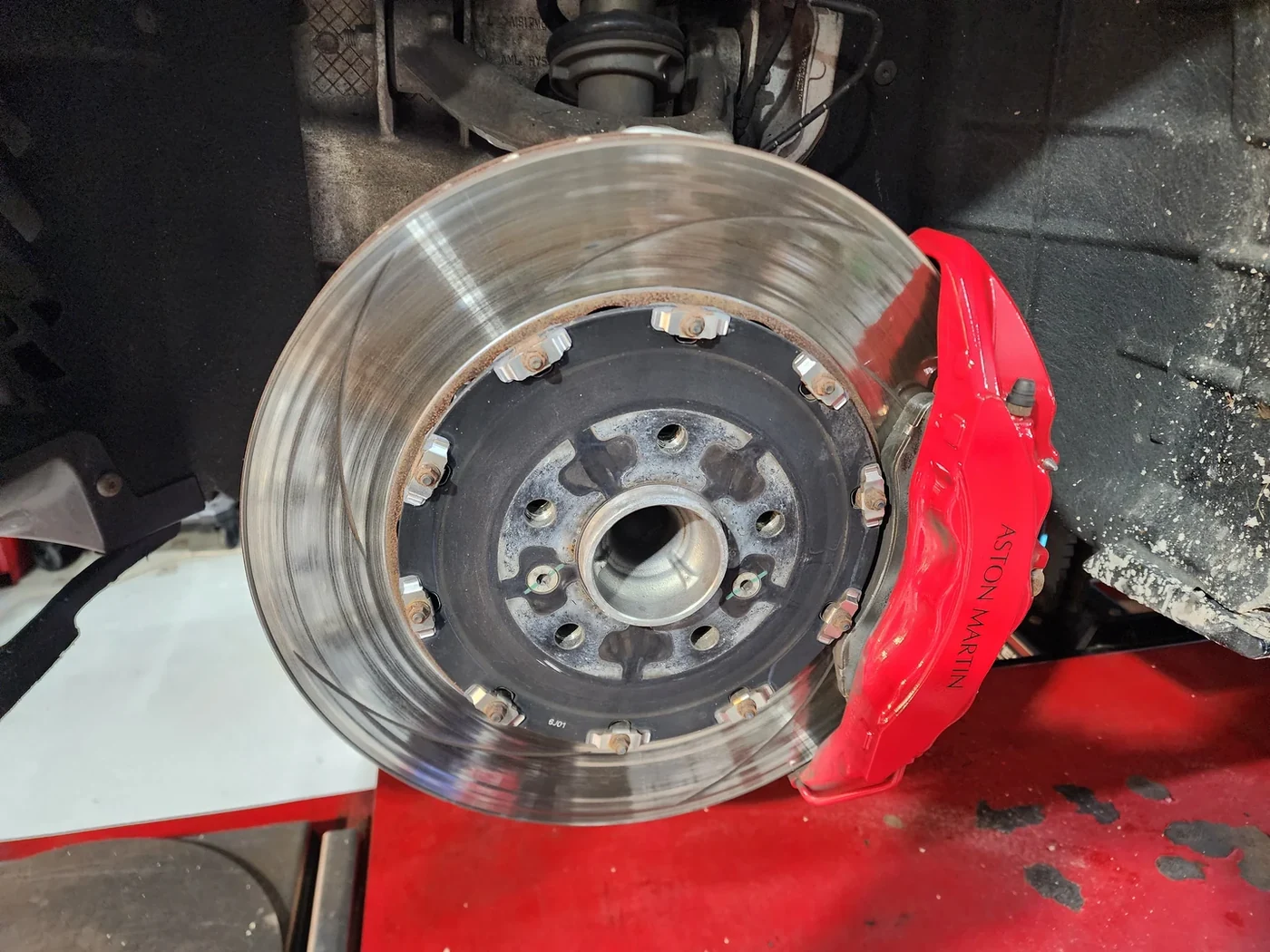

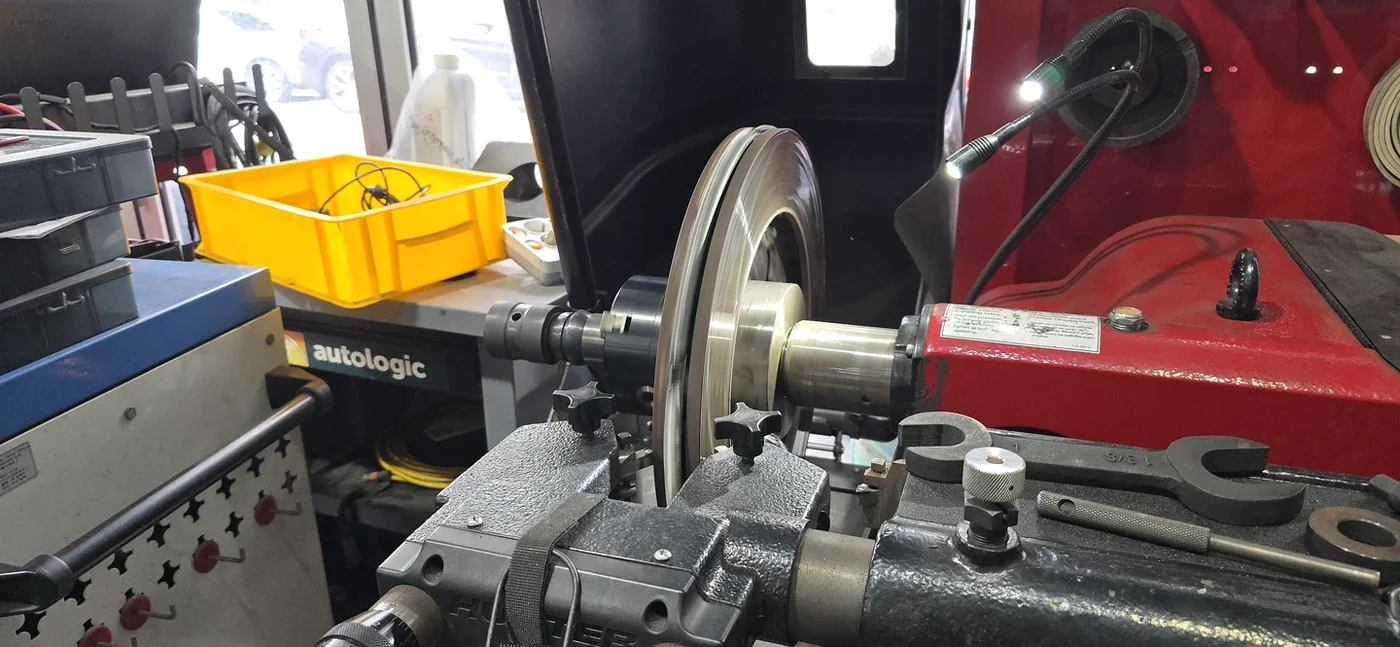

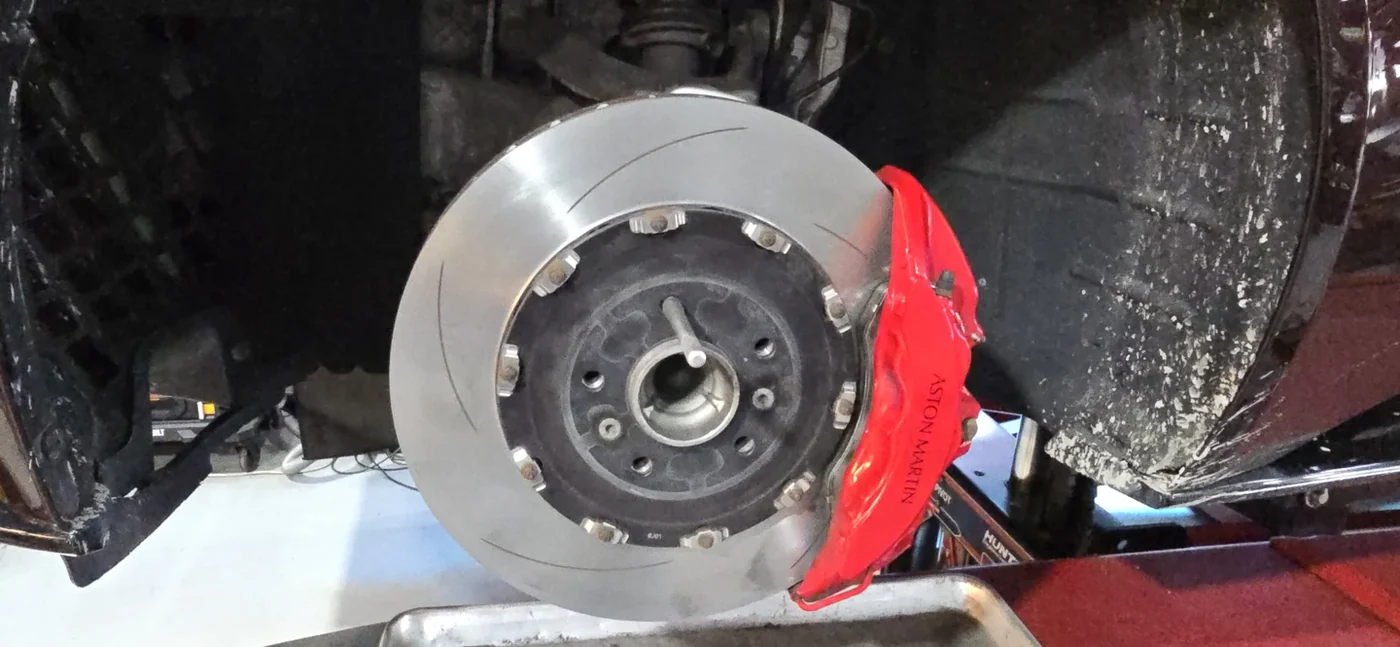

We removed the brake disc, refinished it on a lathe and refitted it. Its thickness was also measured during the work.

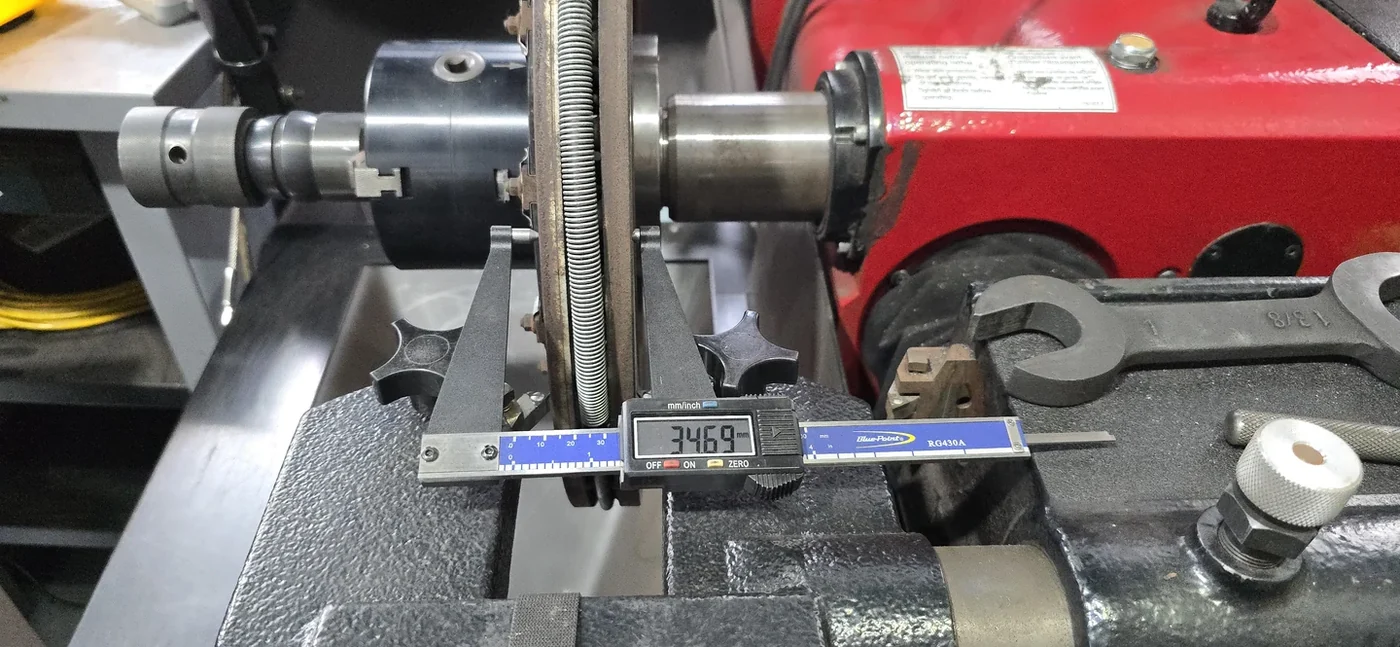

The photograph shows a single thickness reading of 34.69 mm. Whether a disc can be refinished must be assessed against the minimum thickness for that part.
05 / FOLLOW-UP AND OWNERSHIP
Completed work and the next inspection
Transmission and differential oil replacement
Brake disc removal, measurement, refinishing and refitting
The cleaned underbody oil trace
The transmission and differential oil changes and brake disc refinishing are complete. At the next inspection, we plan to check whether fresh oil has appeared in the cleaned underbody area.
Knowing the condition and likely service cost helps you decide what to repair now and what to schedule later. We explain the priorities with your ownership plans in mind.
NHC Motors holds Korean patent 10-2552759 for planning service timing using vehicle history and inspection records. Total vehicle inspection scope and booking (Korean)
06 / COMMON QUESTIONS
Questions about this DB11 inspection
Does an oil trace always mean immediate dismantling?
It depends on the extent of the leak and the condition of nearby components. This DB11 did not call for immediate dismantling at the time, so we cleaned the area and planned to inspect it again.
Does dark oil mean internal damage?
Oil colour alone does not tell us that. After inspecting the samples from this car, we judged that the transmission and differential oils needed replacement.
Was a new brake disc fitted?
We removed the existing disc, measured its thickness, refinished it and refitted it.
Can an inspection help me decide whether to repair or keep the car?
Yes. Understanding the current condition and likely service cost helps you decide the timing and scope of repairs, taking into account how long you plan to keep the car.
How long does a total inspection take, and what does it cost?
Usually 60–90 minutes; some vehicles require around 120 minutes. The inspection fee is KRW 165,000 including VAT. Any additional diagnosis or repairs are explained and quoted first.
A clear plan for service now and inspection later
We assess the car’s current condition and explain the service priorities and follow-up. The model, mileage and recent service history help us prepare.
We explain the scope of any repairs and the estimate before proceeding with your approval.
