NHC MOTORS · SERVICE RECORD

BMW X5 E70 in our care for over 10 years: preventive spark plug and coil replacement

An X5 we have looked after for more than ten years. As planned at the last oil change, we replaced all six spark plugs and all six coils preventively on this visit.

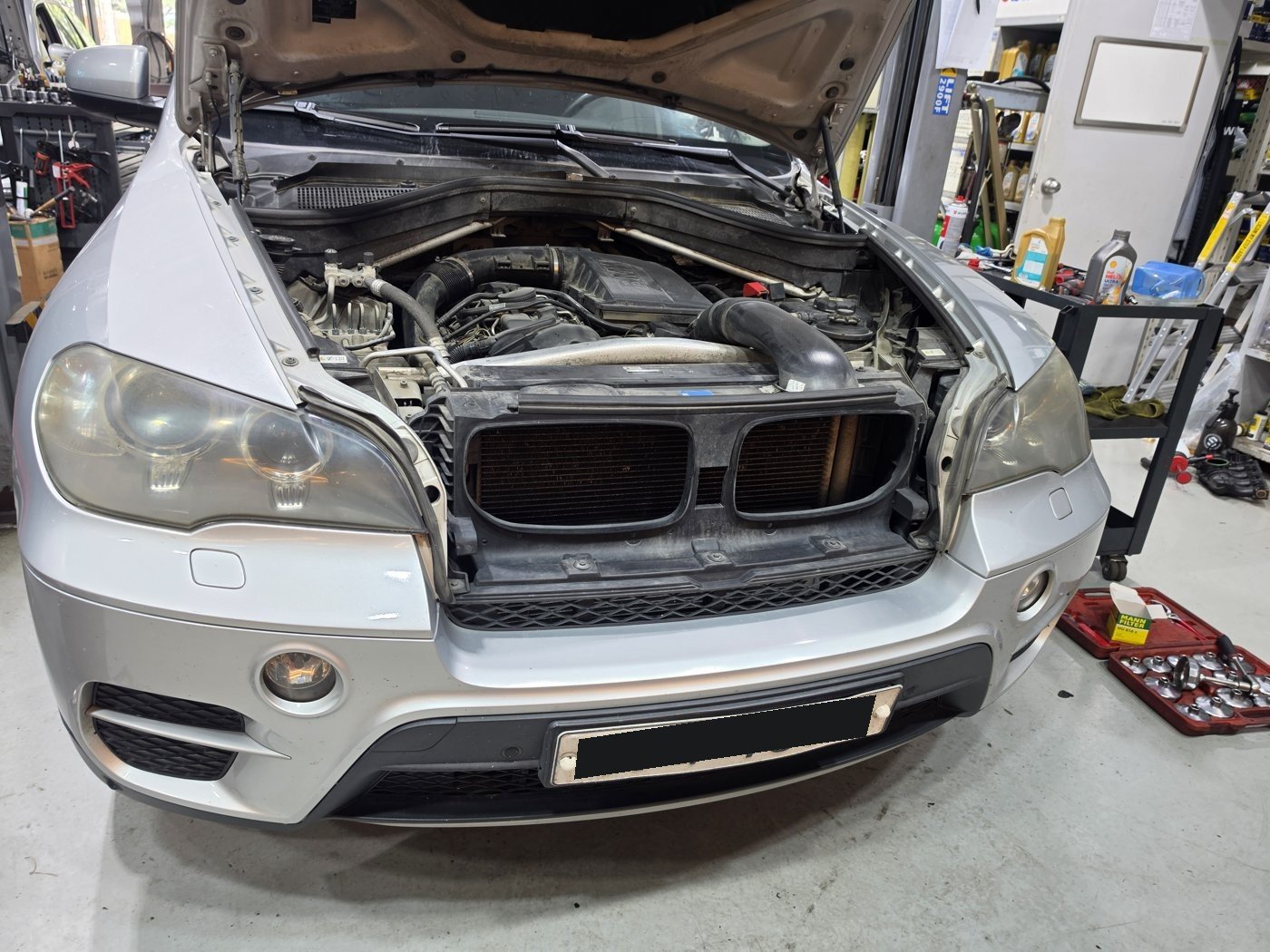

2010 BMW X5 E70 35i

This 2010 BMW X5 E70 35i is a car we have maintained for over ten years. At the last engine oil change, we suggested replacing the spark plugs and coils preventively on the next visit.

Timed with this oil change, we replaced six plugs and six coils.

01 / NHC MOTORS

Replaced before anything failed

The car was not brought in for a sudden ignition fault. Having maintained it for years, we could use its service history to decide when to replace the parts.

02 / NHC MOTORS

Opening the cowl to reach the rear coils

Of the six ignition positions, the rear ones sit under the cowl below the windshield. Forcing a hand into the narrow gap can snap connector latches or kink wiring, so we removed the parts around the cowl to create working space.

With each coil pulled, we unscrewed the plugs one at a time from the openings.

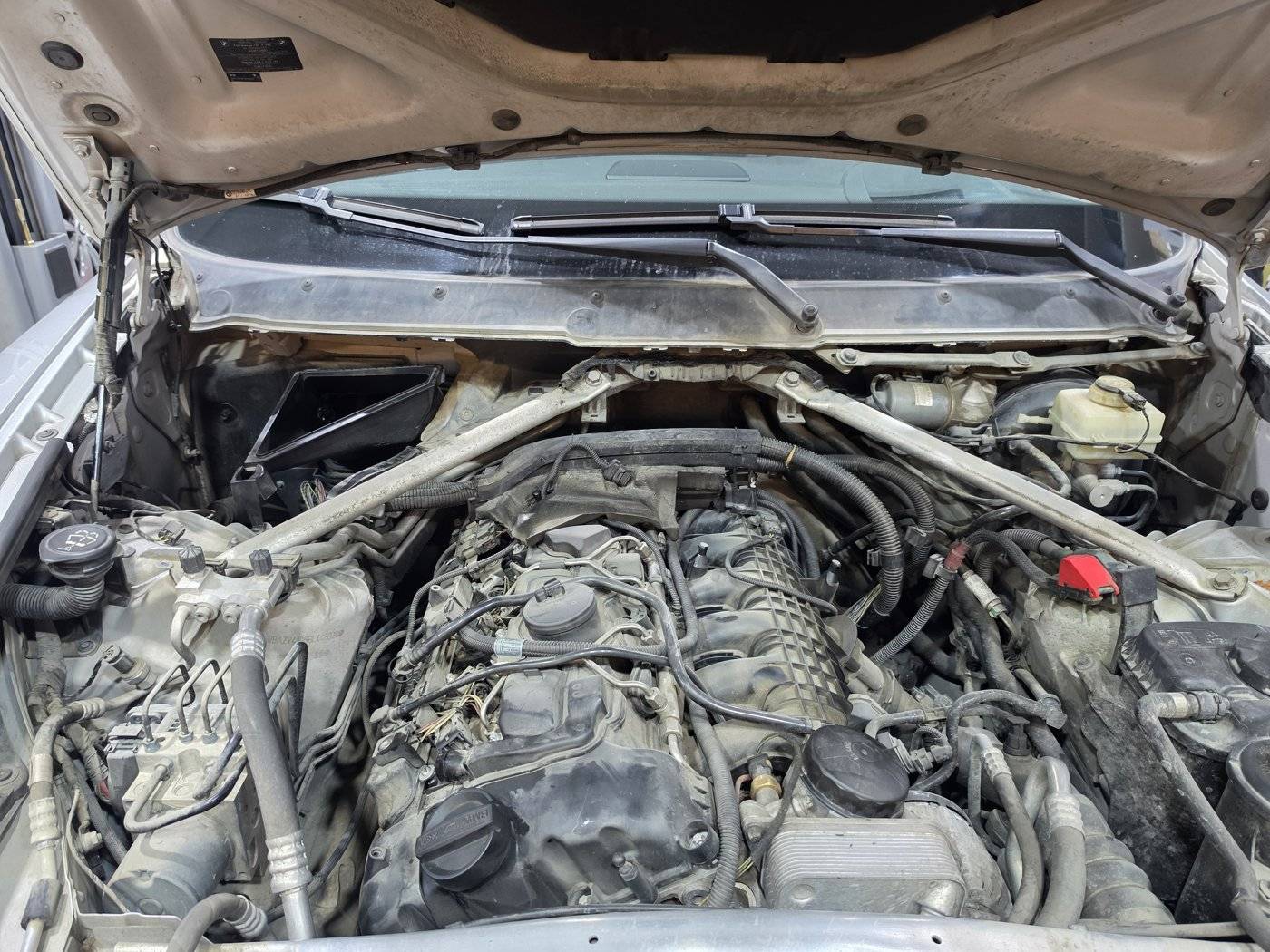

Parts around the cowl removed to make room to reach the rear ignition positions

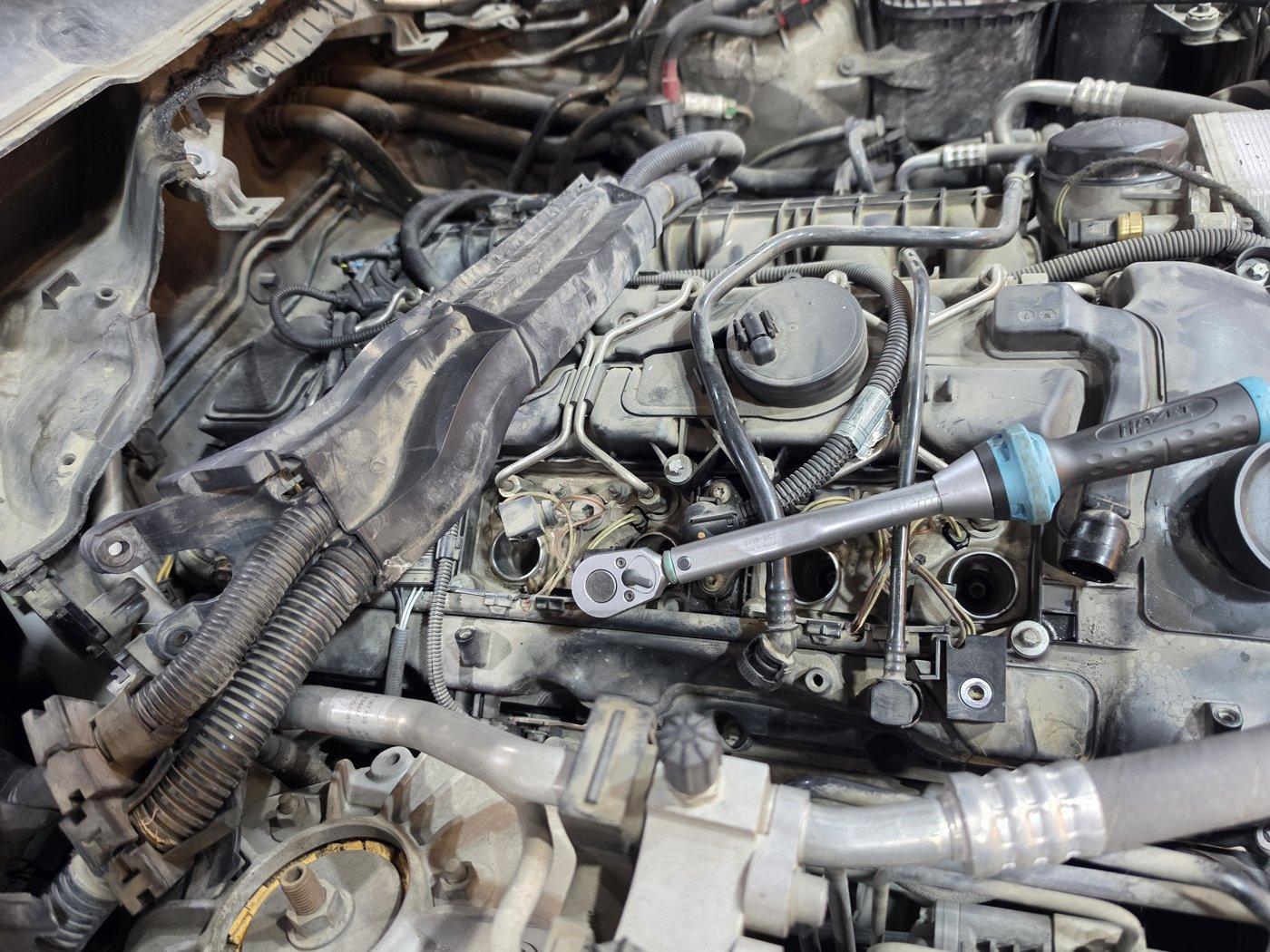

Spark plug well exposed after pulling the coil

03 / NHC MOTORS

Six new plugs, six new coils

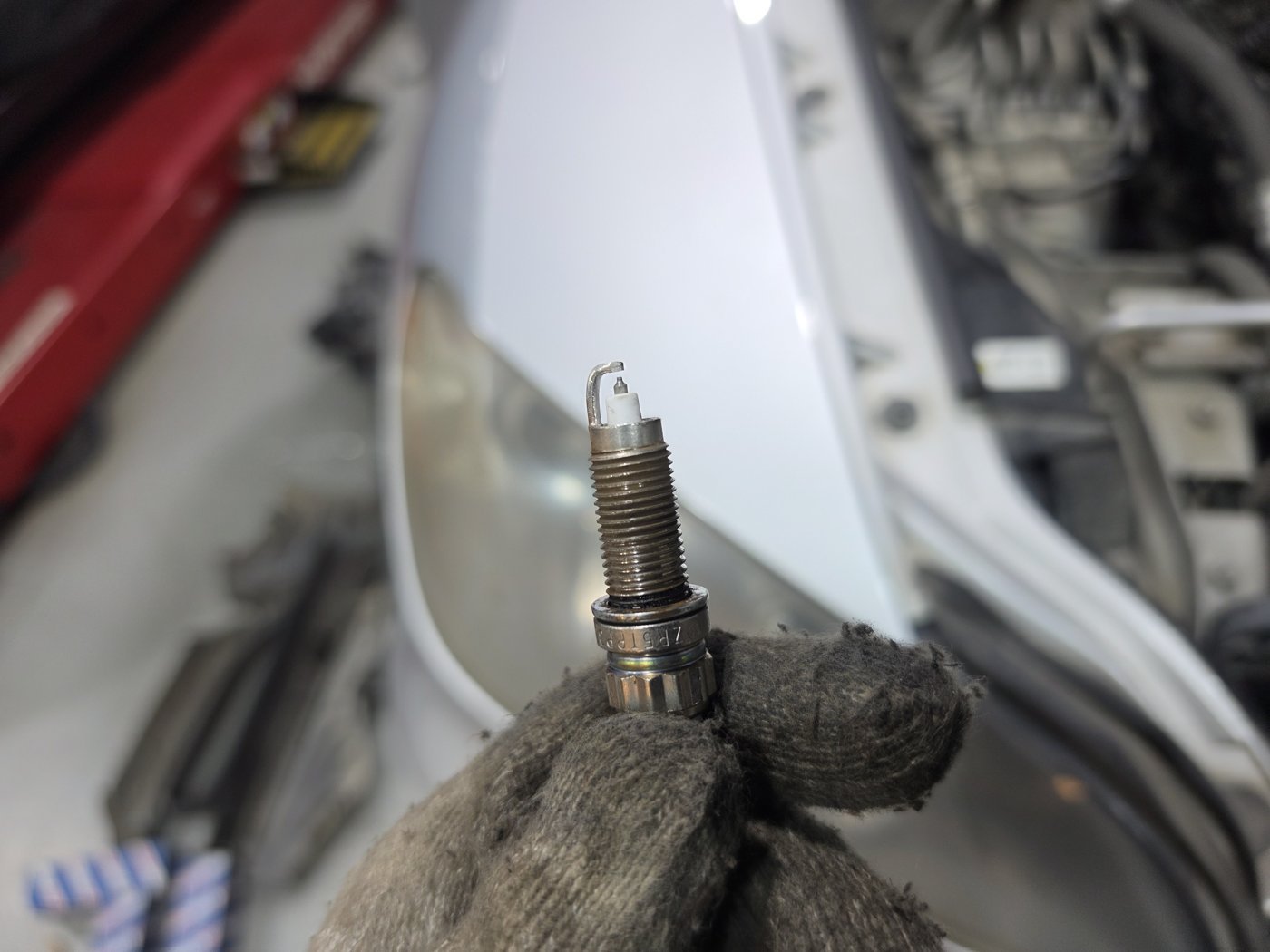

We laid the removed plugs next to the new ones to confirm they matched. The tips showed signs of use.

We likewise matched the six removed coils against the new BOSCH coils, seated them in place, and pushed each connector fully home one by one. After routing the wiring so nothing was pinched or pulled tight, we reassembled the cowl and surrounding parts.

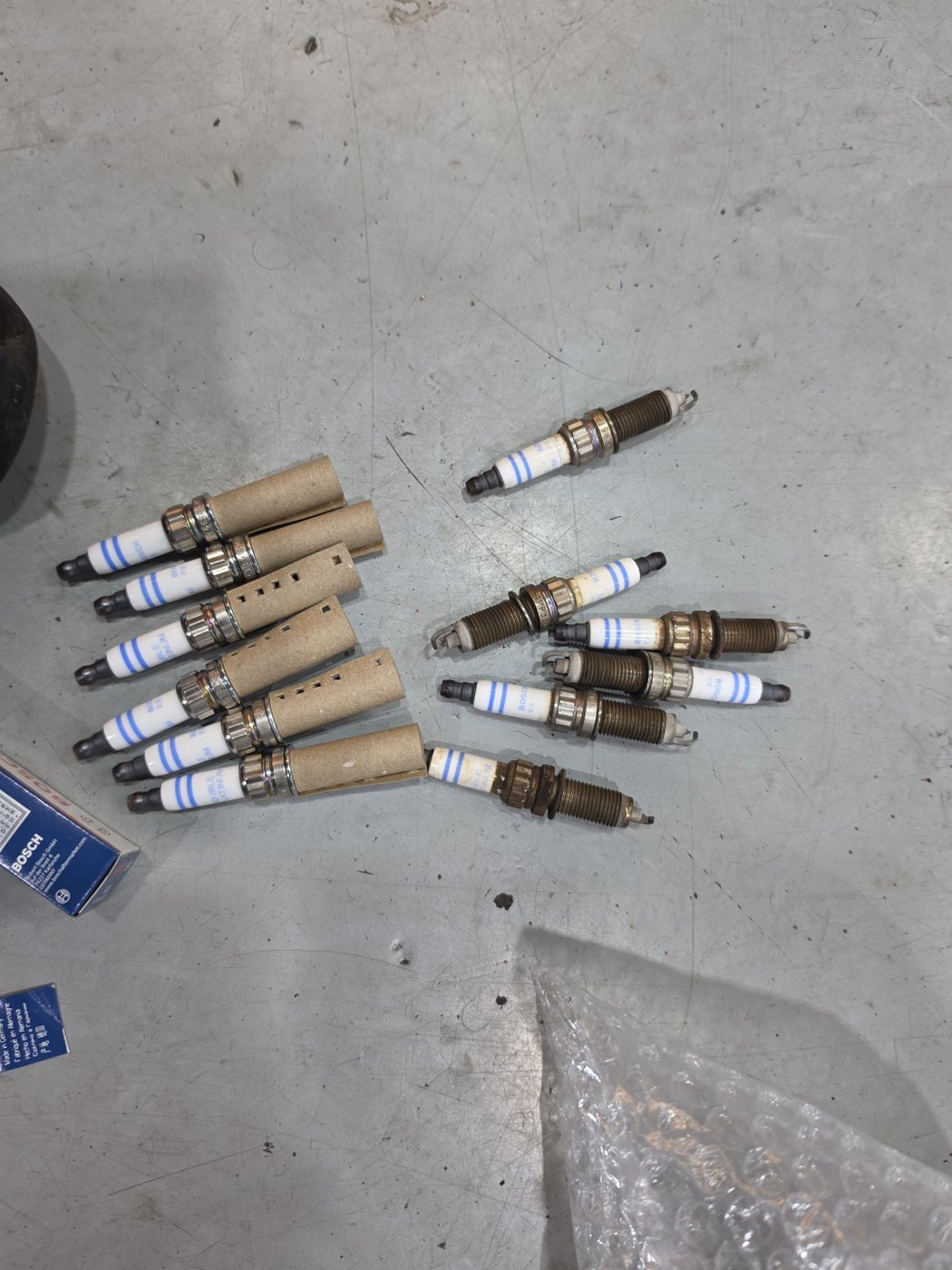

Removed spark plug compared against a new one

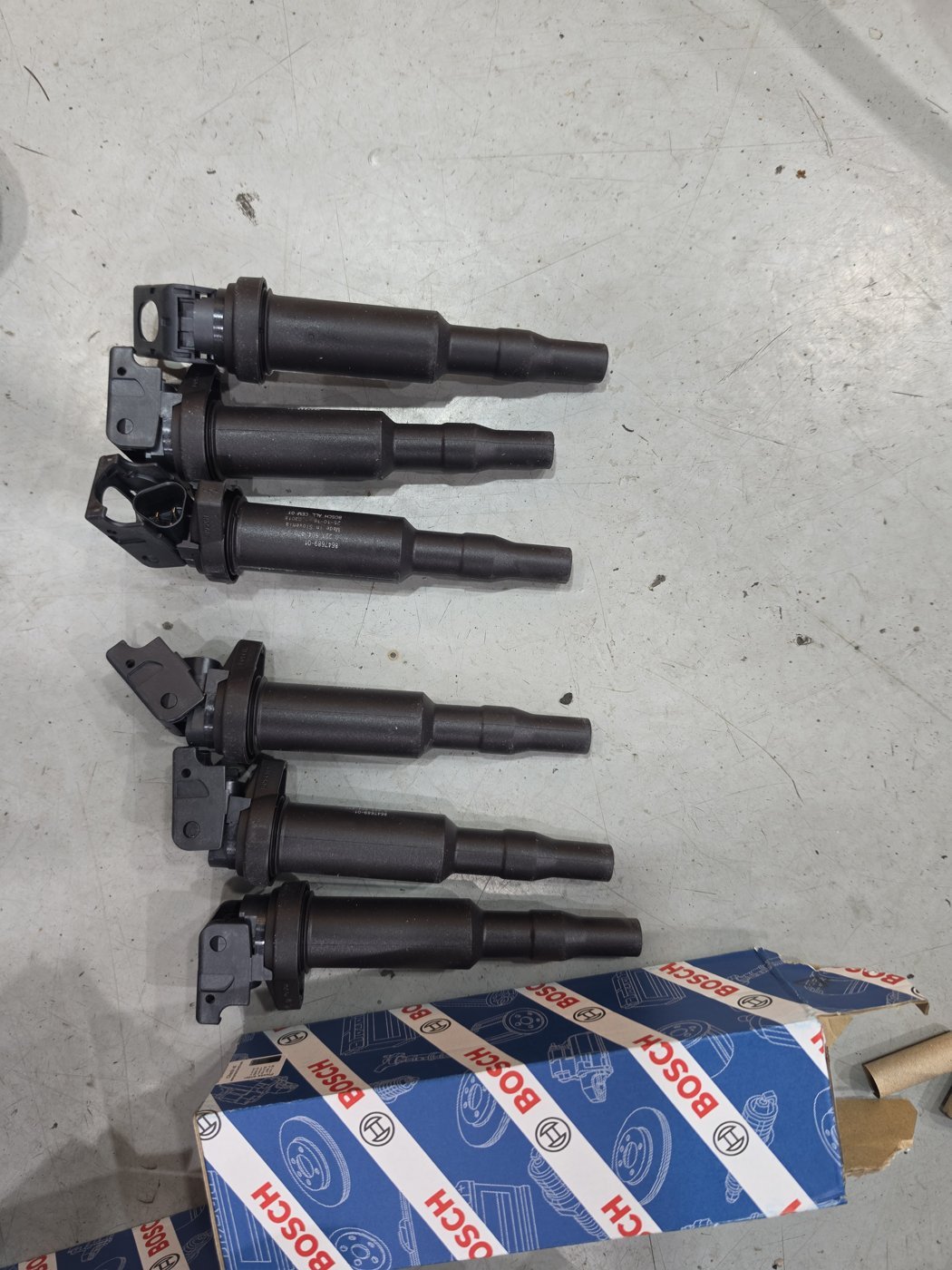

Six removed coils and boxes of new BOSCH coils

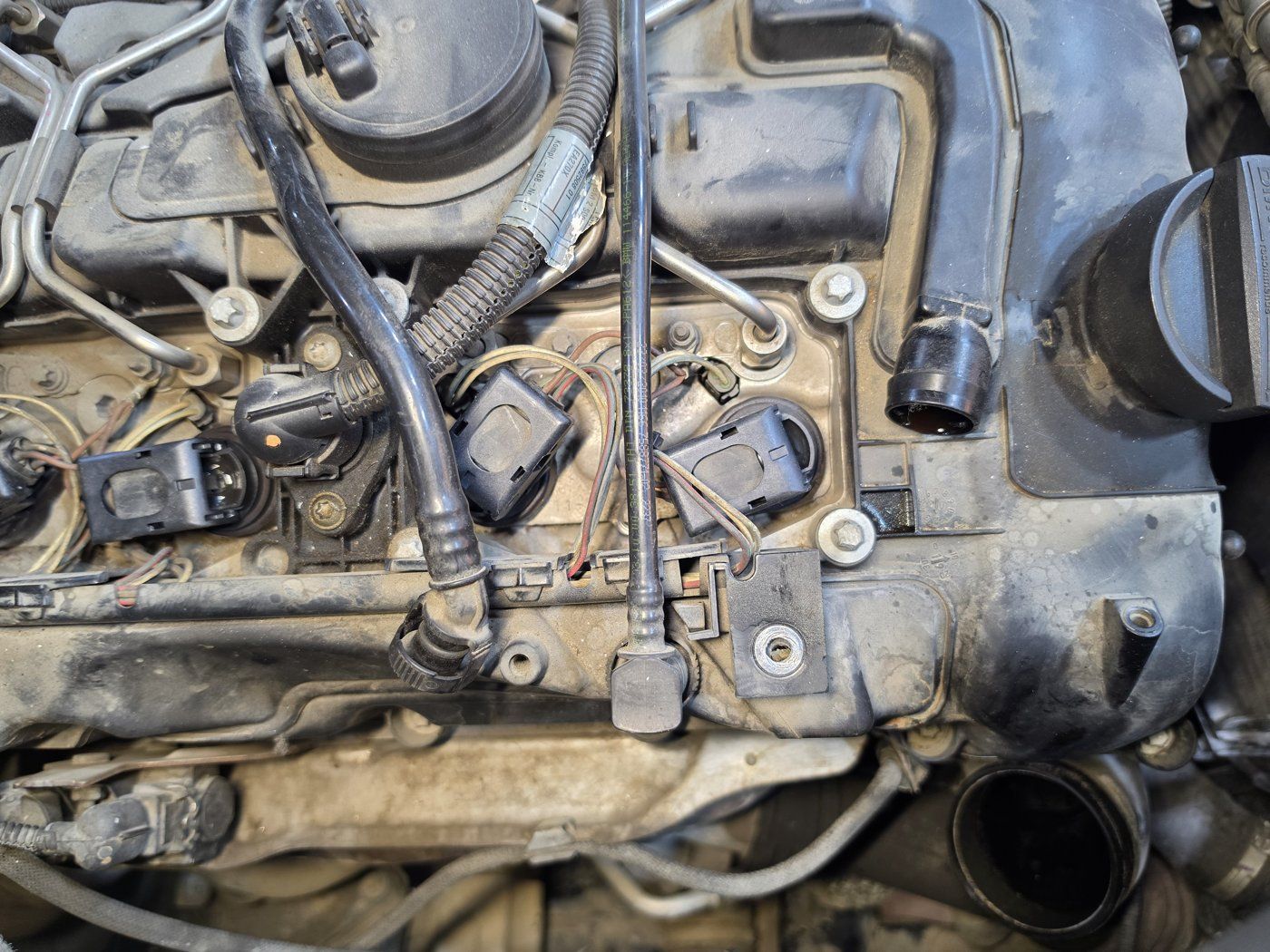

Top of the engine with new coils and connectors fitted in all six positions

04 / NHC MOTORS

Engine oil changed, and a note on rainwater at the firewall

The engine oil was changed to Shell HELIX ULTRA 5W-30 with a new oil filter, and a quick drain plug was fitted to the drain outlet. Tire pressures were set to 34psi front and rear with the tires warm, and the washer fluid was topped up.

Rainwater can enter around the E70 firewall, so we advised the owner to keep an eye on the firewall and cowl area. No rainwater leak repair was carried out on this visit.

How we reached and replaced the rear plugs and coils

Access

Remove parts around the cowl to open up space at the rear of the engine

Plugs

Compare old and new plugs, then replace

Coils

Replace all six coils

Connections

Connectors, wiring and reassembly of removed surrounding parts

Frequently asked questions

Should plugs and coils be replaced in advance even when nothing is wrong?

It depends on the car. We have maintained this X5 for a long time and know its history; at the last oil change we judged that preventive ignition work was due, so we did it with this oil change. If you tell us when yours were last replaced, we can advise for your specific car.

Not sure when the ignition parts were last changed?

If you are unsure when the ignition parts were last changed, tell us the model and mileage. We can start with the service history.

We explain the work and estimate before proceeding with your consent.

Call for service advice Book via Naver

031-258-1617 · NHC Motors, Suwon · By appointment

Published 2026-09-24
