2016 BMW 730d Brake Judder – Why We Machined the Discs Instead of Replacing Them
This BMW 730d came in with vibration under braking. We inspected the disc surfaces and pad contact faces, then machined the discs on the car and exchanged the brake fluid.

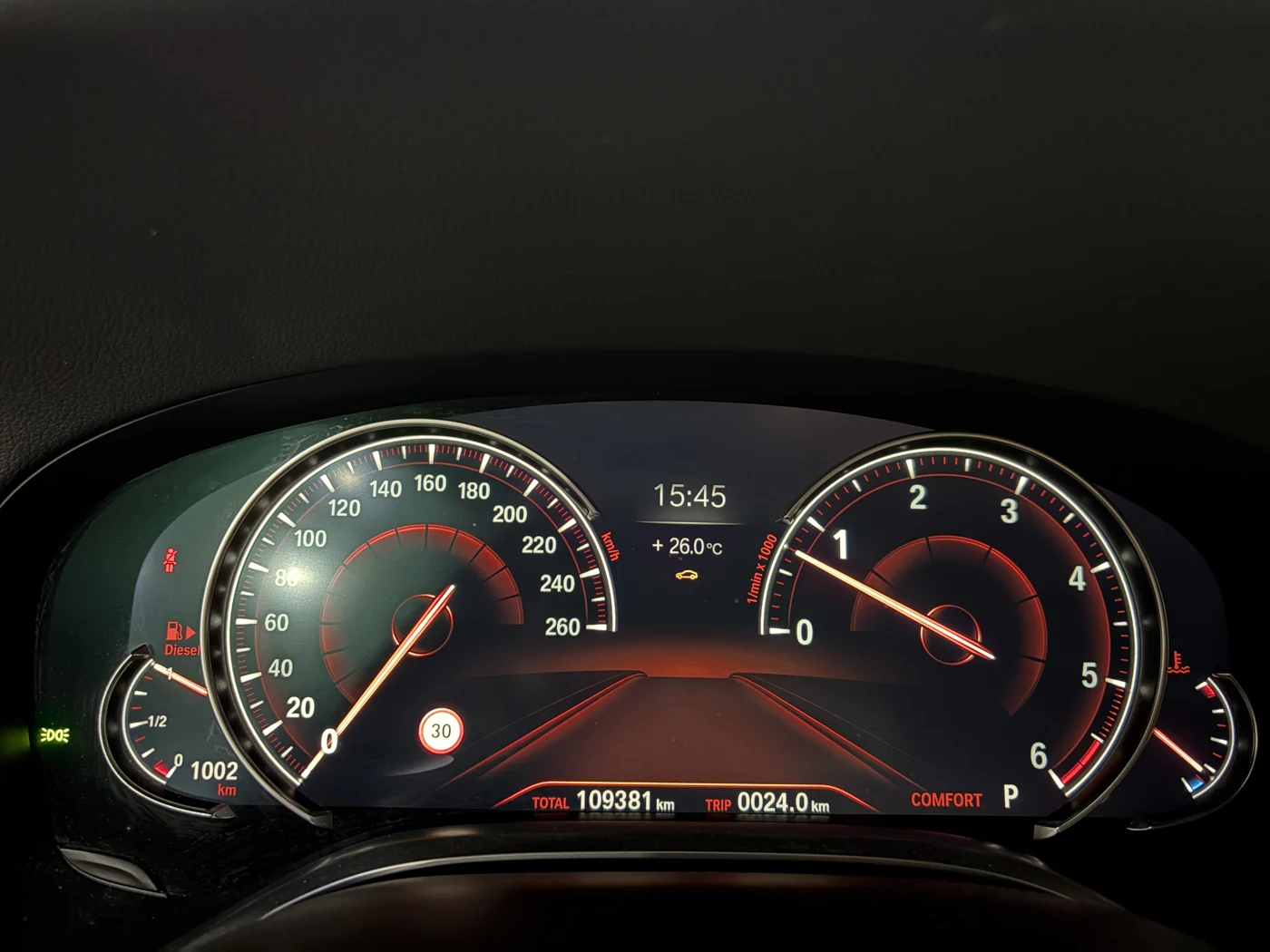

Arrived 2026-05-27, 2016 BMW 730d, 109,381 km, vibration under braking
Checked disc friction surfaces and rust, and the contact faces of the removed pads
Hunter-style disc machining performed with the discs mounted on the car, plus a brake fluid exchange
Discs restored to an even surface without replacement; we recommend a re-check if the braking feel changes later
01 / NHC MOTORS
Brake Judder: Where We Look First
When the steering wheel or pedal shakes under braking, we inspect the disc and pad contact surfaces. Uneven surfaces or uneven pad contact can contribute to judder.
On this 730d, we inspected the disc contact surfaces and rusted areas, then removed the pads to check their mating surfaces.
02 / NHC MOTORS
Why We Chose Machining Over Replacement

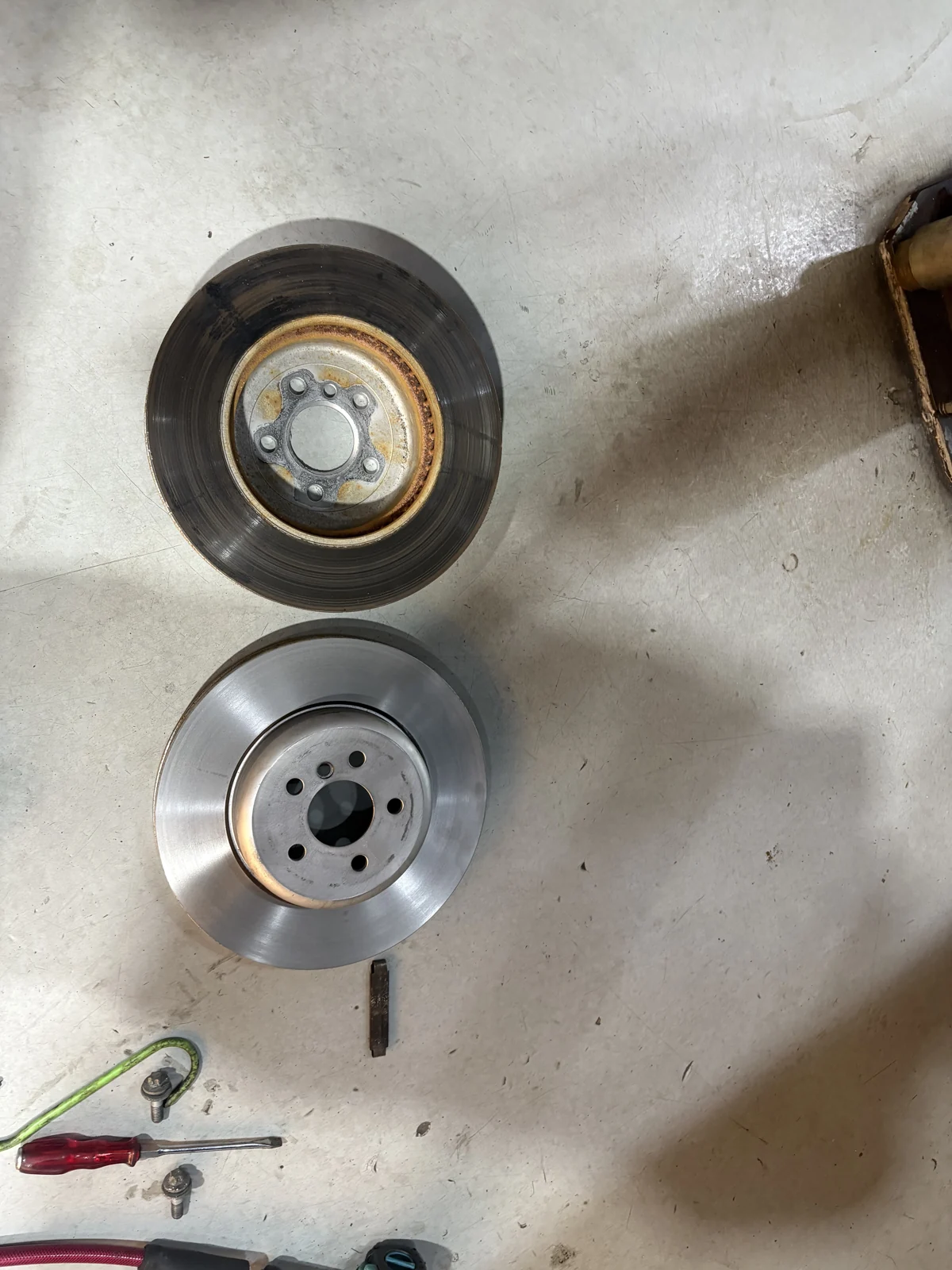

Machining is a condition-based decision. The disc must remain within the manufacturer’s thickness limit after machining, and cracks or other damage may require replacement.
This 730d received disc machining. With expensive brake components, inspecting whether the existing discs can be reused is a useful step before choosing the repair.
03 / NHC MOTORS
Hunter-Style Machining With the Discs on the Car

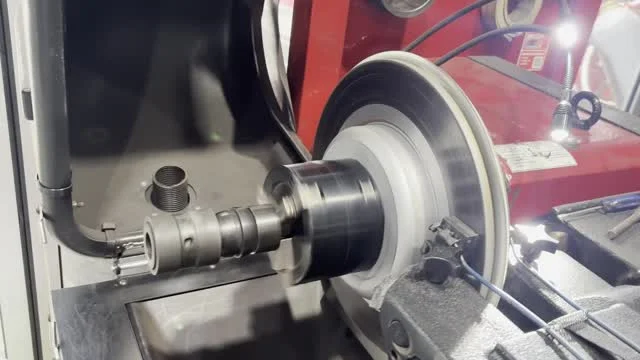

The lathe was connected with the discs mounted on the hubs, so machining was carried out in their installed position.

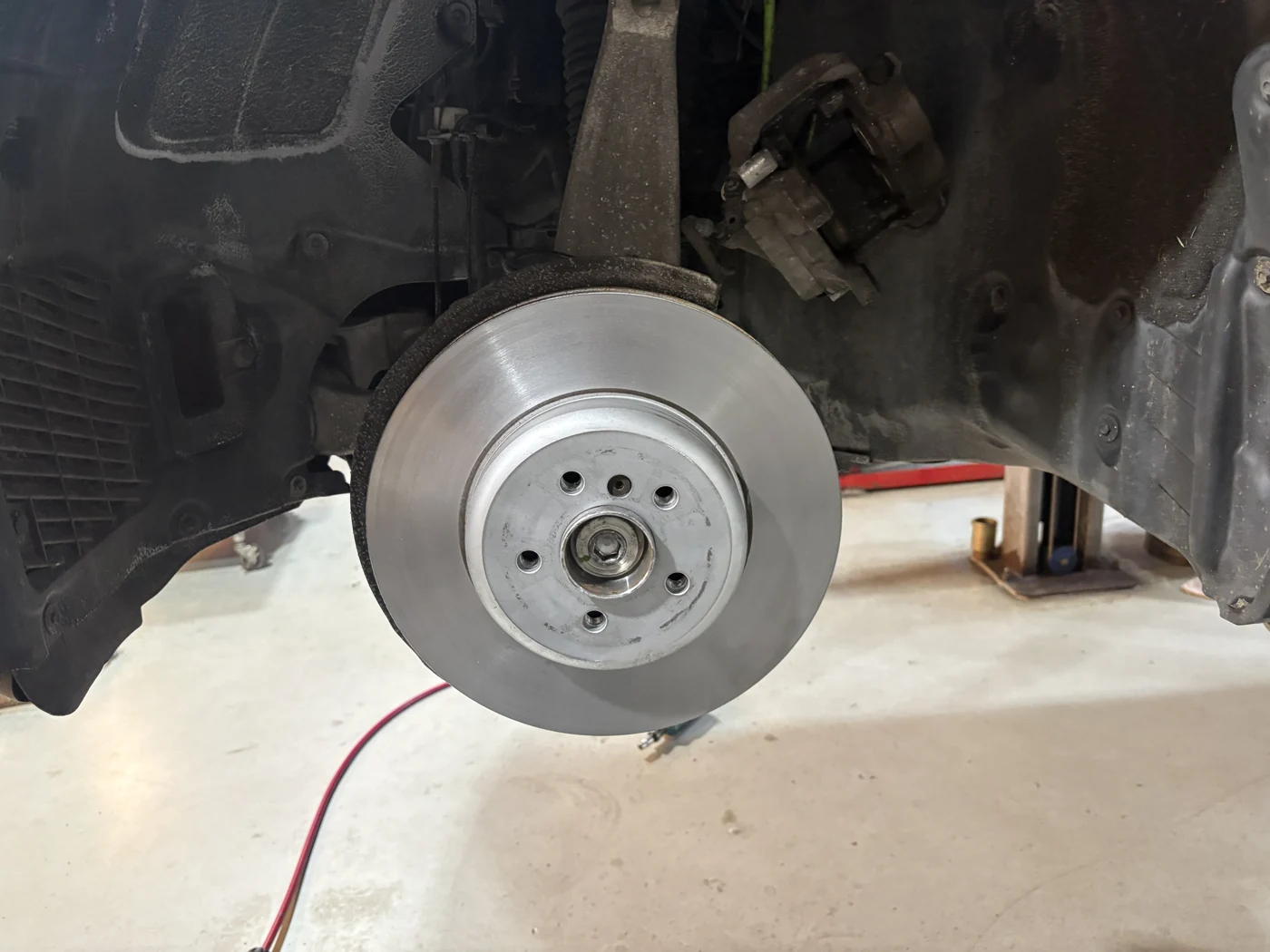

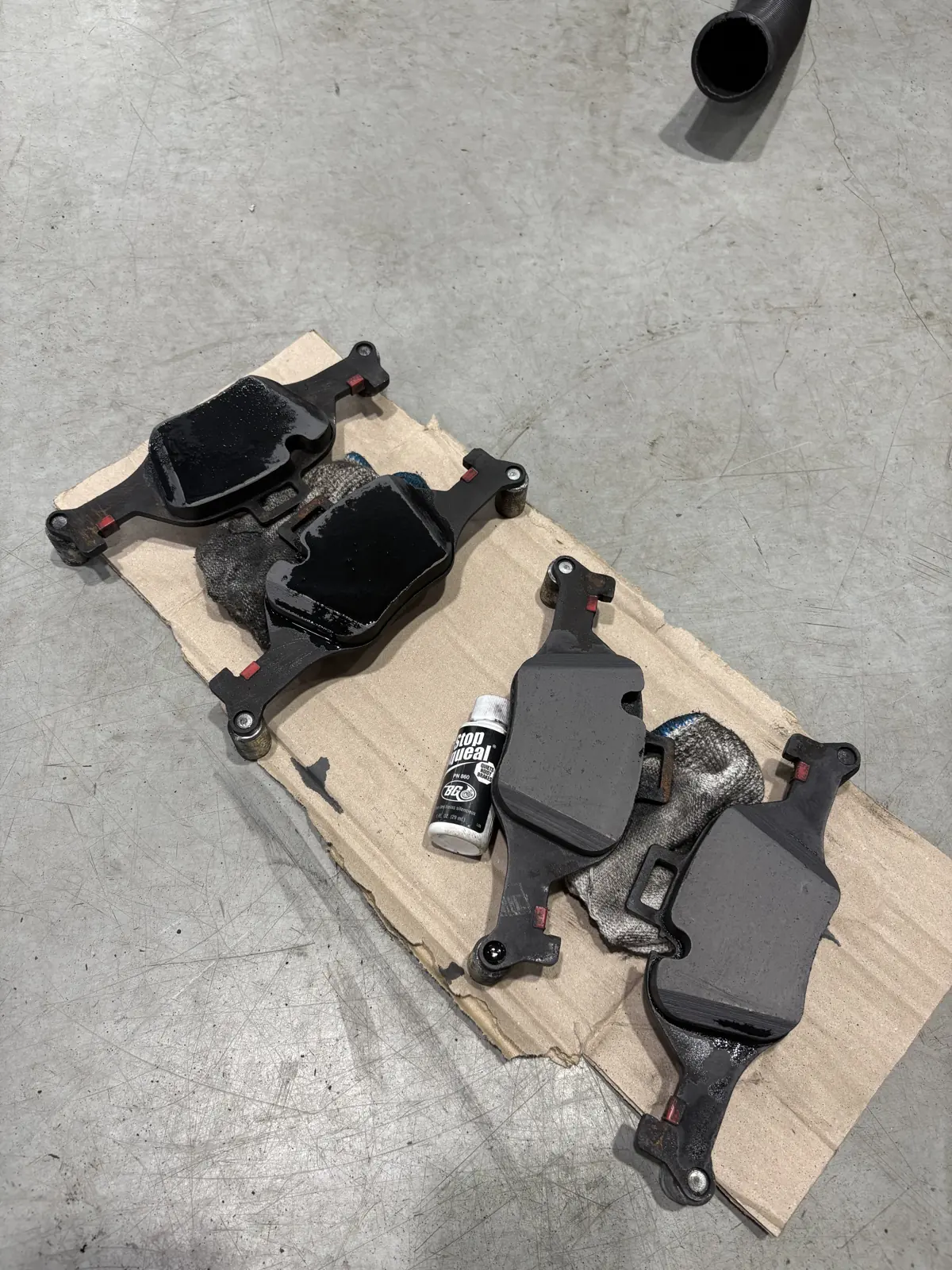

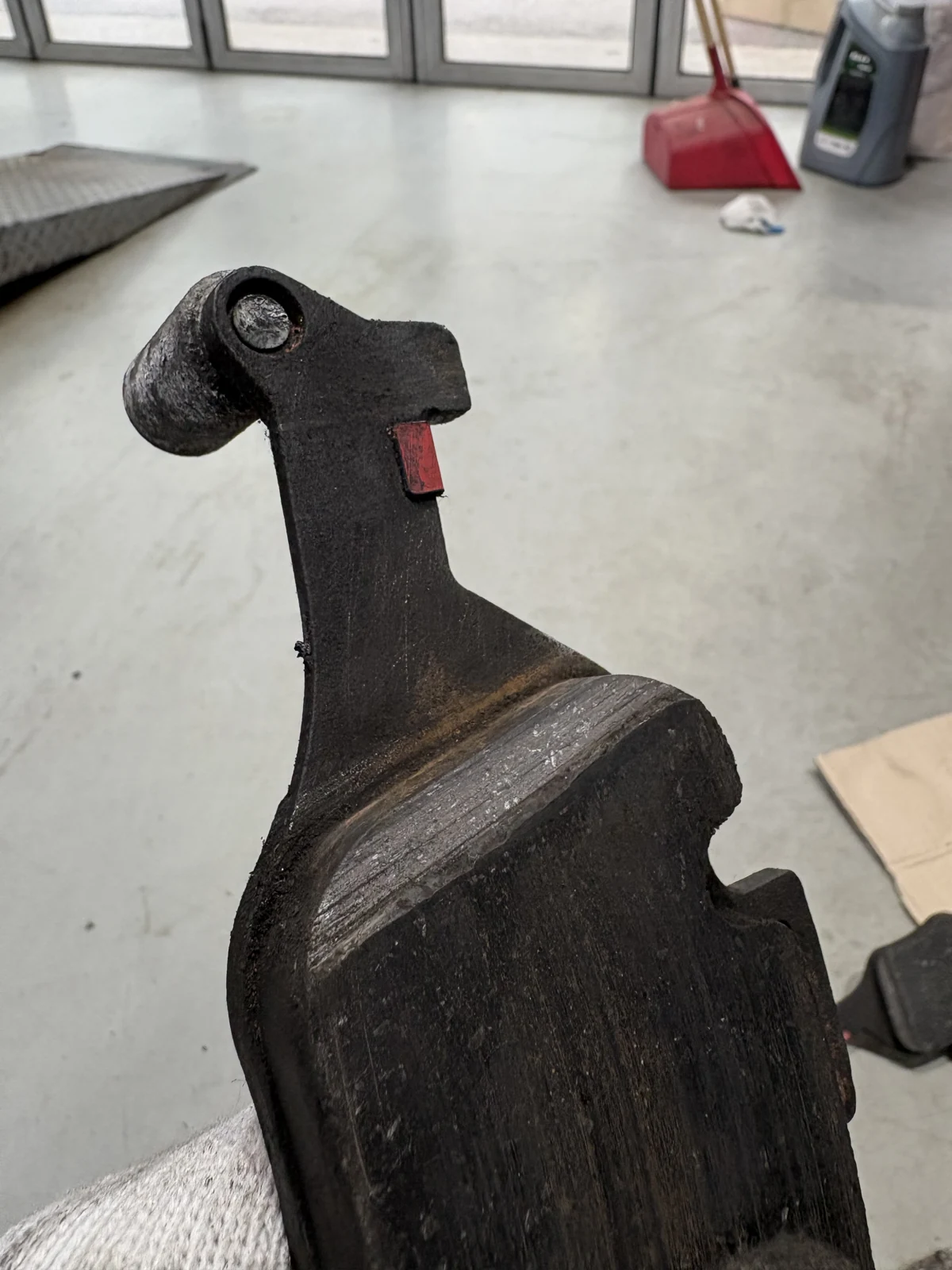

The photographs show the machined disc surface and the removed pads, whose contact faces were also inspected.
04 / NHC MOTORS
Brake Fluid Exchange Done at the Same Time

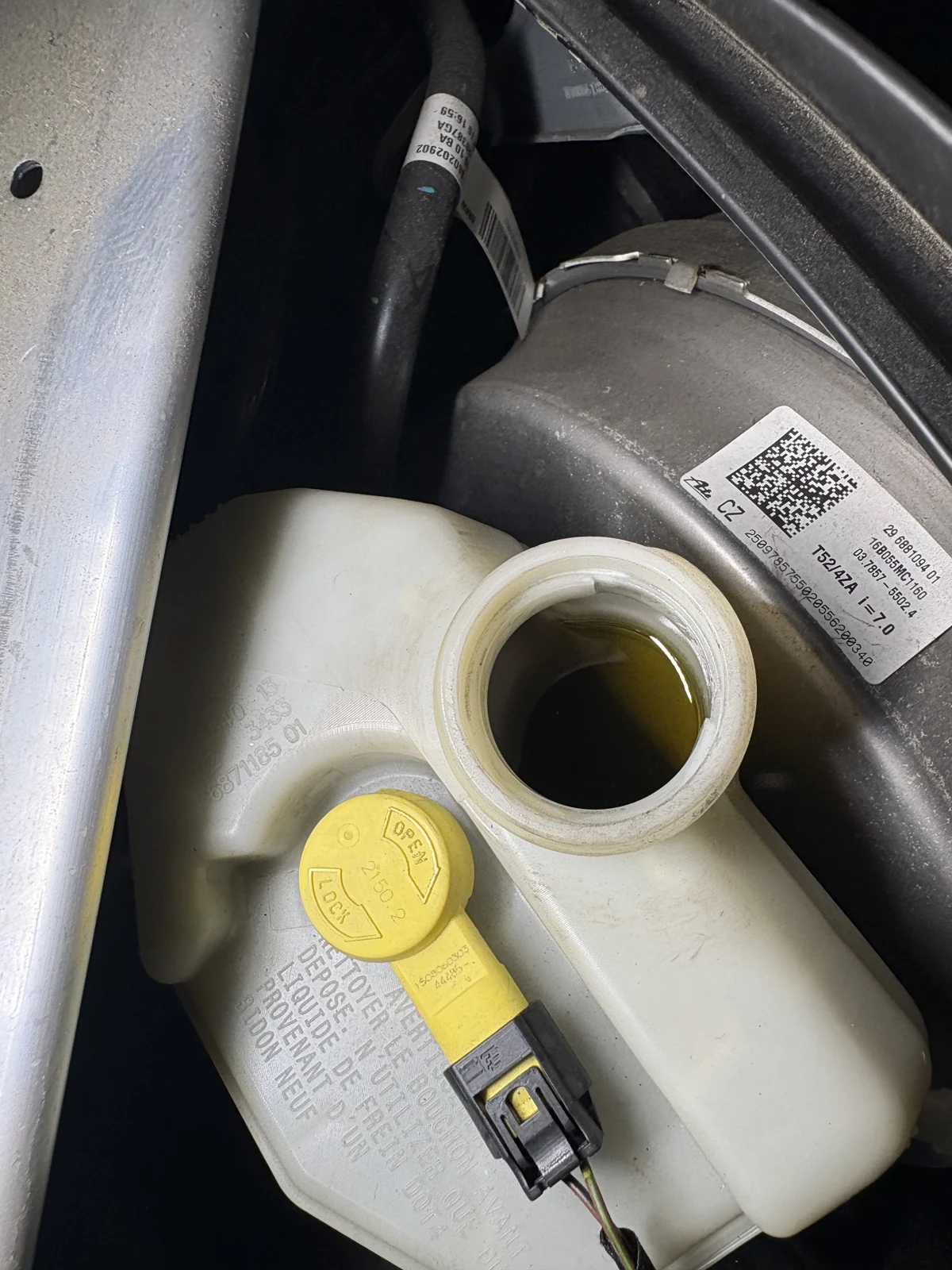

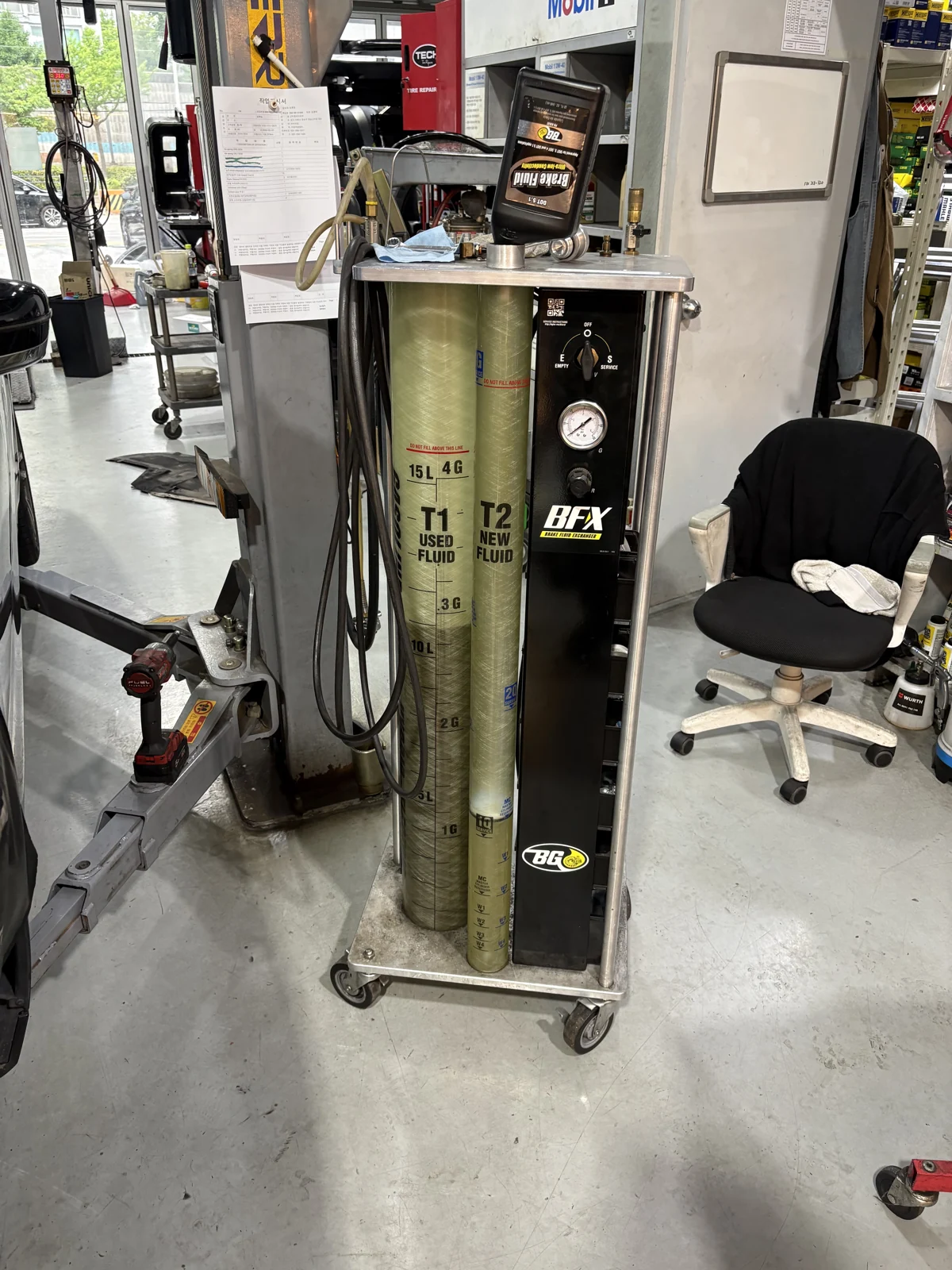

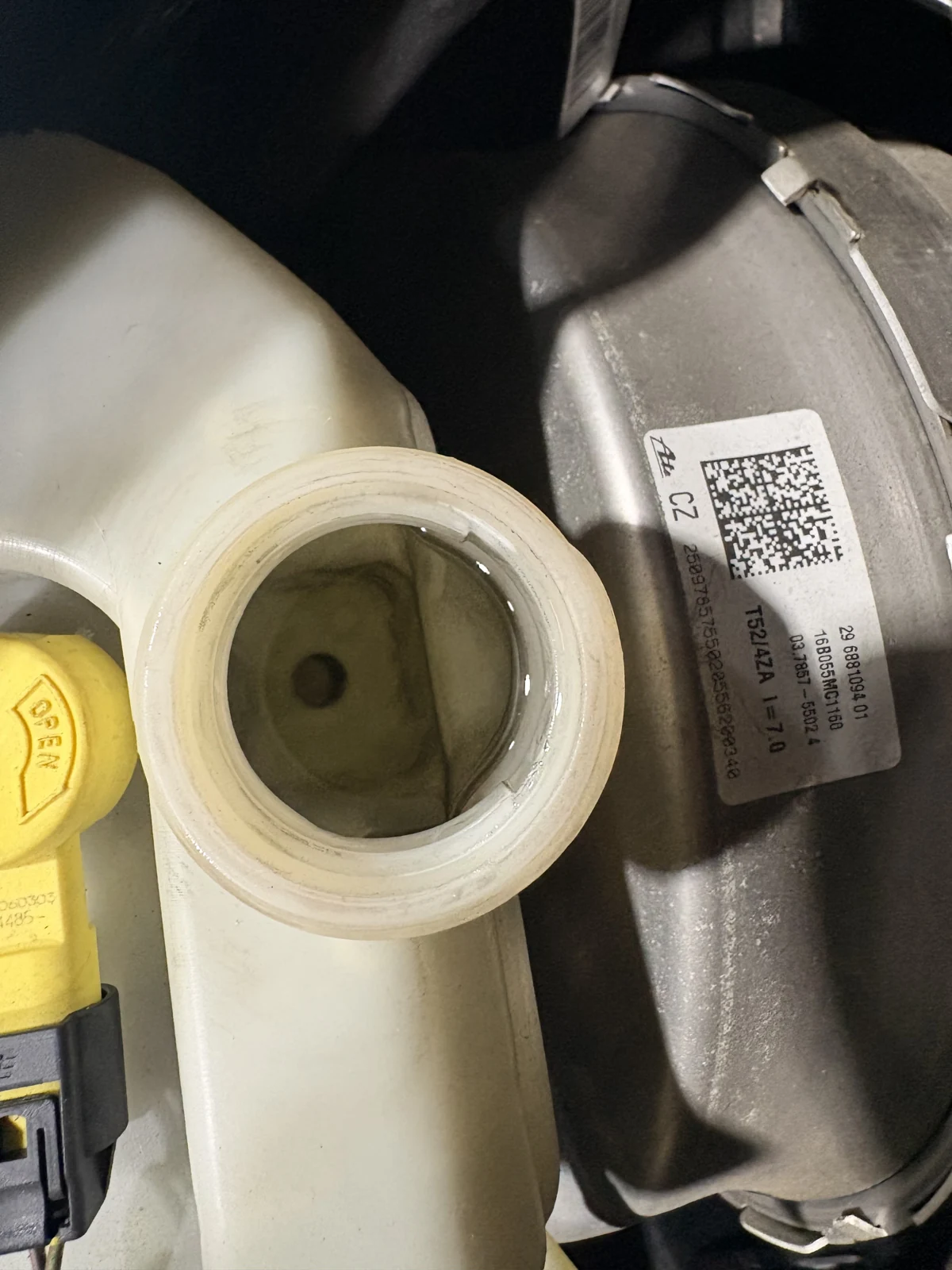

We also replaced the brake fluid using equipment connected to the reservoir.
Brake fluid absorbs moisture in service. Its replacement history is worth checking when servicing the discs and pads.
05 / NHC MOTORS
Condition After the Work and What to Watch

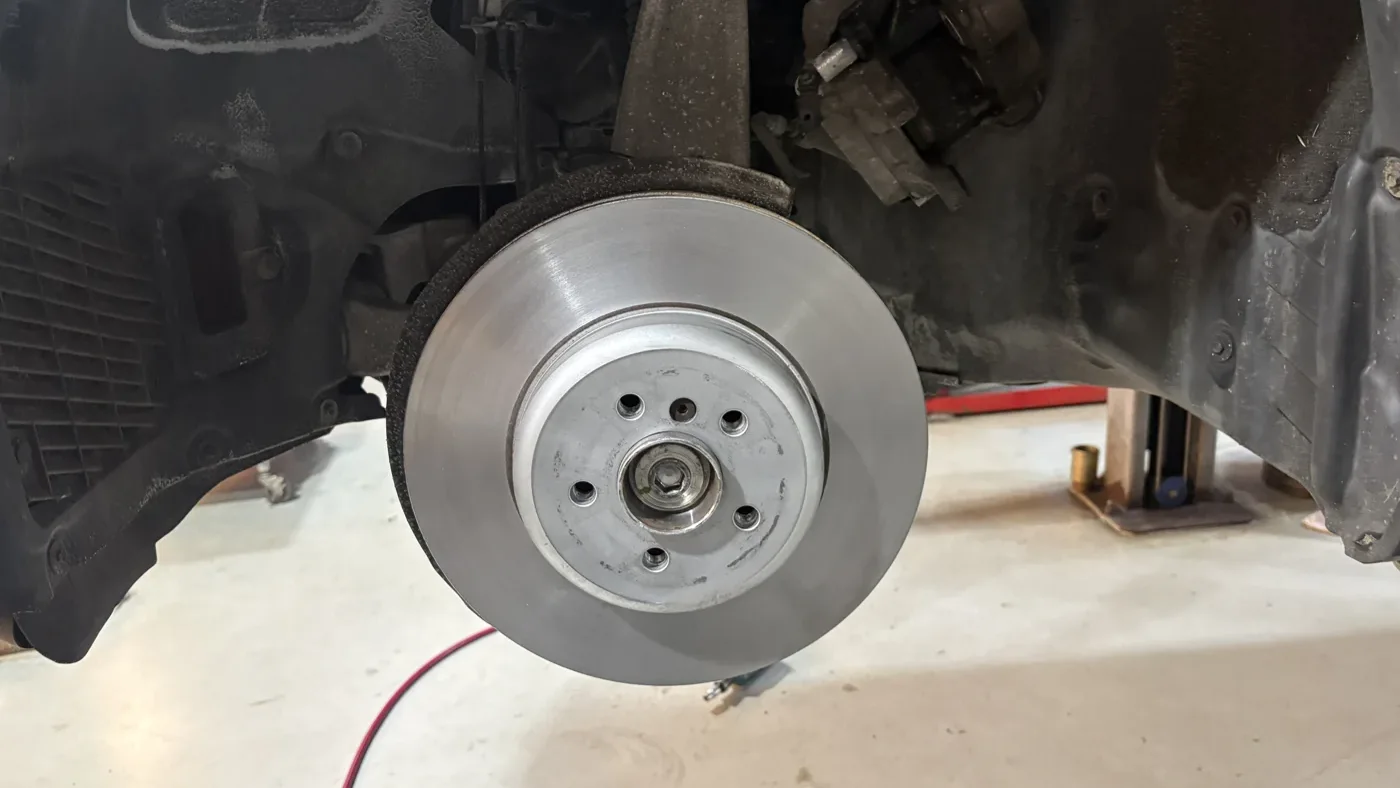

The disc friction surfaces were machined and the brake fluid exchanged. If judder is felt again, inspection should include the discs and pads as well as the hubs and suspension.
Questions about this work
If I have brake judder, do the discs always need to be replaced?
No. If enough thickness remains and there are no cracks or damage, the surface can be restored by machining and the discs reused. On this 730d, after checking the condition we machined the discs on the car instead of replacing them.
How is on-car machining different from removing the discs and cutting them on a bench?
The discs are machined exactly as installed on the hubs, so any small runout introduced during assembly is corrected under the same conditions the disc actually rotates in.
