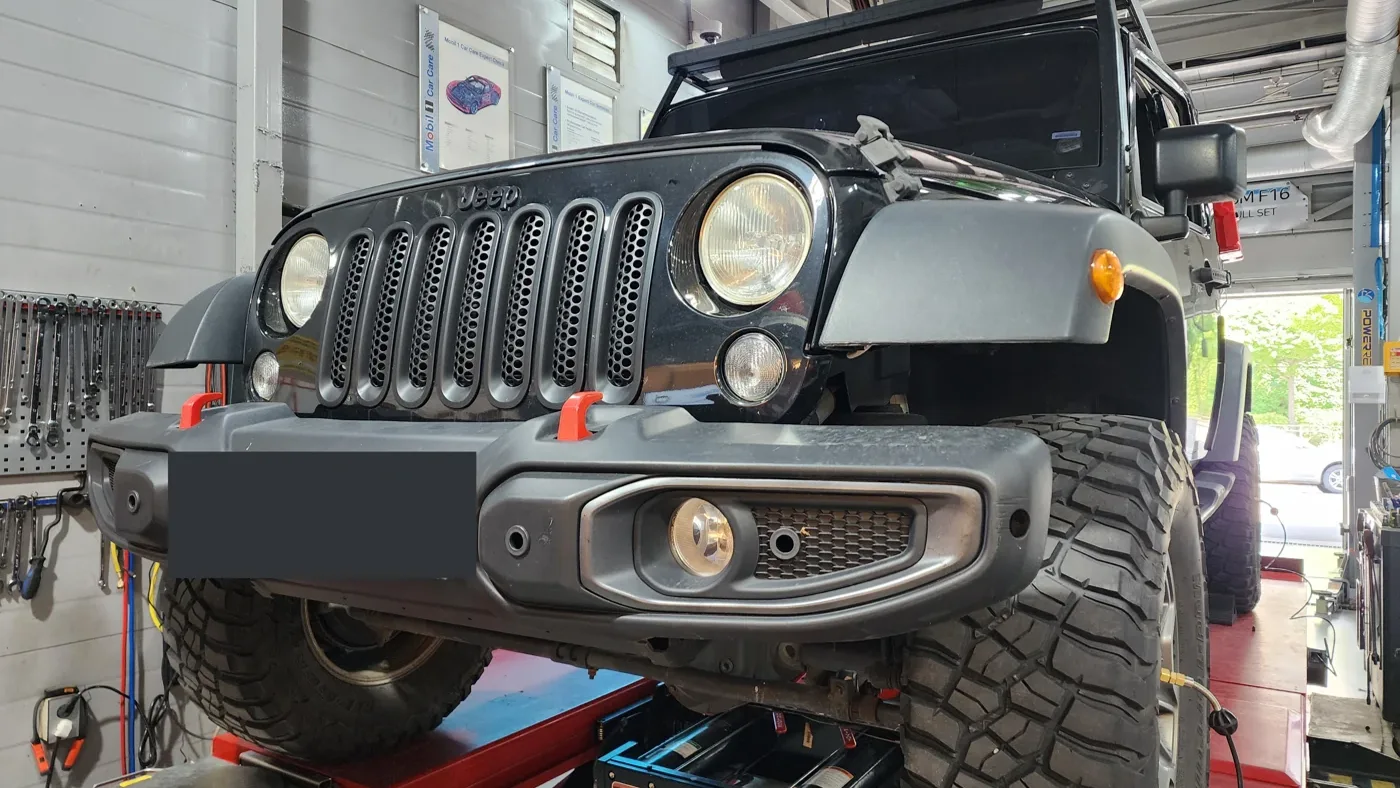

2016 Jeep Wrangler Rubicon 3.6 — Why the Wheel Wouldn't Spin with the Brake Released

01 / NHC MOTORS

The Wheel Wouldn't Spin Freely with the Brake Released

When the vehicle arrived, the wheel would not rotate freely even with the brake pedal released. On the lift, turning the wheel by hand met resistance and it stopped almost immediately. When a brake drags like this, the pad and disc stay in constant contact, so heat builds up, pad and disc wear accelerates, and fuel economy suffers.

Our inspection pointed to a sticking caliper. The caliper's job is to push the pads against the disc when you brake, and to let them release when you lift off the pedal. When that release motion fails, you get exactly what this vehicle showed: drag on the wheel even with the brake off.

02 / NHC MOTORS

Why a New Disc Alone Doesn't Fix It — Front Caliper and Disc Replaced Together

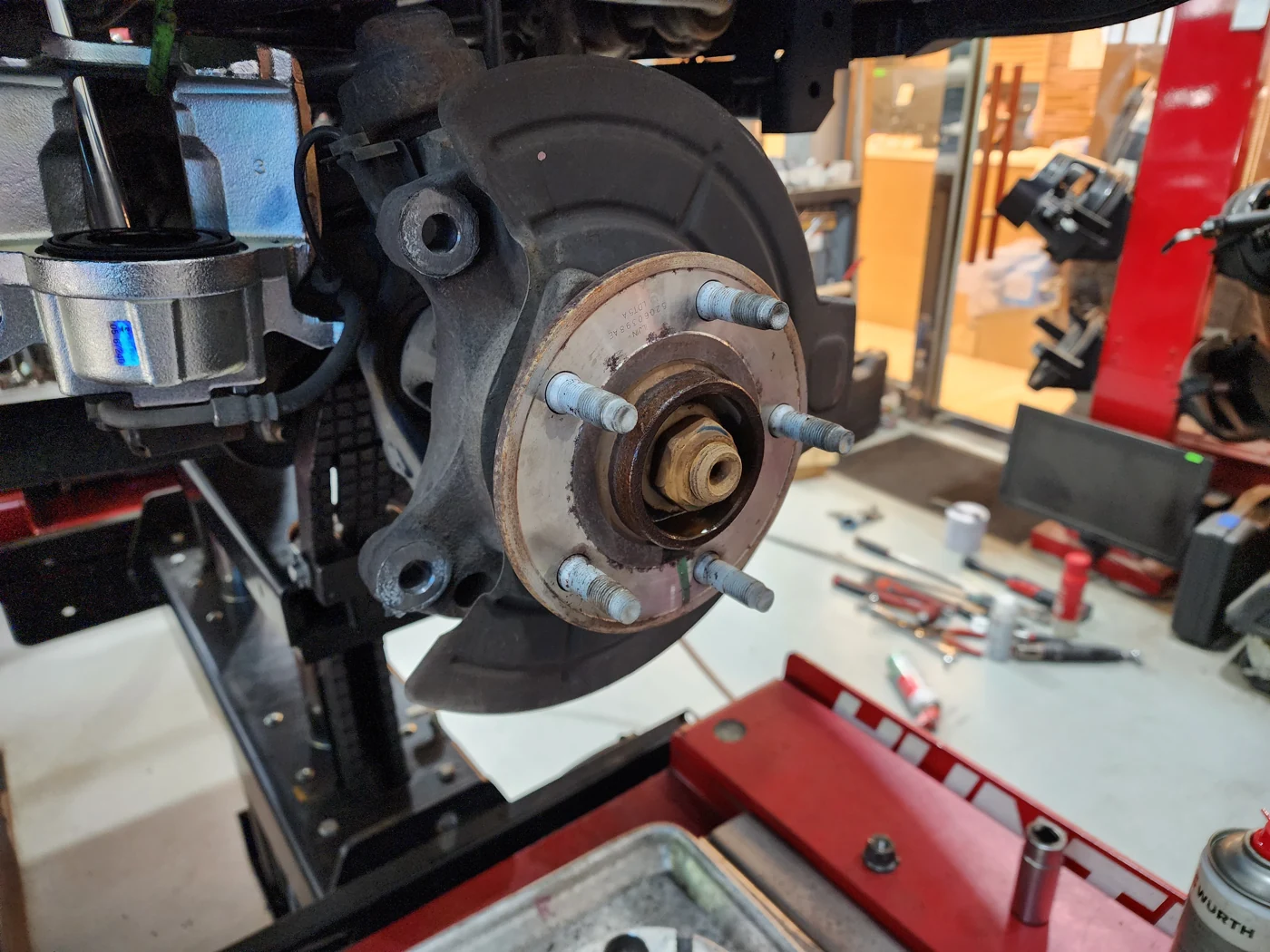

With a dragging brake, fitting only a new disc may look like a fix, but if the caliper still fails to release, the new disc gets damaged the same way again. That is why we check not just the disc surface but whether the caliper actually clamps and releases as it should.

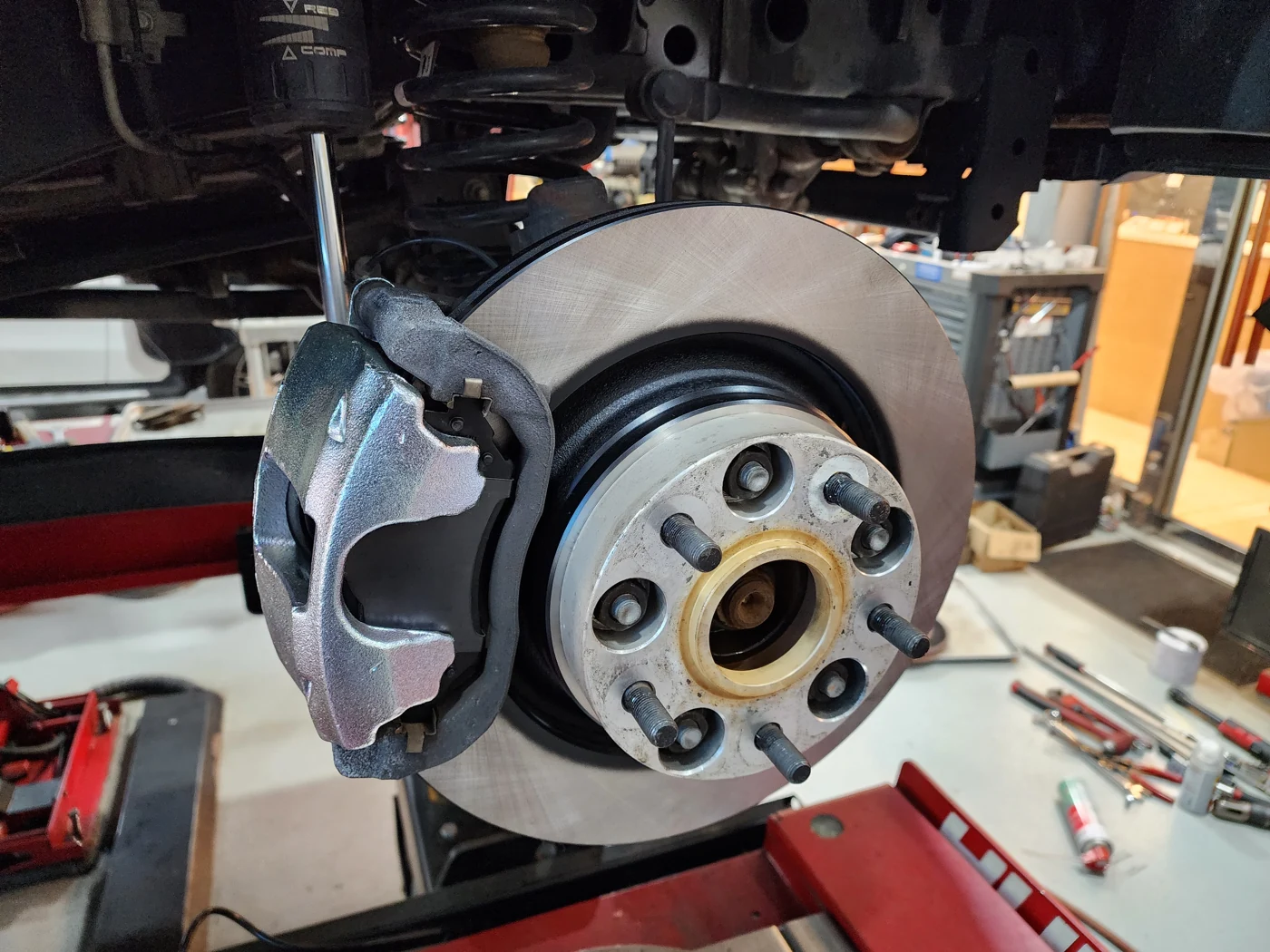

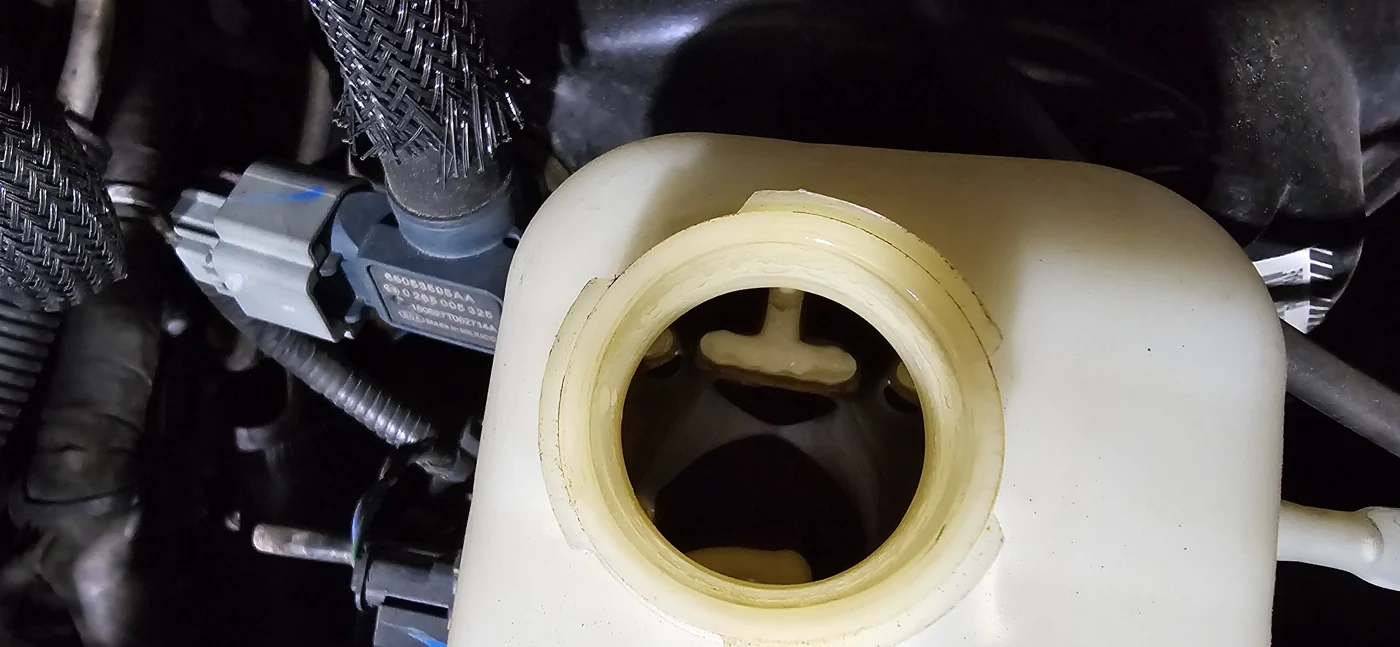

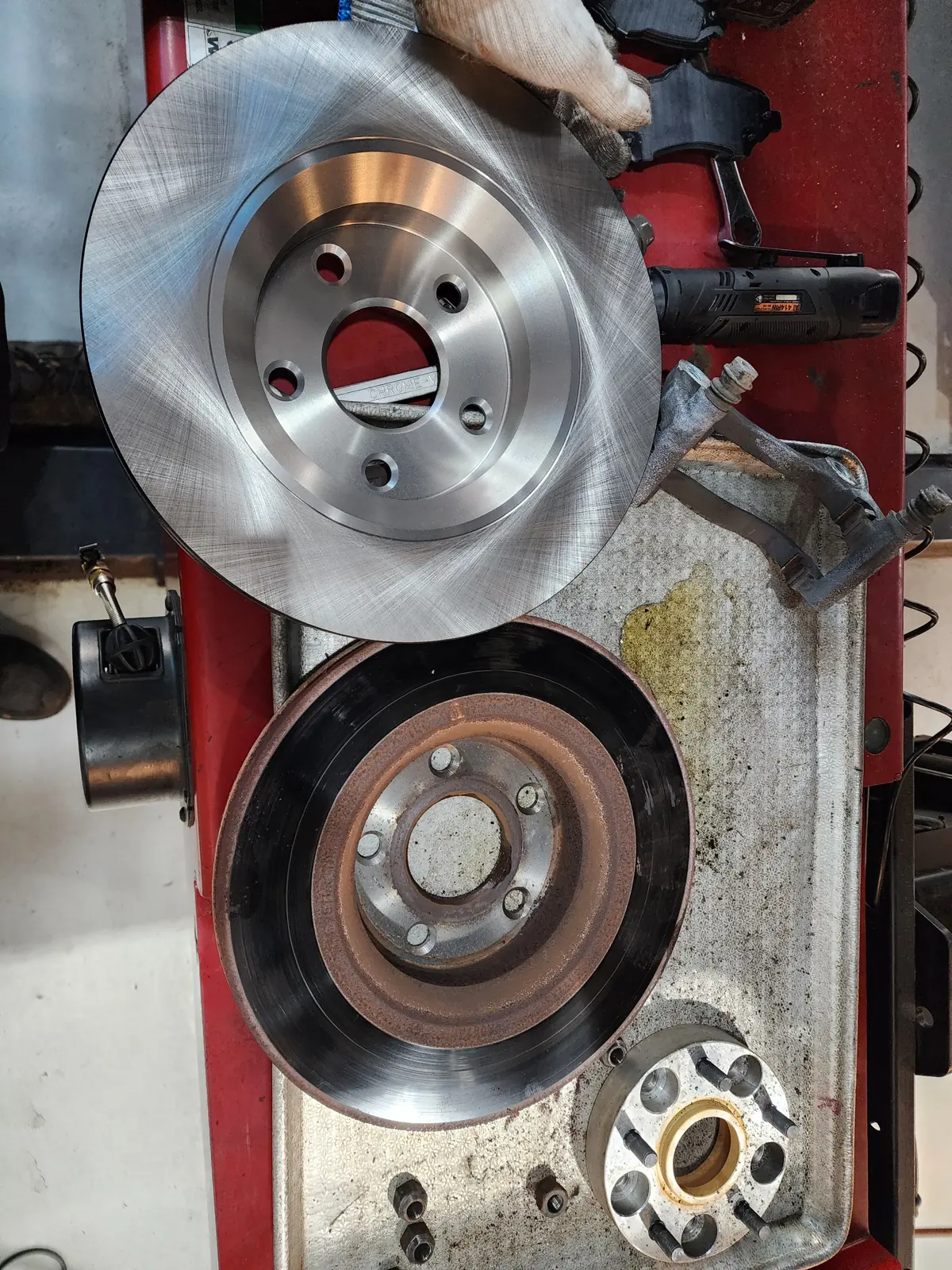

On this vehicle we replaced the front calipers together with the discs. Because replacing a caliper opens the hydraulic line, we also carried out brake fluid service so that no air remained in the system.

03 / NHC MOTORS

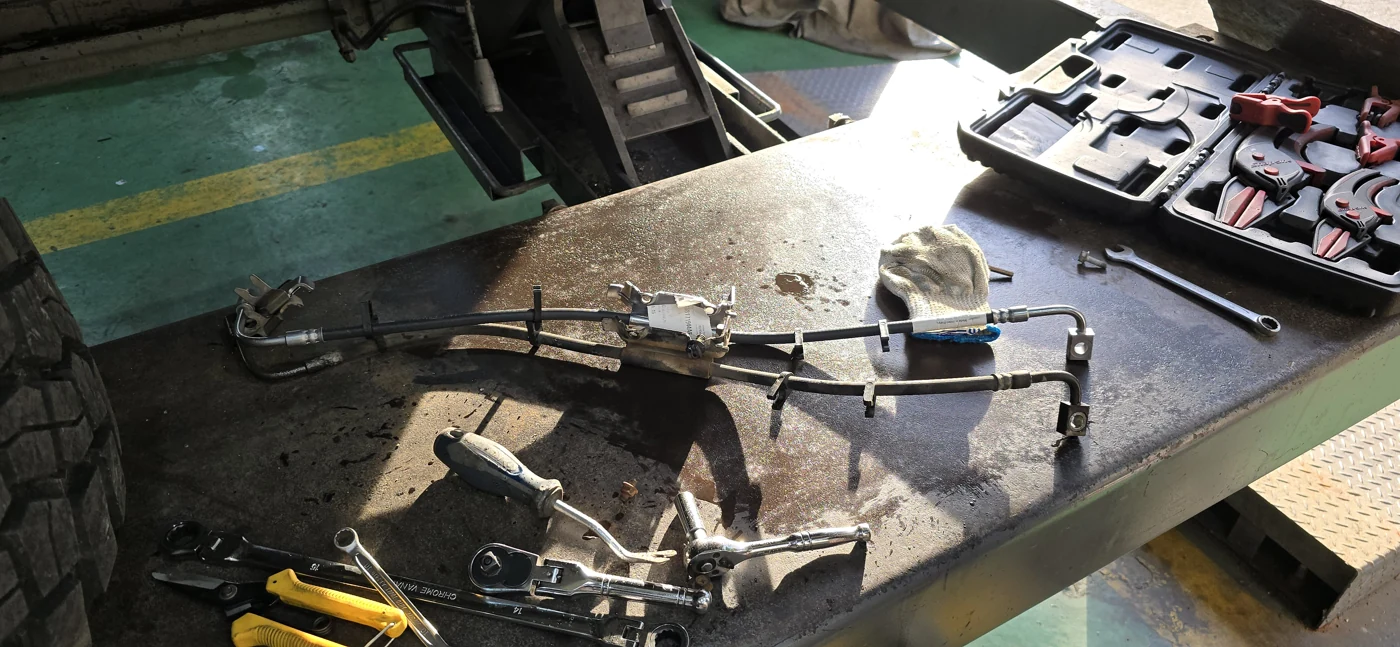

Steering Linkage Work and Wheel Alignment

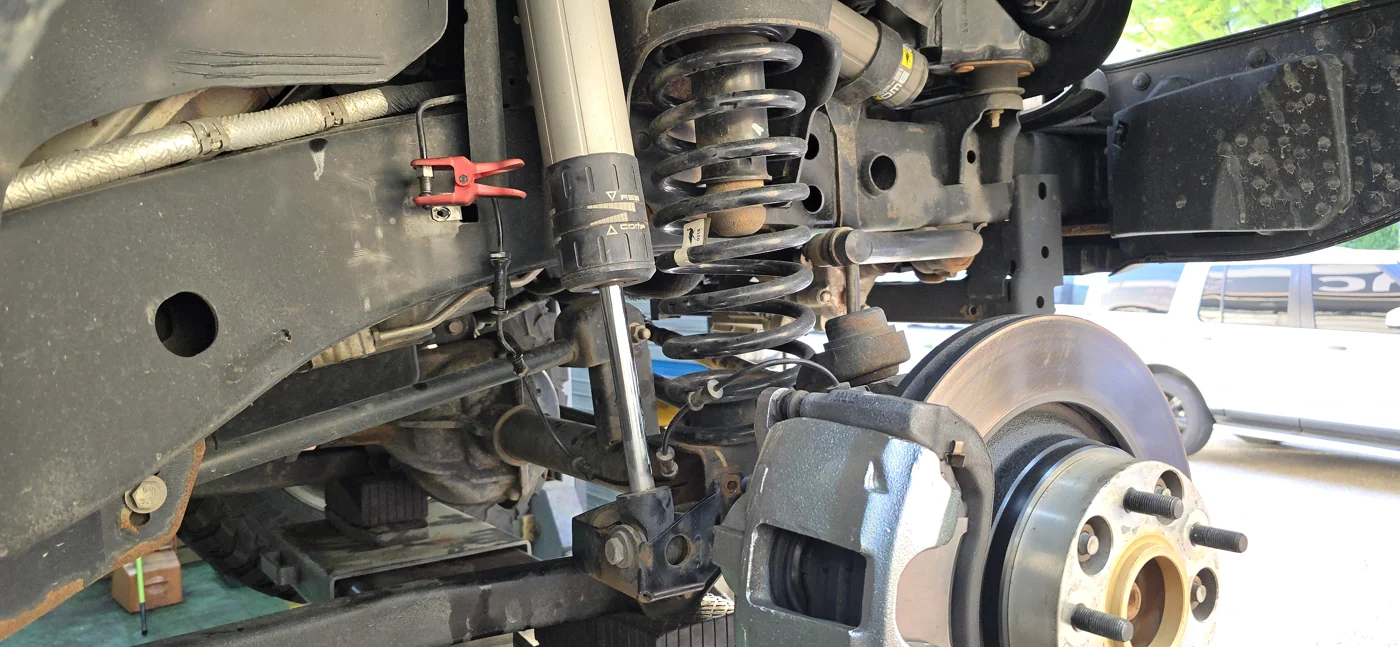

Alongside the brake work, we serviced the steering linkage and finished with a wheel alignment. Once you work on the steering and suspension area, wheel geometry can change, so the job is not complete until alignment is checked.

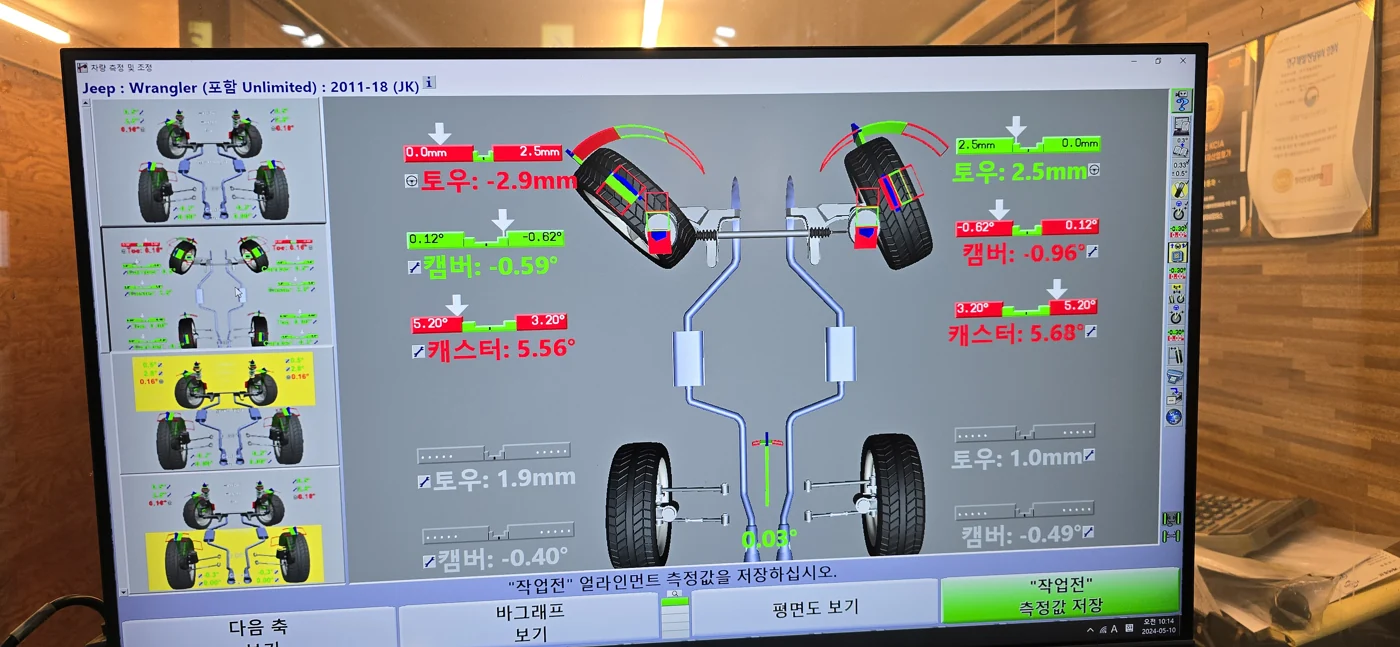

Before adjustment, front toe measured -2.9mm left / 2.5mm right — the two sides pointed in opposite directions. Driven like this, the tyres wear unevenly and steering response can feel different left to right. After adjustment, front toe was set to 1.3mm left / 1.2mm right, bringing both sides to similar values.

Some front camber and caster values remained outside the target range on the final measurement. This job covered the toe adjustment; the remaining camber/caster figures stay as items to monitor at future inspections.

04 / NHC MOTORS

Verification After the Work and Ongoing Care

After the work, we rotated the wheel again. Applying the brake stopped it; releasing the brake let it turn. The dragging seen before the work was reduced.

If one wheel feels unusually hot after driving, you notice a burning smell, or the car pulls to one side, those are signs worth checking for brake drag. If these symptoms recur, have the caliper operation inspected along with the pads and discs.
