Volkswagen Passat intake flap and cooling fan repair, with carbon removed from the valves
The intake-manifold flap and one cooling fan had failed on this 2009 Passat. We replaced the manifold and gasket, changed both cooling fans, and removed the carbon on the intake valves with walnut blasting.

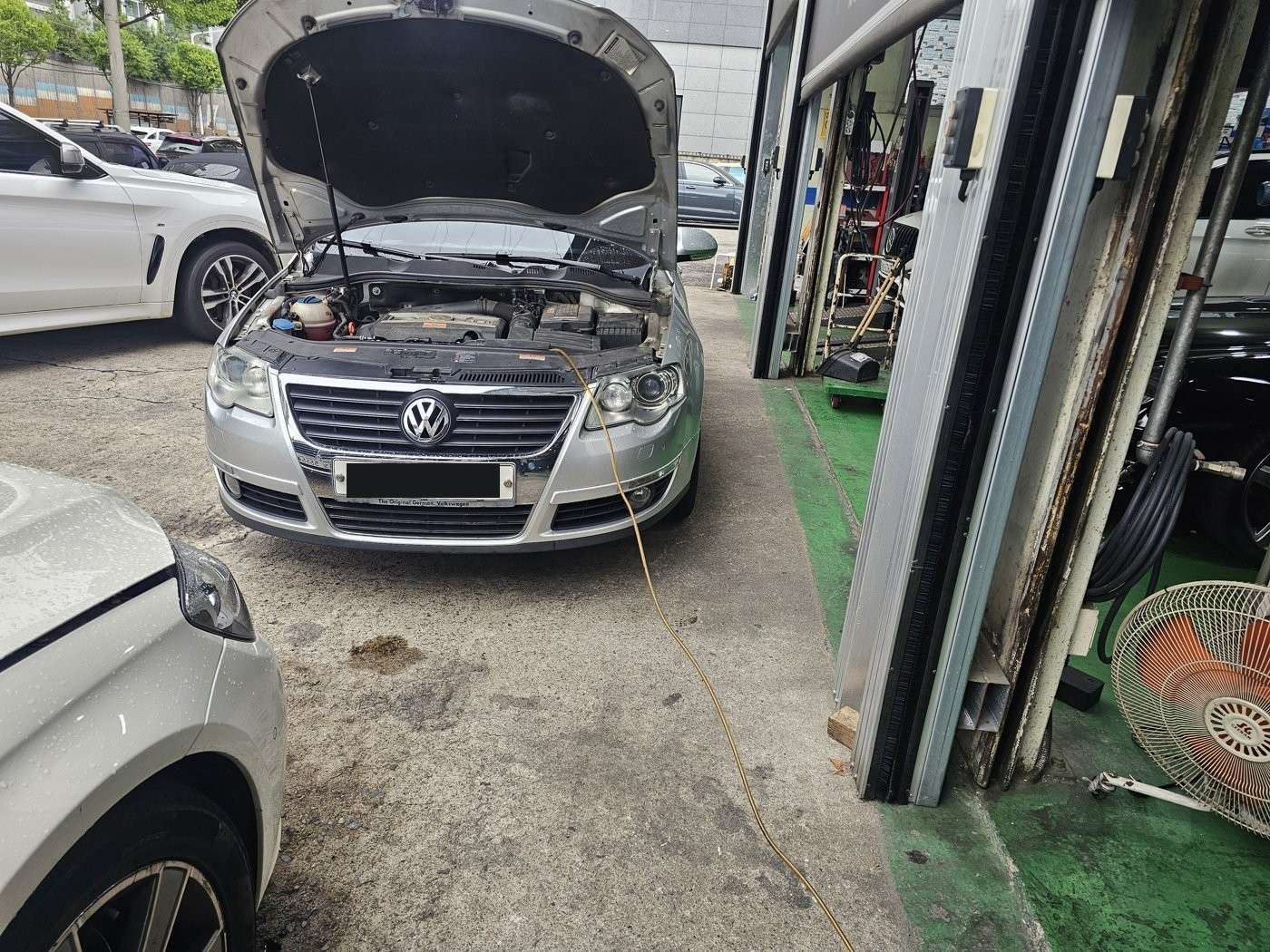

A 2009 Volkswagen Passat came in with a failed flap inside the intake manifold and one failed cooling fan. The owner had felt the car was driving well even before the repairs.
After collecting it, the owner told us the change in how it drove felt like getting a new car. While the manifold and fans were being repaired, we also removed carbon from the intake valves.
01 / NHC MOTORS

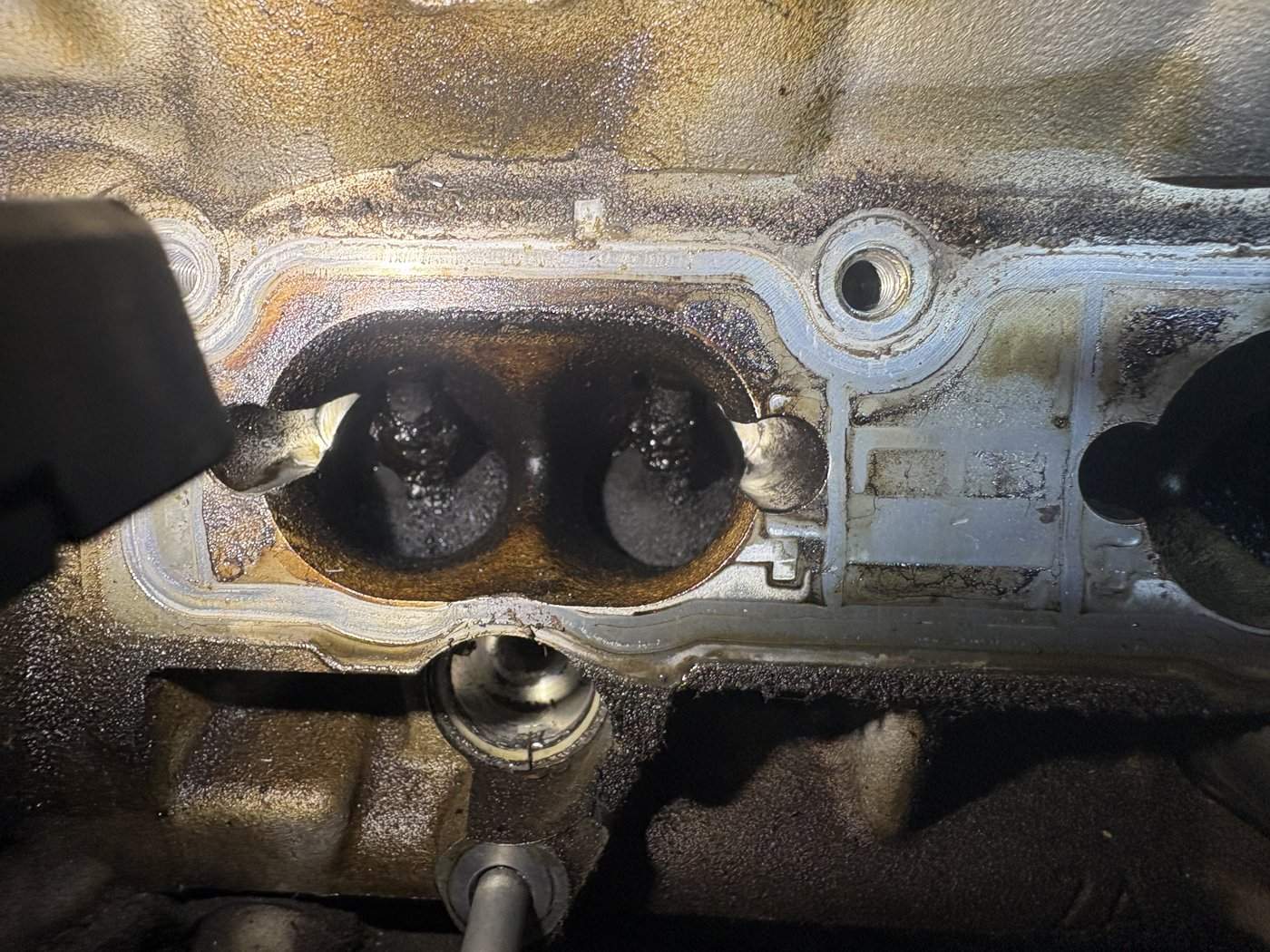

Heavy carbon was visible on the intake valves

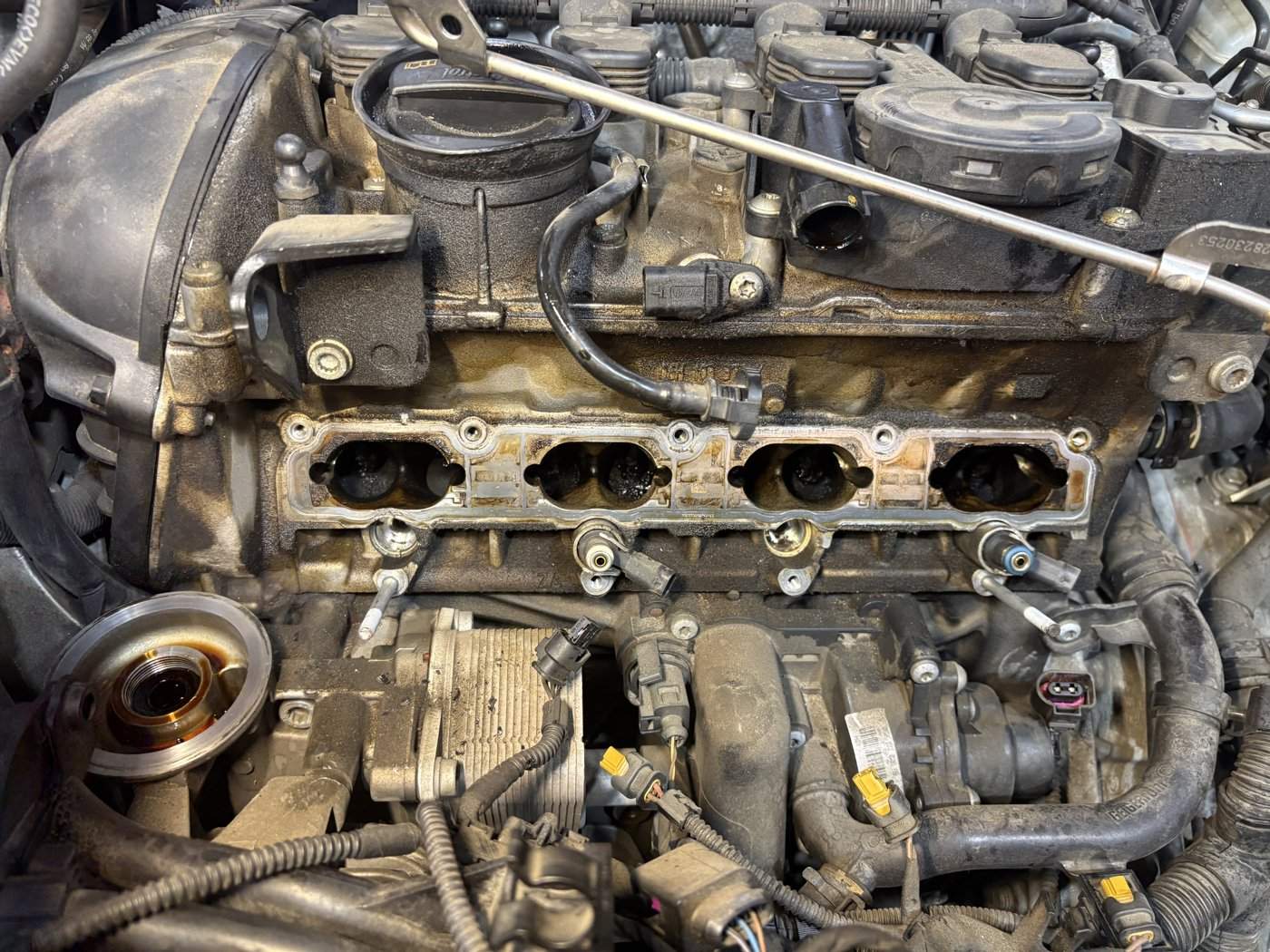

Removing the manifold exposed the intake passages and thick black carbon around the valves. This Passat injects fuel directly into the cylinders, so fuel does not wash over the back of the intake valves.
Carbon can build up there even when the engine oil is changed regularly. Changing the oil will not remove deposits already stuck to the valves.
02 / NHC MOTORS
We removed the deposits with crushed walnut shell

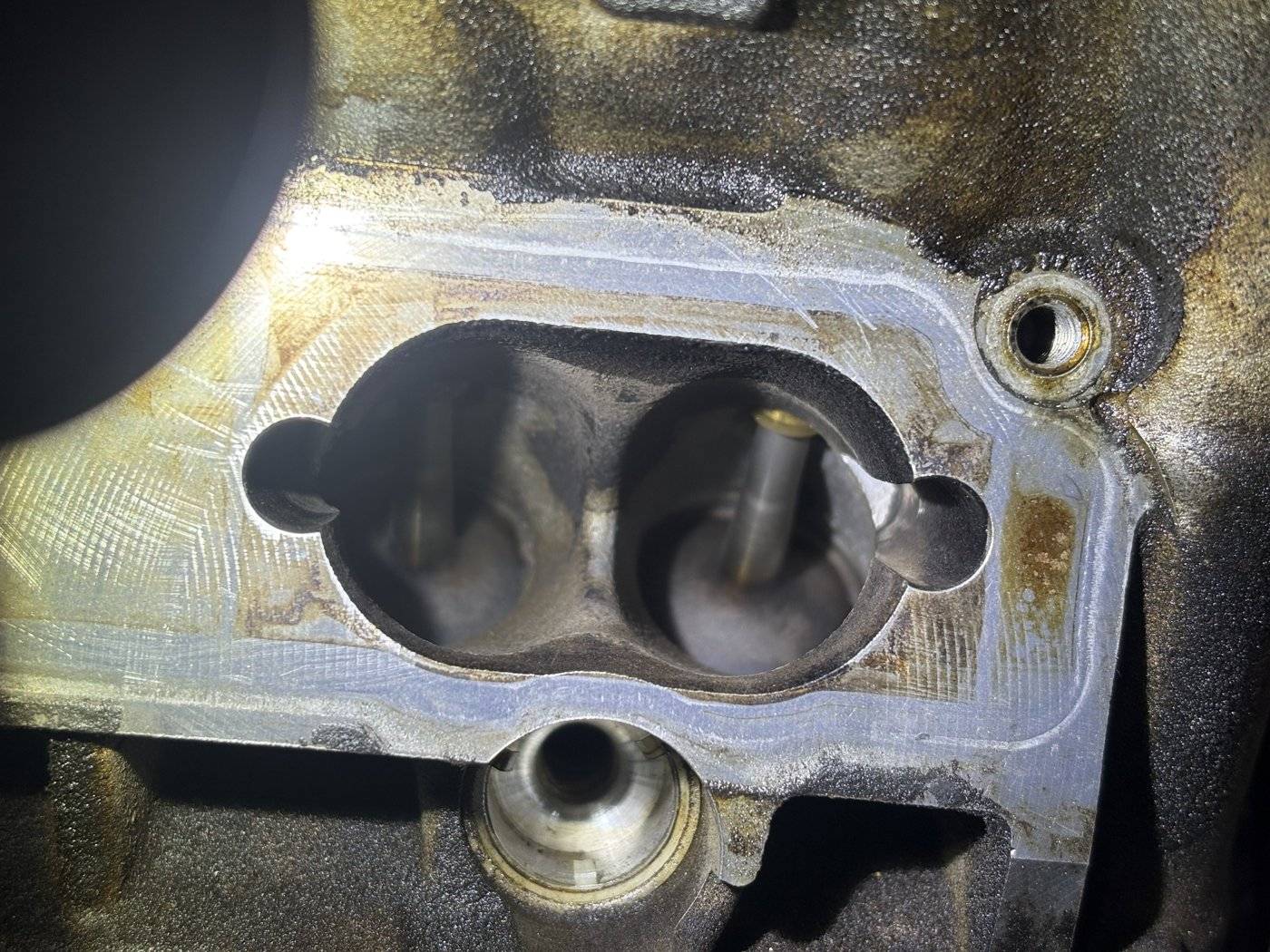

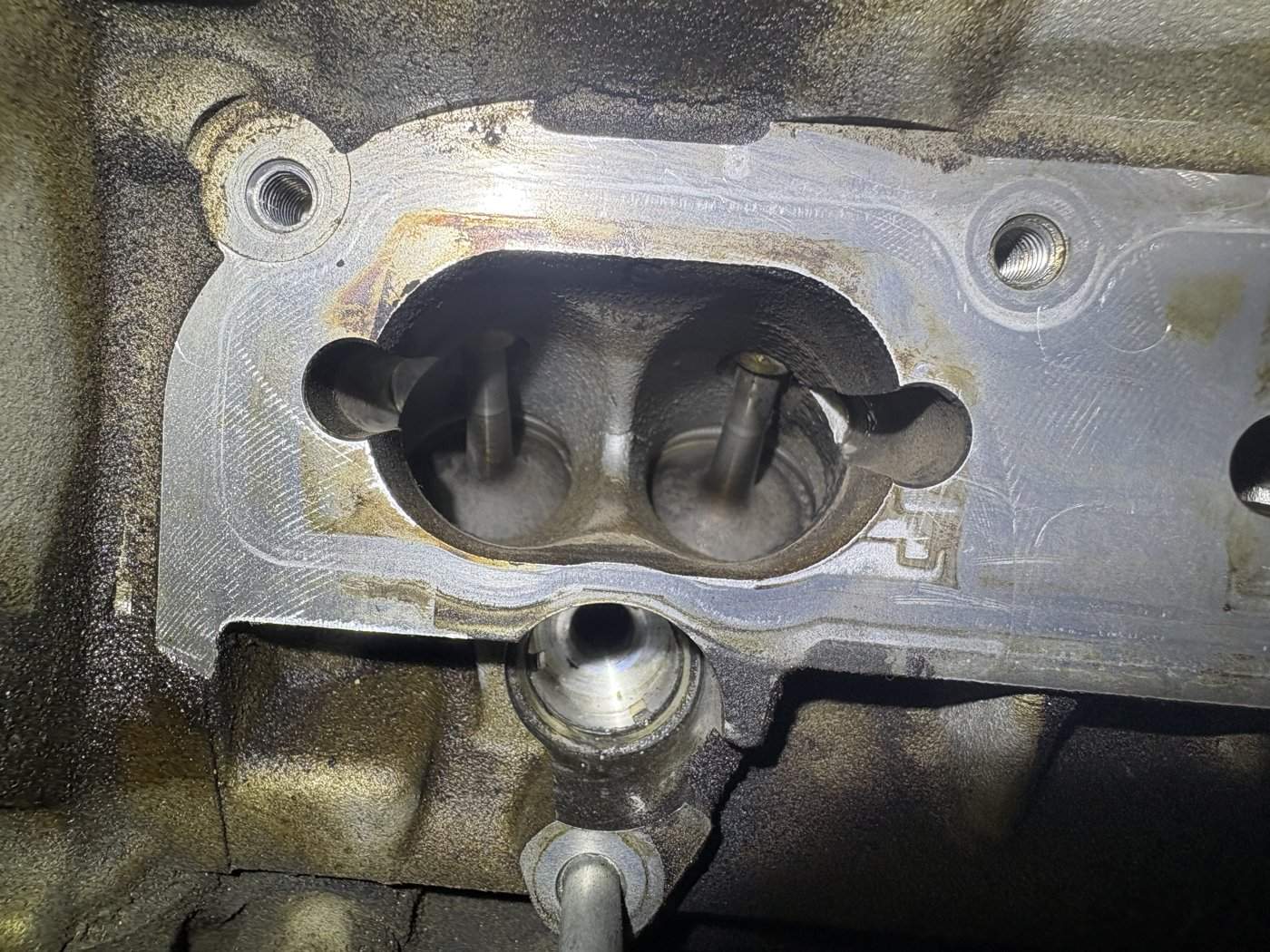

We used walnut-blasting equipment to direct finely crushed walnut shell at the deposits with compressed air. Once the carbon was removed, the valve and metal surfaces beneath it were visible again.
The work also included an HHO carbon-remover treatment and BG 44K gasoline fuel additive.
03 / NHC MOTORS

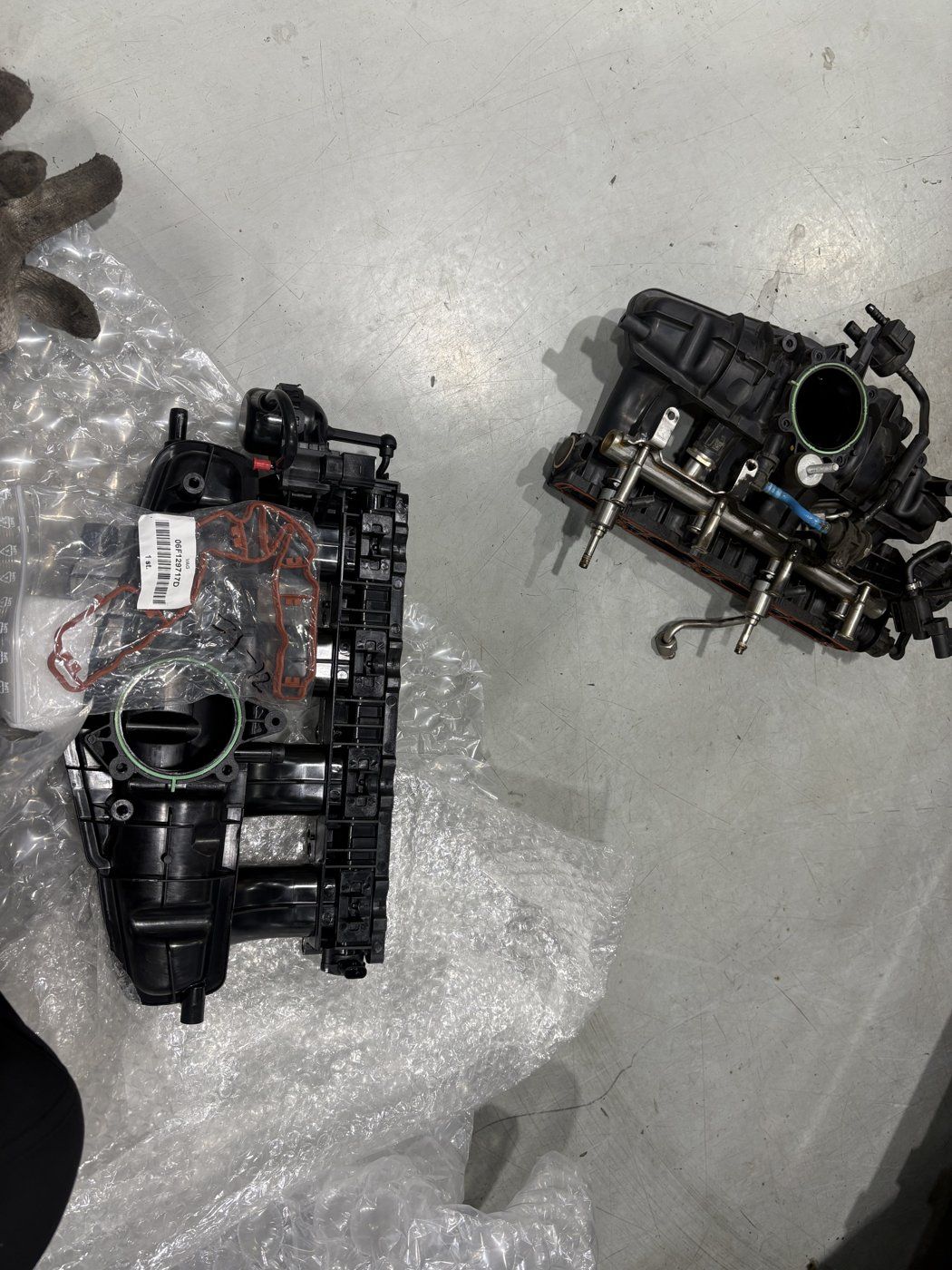

An OEM manifold, with a genuine Volkswagen gasket
The flap is a small plate inside the manifold that controls airflow. Because it had failed, we replaced the intake manifold with an OEM part. We ordered the gasket sealing the manifold to the engine separately as a genuine Volkswagen part.
From following this area for one to two years after earlier repairs, we had seen better results with the genuine gasket. That experience guided the choice on this car.
04 / NHC MOTORS

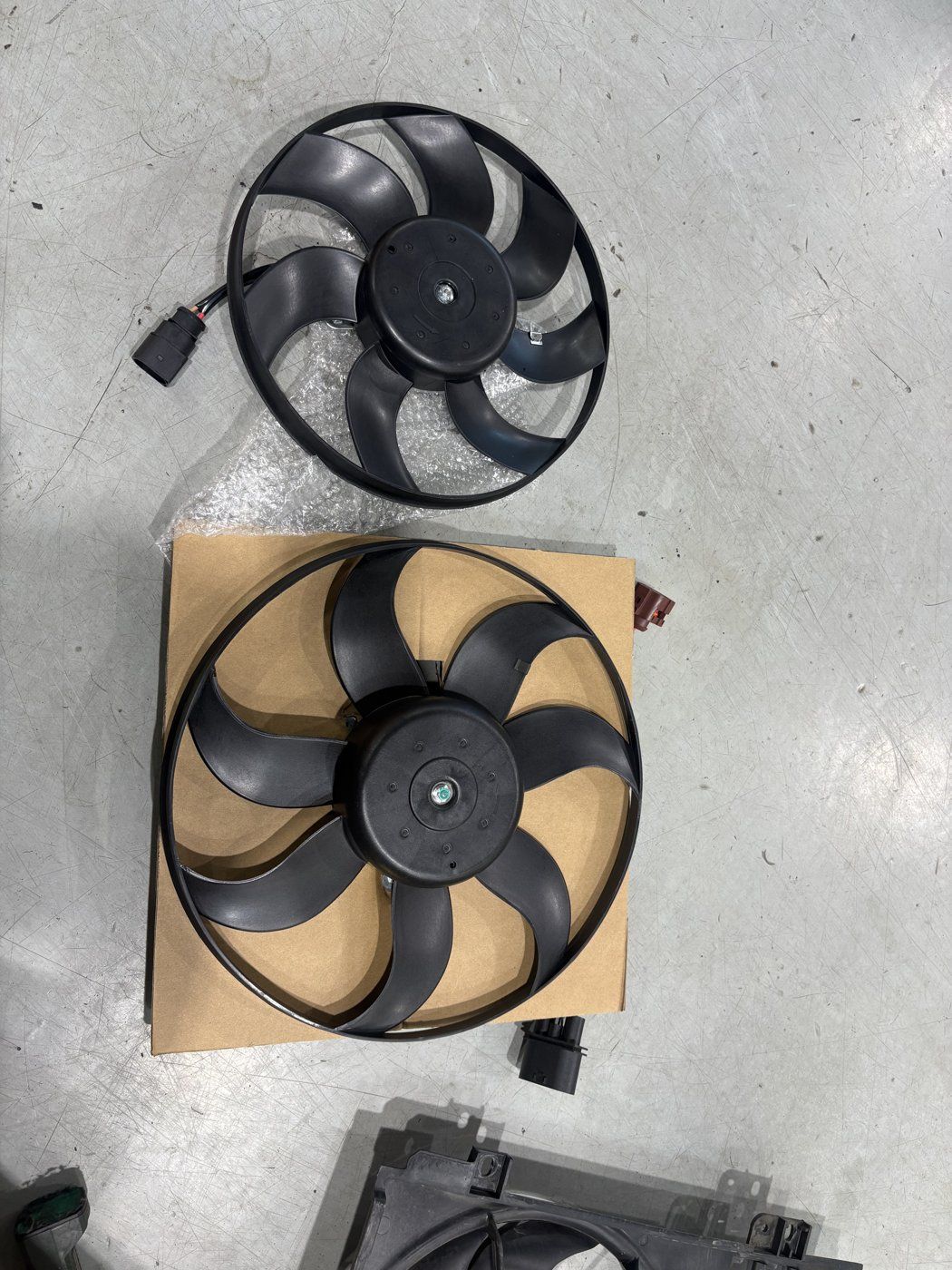

We replaced both cooling fans
Only one of the two fans had failed. The other had been used for the same period, so we replaced both as a preventive measure.

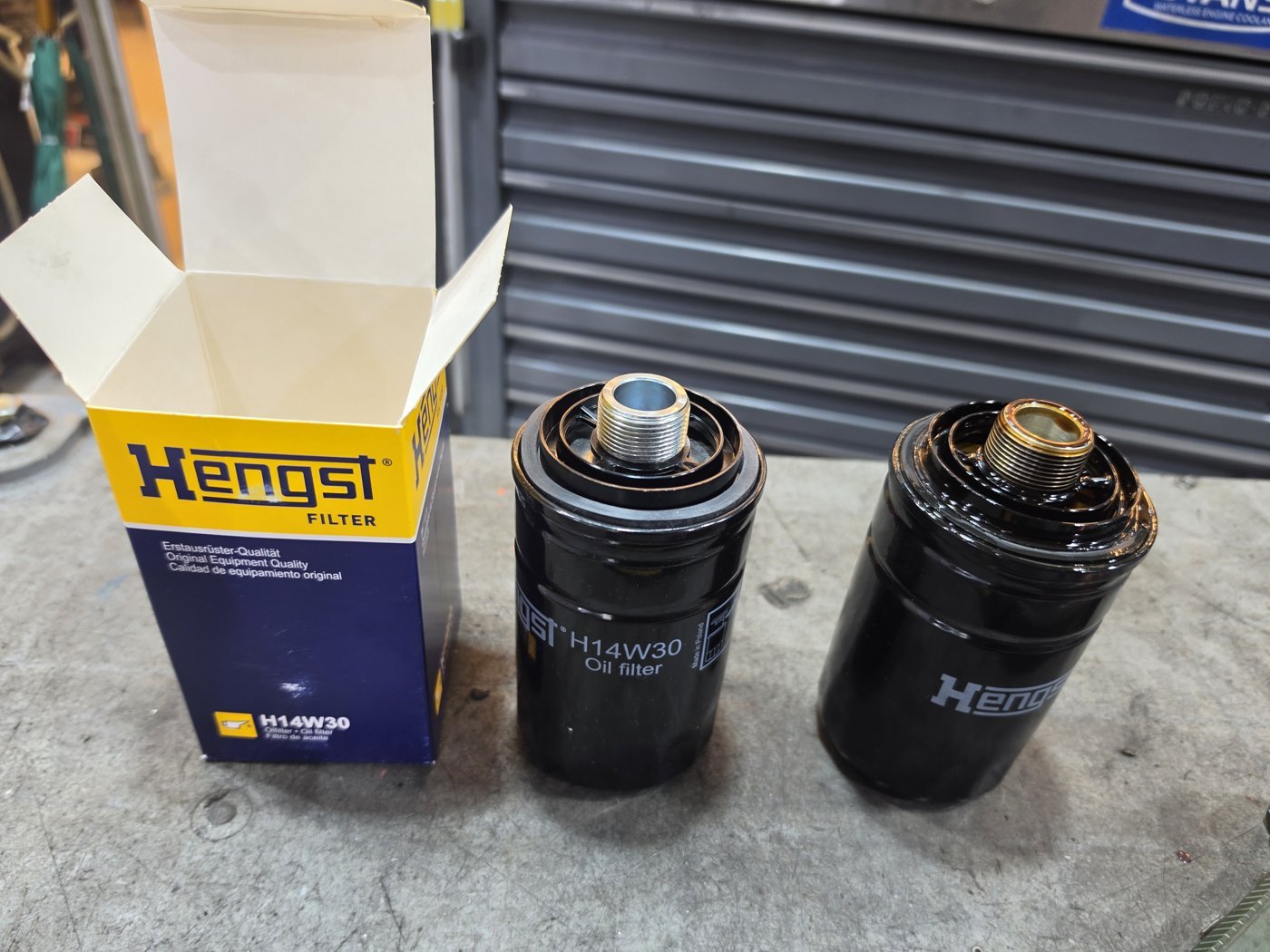

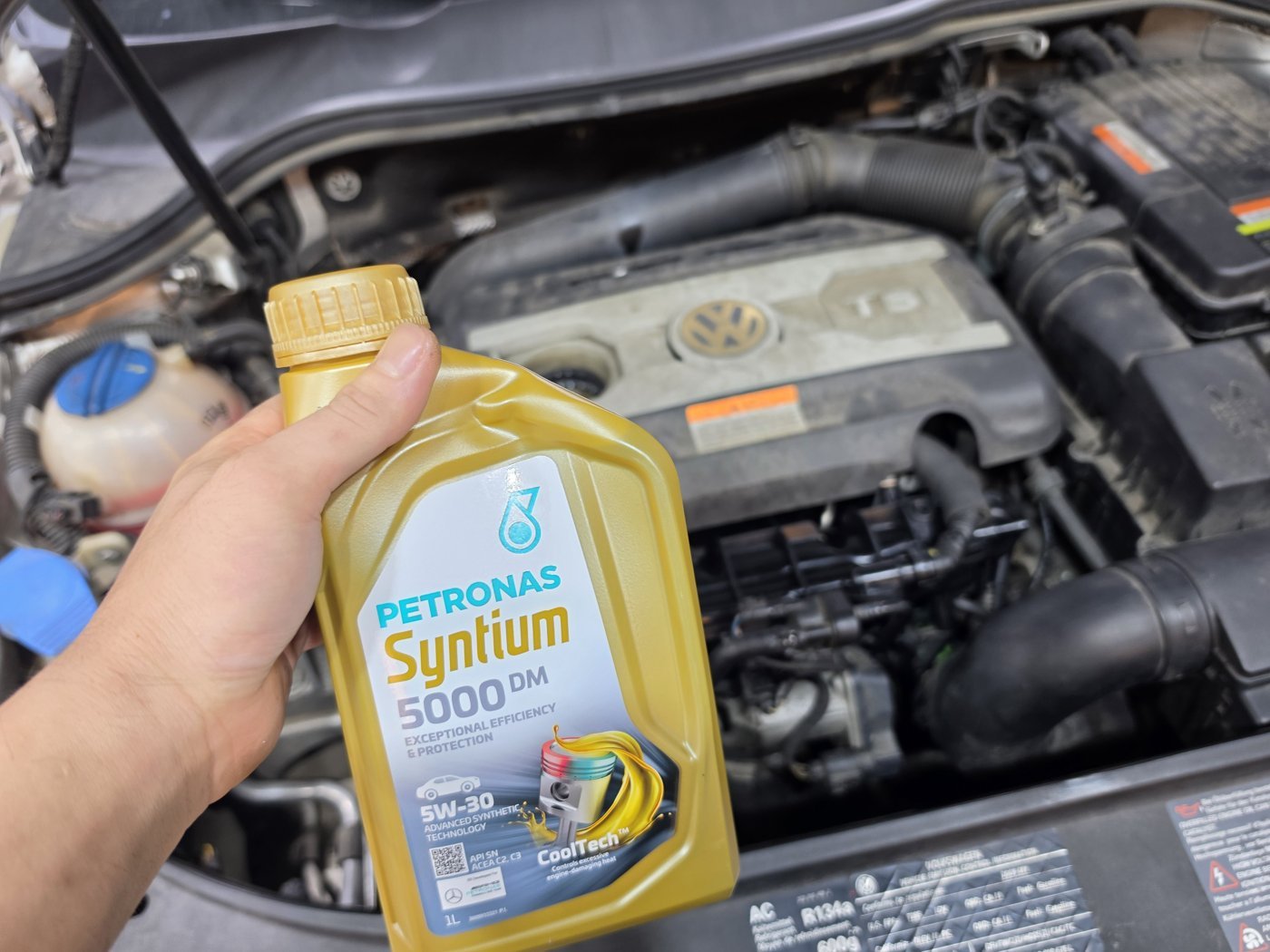

We changed the engine oil to PETRONAS Syntium 5000 DM 5W-30 and fitted a Hengst oil filter. The front parking-light bulb was also replaced with an Osram 5W.
Four areas serviced on this Passat
Remove the manifold and clean carbon from the ports and valves
Compare the old and new intake manifolds, then replace the unit
Remove the fan assembly and replace both cooling fans
Change the engine oil and filter
Frequently asked questions
Why use a genuine gasket when the manifold is OEM?
The manifold was an OEM part, but we ordered a genuine Volkswagen gasket for the joint. That choice reflects what we had seen when checking this area one to two years after earlier repairs.
Only one cooling fan failed. Do both need replacing?
Not always. Only one fan had failed on this Passat, but the other had run for the same number of years. We replaced both preventively; the decision depends on the car's condition and your budget.
