CLS63 AMG: vibration through the steering wheel and seat at speed

Vibration remained at higher speeds after repairing the bent wheel. Tyre replacement substantially improved the driving vibration. Brake judder and suspension noise while steering were investigated separately.

2016 Mercedes-Benz CLS63 AMG

01 / NHC MOTORS

Vibration reached the body as well as the steering wheel

On arrival, vibration reached the steering wheel, seat and body as speed increased. Inspection found a bent right front wheel and uneven tyre wear around its circumference.

When a wheel is distorted and its tyre has worn unevenly, correction weights alone may not solve the problem. We examined wheel shape and tyre condition separately.

02 / NHC MOTORS

Checking the tyres when vibration remained after wheel repair

We first repaired the bent wheel and tested the car on its existing tyres. Vibration reduced, but some remained at higher speeds.

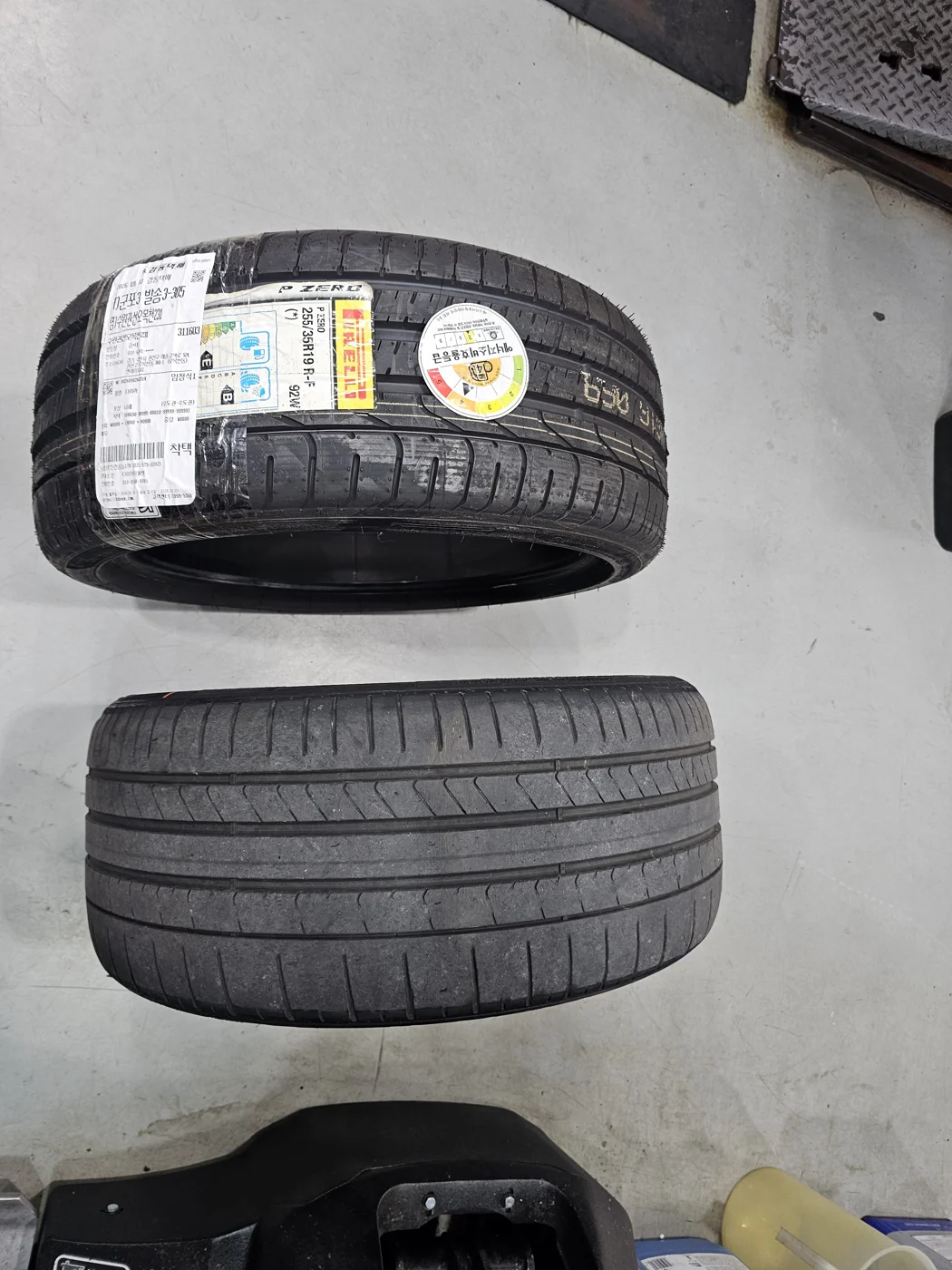

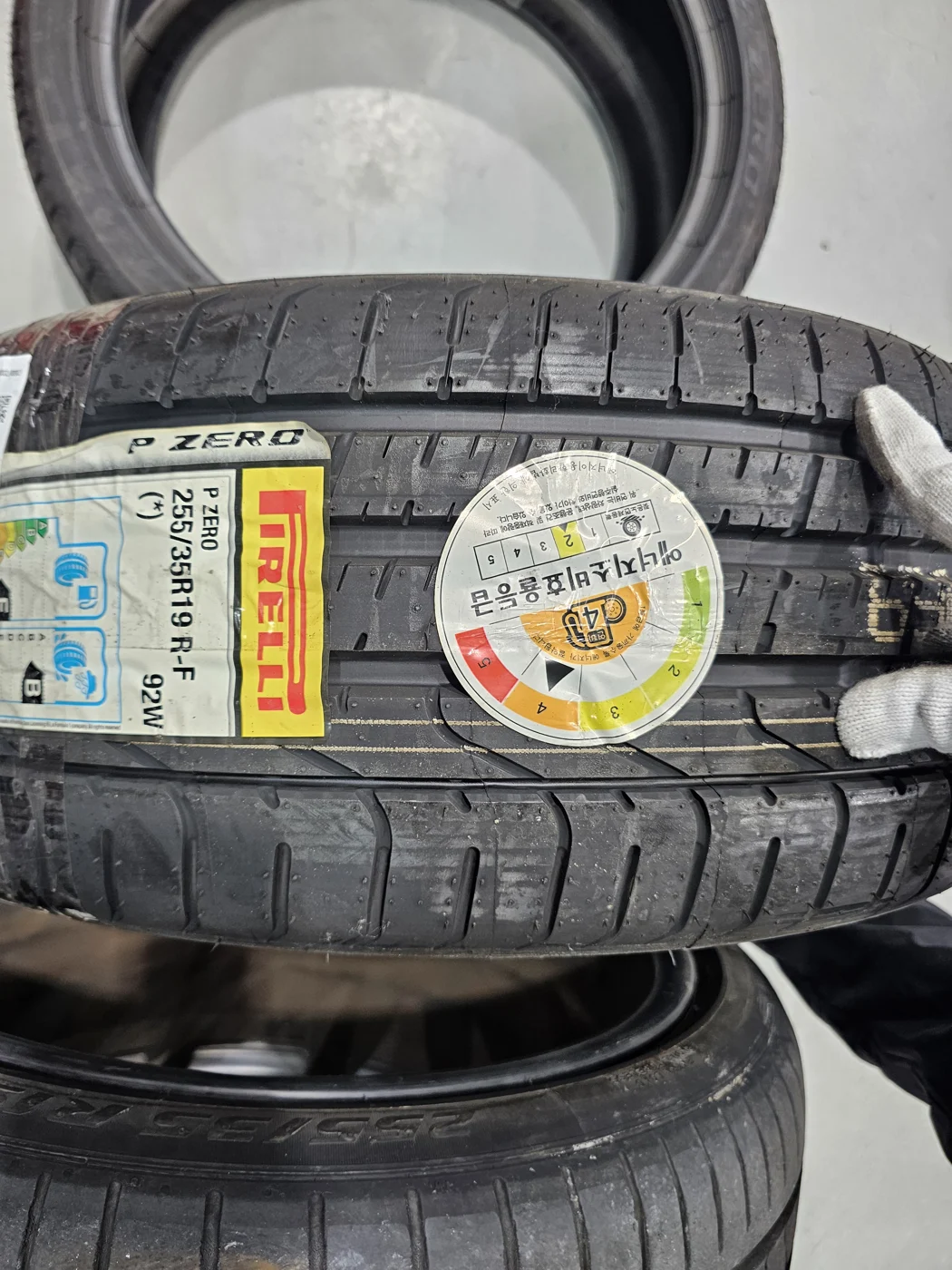

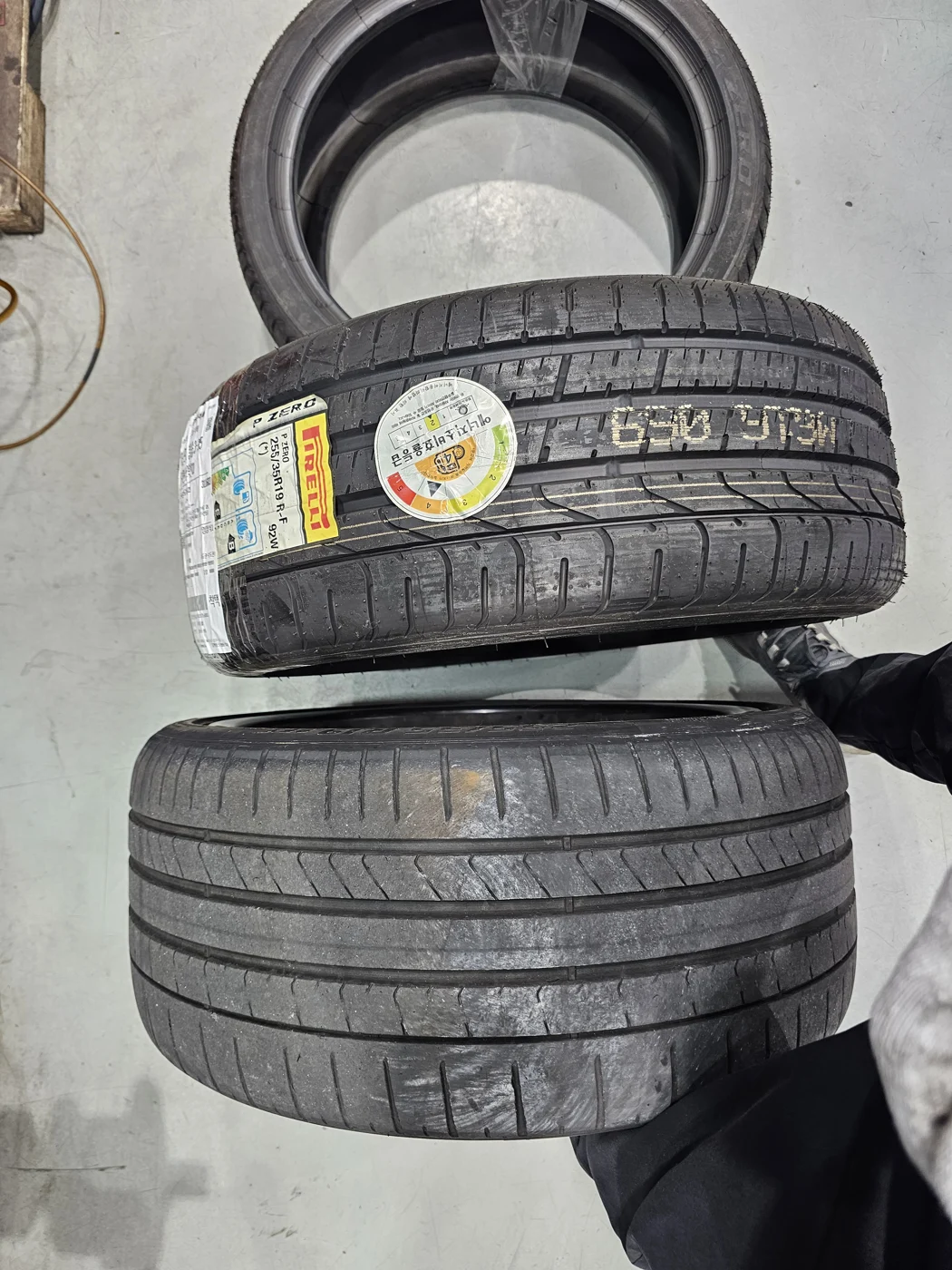

After replacing the tyres, the original steering-wheel, seat and body vibration improved substantially. We explained the difference between the wheel repair alone and the subsequent tyre replacement to the customer.

Changes documented in the customer report. Brake judder and noise while steering were separate inspection items.

03 / NHC MOTORS

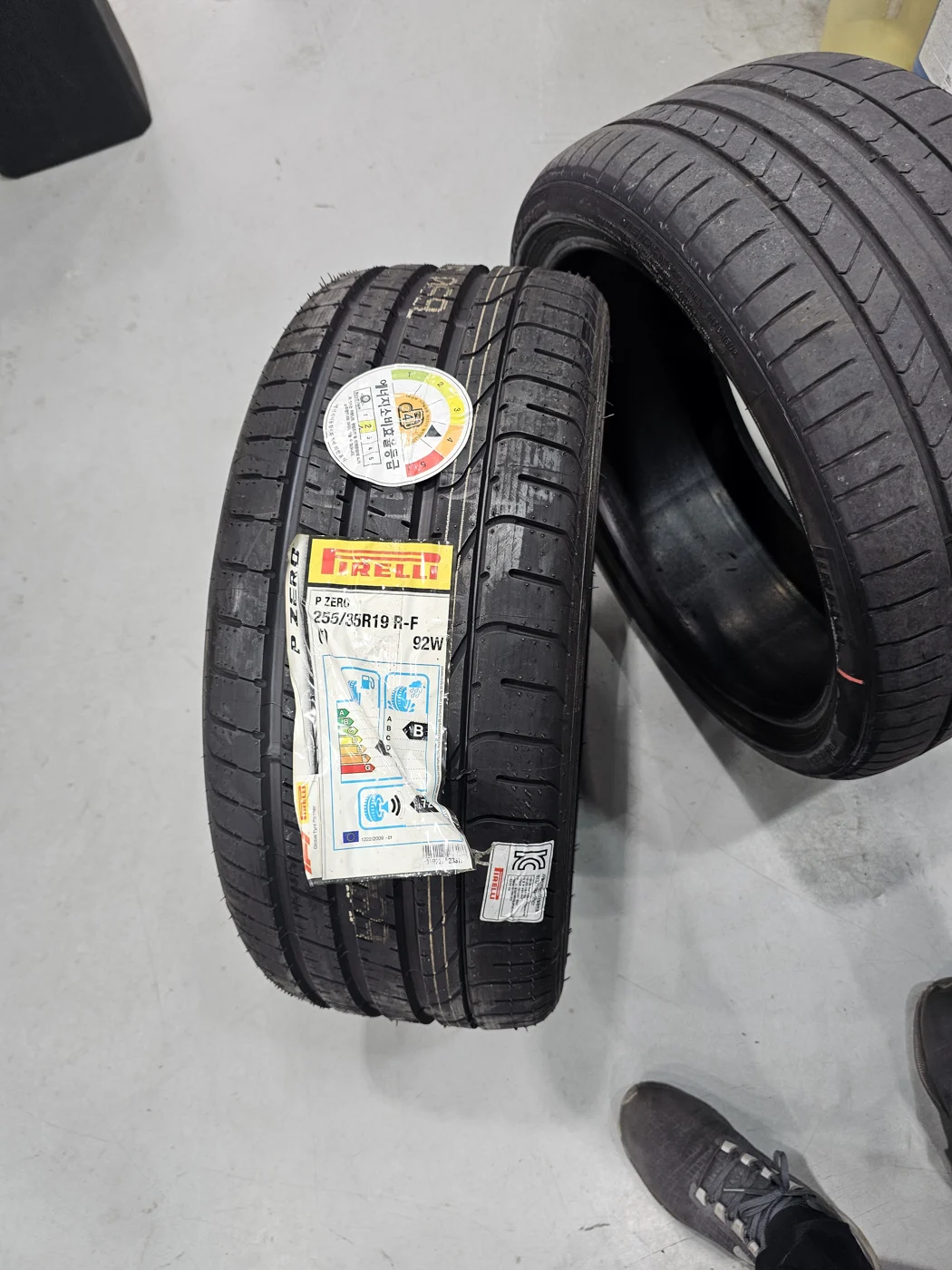

New tyres also need careful fitting

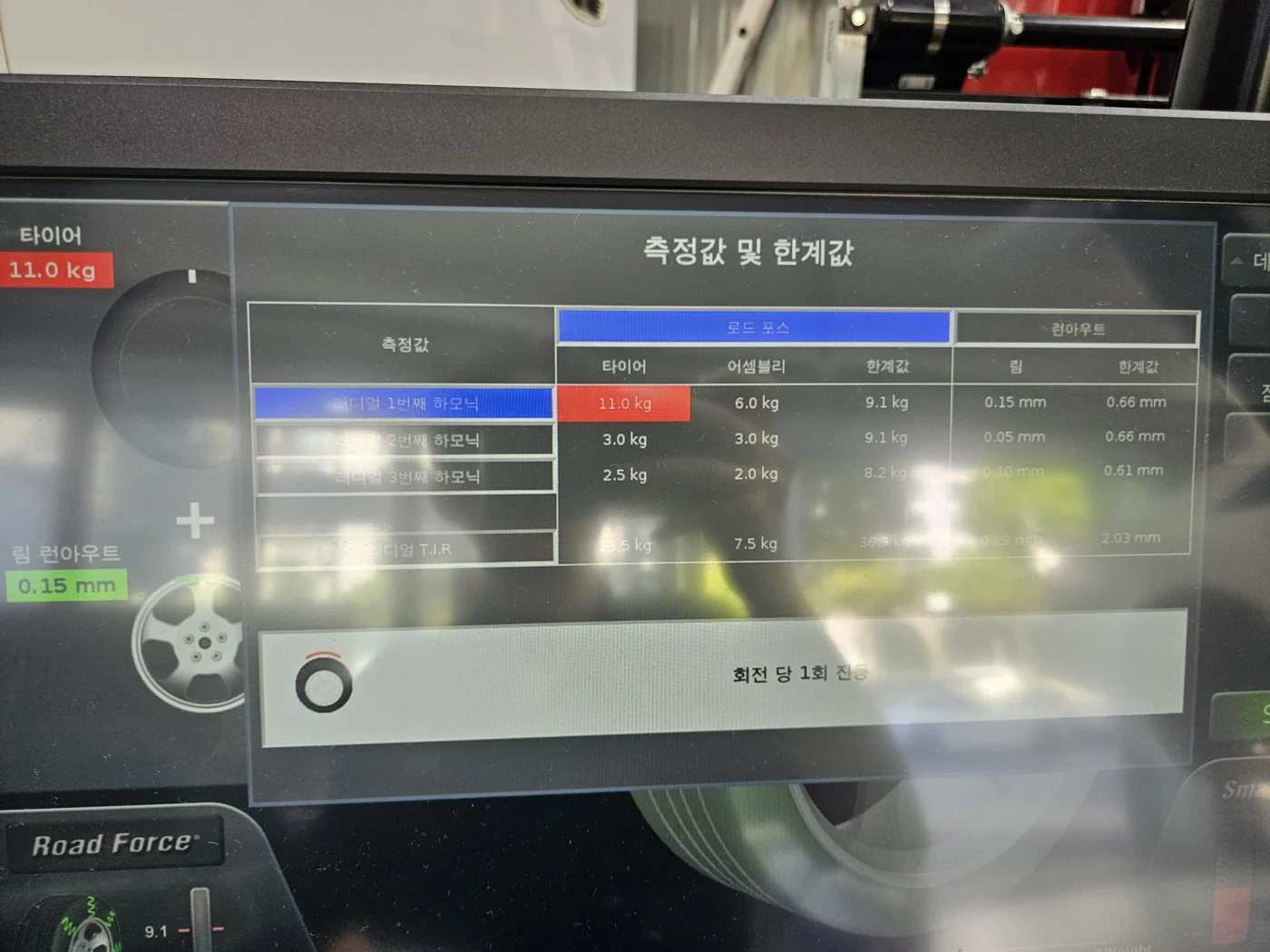

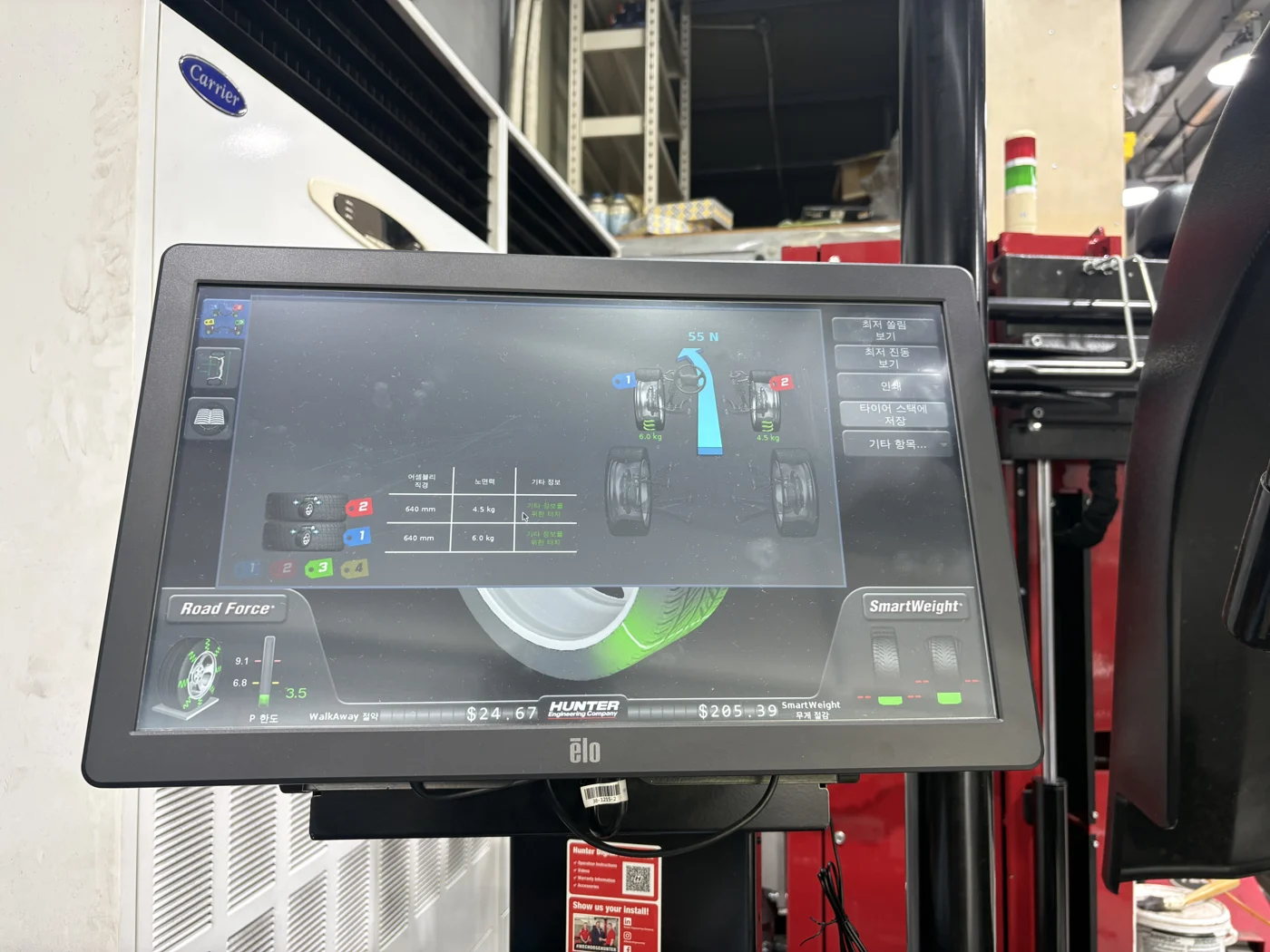

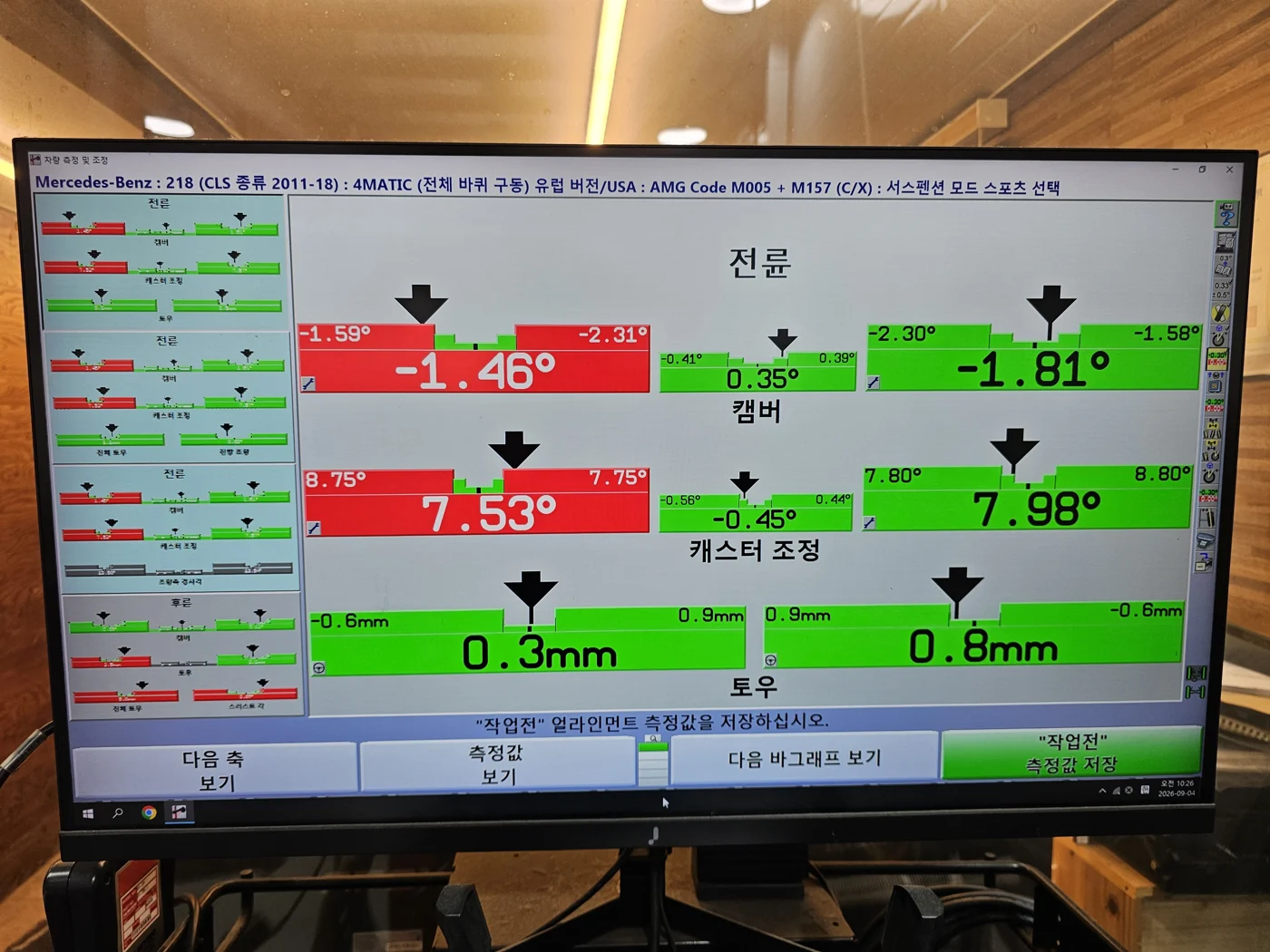

After fitting the tyres, we checked road force under load and wheel balance with Hunter equipment. Tyre-to-rim positions were adjusted and measured again.

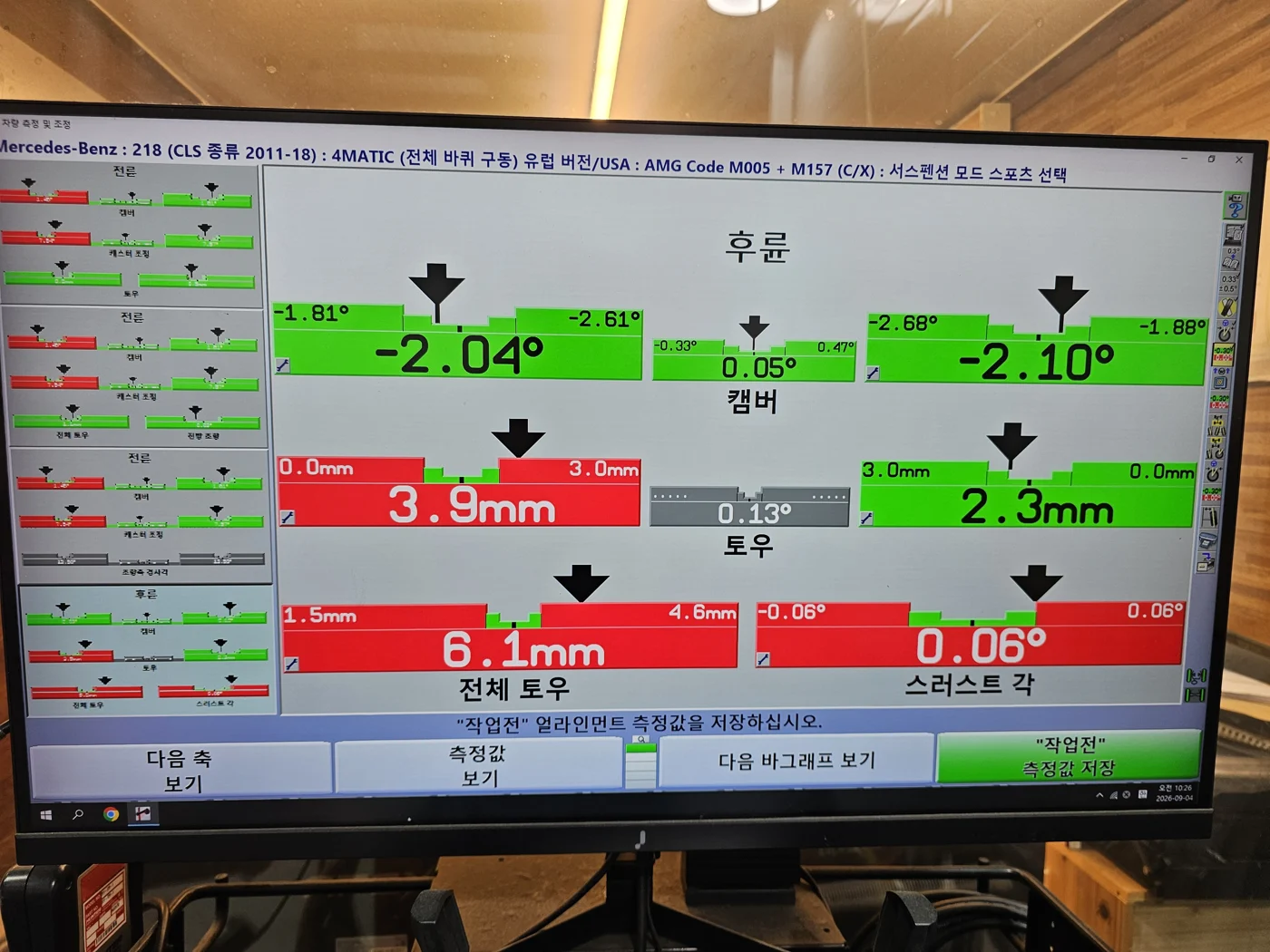

Fitting quality affects how even a good tyre drives. We checked balance correction and testing under load as separate items, along with the positions of all four wheels.

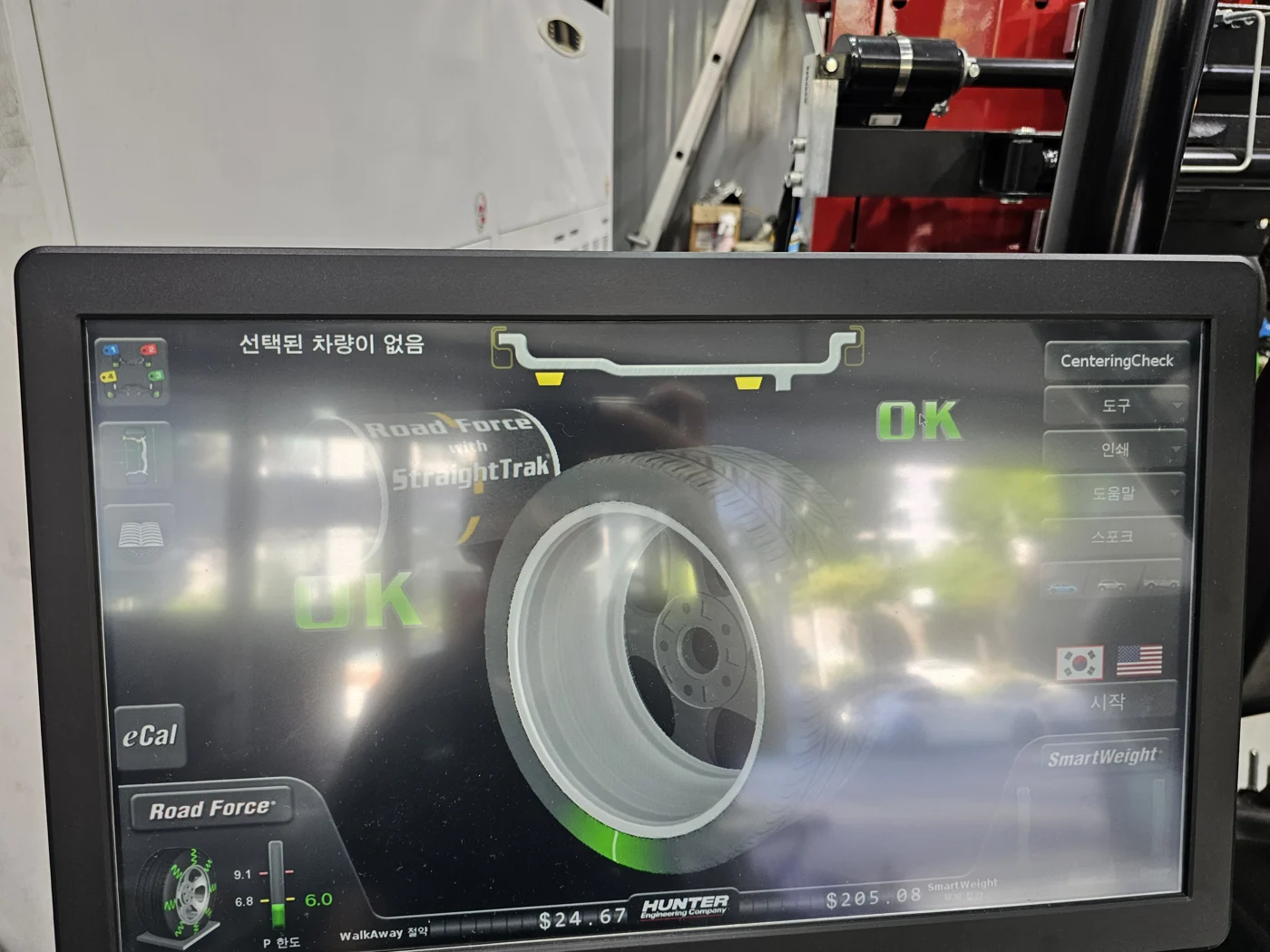

Wheel and tyre inspection with Hunter equipment

04 / NHC MOTORS

Brake judder and noise while steering were checked separately

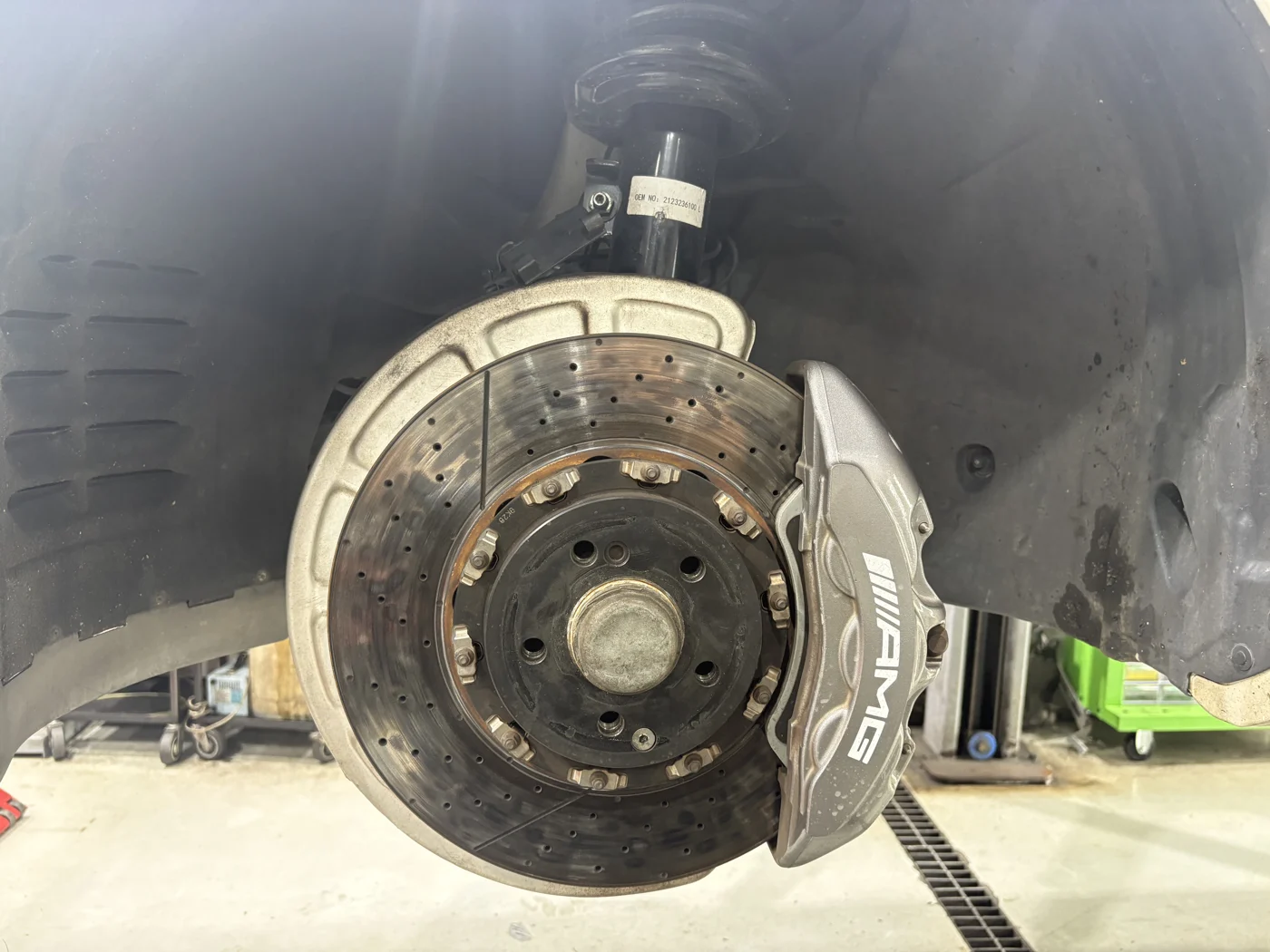

There was also judder that worsened with repeated braking. We checked front-disc runout, and the customer report noted greater distortion at the right front disc.

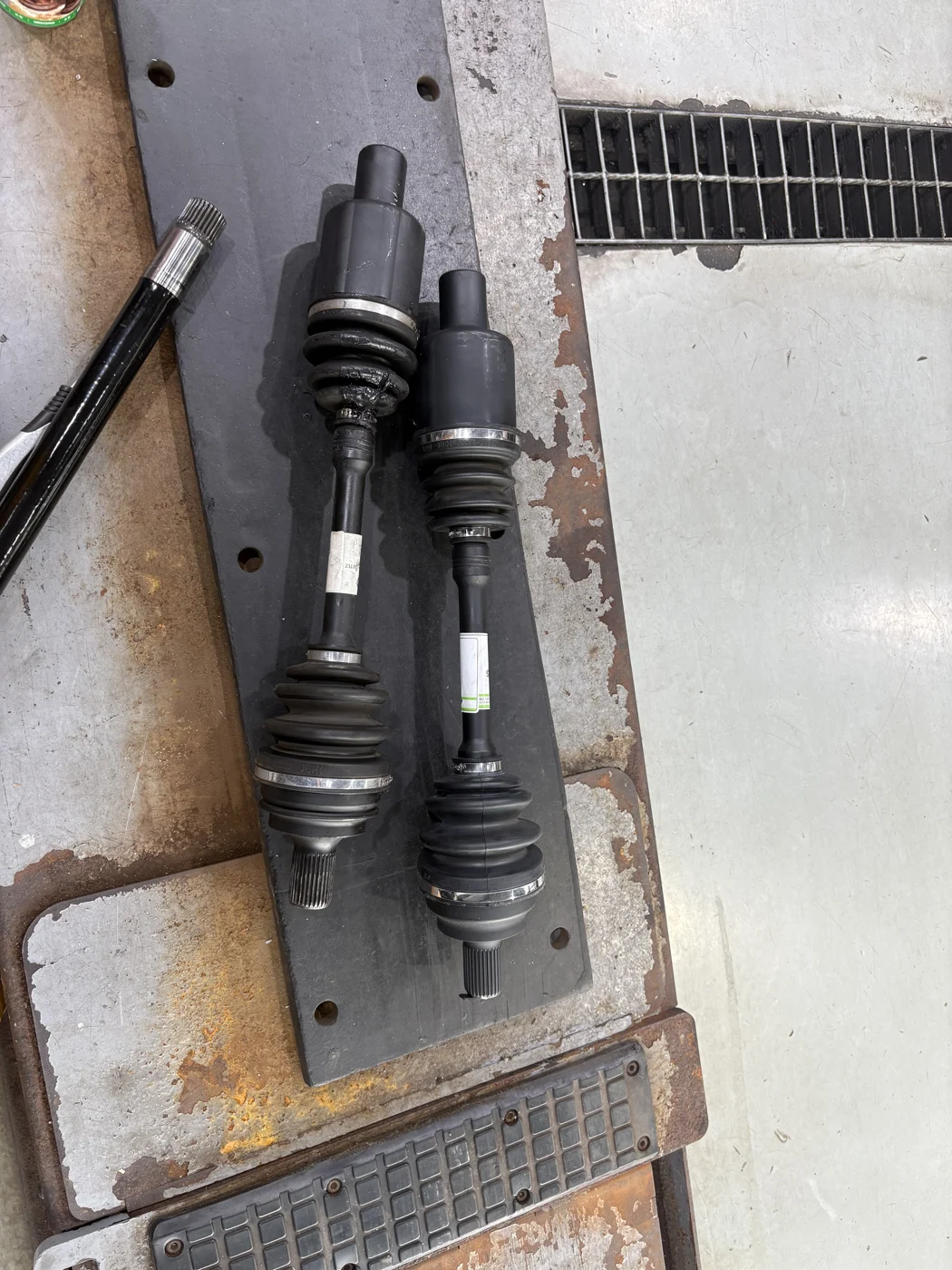

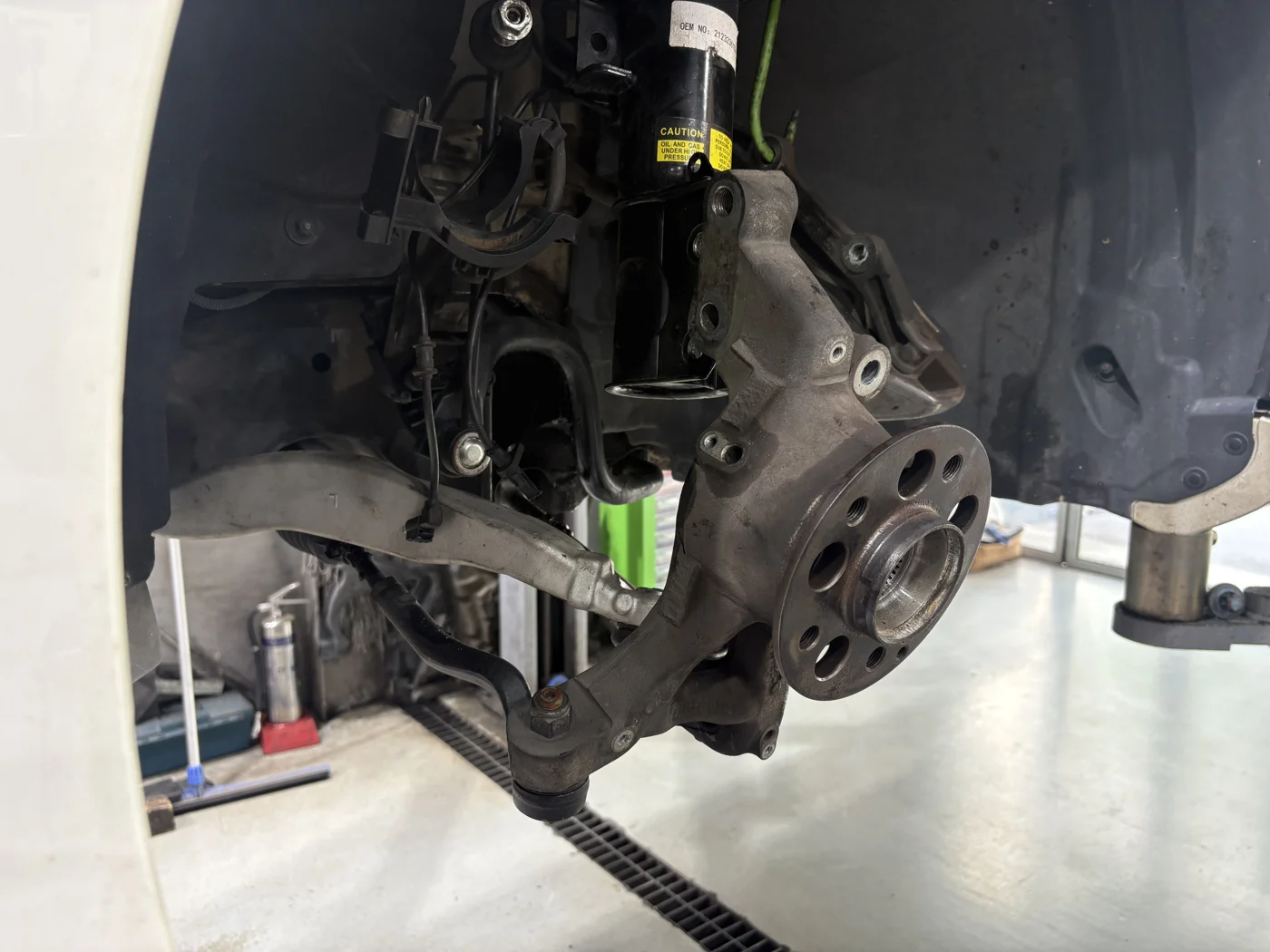

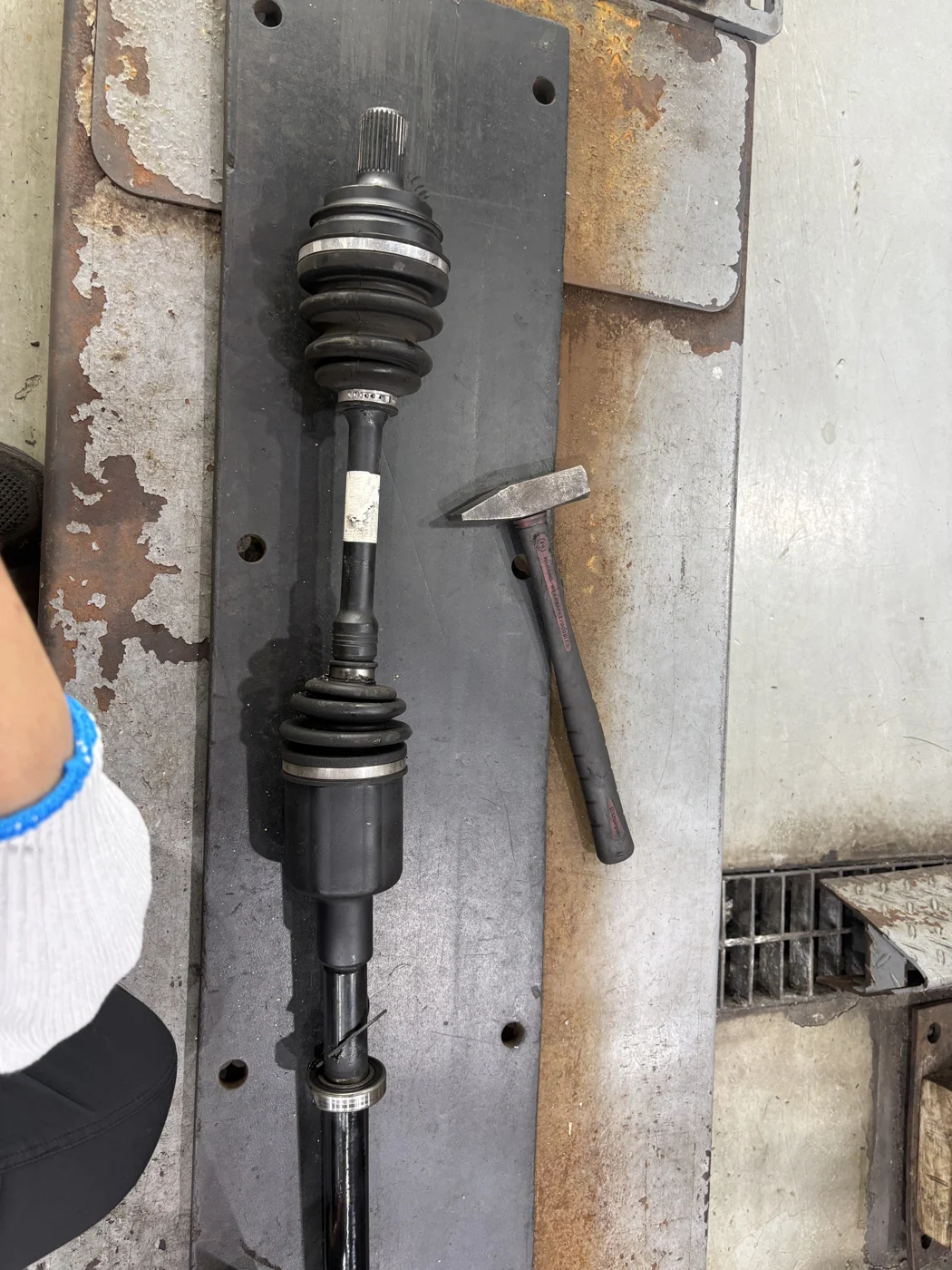

Noise from the left front occurred when moving forwards or backwards with substantial right steering lock, and the CV joint/driveshaft was replaced. Vibration at a particular speed and noise while turning require separate checks.

05 / NHC MOTORS

Does it vibrate while driving, or when you brake?

This vehicle showed a difference between wheel repair alone and wheel repair followed by tyre replacement. Braking and steering concerns were investigated at their relevant components.

When you contact us, tell us at what speed the vibration occurs and whether braking or steering triggers it. Similar sensations can require checks of different components.

Questions before booking

Can vibration remain after wheel repair?

On this car, wheel repair reduced vibration but the tyres still contributed. Wheel and tyre effects need to be assessed step by step.

Are vibration at speed and brake judder the same problem?

Vibration without braking is assessed separately from judder during braking. Checks may involve the tyres and wheels, brake discs or suspension, depending on the symptom.

Recurring vibration at speed? Tell us what has already been replaced

Send the wheel and tyre repair history and describe when the vibration occurs. We will advise on further checks rather than simply repeating previous work.

We explain the work and cost before proceeding with your agreement.
