Jeep Compass: alternator bearing play and auxiliary belt service
The removed alternator showed bearing play. We also inspected the pulleys and tensioner driven by the same belt and replaced the auxiliary belt set.
We inspected the removed alternator and found play in its bearing. The service also covered the pulleys and tensioner driven by the same belt.

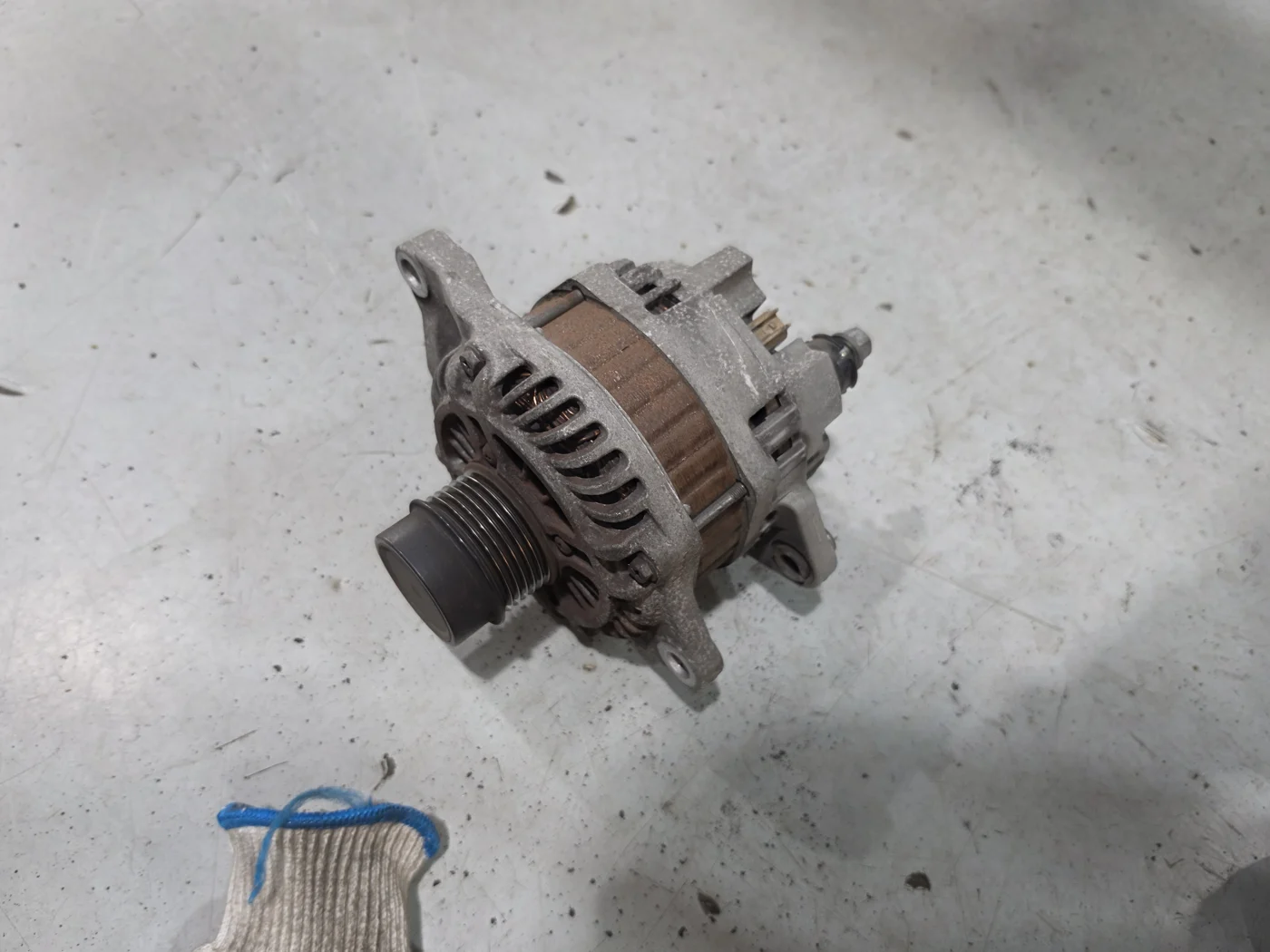

Play found in the removed alternator
Moving the shaft of the removed alternator revealed play. The internal bearing was damaged.
The alternator generates electricity but receives its drive from the engine through a belt. Both the alternator and the surrounding belt components need attention.
02 / NHC MOTORS
Following the auxiliary belt route

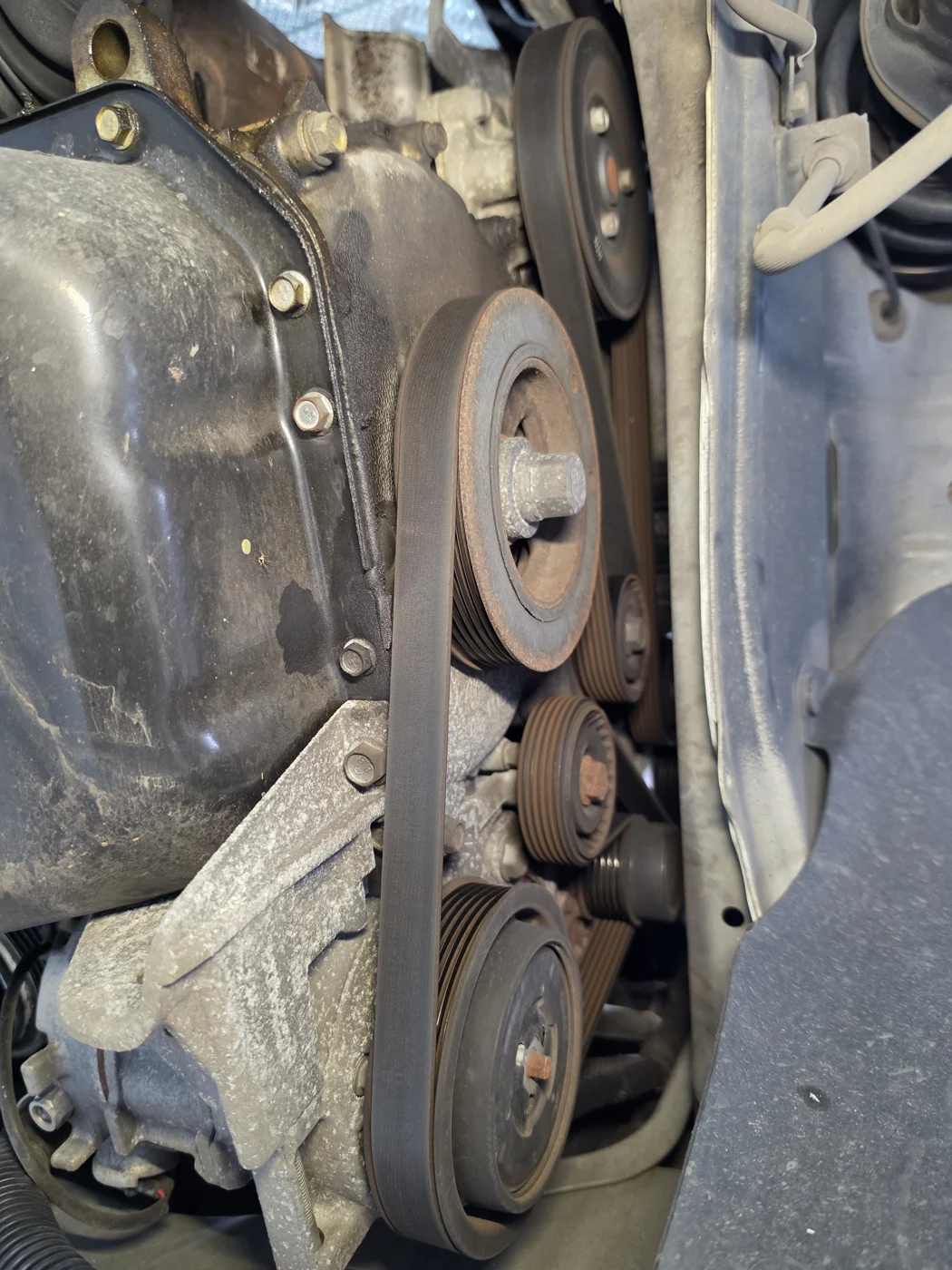

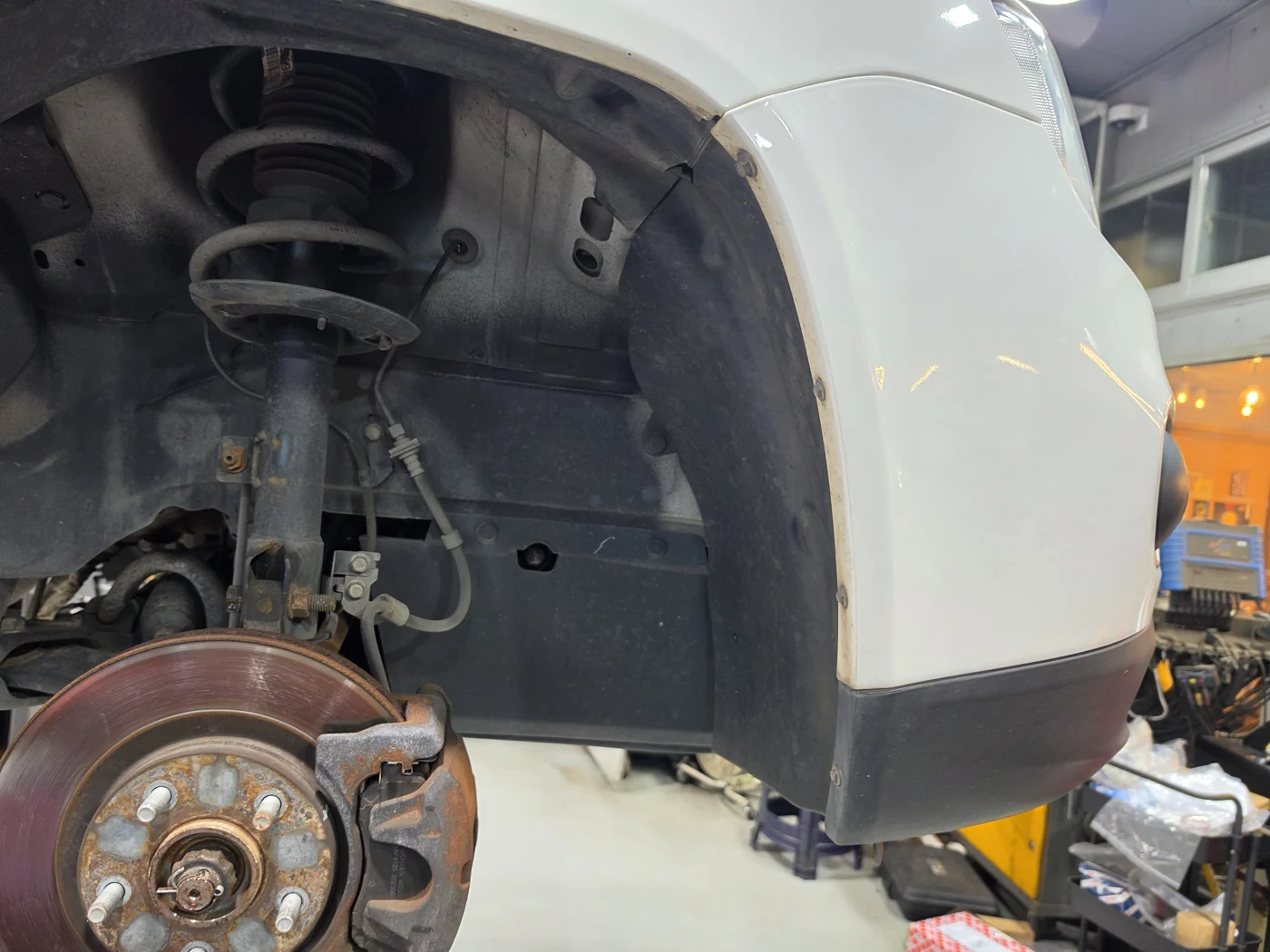

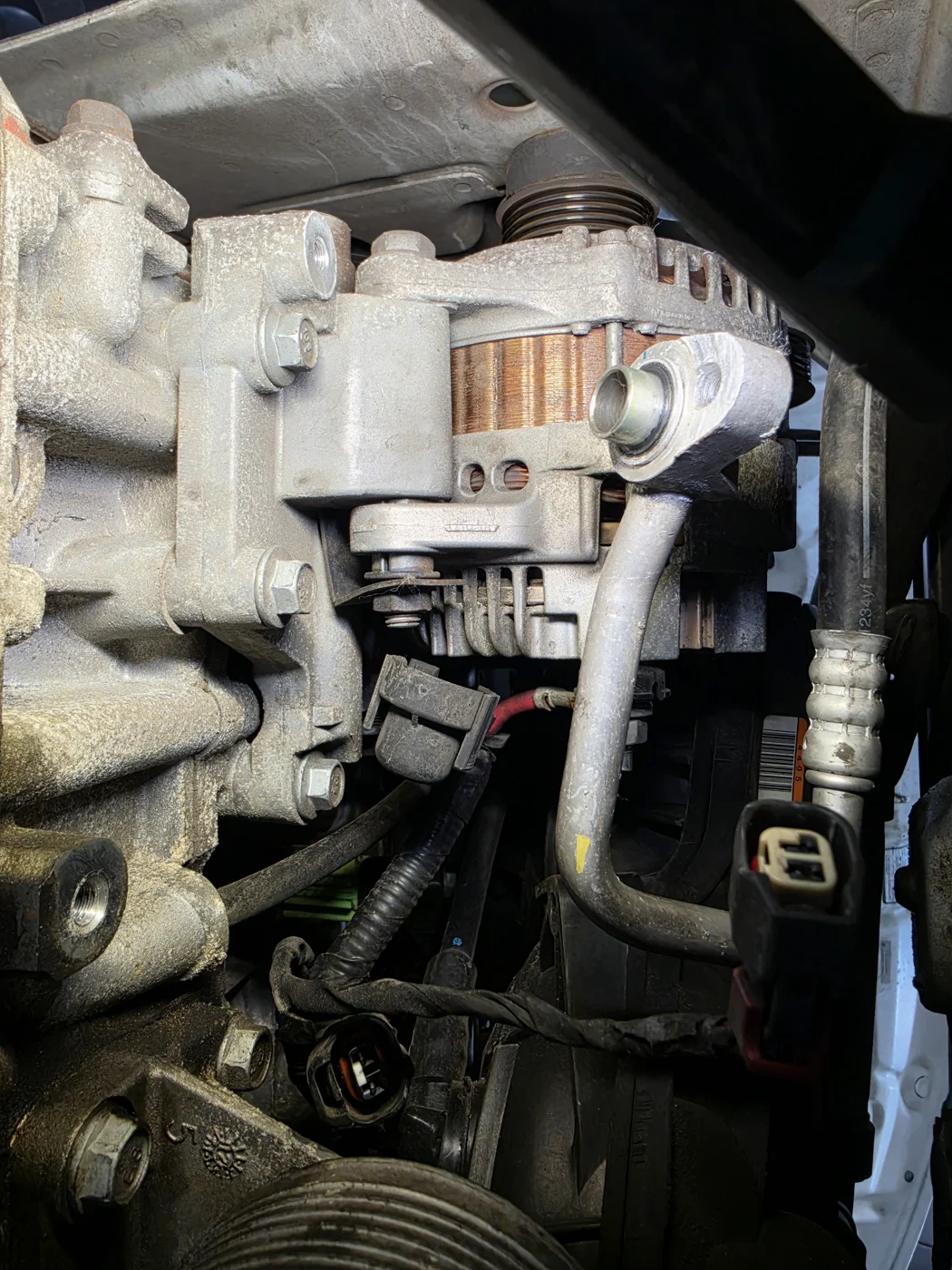

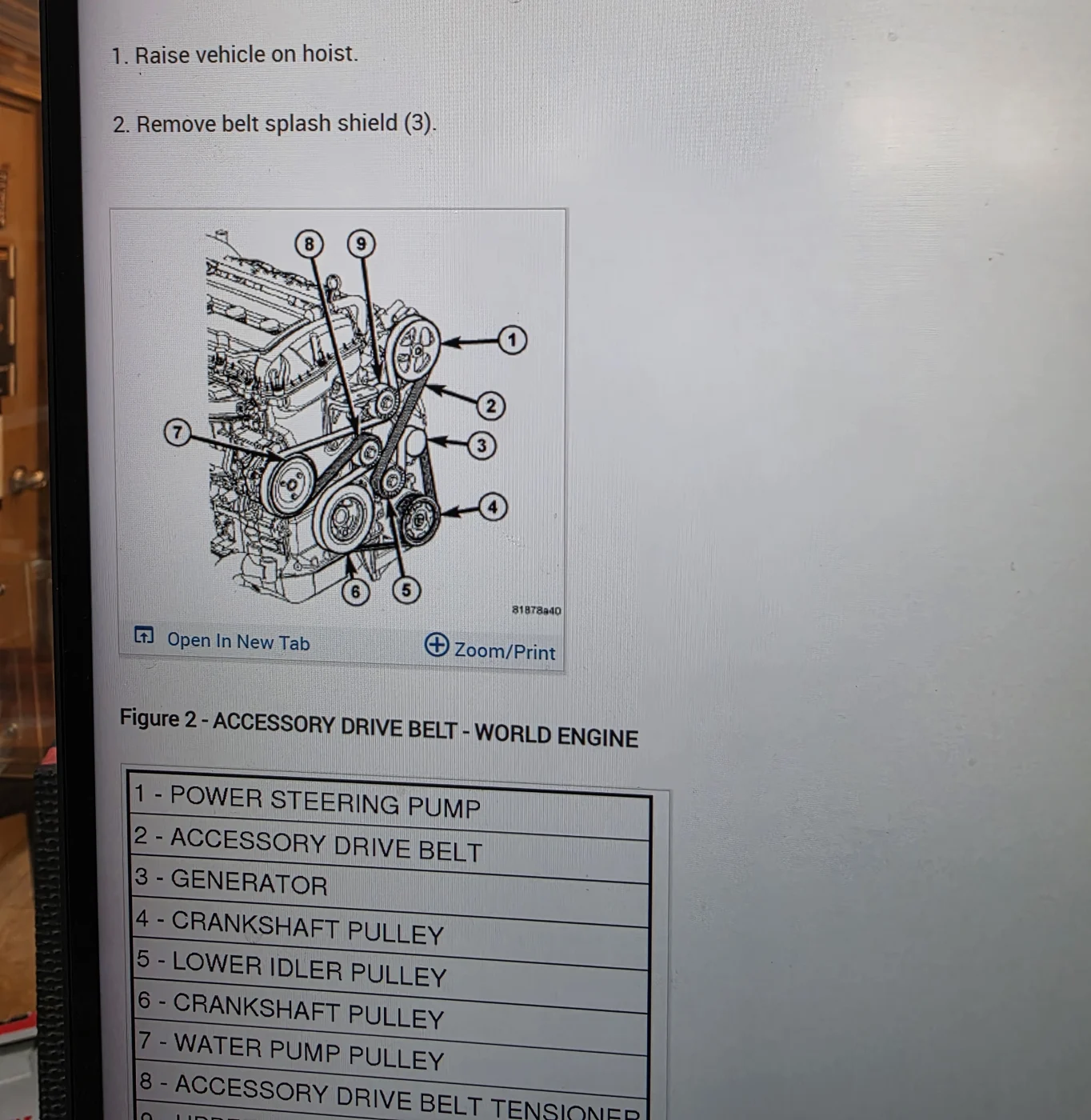

We checked the belt route in the vehicle's service information and accessed the area through the wheel housing. Several pulleys and tensioning components sit around the alternator.

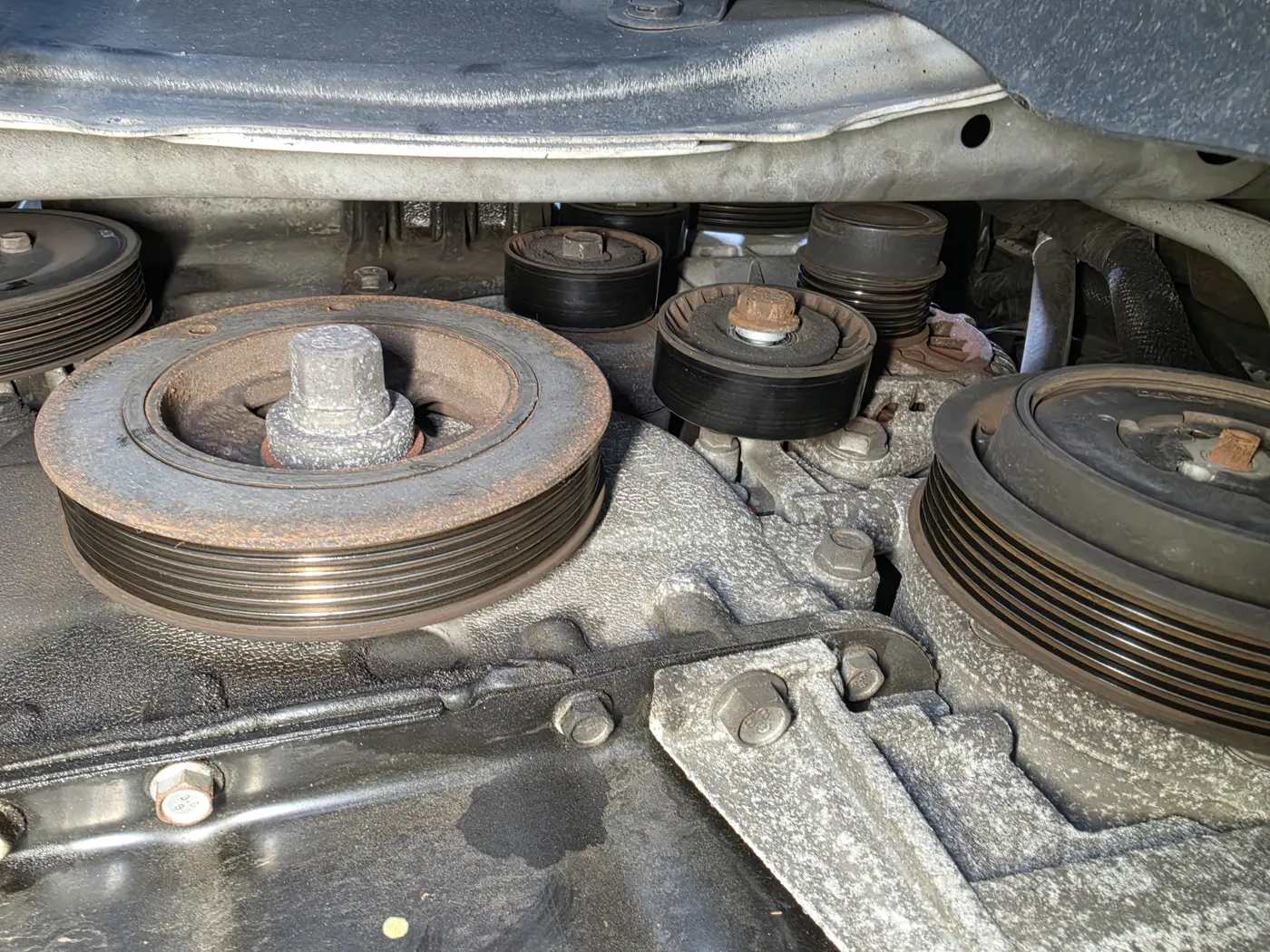

A belt that looks sound does not prove that its bearings are sound. We also check play and movement in the rotating components.
03 / NHC MOTORS
Replacing the alternator and auxiliary belt set

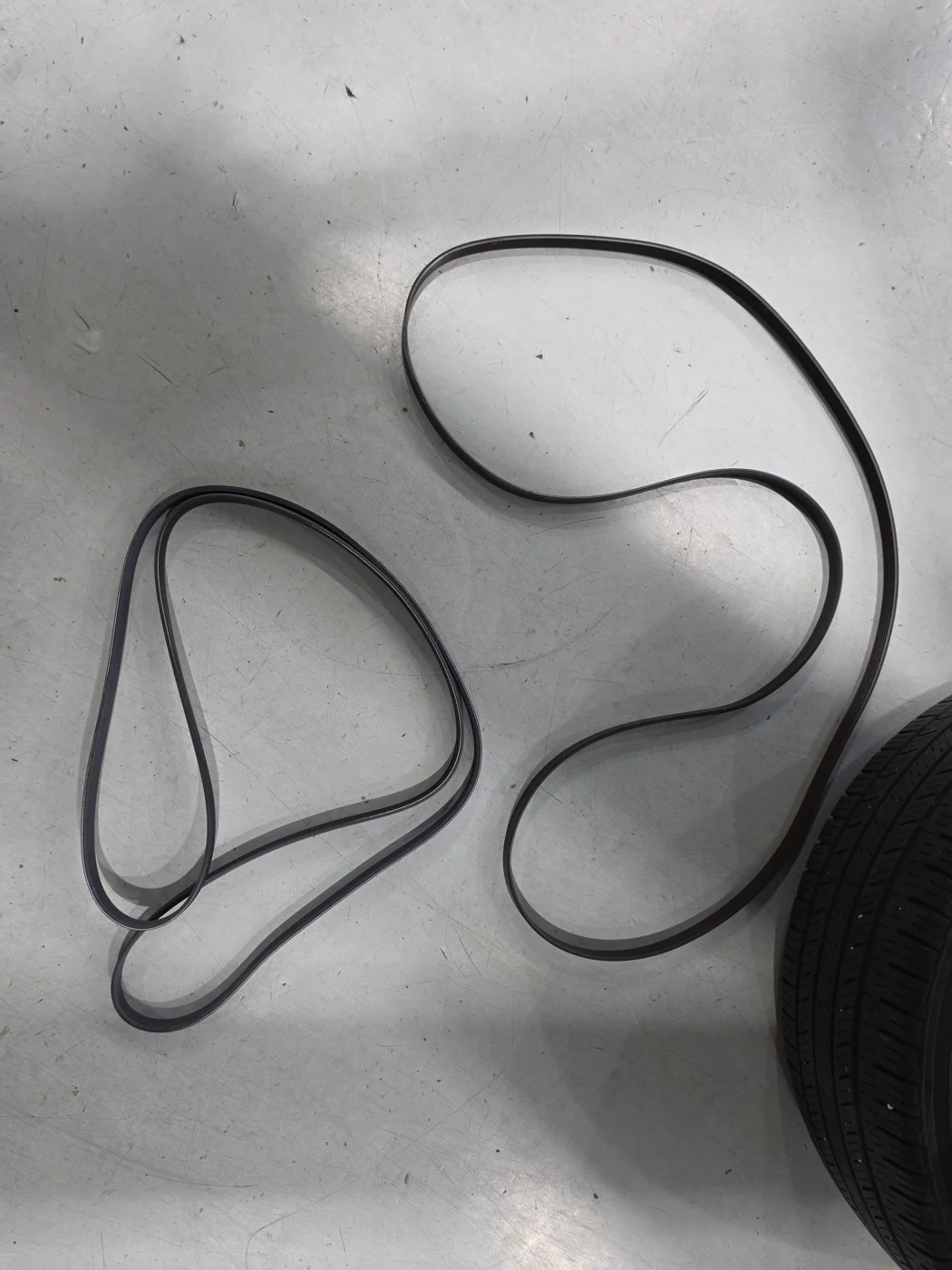

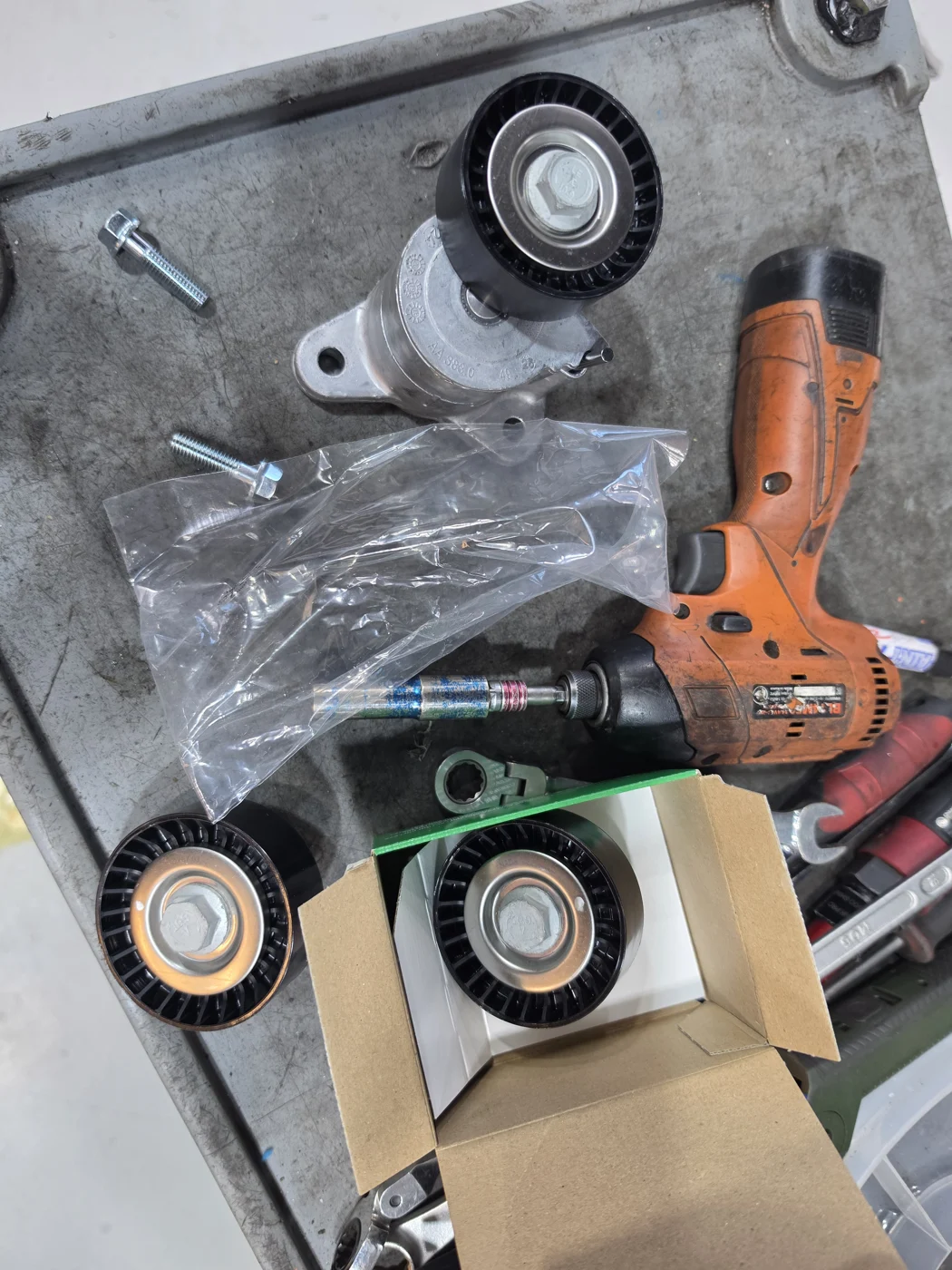

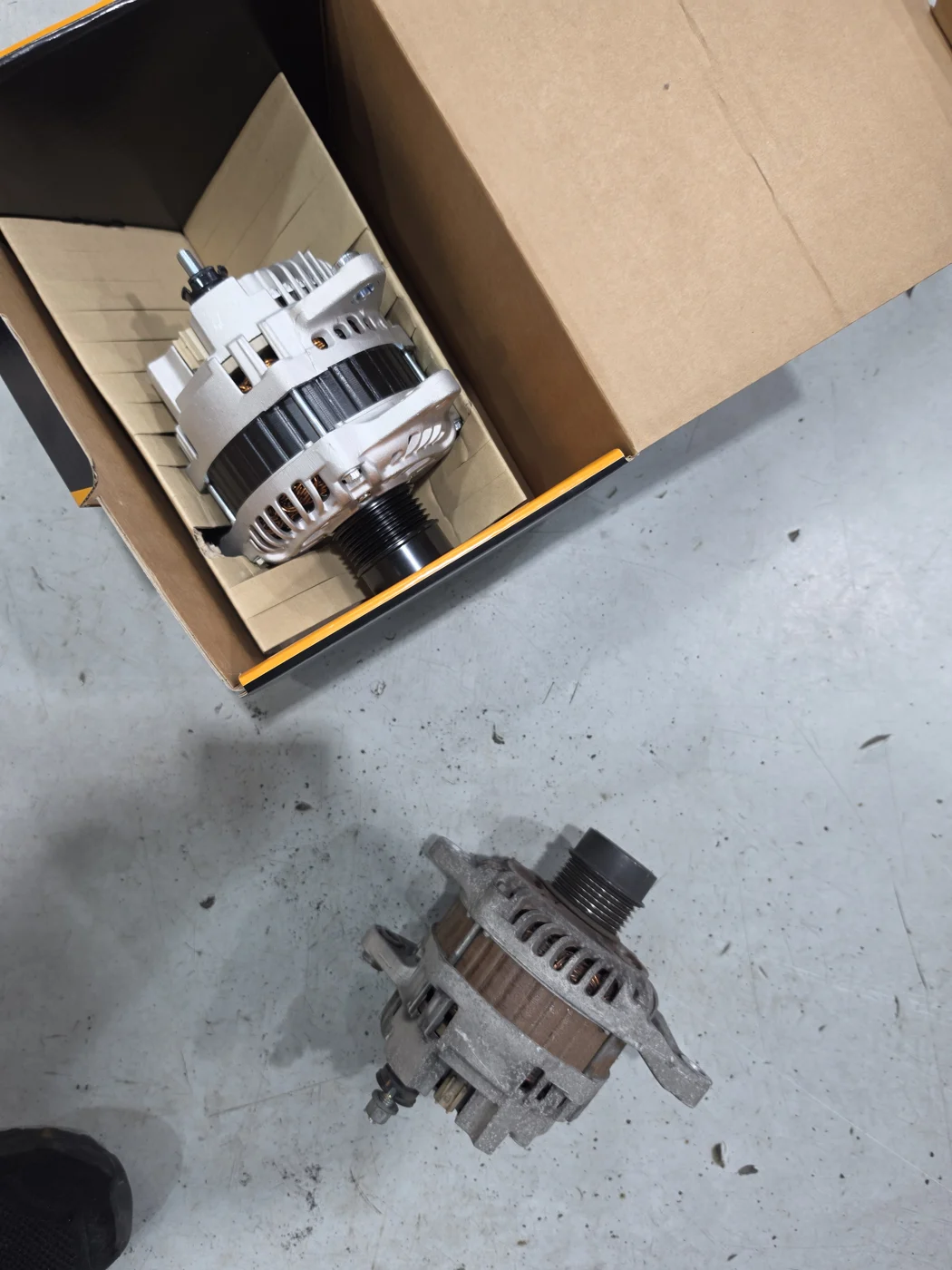

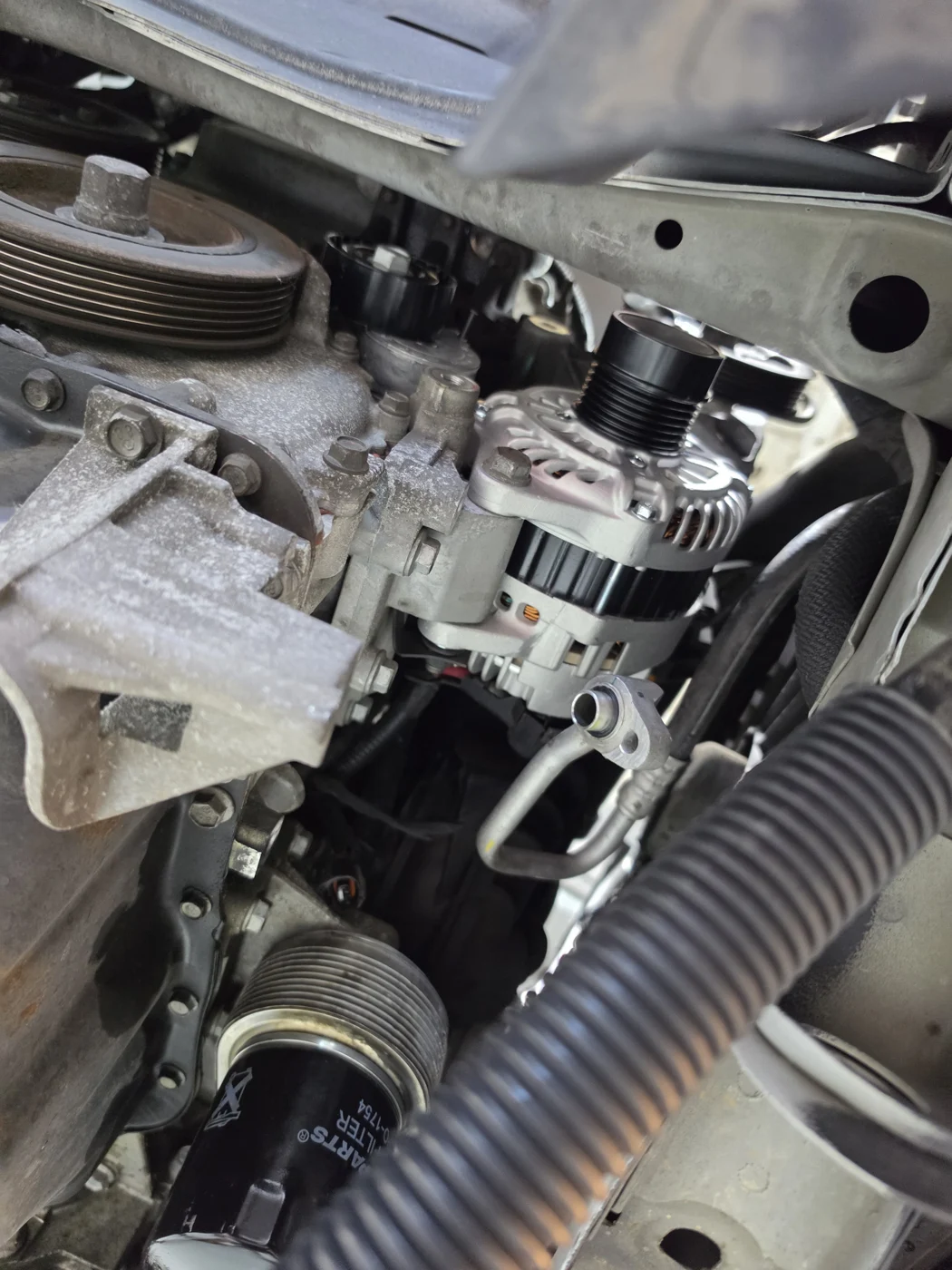

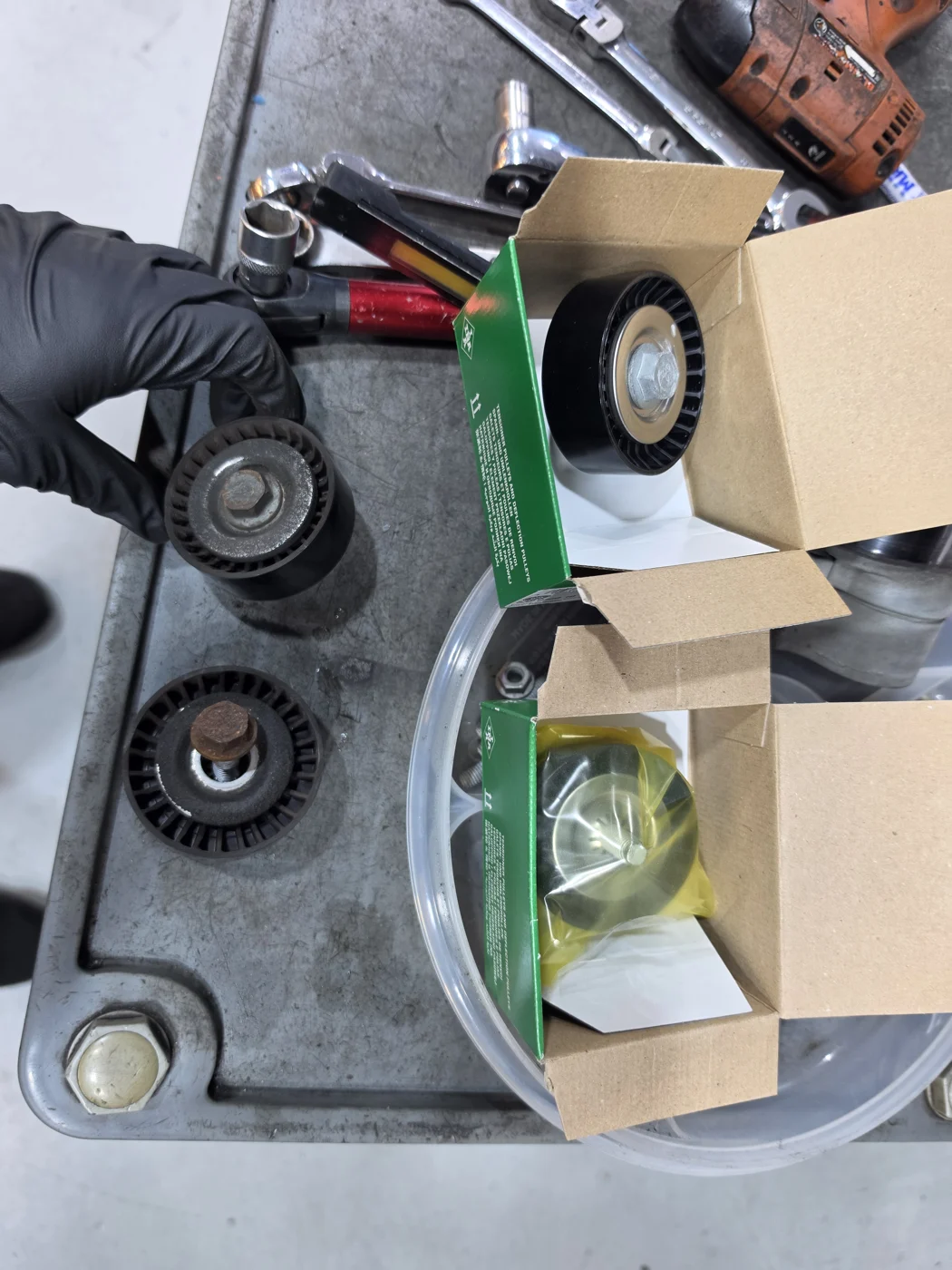

We compared the removed parts with the replacement pulleys and tensioner, fitted the alternator and replaced the auxiliary belt.

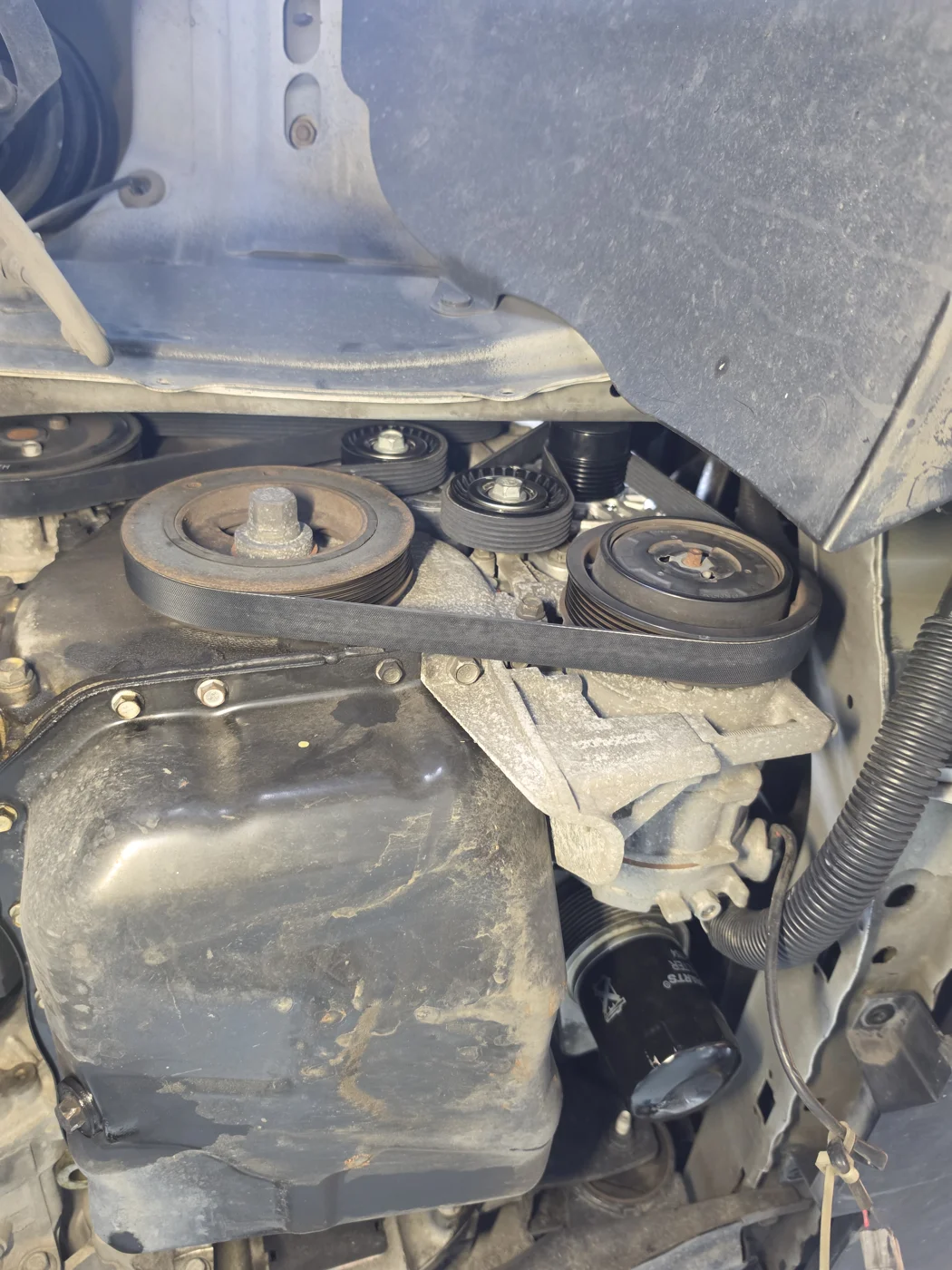

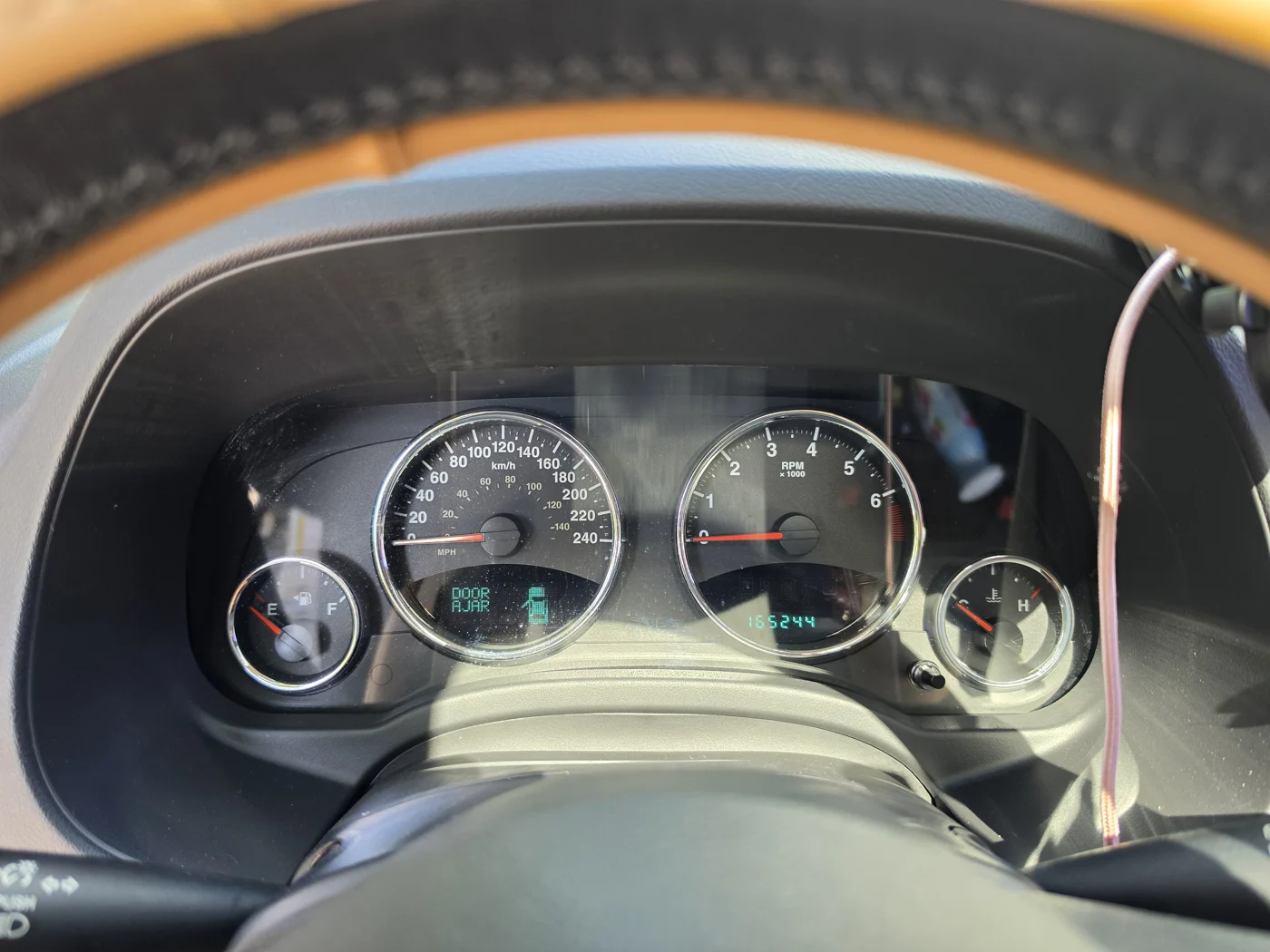

After assembly in the confined space, the belt must be seated correctly on each pulley. Belt tracking and charging operation also need checking.
04 / NHC MOTORS
Do not ignore charging warnings or rotating noises
On this Compass, we confirmed alternator bearing damage and replaced the alternator and auxiliary belt set.
If charging problems return after battery replacement, or a rotating noise changes around the engine, the alternator and belt system also need checking.
Related workshop video
▶ What to check before replacing a batteryA related video about checking charging concerns before replacing parts.Related maintenance reading
Questions before booking
Must the belt always be changed with the alternator?
The scope depends on age, wear and the condition of nearby pulleys and tensioners. This car received both an alternator and auxiliary belt set.
Should I replace the battery first for a charging problem?
Check the battery, alternator output, wiring and connections. Diagnostic findings determine which parts need replacing.
Concerned about charging or belt noise on your Compass?
Tell us when the symptom occurs and when the battery was replaced. We will arrange a visit to check the alternator and belt area as well.
We explain the work and cost before proceeding with your agreement.
