BMW X3 30d A/C compressor replacement and refrigerant charge: how it differs from a top-up

We replaced the A/C compressor on a 2015 BMW X3 30d and used a refrigerant machine to charge the system. We explain how removing the belt and refrigerant lines to reach the compressor differs from a refrigerant top-up.

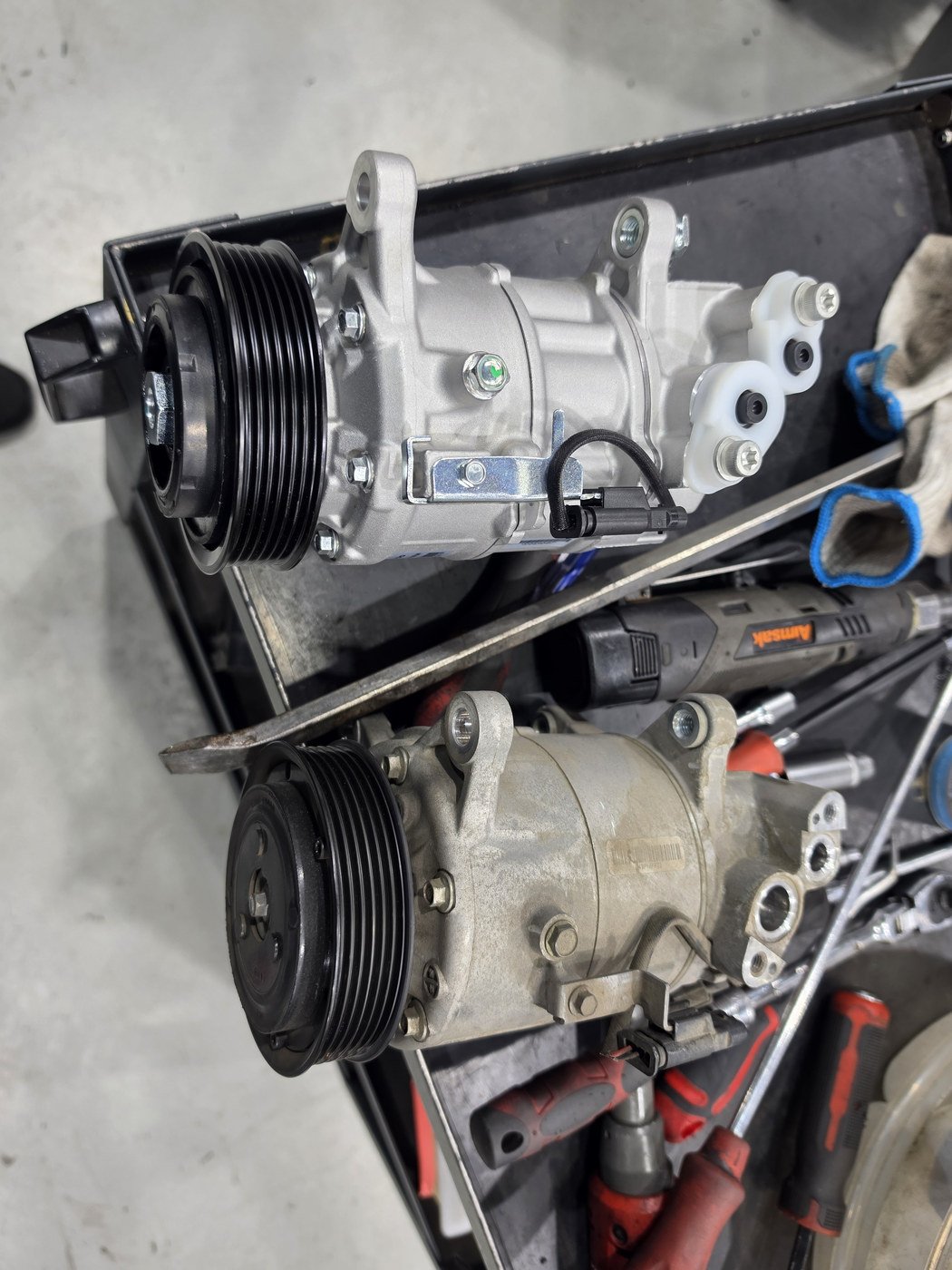

Comparing the mounting points of the removed compressor and the new replacement

2015 BMW X3 30d

If your air conditioning isn't blowing cold, you may wonder whether it just needs refrigerant or whether the compressor has to be replaced. A refrigerant top-up means connecting a machine and adding gas. Replacing the compressor means disconnecting the belt and the refrigerant line connections, swapping the part itself, then recharging the refrigerant.

On this 2015 BMW X3 30d we replaced the A/C compressor. We removed the old compressor from the front of the engine, fitted the new part, then charged the system with refrigerant using a refrigerant machine. Whether metal debris had formed inside the old compressor was left as an item to check later.

01 / NHC MOTORS

We opened up the front of the engine and removed the belt to reach the compressor

The compressor sits at the front of the engine and is driven by a belt. After clearing working space at the front of the engine, we removed the belt to reach the compressor mounting area.

Refrigerant lines are connected to the compressor, so the line connections also have to be disconnected to remove it. Every connection that was opened must be refitted exactly as it was once the new compressor is in place. So we kept track of the position and order of everything we disconnected.

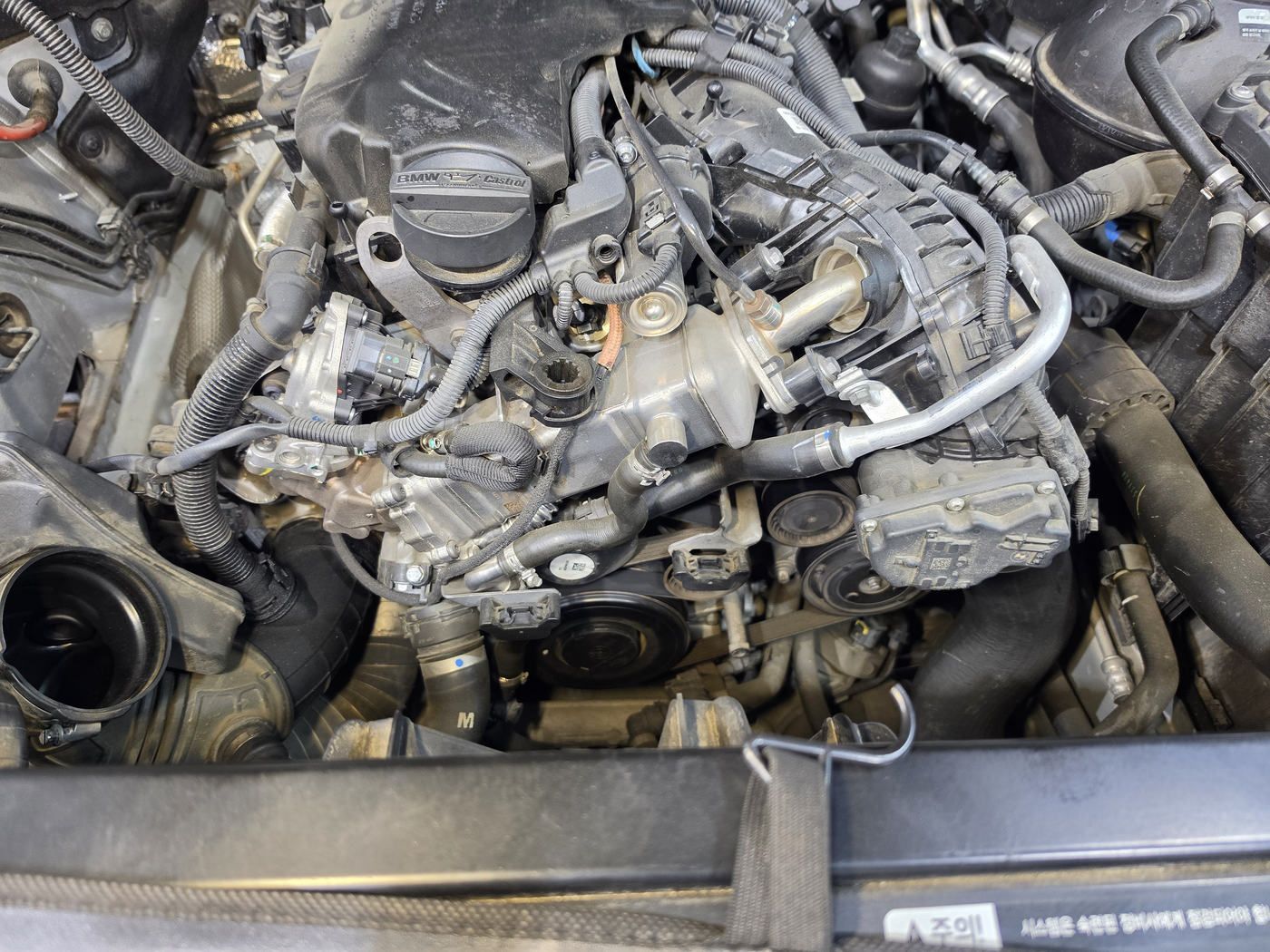

Space cleared at the front of the engine for the compressor work

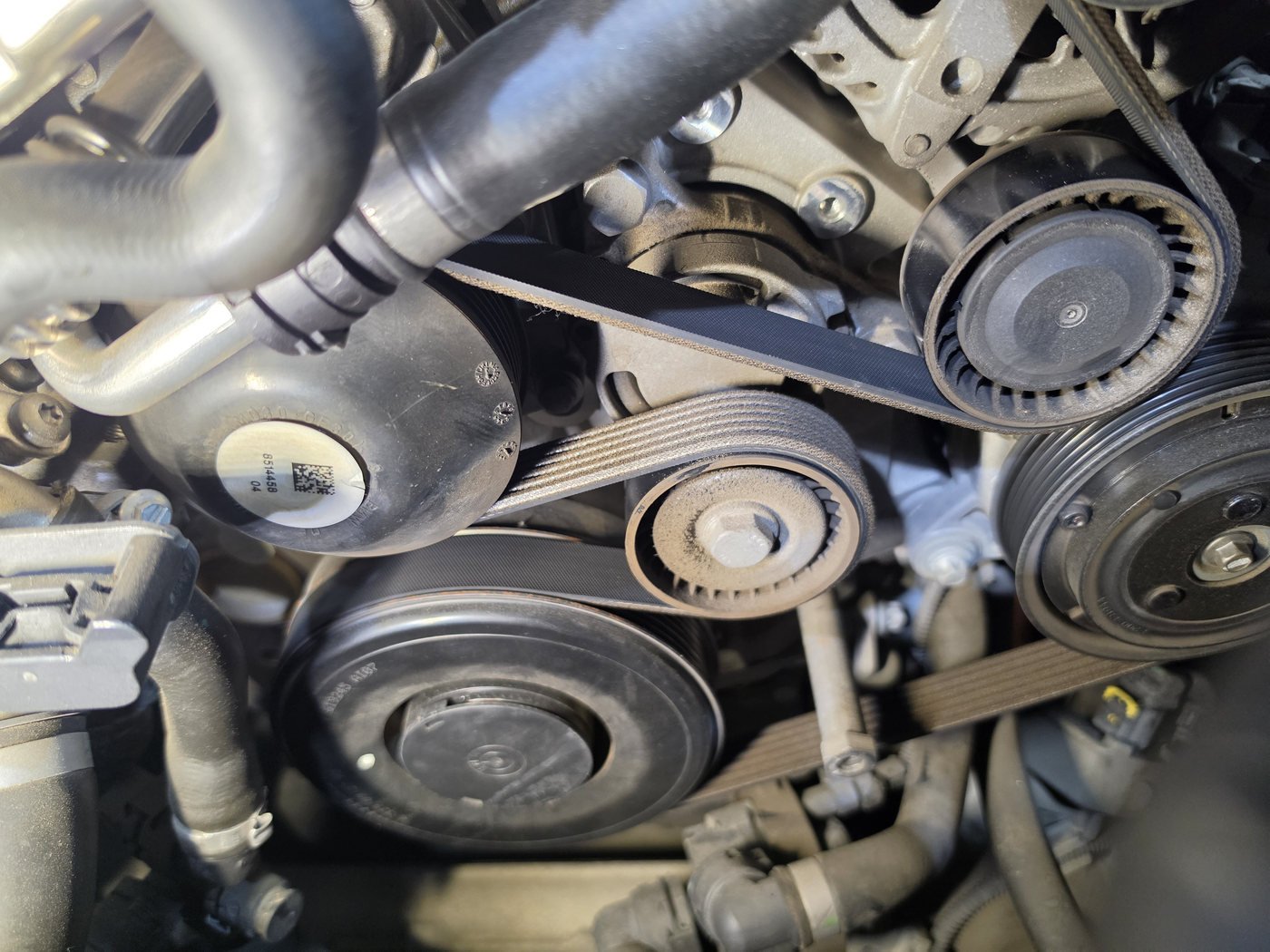

Belt and pulleys that drive the compressor

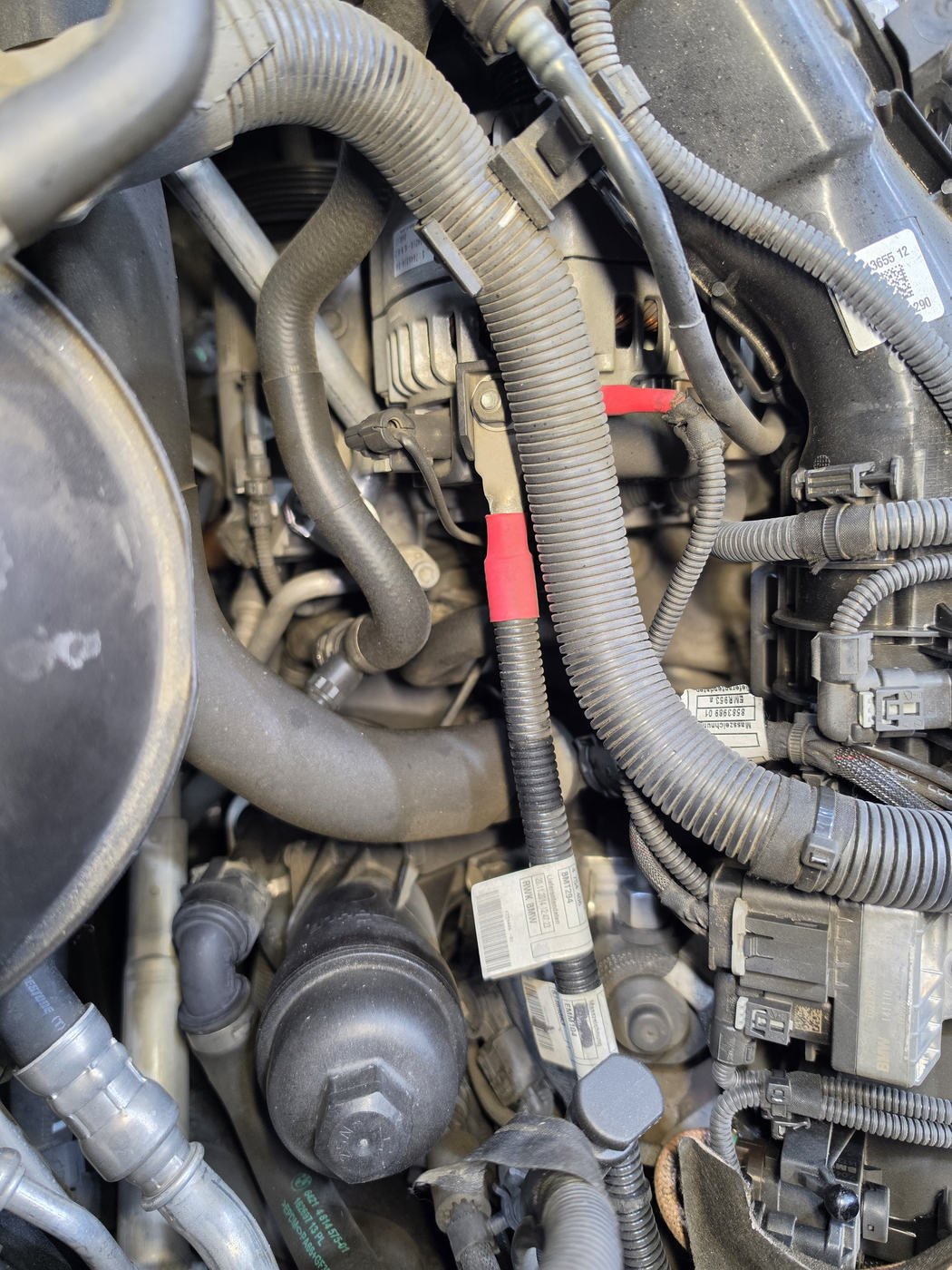

Reaching the compressor mounting position

02 / NHC MOTORS

We compared the removed compressor side by side with the new part

We placed the removed compressor next to the new replacement and compared the mounting points and the shape of the line connections. The bolt locations and line joints have to match for the part to sit properly after assembly, without misalignment or leaks. After the comparison, we fitted the new compressor and reconnected the belt and refrigerant lines.

If metal debris formed inside the old compressor, it can spread into the refrigerant lines. For this car, whether there was debris is to be checked later.

03 / NHC MOTORS

We charged the refrigerant and finished off the underside

After connecting the new compressor, we charged the system with refrigerant using a refrigerant machine. The refrigerant amount affects both cooling performance and the load on the compressor.

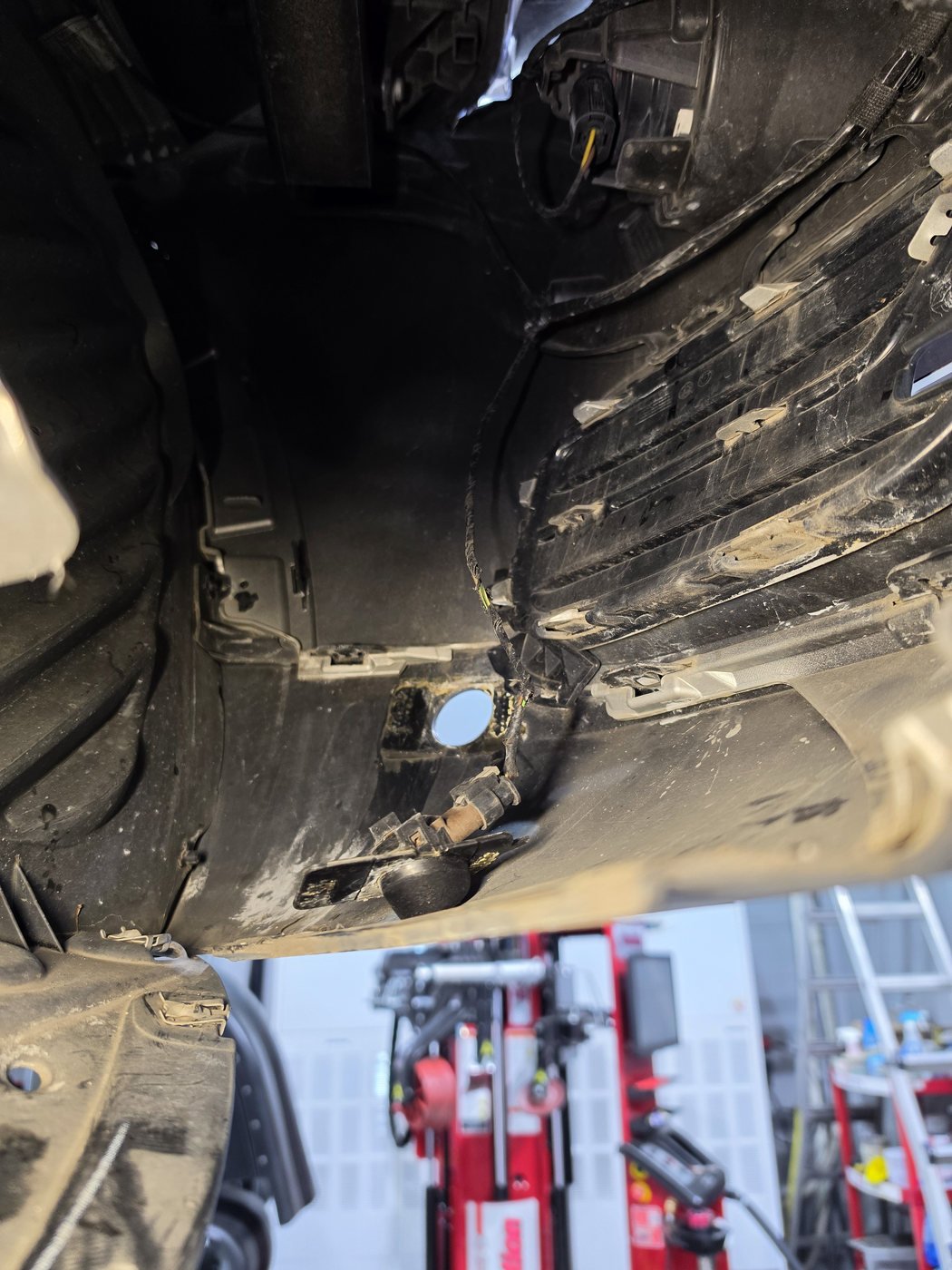

We checked the underside of the car and secured the undercover fasteners that had been removed. In the same visit, we also secured the parking sensor (PDC) bracket.

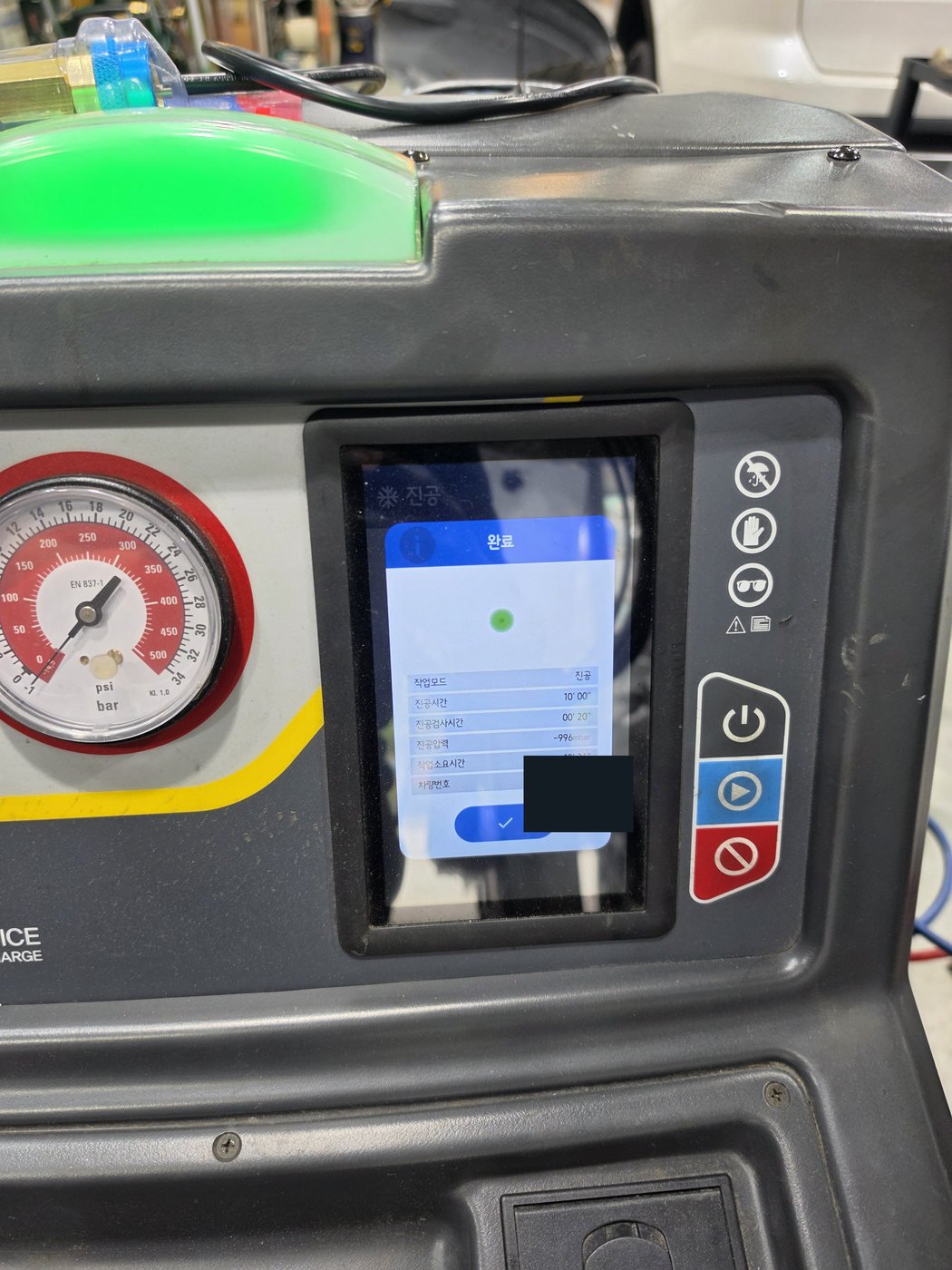

Refrigerant machine screen during the work

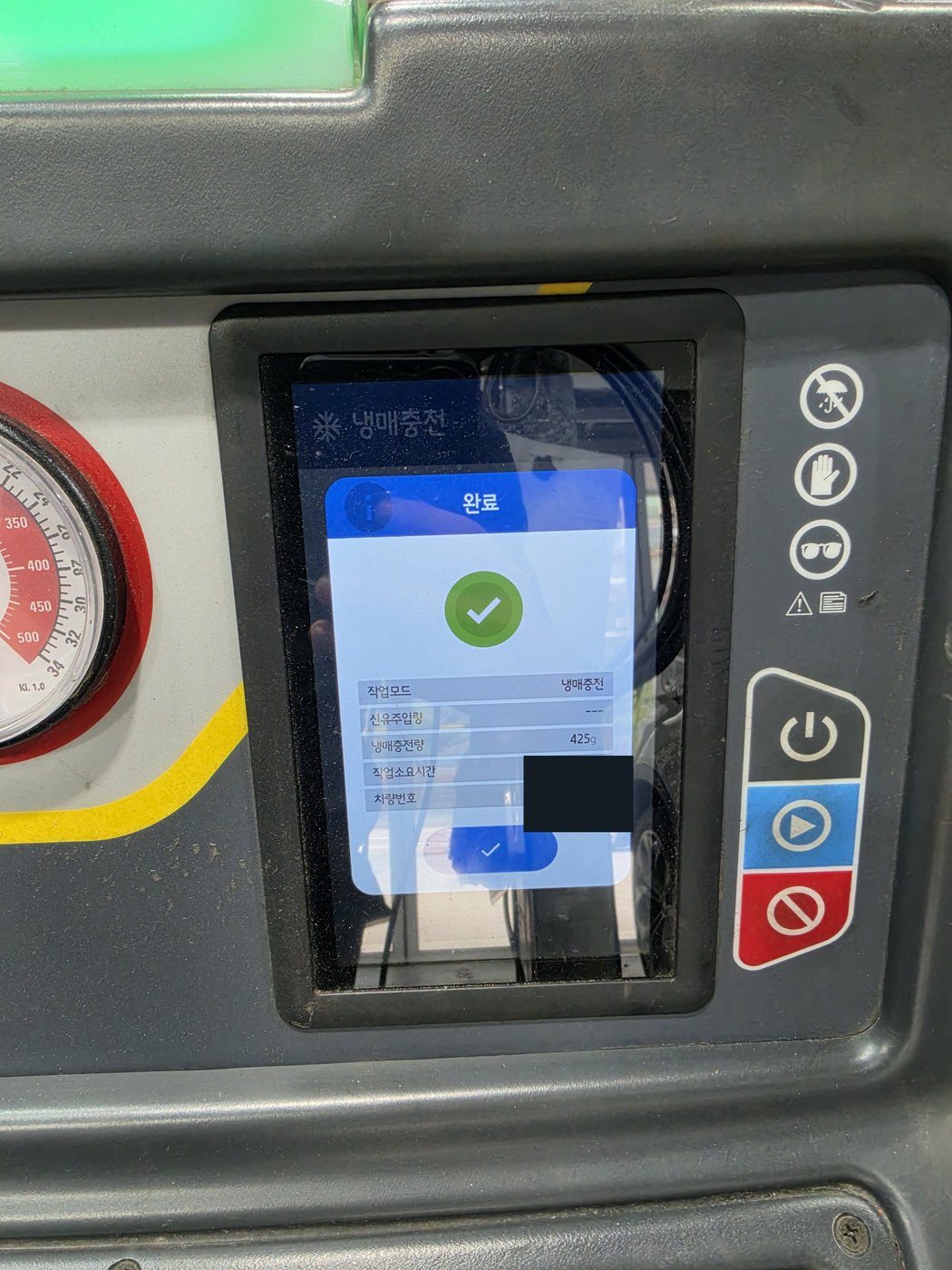

Refrigerant work with the refrigerant machine connected

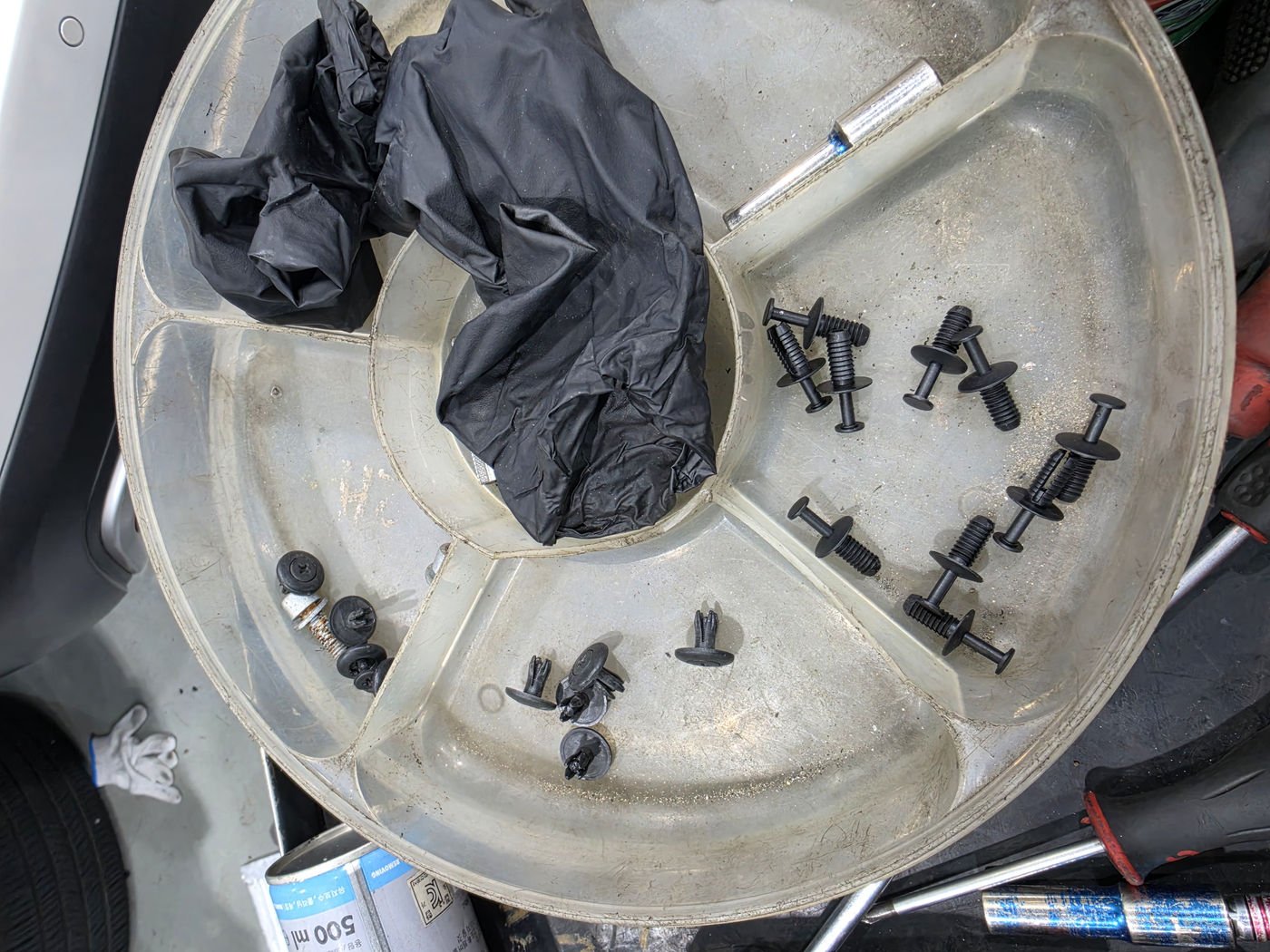

Securing the fasteners of the undercover that had been removed

Weak cooling: where do the causes divide?

Refrigerant level & leaks

Why it ran low, and whether the system is sealed

Operation

Compressor and control status

Checks after replacement

Refrigerant to specification and actual cooling

The three areas we check separately when cooling is weak.

Frequently asked questions

If the refrigerant is low, does the compressor need replacing?

We don't decide to replace the compressor based on low refrigerant alone. We check separately whether the refrigerant loss is due to a leak, whether the compressor is working properly, and whether there is a control issue, then decide the scope of work.

Once the compressor is replaced, is the A/C repair finished?

After the new compressor is connected, the refrigerant needs to be charged to specification, and the system should also be checked for any remaining problems. On this X3, whether there was metal debris in the old compressor was left as an item to check later.

If your A/C is weak, we check refrigerant, operation and connections separately

If your air conditioning isn't cooling properly, we will check the refrigerant level and any leaks, compressor operation, and control status separately. From the results, we will explain whether a refrigerant top-up is enough or a part needs replacing. If the compressor needs replacing, we will explain the full scope in advance: the parts removed for access, how the line connections are handled, and the refrigerant charge. Tell us whether cooling is weak when stationary or while driving, and whether it weakened again after refrigerant was added. Mention this when you contact us through Consultation & Booking, and we will start by checking those conditions.
