2023 Kia K5 engine and transmission oil service with a BG fluid exchange

We replaced the engine oil and filters on this 2023 Kia K5, then exchanged the transmission fluid with a BG PXT machine. The equipment recorded the amount of new fluid supplied, and the scan tool displayed the transmission fluid temperature.

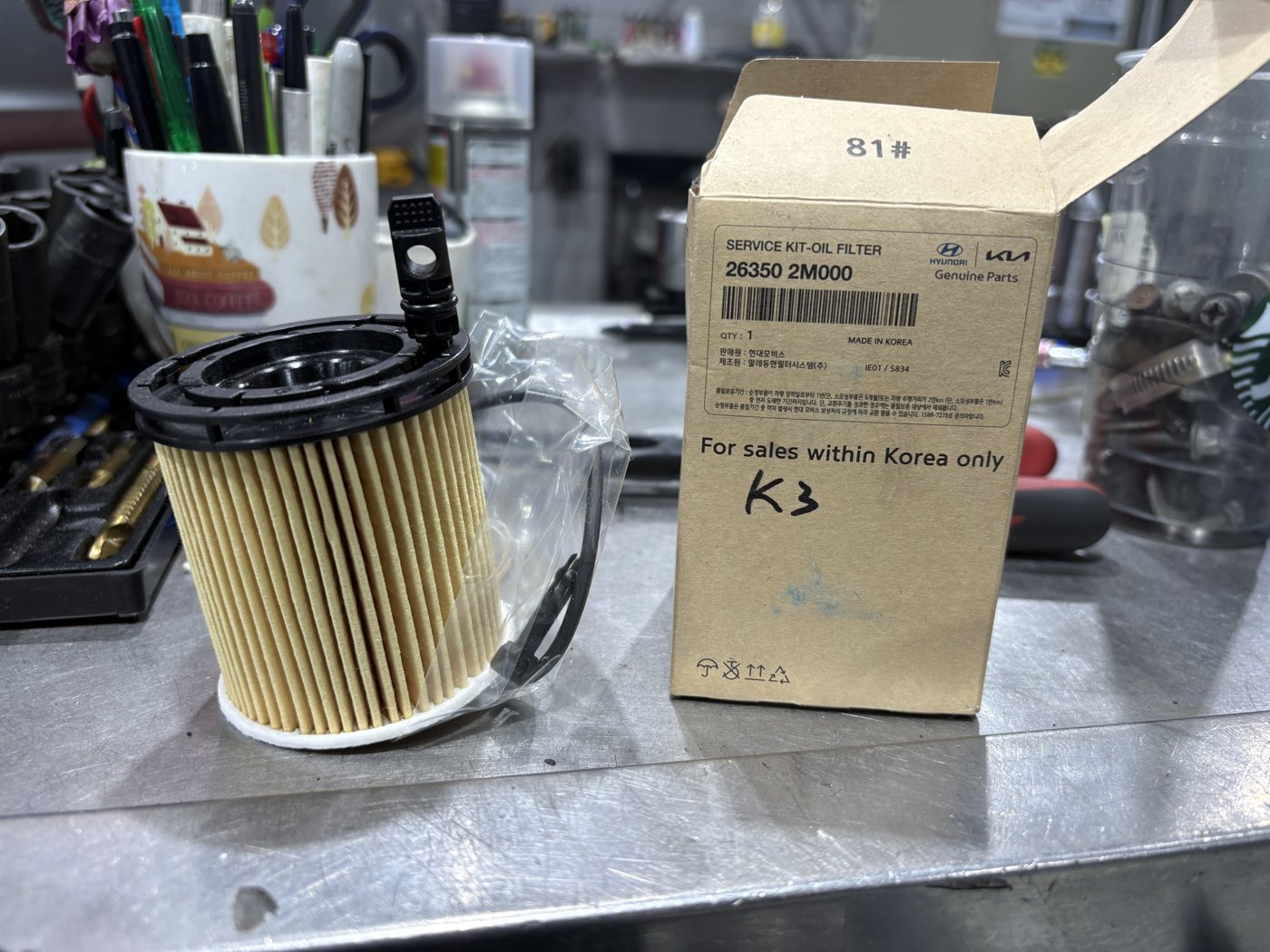

New oil filter used for this engine oil service.

2023 Kia K5

This 2023 Kia K5 came in for engine oil and transmission fluid on the same visit. We drained the engine oil, replaced the filter and added fresh oil. The transmission fluid was exchanged with a BG PXT machine. Both are oil services, but the methods differ.

We used PETRONAS 5000AV 5W-30 for the engine and FUCHS TITAN ATF 6400 for the transmission. We also checked the new-fluid supply shown on the BG machine and the fluid temperature displayed by the scan tool.

01 / NHC MOTORS

Engine oil drained and filters replaced

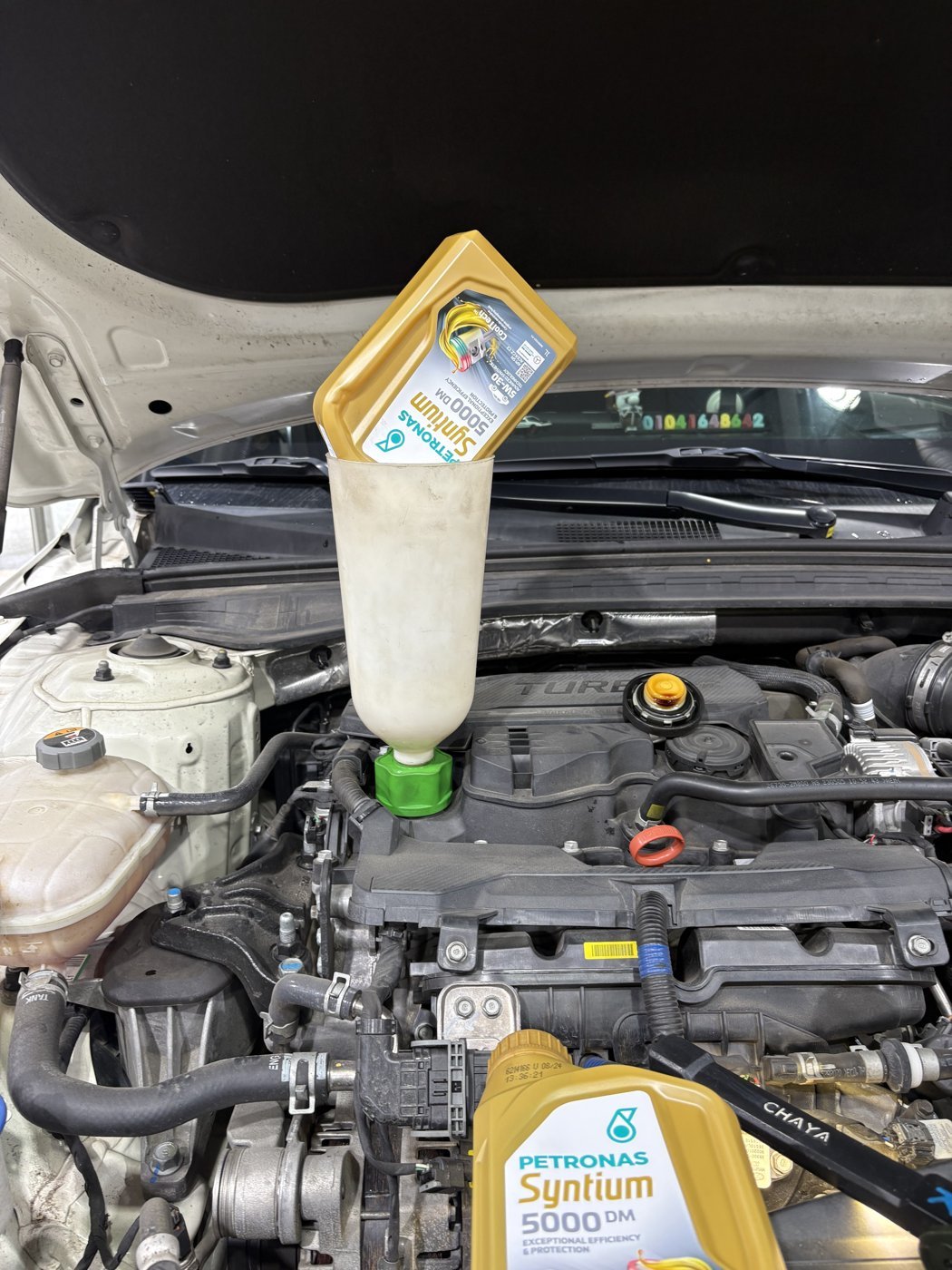

We drained the used engine oil and fitted a new oil filter. We compared the old and new air filters and replaced the air filter as well. The fresh engine oil was PETRONAS 5000AV 5W-30.

We topped up the washer fluid and set the tire pressure to 35 psi. Those were separate maintenance items during the same visit.

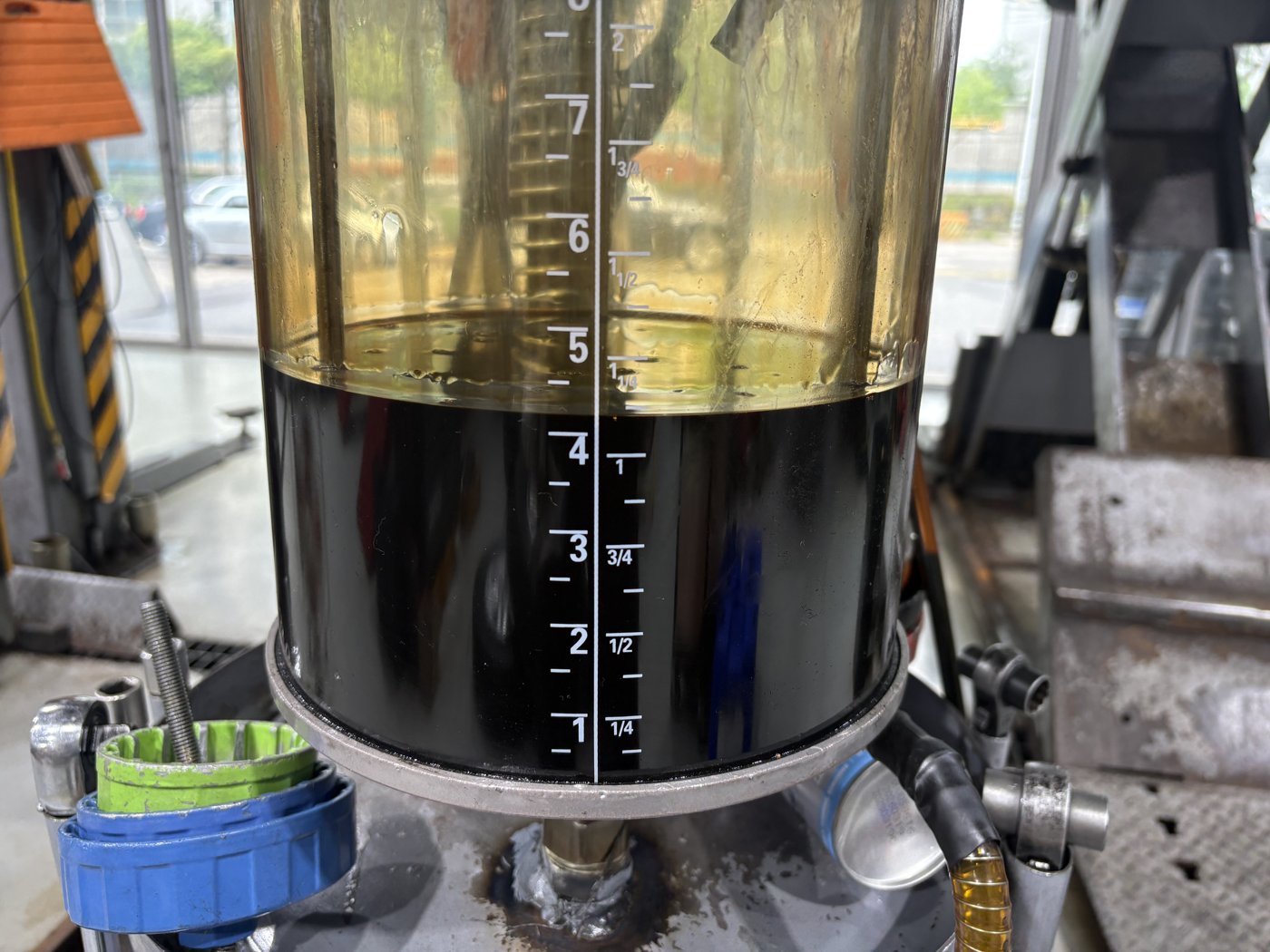

Used engine oil collected during the drain.

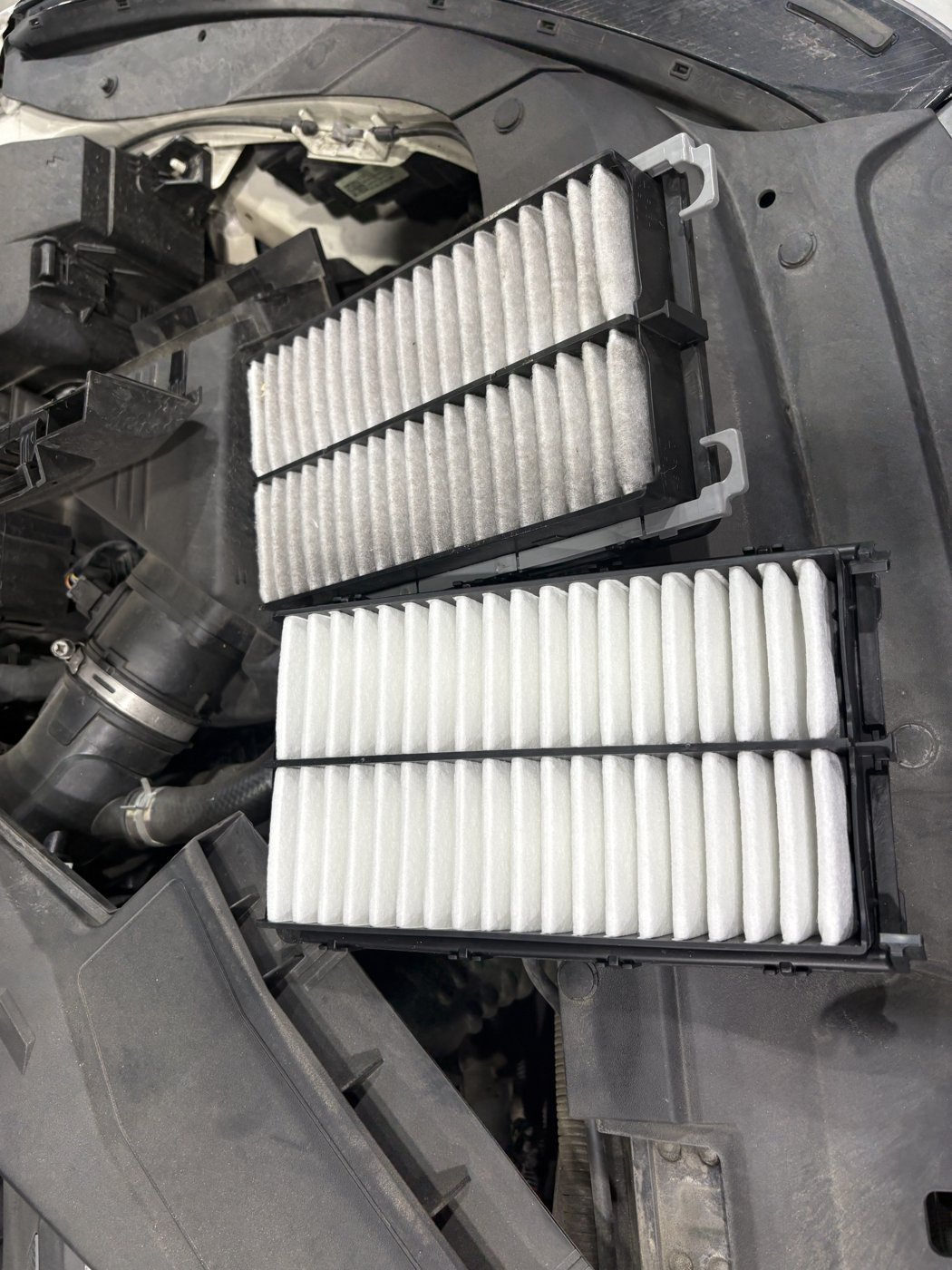

Old and new air filters compared before replacement.

02 / NHC MOTORS

Transmission fluid exchanged with the BG PXT machine

For the transmission, we used FUCHS TITAN ATF 6400. The BG PXT machine supplied fresh fluid while exchanging the old fluid. Its completion screen showed 13.2 quarts of new fluid supplied.

That 13.2-quart figure is the amount supplied during the exchange. It is not the final volume inside the transmission or the vehicle’s specified capacity.

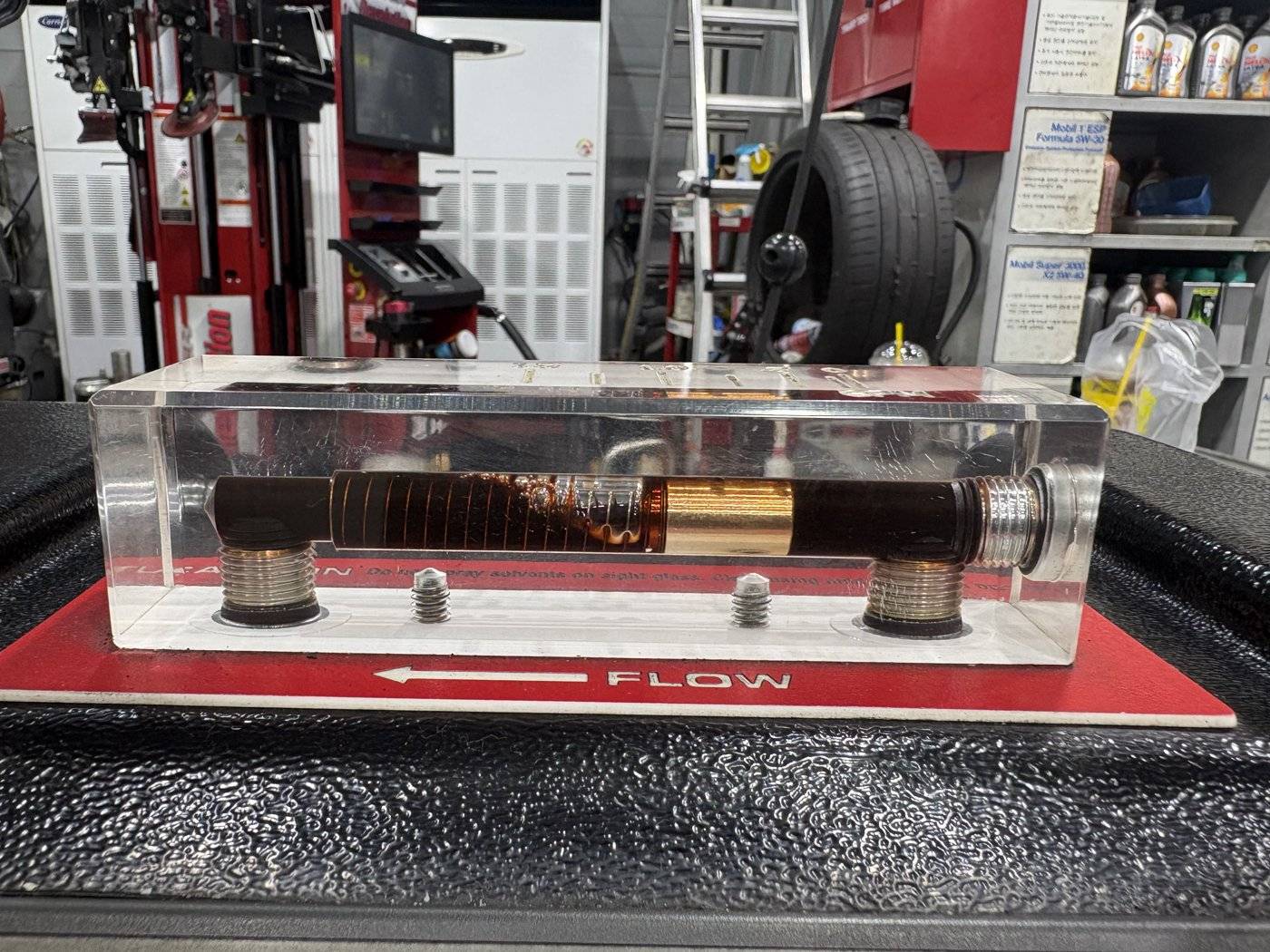

Sight glass on the fluid exchange machine during the work.

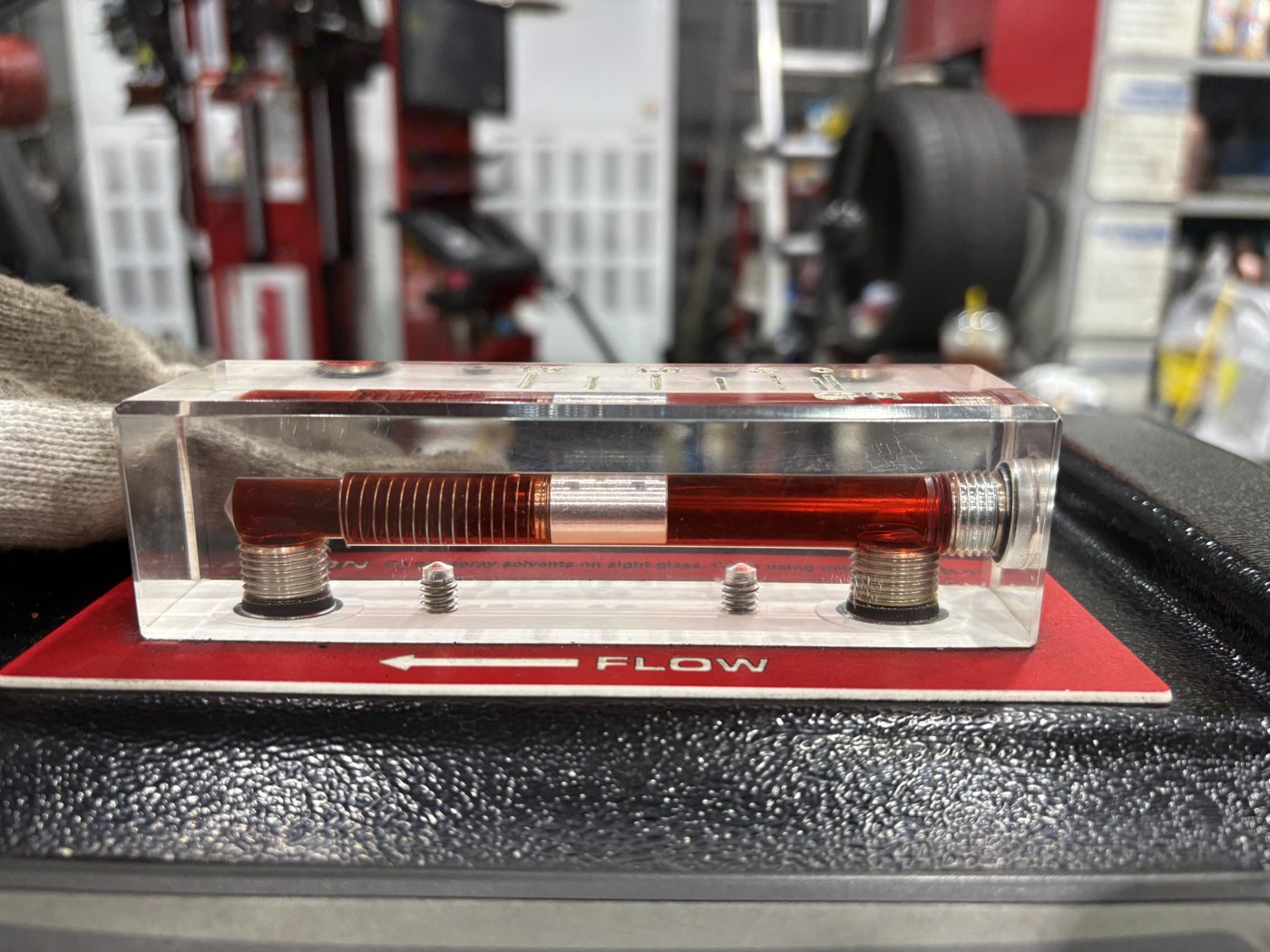

The machine sight glass later in the exchange.

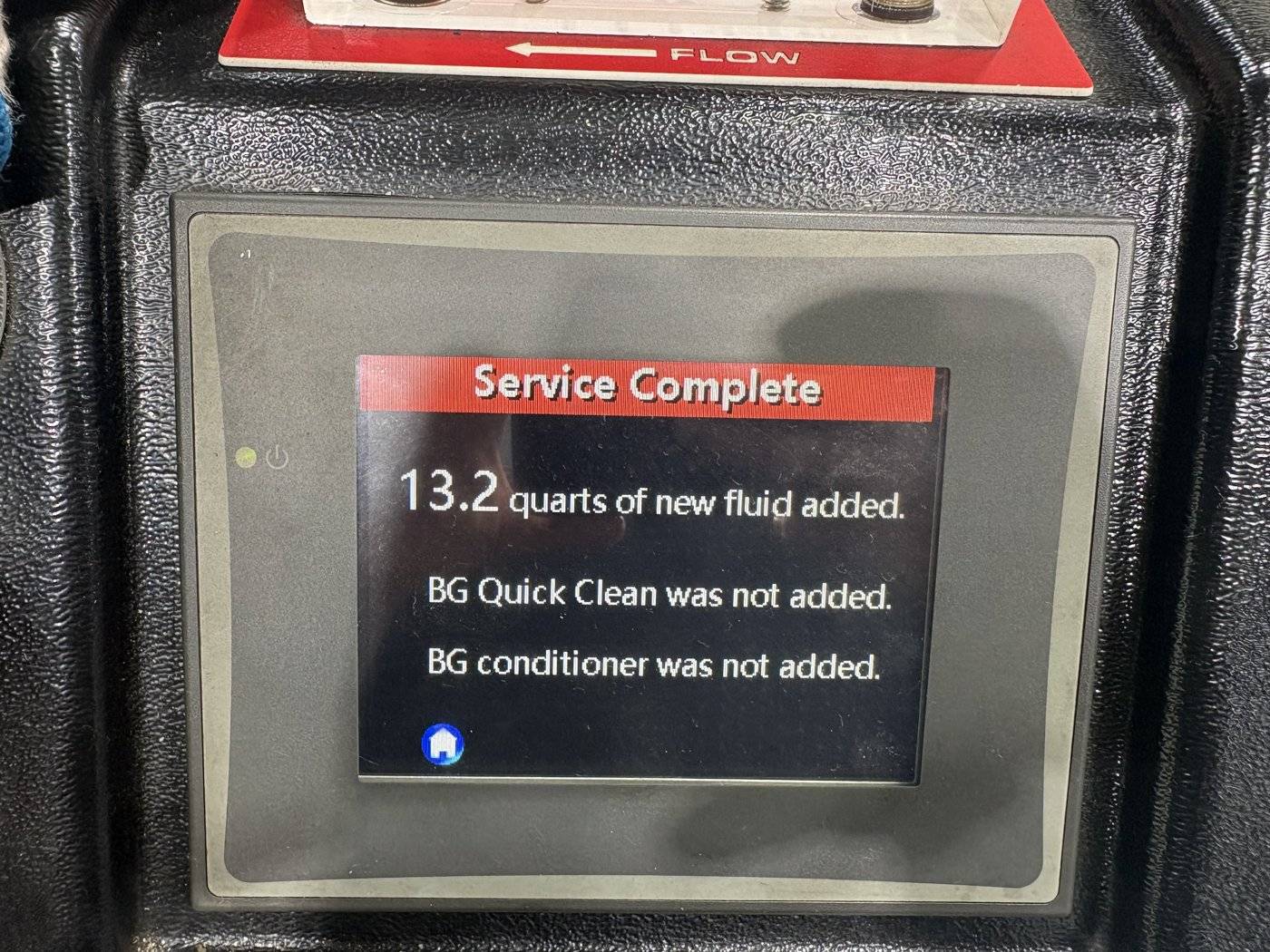

BG PXT completion screen: 13.2 quarts of new fluid supplied, not final transmission capacity.

03 / NHC MOTORS

The scan tool showed a transmission fluid temperature of 55°C

Fluid volume and level change with temperature. The correct fluid specification and level-check procedure matter during a transmission service. The scan tool displayed 55°C for the transmission fluid during this work.

The exchange quantity and the final level check are separate. The specified fluid must be used, and the level checked at the temperature required for the vehicle.

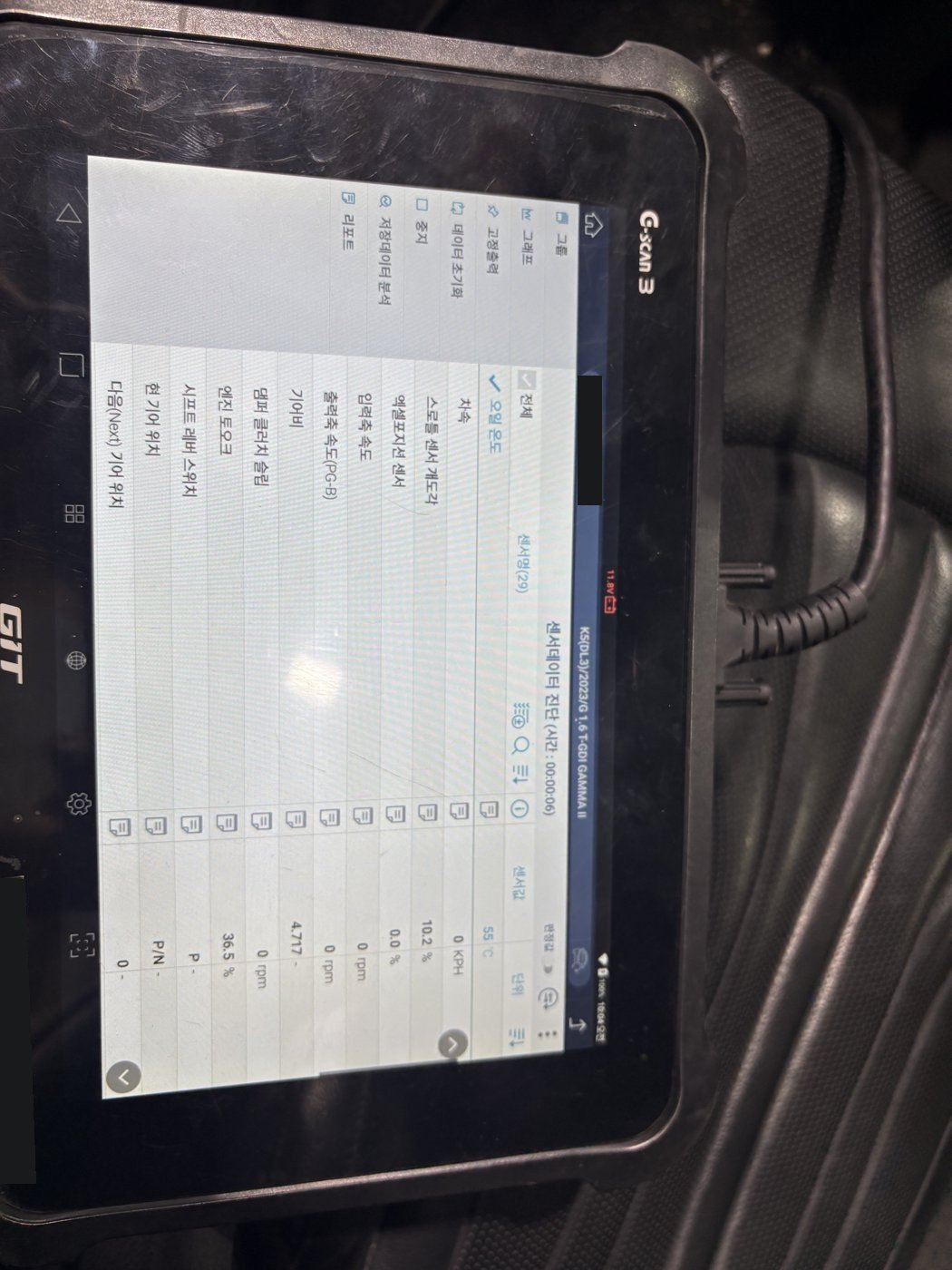

Scan tool showing transmission fluid temperature of 55°C during the work; public image has the VIN obscured.

Two oil services on this K5

Engine oil

Drain used oil · replace oil filter

Transmission fluid

BG PXT exchange · FUCHS TITAN ATF 6400

Machine display

13.2 quarts of new fluid supplied

Scan-tool display

Fluid temperature 55°C during the work

13.2 quarts is the fluid supplied during the machine exchange. The final level must be checked using the procedure and temperature specified for the vehicle.

Frequently asked questions

Is 13.2 quarts the K5 transmission capacity?

No. It is the amount of new fluid supplied by the BG PXT machine during the exchange, not the final amount remaining inside the transmission.

Why check the transmission fluid temperature?

Fluid volume and level change with temperature. The level must be checked at the temperature required by the vehicle-specific procedure. This photo shows the scan tool reading of 55°C during the work.

Should engine oil and transmission fluid always be changed together?

No. Their service histories, mileage and condition are considered separately. Both were serviced during this K5 visit.

Review each oil service on its own schedule

To book by phone or Naver, tell us the vehicle, mileage, last oil-service dates and any driving symptoms. We can then explain which checks and work are appropriate for the engine and transmission.

We explain the work and estimate before proceeding with your consent.
