BMW X3 20d: cracked coupling, used propeller shaft and transmission mount replaced
We replaced the cracked shaft coupling with a new part, fitted a used replacement propeller shaft and changed the transmission mount. The rear-spring and alignment work on 18 August was a separate earlier visit.
On this 2014 BMW X3 20d with more than 400,000km on the clock, we found cracks around the metal sleeves in the propeller-shaft coupling rubber. The odometer showed 407,506km.
We fitted a new coupling, a used replacement propeller shaft and an OE transmission mount, and serviced the transfer-case oil. On 18 August, the air-conditioning compressor and rear springs had been replaced and the alignment adjusted; the shaft and mount work came later.
01 / NHC MOTORS
Cracks reached the metal sleeves in the coupling

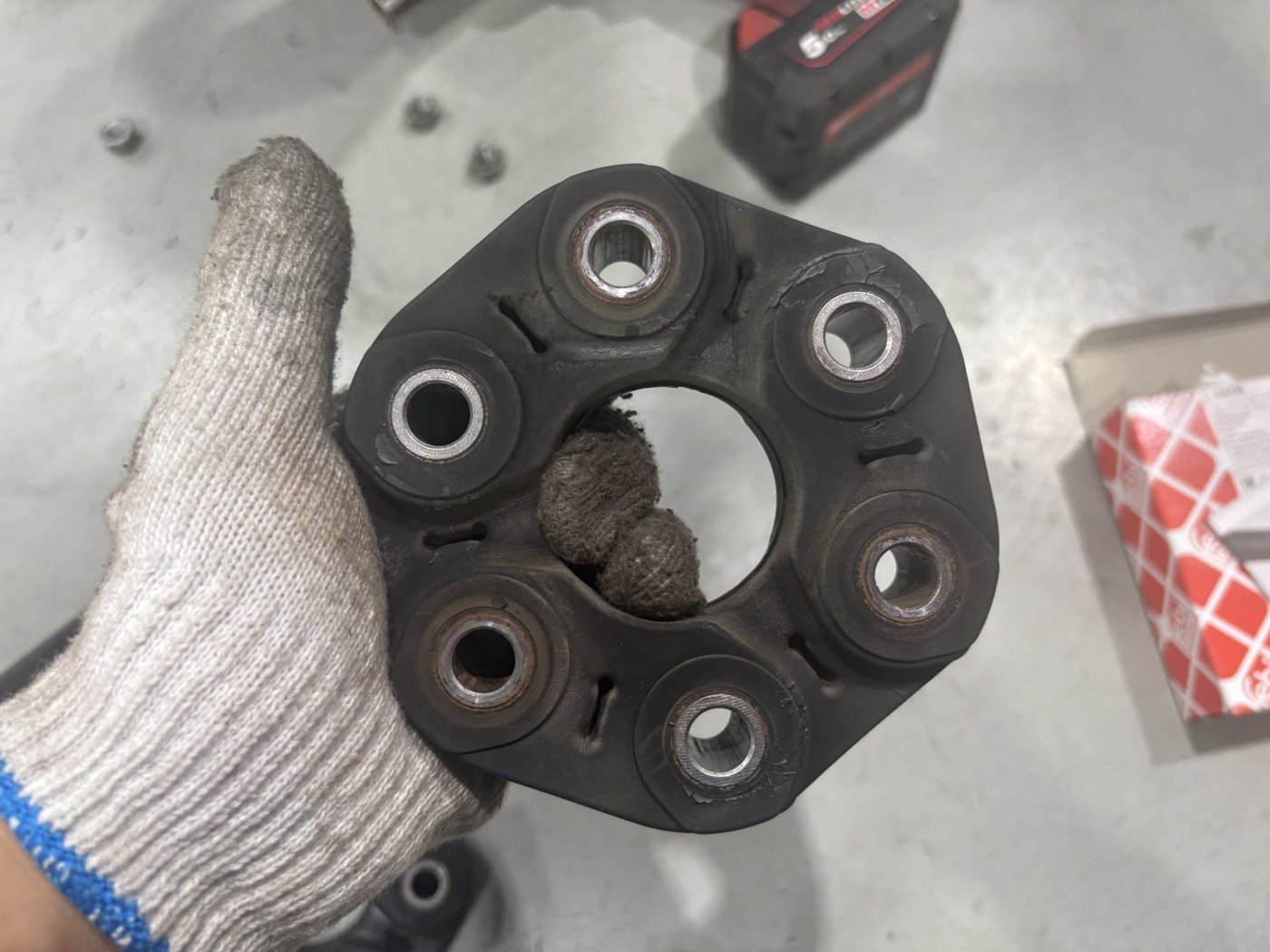

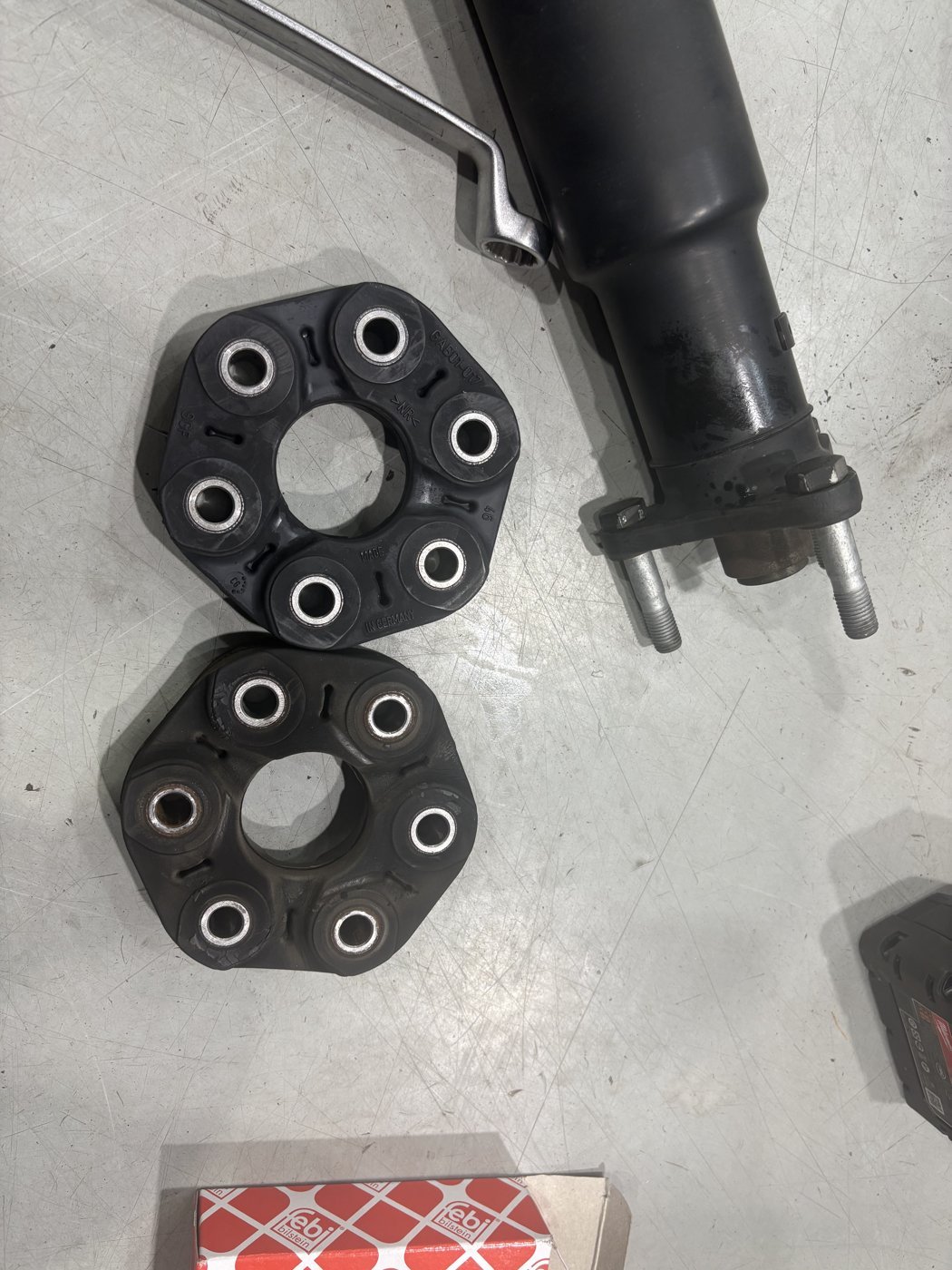

We placed the removed round coupling beside the replacement. The old rubber was cracked in several places, including around the metal sleeves where the bolts pass through. We replaced this coupling with a new part.
The coupling transmits drive through the shaft while the rubber absorbs twist and shock during pulling away and gear changes. We looked at the cracks together with the fastening points and shaft support when deciding the scope of the work. Mileage alone does not determine that every related part needs replacing.
02 / NHC MOTORS
The shaft and transmission mount were replaced

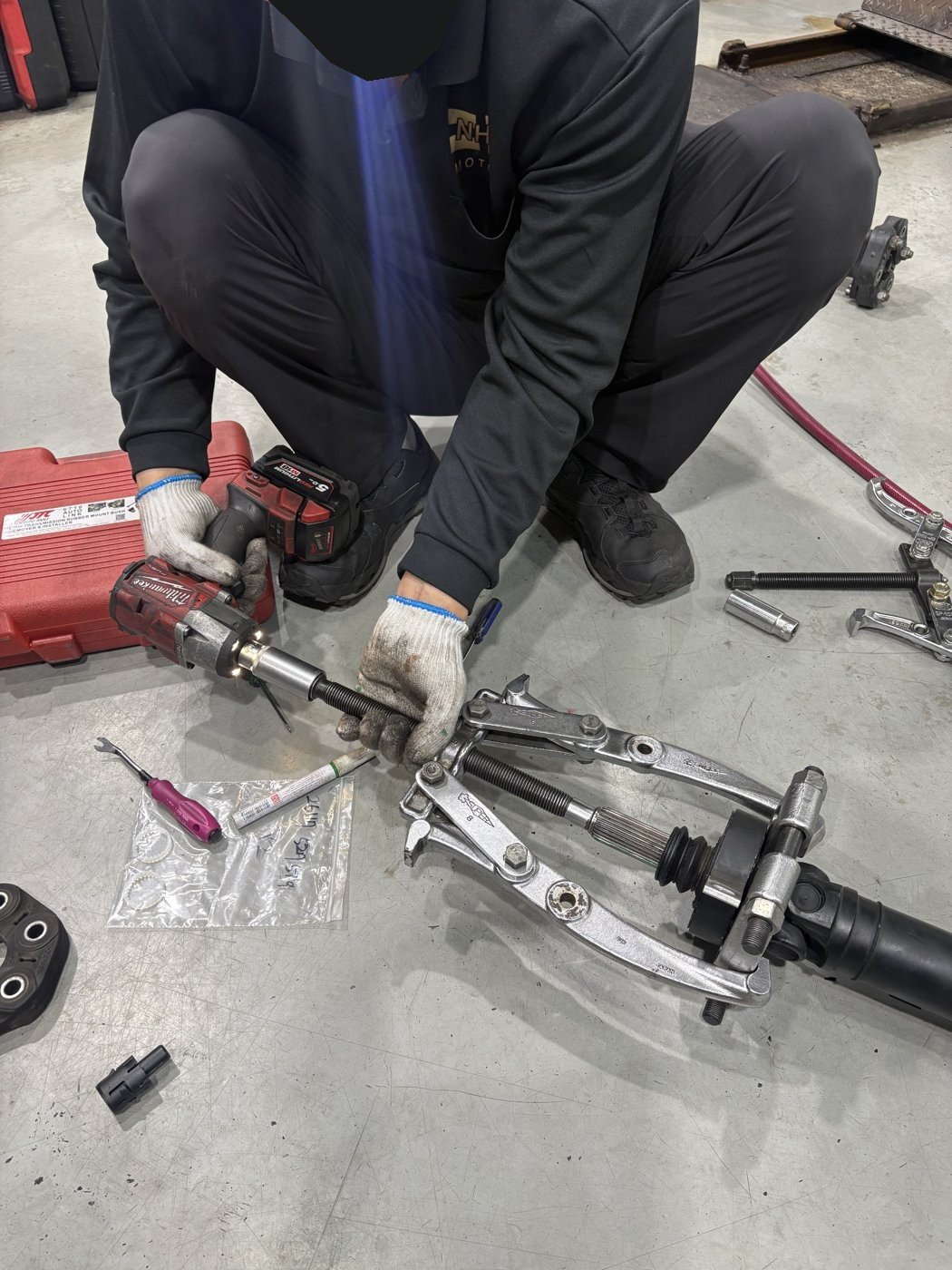

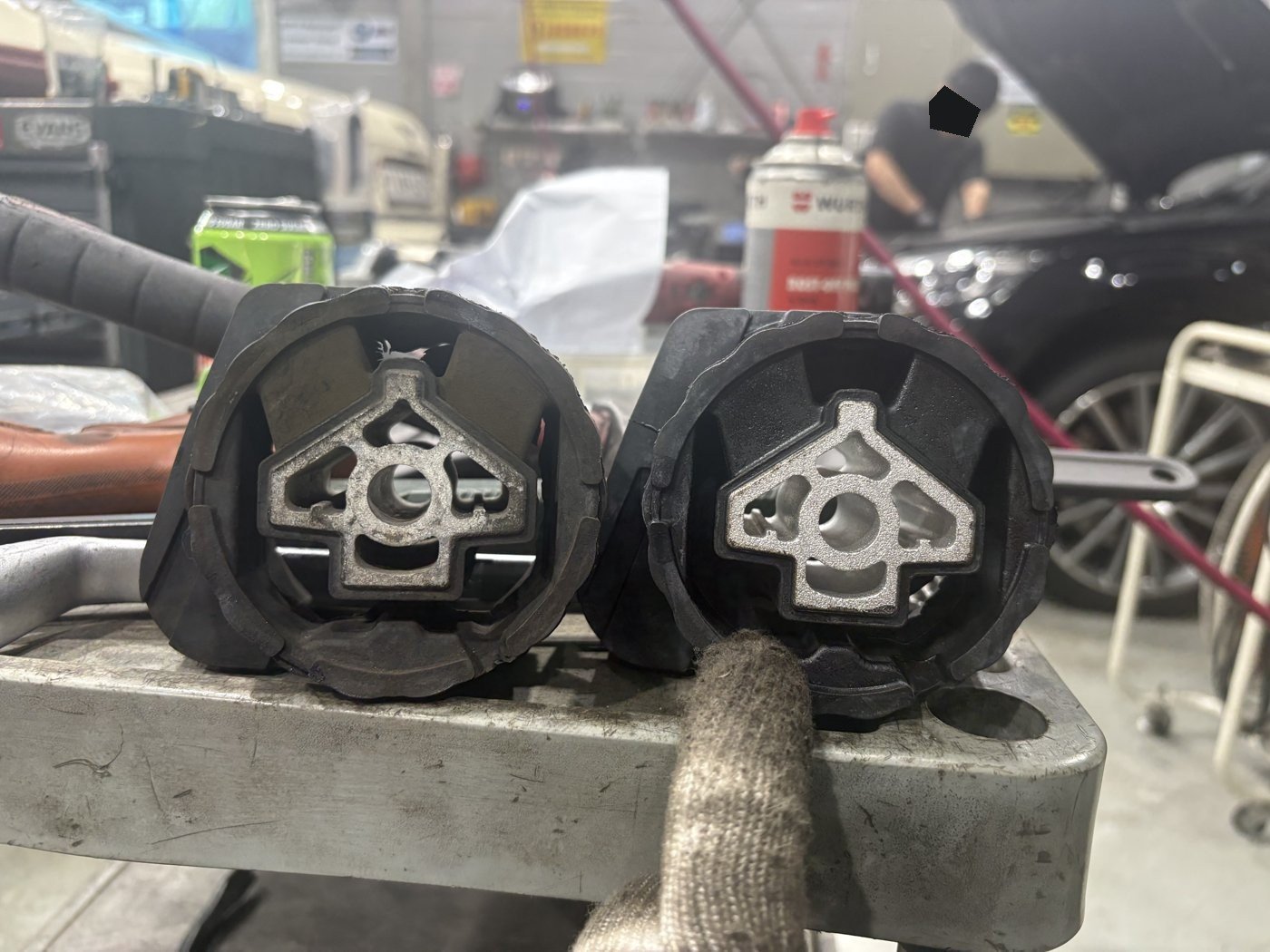

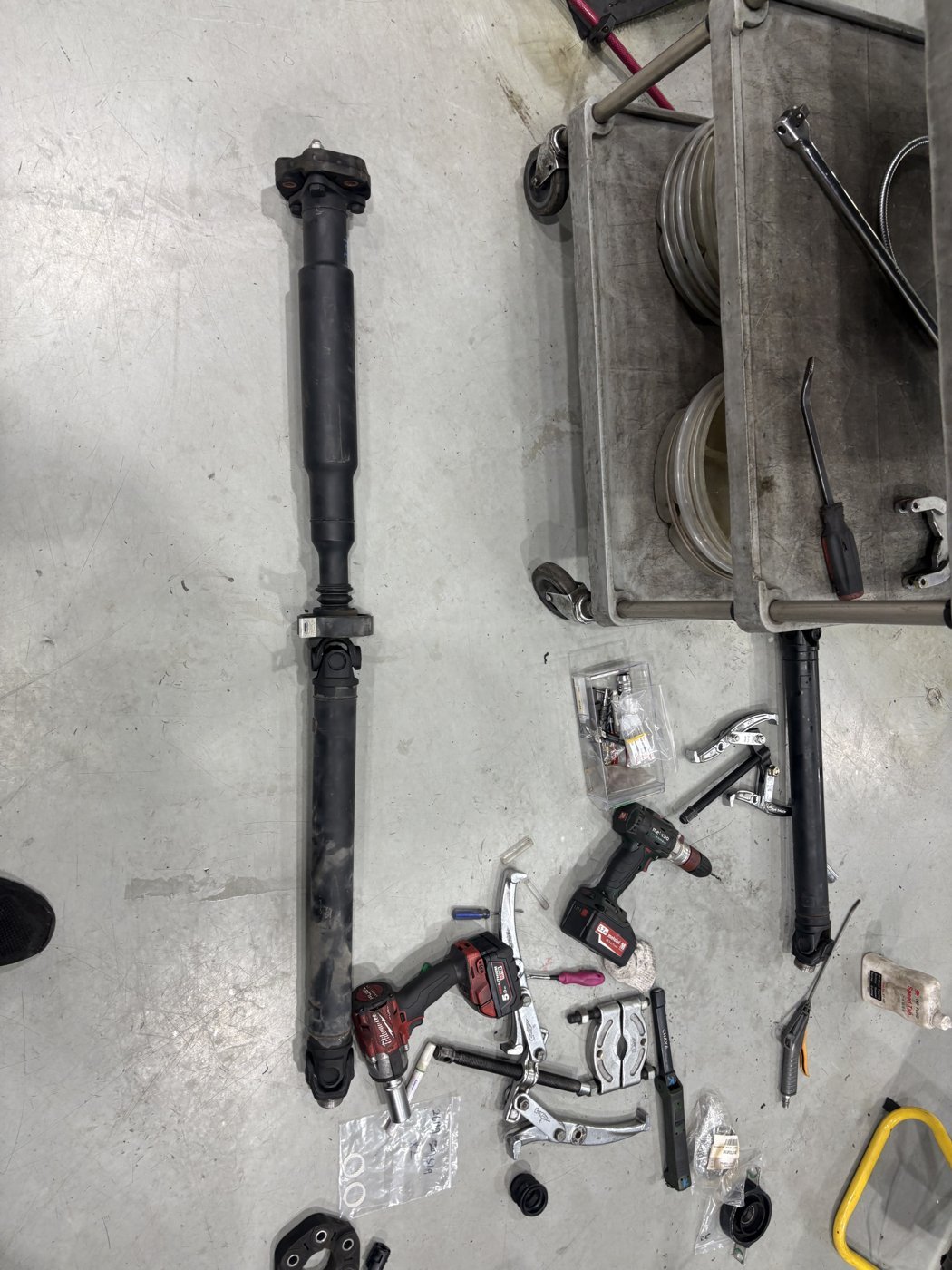

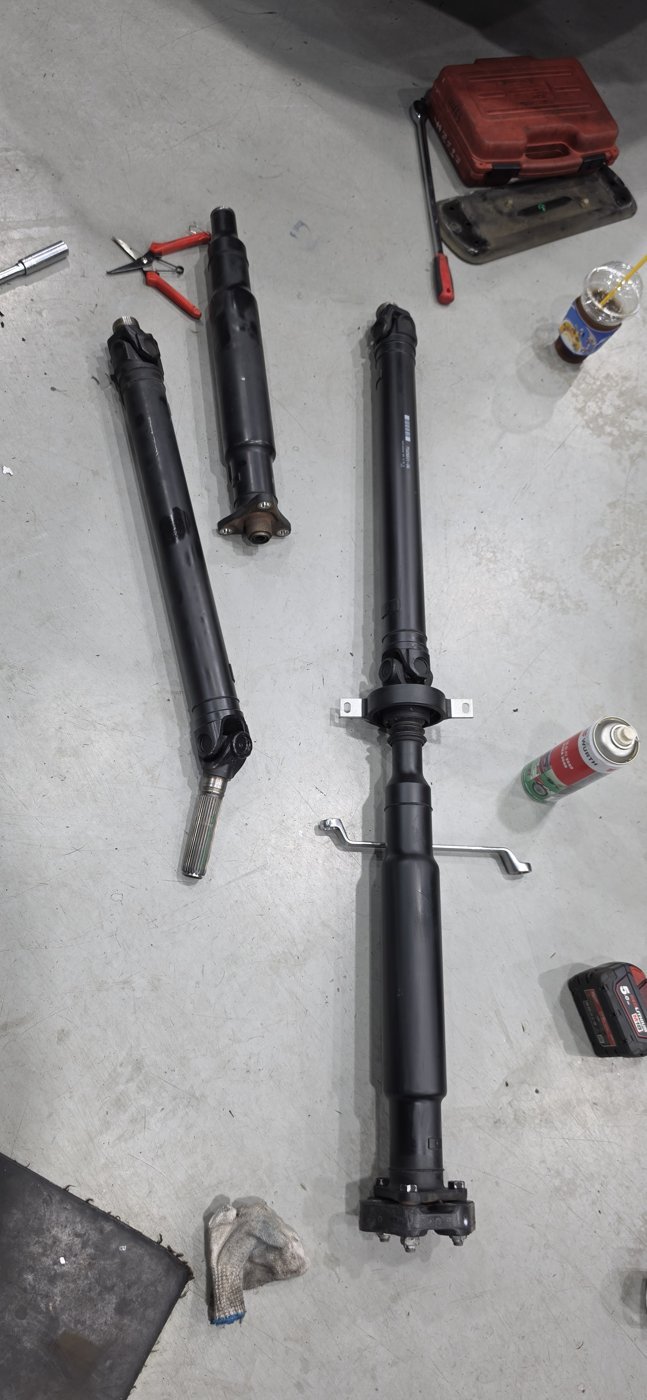

We lowered the propeller shaft from the car to reach its connections and centre support. After examining the removed shaft on the bench, we fitted a used replacement assembly. We compared the old and replacement rubber components and changed the transmission mount to an OE part.
The long shaft carries drive through its connections, while the centre support holds its middle section. The transmission mount supports the transmission and absorbs some of its movement and vibration. On this X3 we changed the cracked coupling, shaft and mount as separate parts of the job.
If a sound or vibration needs checking later, it helps to note whether it occurs under acceleration, on slowing down or at a steady speed. These different conditions can help locate the source.
03 / NHC MOTORS
Transfer-case oil was serviced too

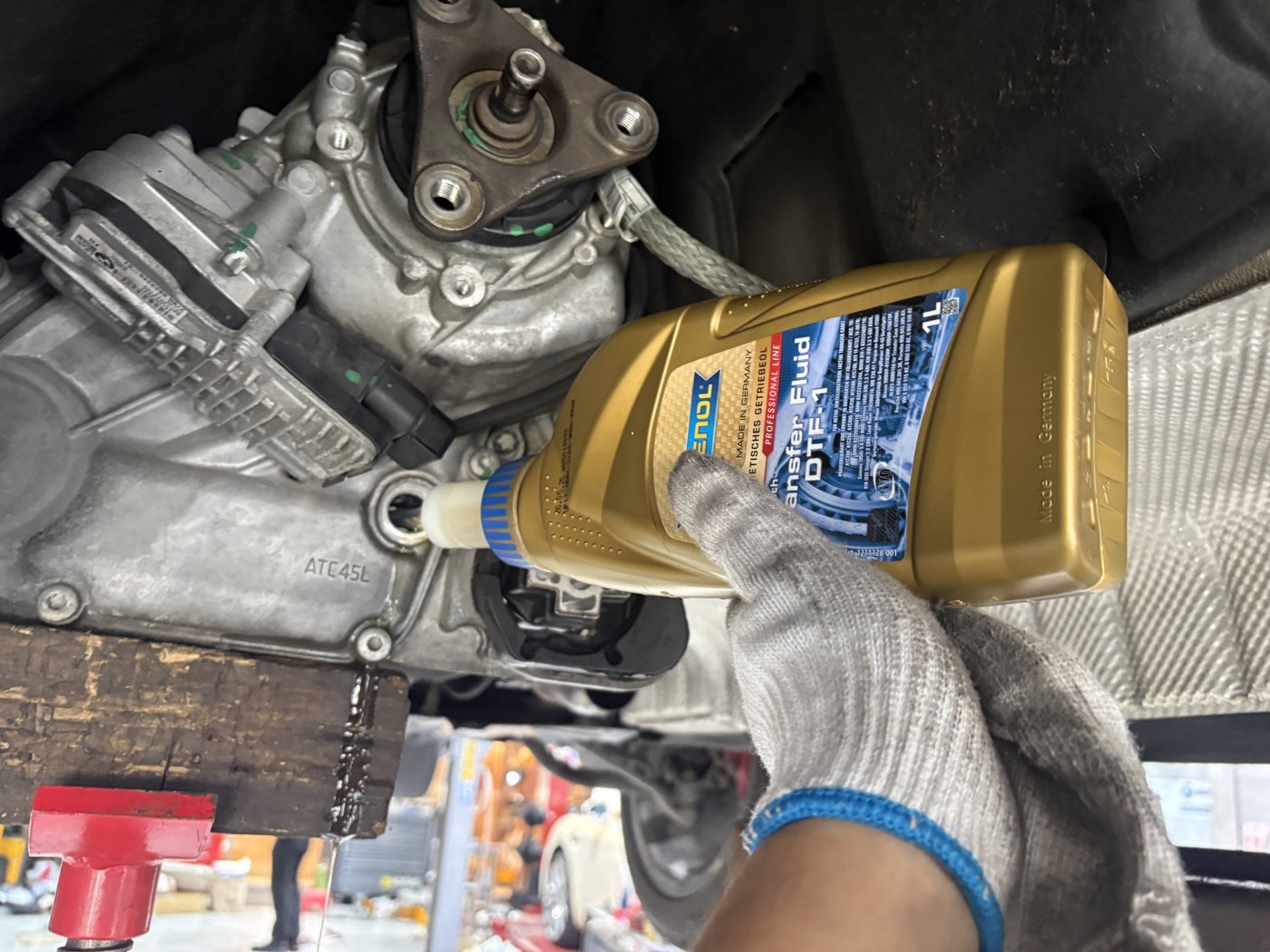

We filled the transfer case from beneath the car using RAVENOL ATC Transfer Fluid DTF-1. The transfer case divides drive between the front and rear axles and uses its own specified fluid.
The shaft, coupling and mount carry and support drive outside the transfer case; the oil protects the unit internally. Their replacement and service timings are not the same, so the earlier work history matters at the next check.
04 / NHC MOTORS
A separate visit on 18 August: air conditioning, rear springs and alignment

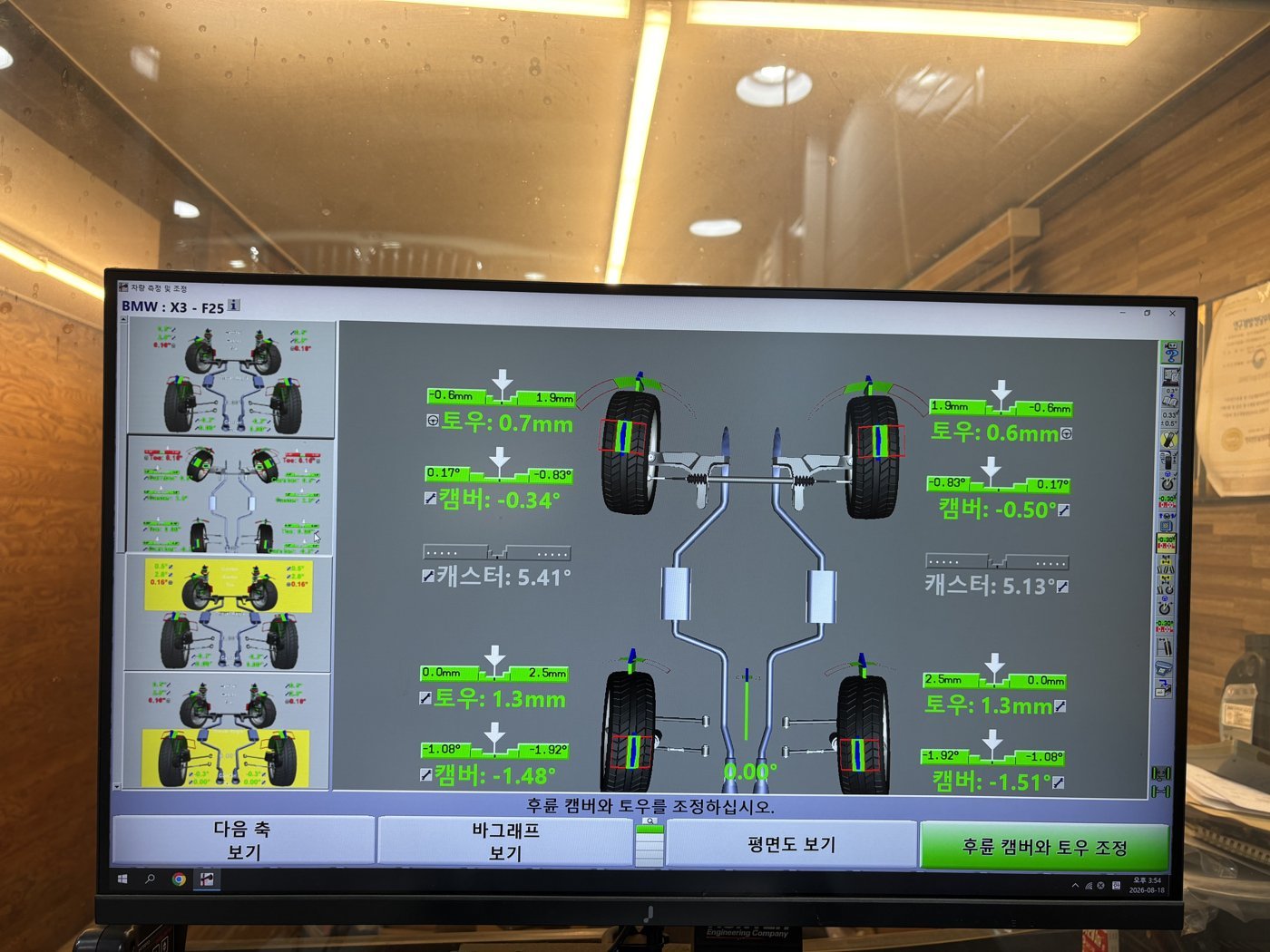

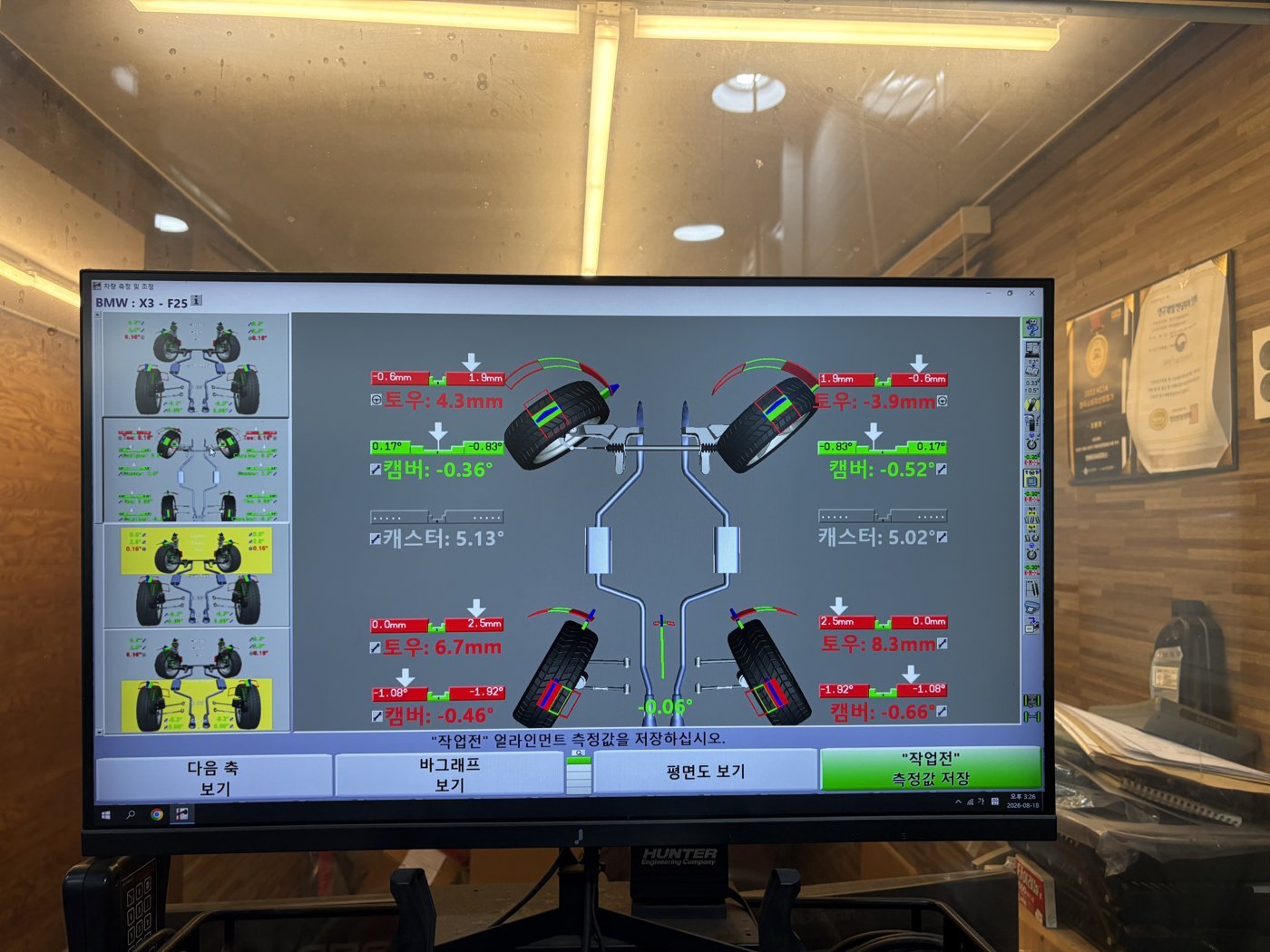

On the earlier 18 August visit, the air-conditioning compressor was replaced and new refrigerant charged. Both rear springs were changed to OE parts. The initial alignment screen showed front toe of 4.3mm left and -3.9mm right, and rear toe of 6.7mm and 8.3mm. A later screen showed 0.7/0.6mm at the front and 1.3/1.3mm at the rear.
The spring replacement and alignment on 18 August were a separate visit from the later propeller-shaft and transmission-mount replacement.
Separate parts and visits in this X3's service
Cracks around metal sleeves
Accessed after removing the shaft
DTF-1 fluid service
Separate 18 August visit: front 4.3/-3.9 → 0.7/0.6mm; rear 6.7/8.3 → 1.3/1.3mm
Frequently asked questions
What else is checked when the shaft coupling is cracked?
We examine the crack and fastening points, then the centre support and other nearby mounts. If there is vibration on the road, whether it occurs while accelerating, slowing or cruising helps guide the next check.
Are alignment and shaft repair the same job?
No. Alignment concerns the direction of the wheels; shaft repair concerns the parts carrying drive underneath the car. This X3's alignment was on 18 August. The shaft and mount work came on a later visit.
Does a car over 400,000km need every related part replaced?
Mileage is one factor, but the decision comes from the condition of each part and the service history. The cracks in this X3's coupling were visible.
Checking underbody noises and vibration on an X3
If you hear a sound or feel a vibration when pulling away or slowing down, book an inspection. We will examine the shaft coupling, support and transmission mount and explain what work is needed.
We explain the work and estimate before proceeding with your consent.
